L5570-A+B43 8FT Linkable LED CCT tunable channel light, ETL, FCC, TUV CE, CB, CCC certficates

Model L5570-A+B43
Detailed item code L5570-W+WW43
Power 43W
Operating temperature -20℃~+45℃
Storage temperature -40℃~+60℃
Certification ETL, FCC, CE, ROHS, CCC
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 8ft
Application Indoor
Installation way Pendant, Surface mounted
Protection grade IP40
Detail

Video

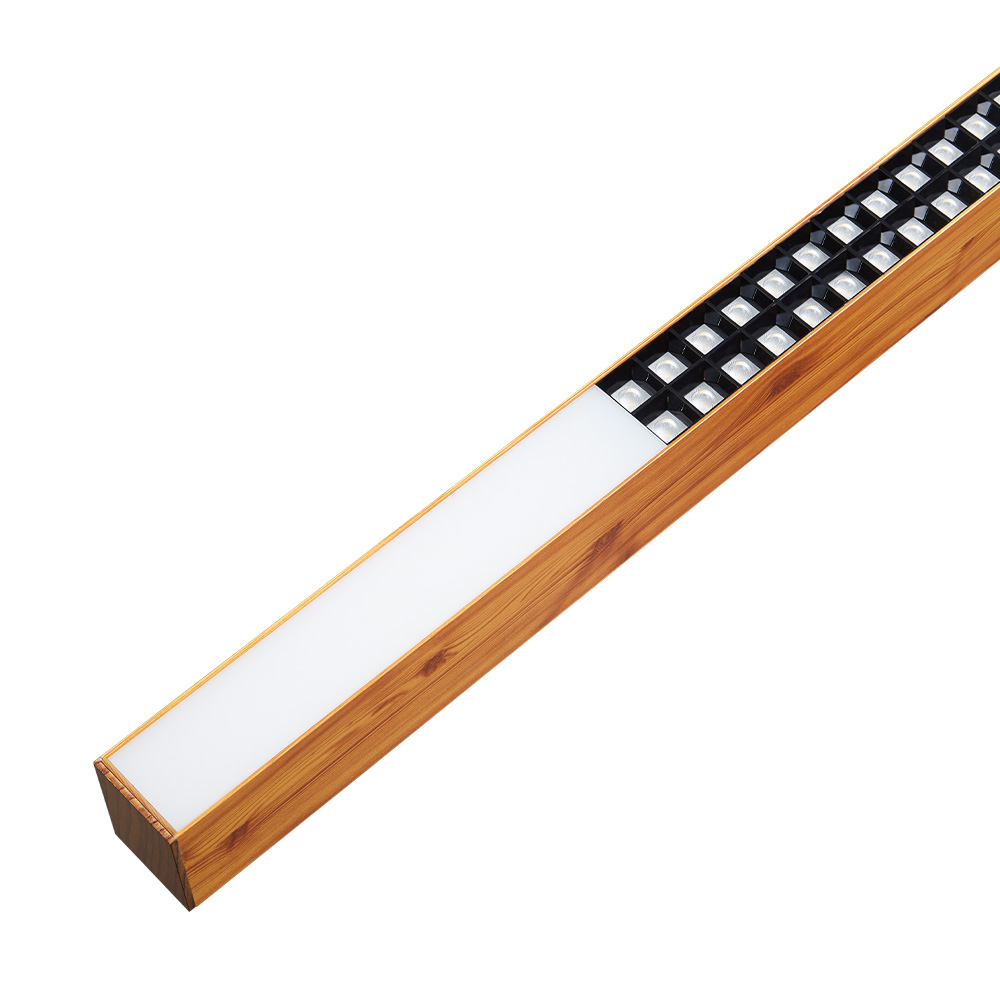

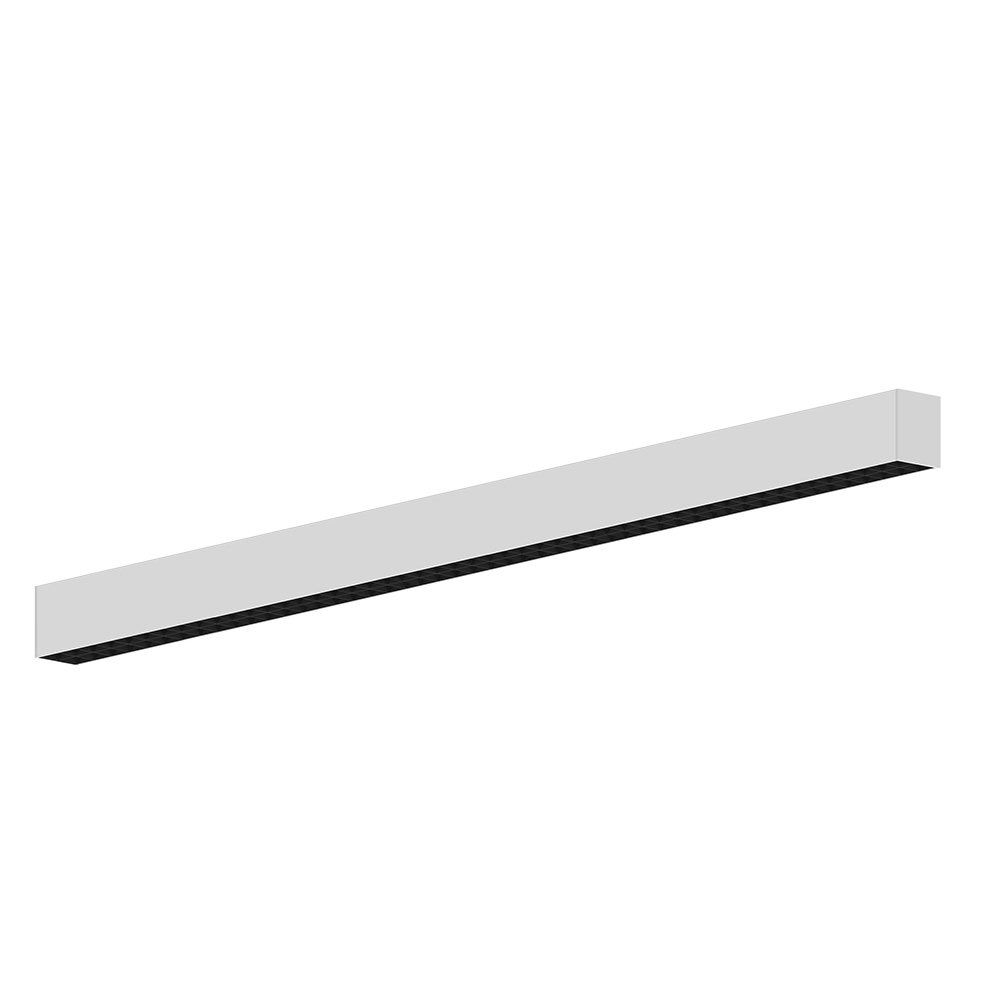

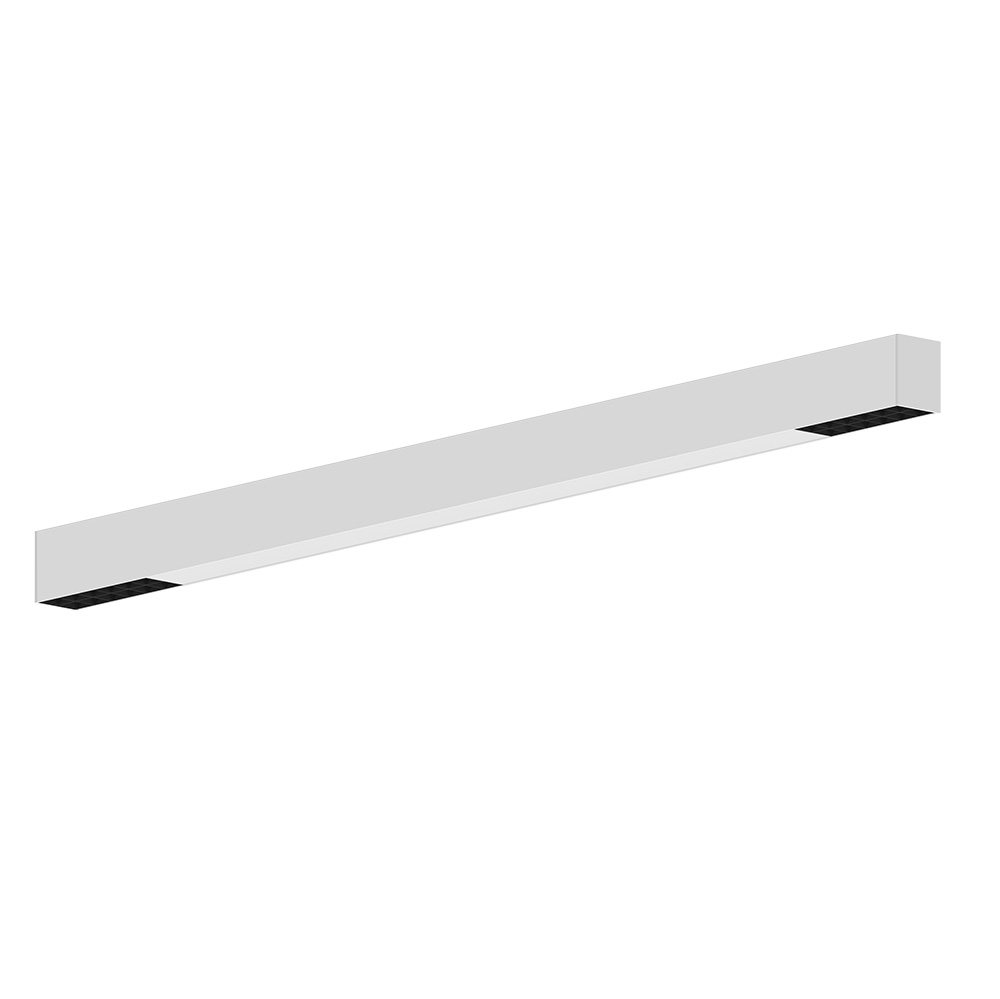

L5570-A+B43 8FT Linkable CCT tunable LED channel light

CCT tunable channel light fixture

L5570 CCT tunable LED channel light quick linkage series are launched by BlueVision LED whom is a LINEAR LIGHTING SOLUTIONS PROVIDER to achieve different shape designs with easy and quick linkage, these products redefined user experience of channel light through modularity design and quick assembly & installation, it broke the idea restriction of traditional lighting fixtures and complicated wiring of old versions linear light, achieve three quick: quick assembly, quick linkage, quick corner connection.


Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • RF 2.4G wireless control;

  • High lighting efficacy, save more energy;

  • CCT 2700K~6000K tunable;

  • Linear light fixtures could be linked to very long line but use only one set of AC cables;

  • Long lifespan > 50000 Hours;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC

Parameter:

  • Size:                                  2449mm (8.03ft) * 55mm (0.18ft) * 70mm (0.23ft)

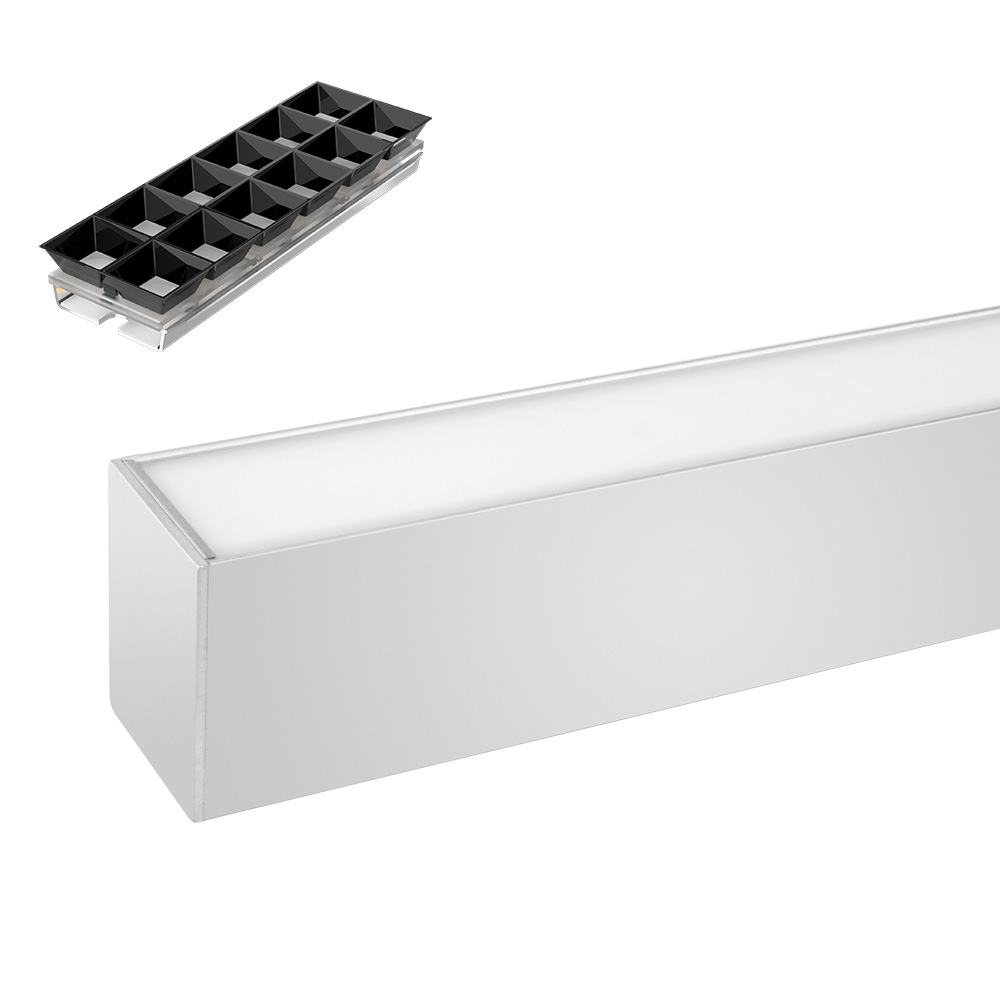

  • Cover:                               Planar diffusion mask / UGR (anti-glare)

  • Installation way:                Surface installation (pendant, ceiling mounting, wall mounting)

  • Profile Color:                     Silvery / White / Black

  • CCT:                                  2700k~6000k tunable or other CCT

  • Lumen:                             136~4500LM (17~563LM/ft)

  • Beam Angle:                     96° (PDM) / 83° (UGR)

  • CRI:                                  80+ / 90+

  • PF:                                    >0.9

  • IP Grade:                          IP40

  • Working Voltage:              100~240VAC / 50~60Hz

  • Dimming Range:              1~100%

  • Input Power:                     43w (5.3w/ft)

  • Lighting Efficiency:           100LM/w

  • Energy Efficiency:             A+

  • Operating Temperature:   -20~+45℃

  • Storage Temperature:      -40~+60℃
