L9086-A90 8FT Linkable LED linear light, ETL, FCC, TUV CE, CB, CCC certficates

Model L9086-A90
Detailed item code L9086-WW90
Detailed item code L9086-NW90
Detailed item code L9086-W90
Power 90W
Operating temperature -20℃~+45℃
Storage temperature -40℃~+60℃
Certification ETL, FCC, DLC, CE, ROHS, CCC
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 8ft
Application Indoor
Installation way Pendant, Surface mounted
Protection grade IP40
Detail

Video

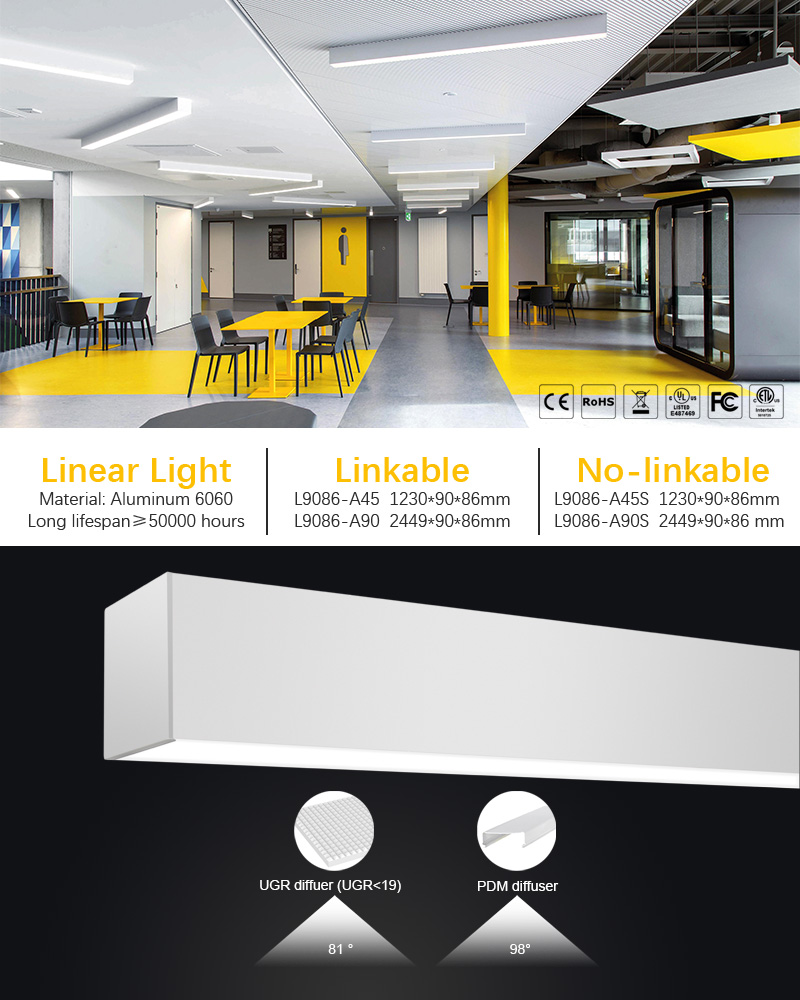

L9086-A90 8FT Linkable LED linear light

L9086 linkable led linear light

L9086 LED linear light quick linkage series are launched by BlueVision LED whom is a LINEAR LIGHTING SOLUTIONS PROVIDER to achieve different shape designs with easy and quick linkage, these products redefined user experience of linear light through modularity design and quick assembly & installation, it broke the idea restriction of traditional lighting fixtures and complicated wiring of old versions linear light, achieve “three quick”: quick assembly, quick linkage, quick corner connection.


Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Linear light fixtures could be linked to very long line but use only one set of AC cables;

  • Long lifespan > 50000 Hours;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC

Parameter:



Item NO.     L9086-A90
Size     2451mm (8.03ft) x 90mm (0.30ft) x 86mm(0.28ft)
Power     90W (11.3w/ft)
Lumen     9430~10000lm (1178~1250lm/ft)
Cover     PDM (98°) / UGR (81° UGR<19)
CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Recessed
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
