S5050L72V12
Model: S5050L72V12
Drive mode: Constant voltage
Detailed model: S5050L72V12WW27K8IP20-10
Detailed model: S5050L72V12WW30K8IP20-10
Detailed model: S5050L72V12NW40K8IP20-10
Detailed model: S5050L72V12W60K8IP20-10
LED type: SMD5050
LED quantity: 72LEDs/meter
FPC width: 10mm
Cutting unit: 13.9mm
Input voltage: DC12V
Power: 17.3w/meter
Rated current: 7.2A/5 meters
Standard CCT: 2700K 3000K 4000K 6000K R G B Y
Working time: 50000 hours
Operating Temperature: -20℃~+45℃
Storage temperature: 0℃~+60℃
Environment humidity: 40~70% RH
Protection grade: IP20, IP55, IP65, IP66, IP67, IP68
Certification: UL E487469, CE, ROHS
Corner connection: LED strip
Details

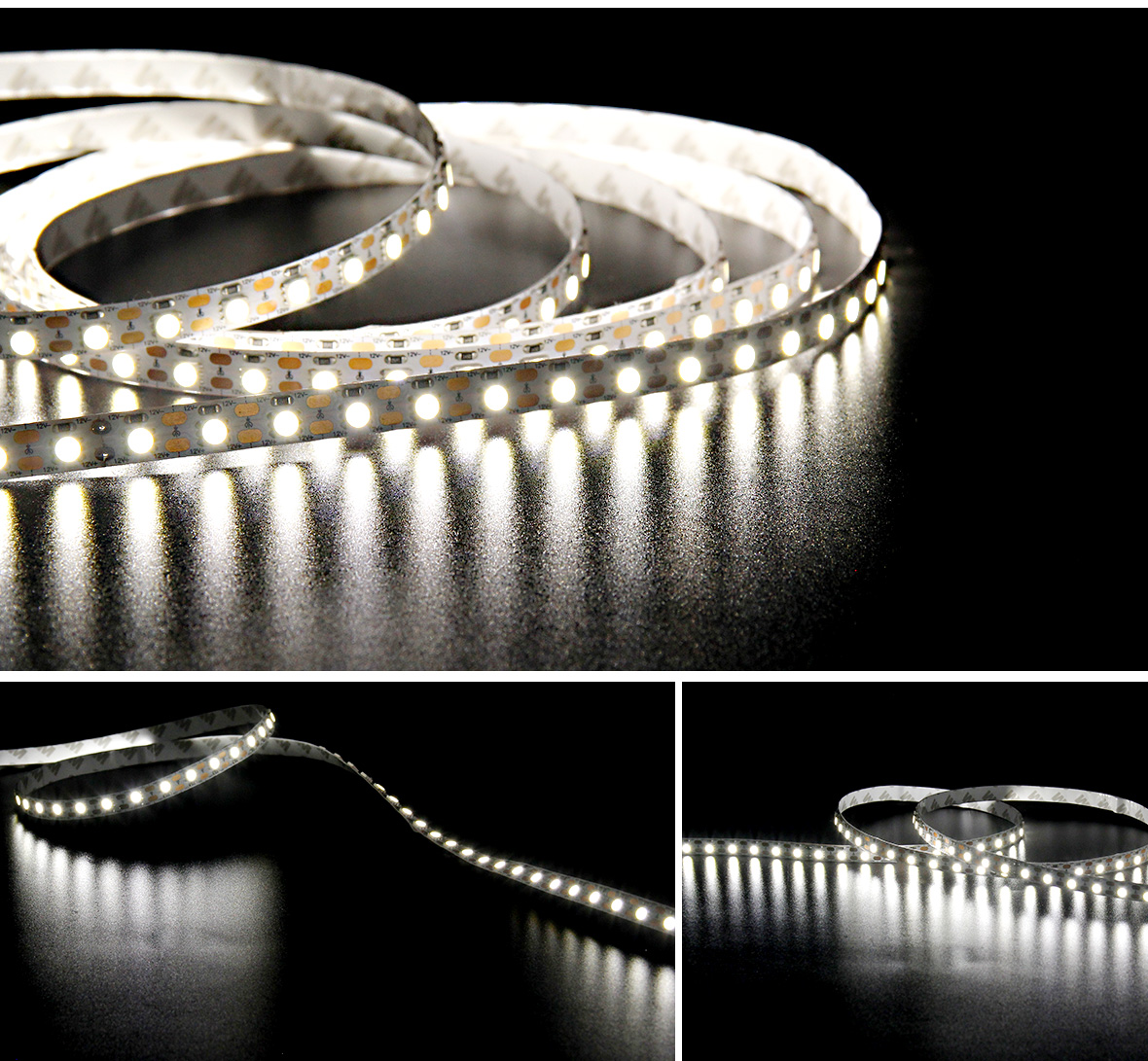

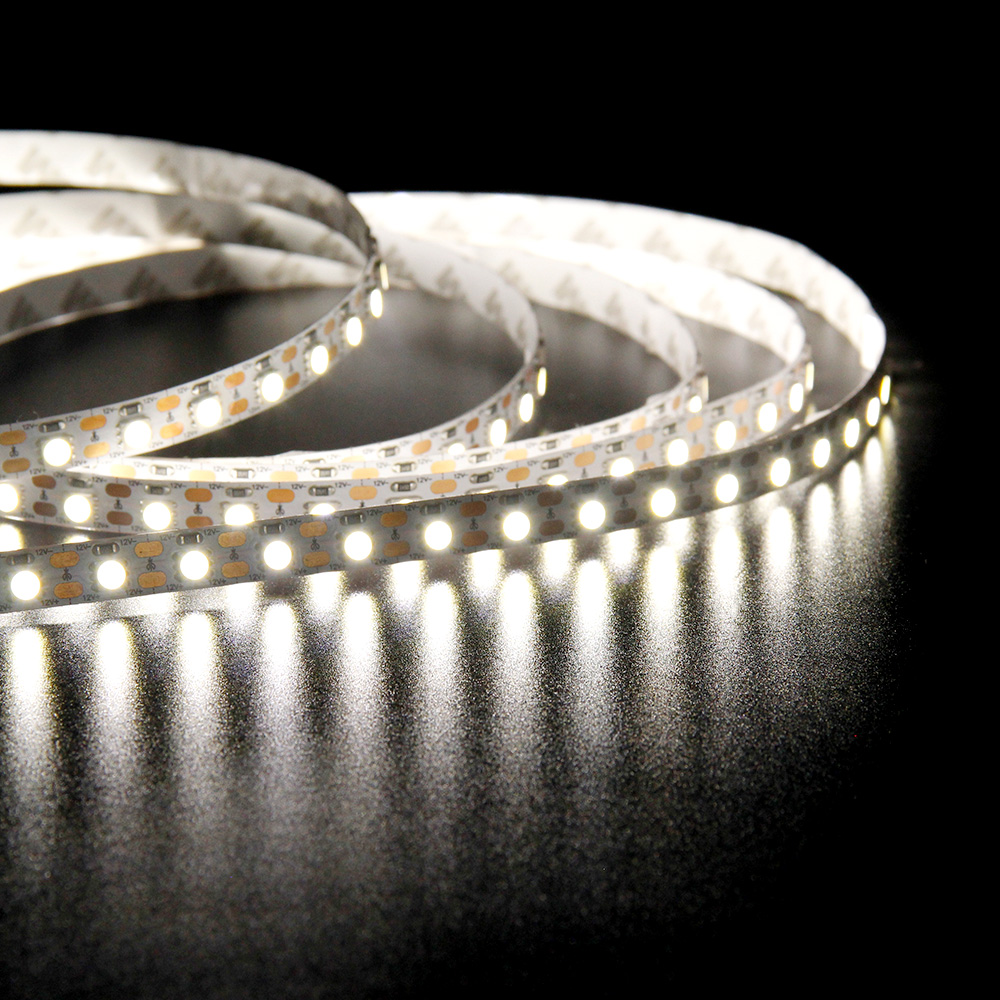

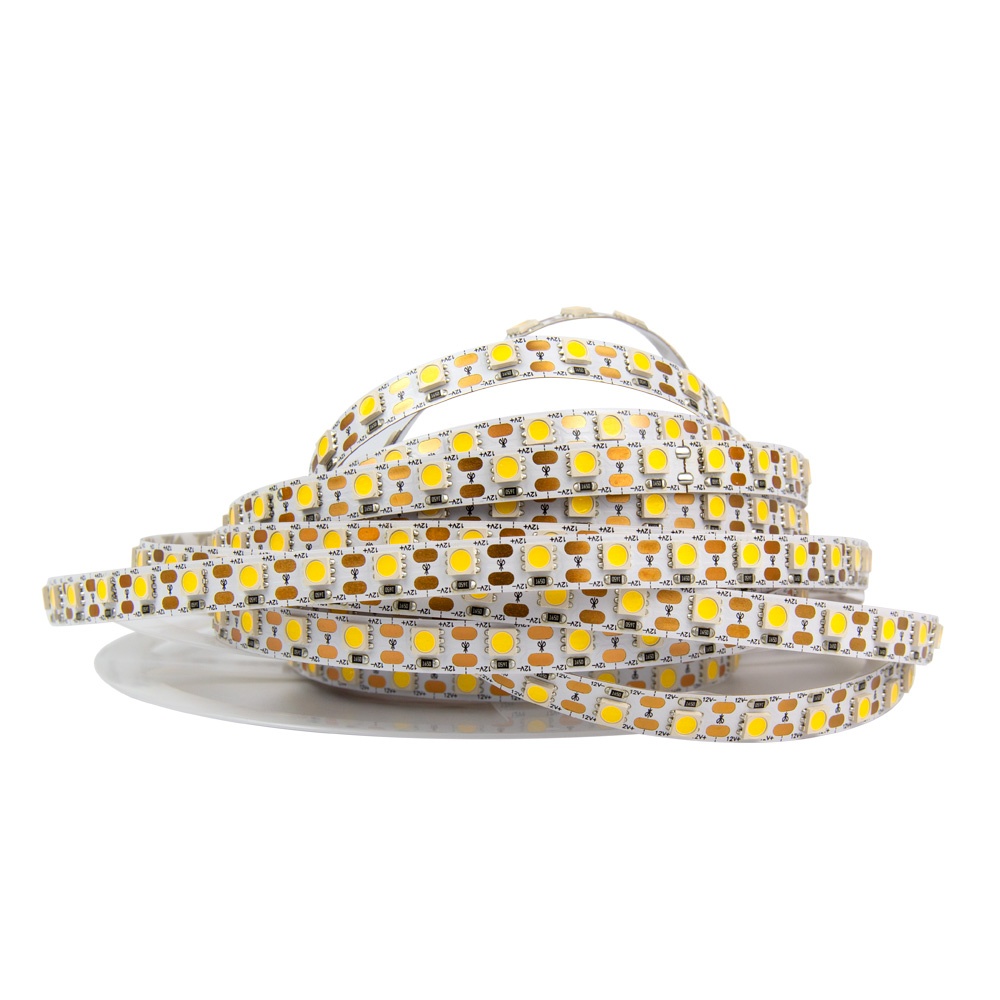

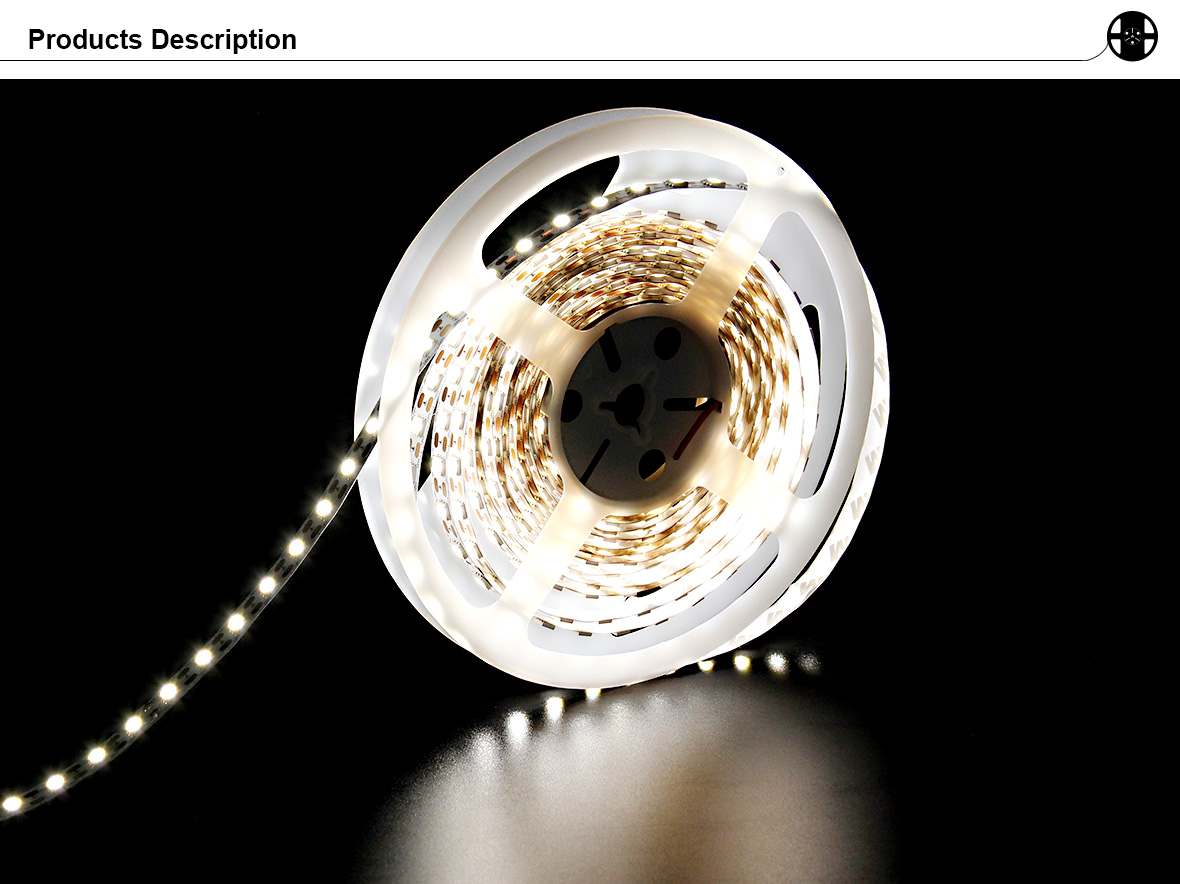

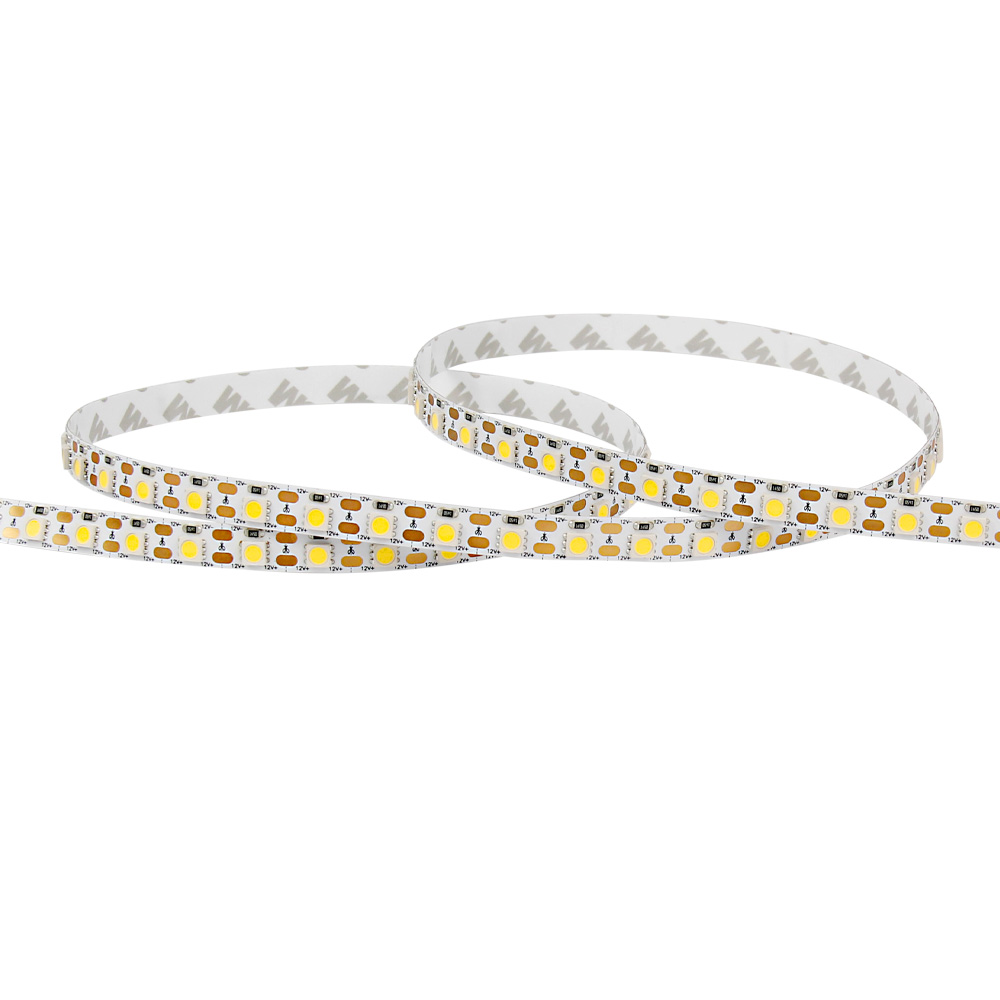

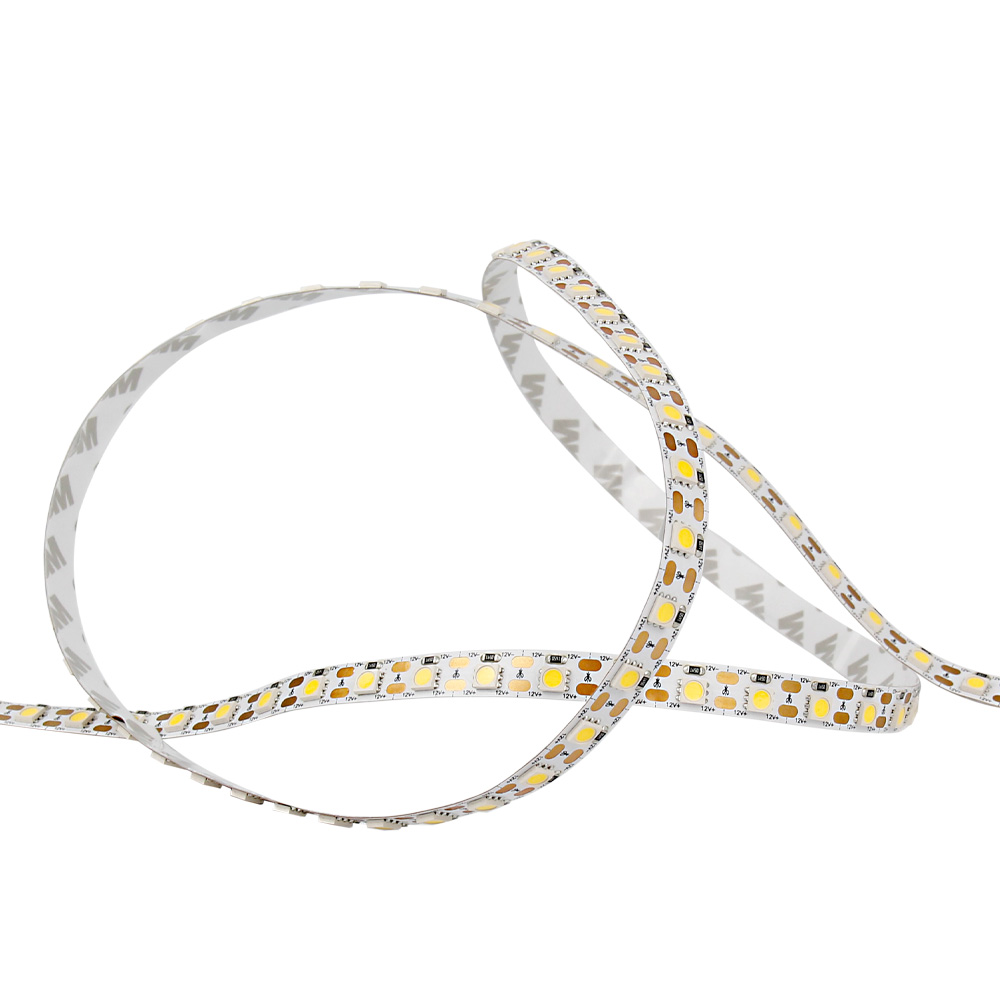

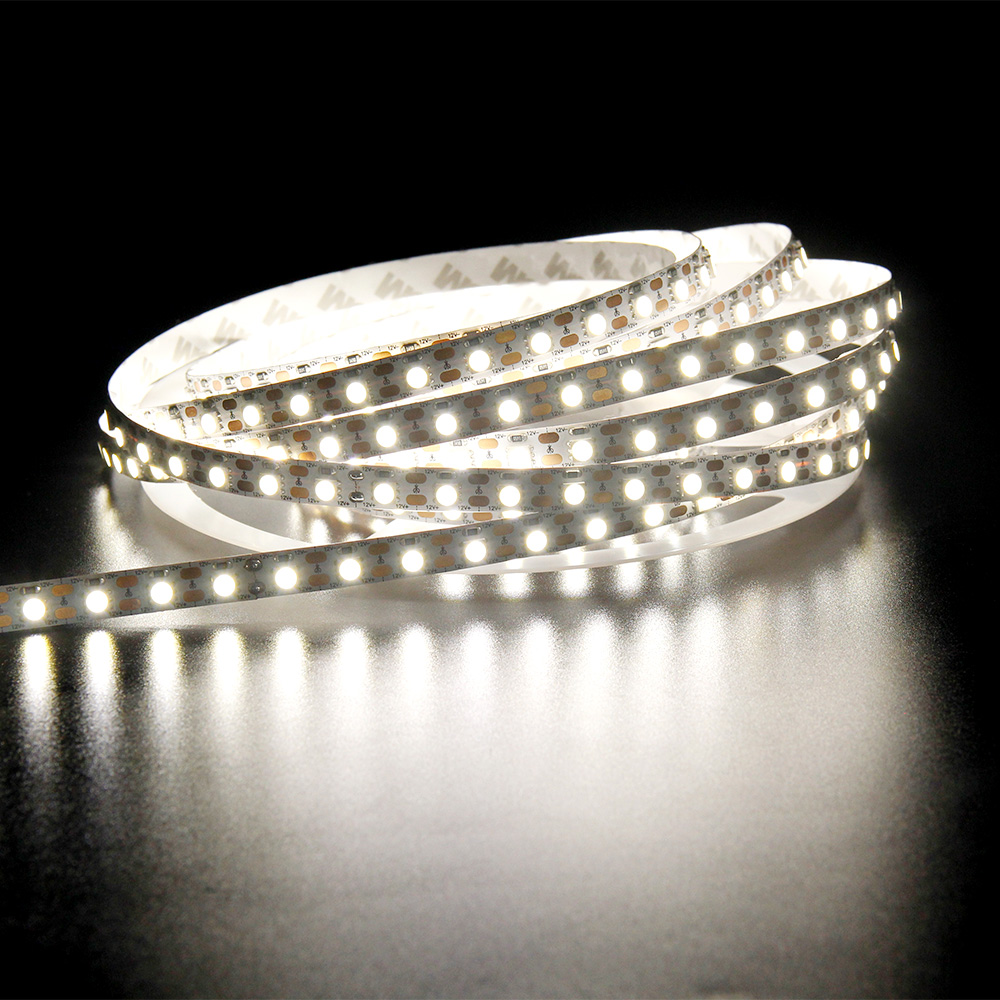

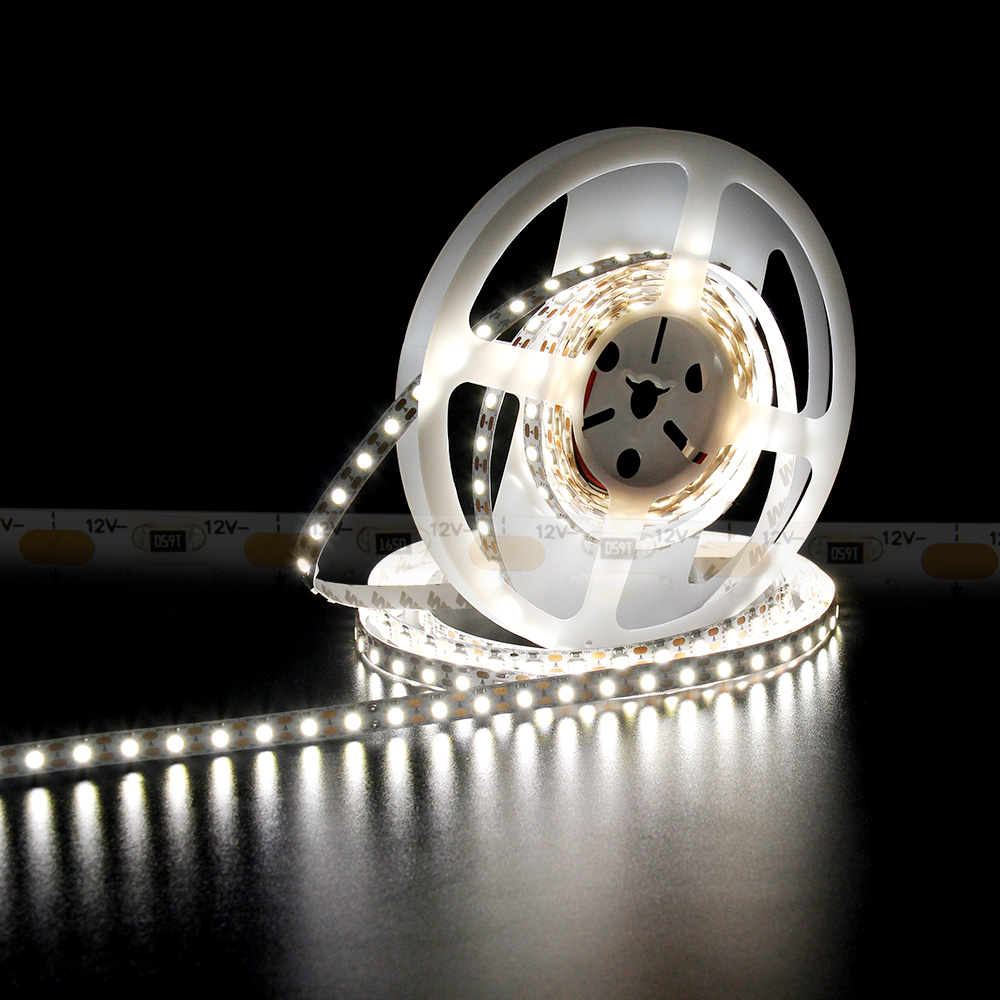

S5050L72V12 IMAGE

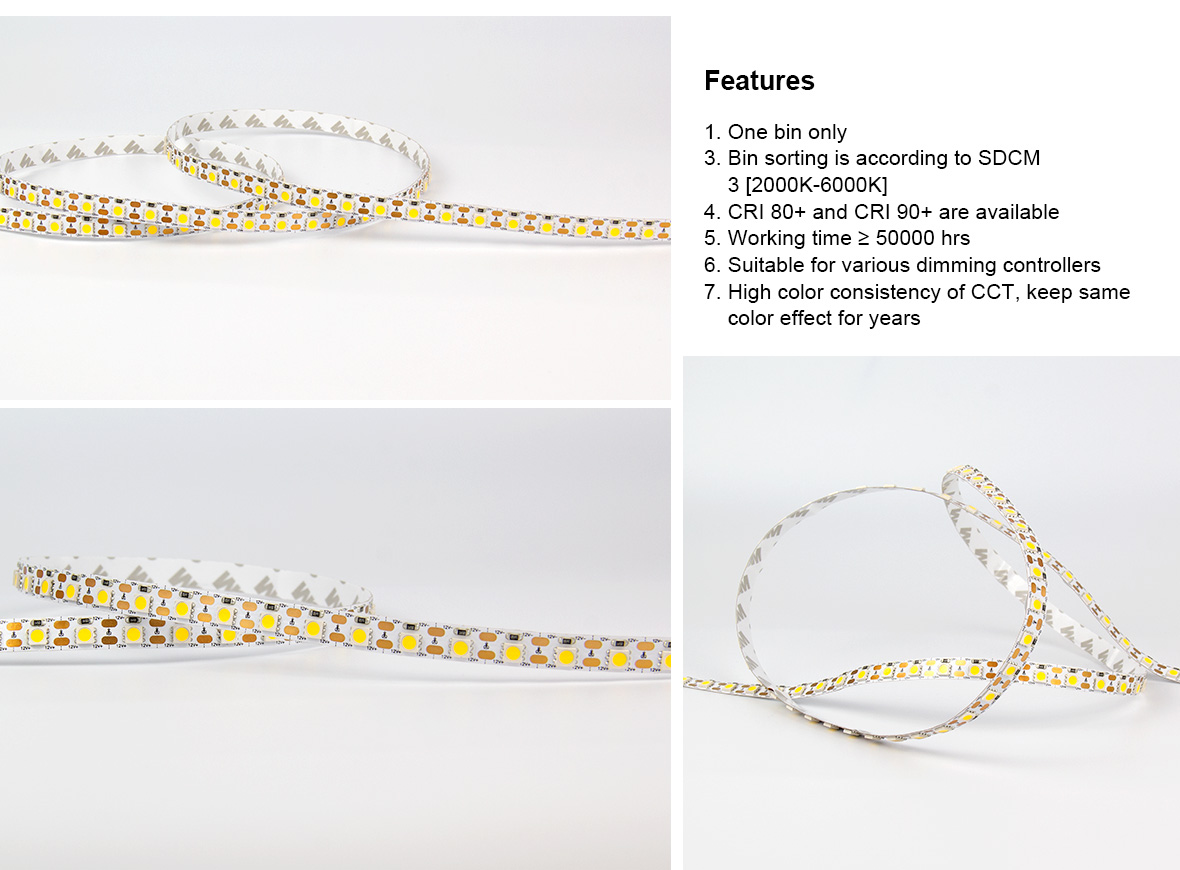

FeaturesBV standard product
  • LED strip (LED ribbon, tape light): Highlight SMD5050 + FPC

  • Help to set up an energy conservation, flexible and multifunctional home lighting,

    the architecture quality led strips with the features of low power, high brightness,

    high light efficiency, high CRI and high waterproof, various of connection accessories

    and dimming control systems are for choice.


  • CRI80+/90+


  • High brightness 1600~1800lm/m (488~549lm/ft)

Parameter
  • Light efficiency up to 100lm/W

  • Input voltage

  • 12Vdc


  • Precise cutting 13.9mm/unit (0.046ft/unit)

  • Beam angle

  • 120°


  • Waterproof: IP20~IP68

  • CCT

  • 2700K/3000K/4000K/6000K (2300K/3500K/5000K)


  • Working time≥50000H

  • CRI

  • 80+/90+


  • Suitable for various dimming controllers

  • Power

  • 14.4W/m (4.4W/ft)


Standard CCT

  • Brightness

  • 1600~1800lm/m (488~549lm/ft)


CCT AND COLOR RANGE
  • Length / reel

  • 5M (16.4ft)


  • Cut length

  • 13.9mm/unit (0.046ft/unit)


Narrow spectrum
  • IP grade

  • IP20/IP55/IP65/IP66/IP67/IP68

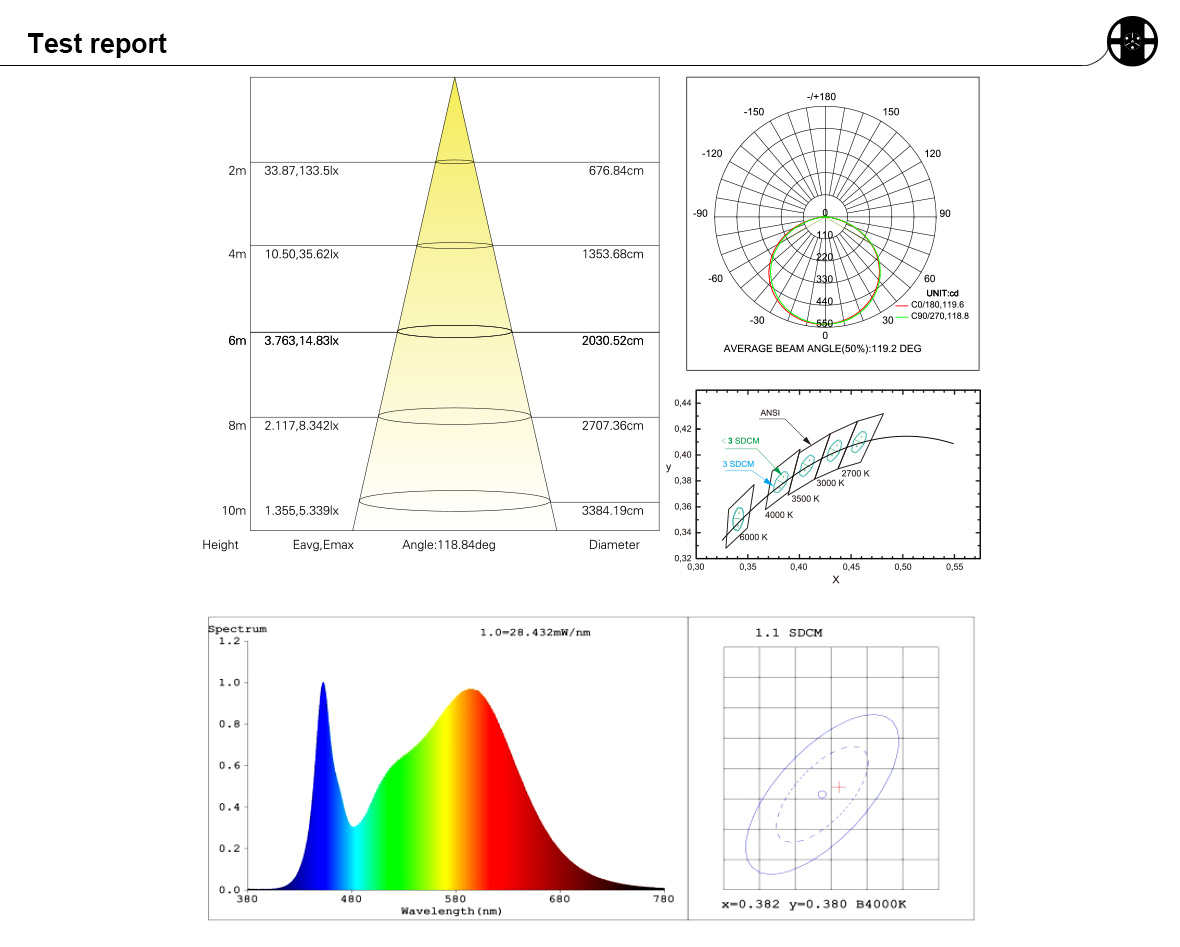

 Test report

  • Impressive color consistency within 3 Step MacAdam

    over each individual LED,One Bin Only


Various waterproof solution
IP GRADE










Dimension

Power&Lumen

  • 17.3w/m (5.2w/ft): 2700K-1609LM/m (490LM/ft); 3000K-1657LM/m (505LM/ft); 4000K-1784LM/m (544LM/ft); 6000K-1766LM/m (538LM/ft)


  • 2300K-1450LM/m (442LM/ft); 3500K-1700LM/m (518LM/ft); 5000K-1700LM/m (518LM/ft)


  • R-120LM/m (37LM/ft); G-1150LM/m (350LM/ft); B-300LM/m (91LM/ft); Y-118LM/m (36LM/ft)


Optional accessories
BV-SL10BB-2

IP20-10mm single color

for 30 ~ 120LED/m

BV-SL10XB-2

IP20-10mm single color

for 30 ~ 120LED/m

Splice Connector

L Snap connector

T Snap connector

X Snap connector

IP20-10mm single color

BV-SE-N10XB-2

IP20/IP55-10mm single color

for 30 ~ 120LED/m

BV-SE-N10BB-2

IP20/IP55-10mm single color

for 30 ~ 120LED/m


BV-XC-JXD-H2

DC/AC Max 300V 10A

for 18 ~ 22AWG

BV-XC-JXD-T2

DC/AC Max 300V 10A

for 18 ~ 22AWG

BV-XC-JXD-D2

DC/AC Max 300V 6A

for 18 ~ 22AWG

Connectible

BV-XC-PD-1T02

DC/AC Max 300V 6A

for 18 ~ 22AWG

Compatible with BV-XC-JXD-D2,  1 for 2 connector


Triac dimming
0-10V dimming
Smart dimming
