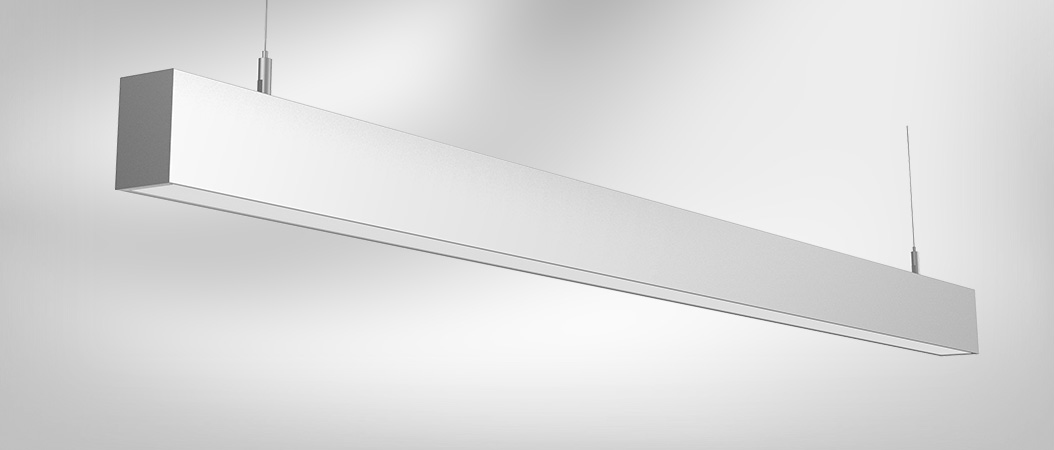

LED Linear Light Fixture / LED Channel Light Fixture
Certificates: ETL, CE (TUV Rheinland), CB (TUV Rheinland), CCC
Application: Commercial Lighting, Industrial Lighting, Office Lighting, Residential Lighting, Education Lighting, Outdoor Lighting, etc
Installation: Pendant, Ceiling Mounted, Recessed, Wall Mounted
Dimming: 0~10V / PWM / RX / DALI / Smart
Diffuser: PC Plain Diffuser / UGR anti-glare Diffuser (UGR<19) / Grille Light (UGR<12)
Surface Color: Silvery / White / Black / Other Customized Color
Length: 4FT / 1.2M / 6FT / 1.8M / 8FT / 2.5M / Other Customized Length

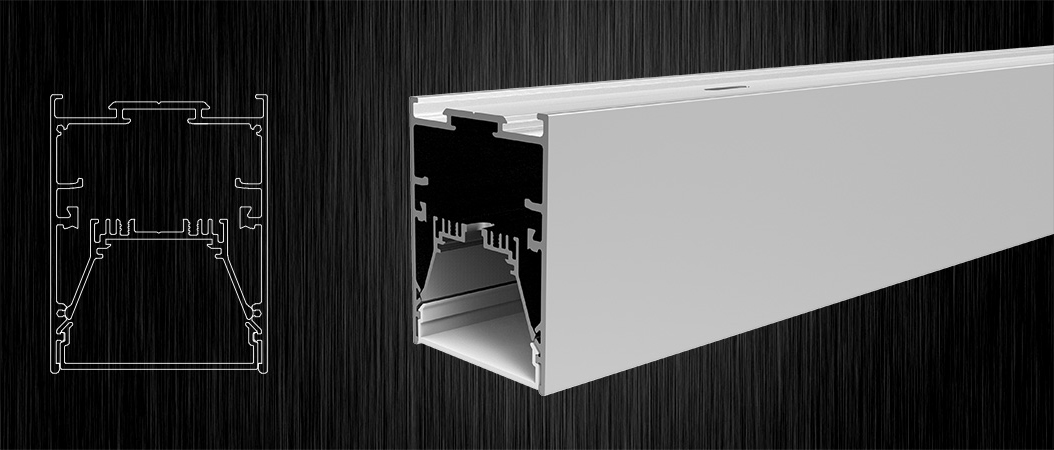

LED Linear Profile / LED Aluminum Profile
Material: 6063-T5 Aviation Grade Aluminum Alloy
Installation: Pendant / Ceiling Mounted / Recessed / Wall Mounted
Split Joint: L Shape / T Shape / X Shape / Rectangle / Square / Prismatic / Polygon / Arc, etc
Diffuser: PC Plain Diffuser / UGR anti-glare Diffuser (UGR<19) / Grille Light (UGR<12)
Surface Color: Silvery / White / Black / Other Customized Color
Length: 4FT / 1.2M / 6FT / 1.8M / 8FT / 2.5M / Other Customized Length

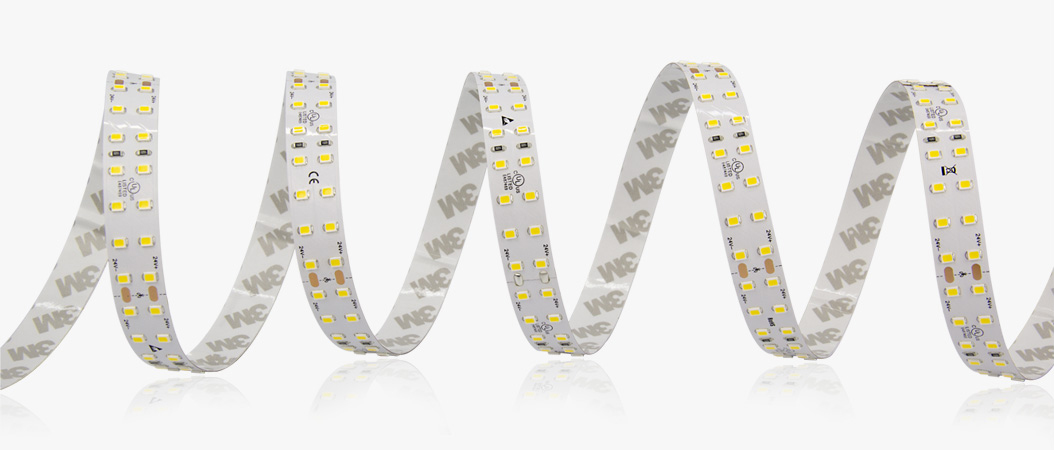

LED Strip Light / LED Tape Light / LED Ribbon Light
Certificates: UL, CE (TUV Rheinland), CB (TUV Rheinland)
Application: Commercial Lighting, Industrial Lighting, Office Lighting, Residential Lighting, Education Lighting, Outdoor Lighting, etc
Type: SMD2835 LED Strip / SMD2216 LED Strip / SMD3528 LED Strip / SMD5050 LED Strip / SMD3014 LED Strip, etc
CCT: 2700K / 3000K / 4000K / 5000K / 6000K / Other Customized CCT
Waterproof: IP20 / IP55 / IP65 / IP66 / IP67 / IP68
FPC Width: 4mm / 5mm / 6mm / 8mm / 10mm / 12mm/ 15mm / 19mm / 24mm / 30mm / 36mm/ 40mm/ 58mm

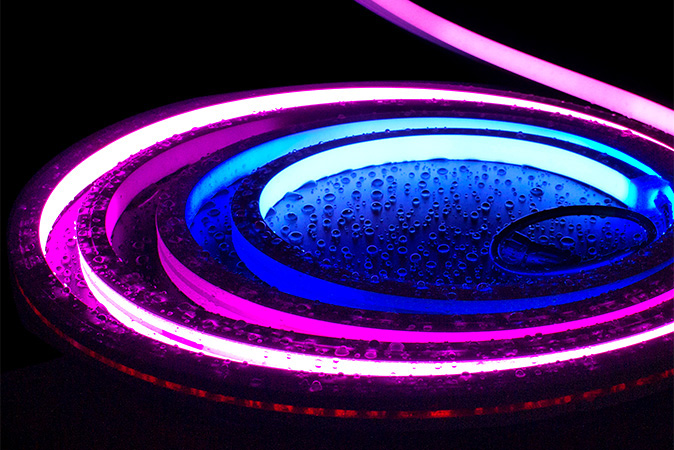

LED Neon Light / LED Neon Strip
Emitting Way: Top Emitting / Side Emitting / DMX512 RGB Running LED Neon
Bending: Top bend, side bend, top&side bend (3D)
Connection: Solder / Solder-free connectors
Application: Indoor / Outdoor
Waterproof: IP67

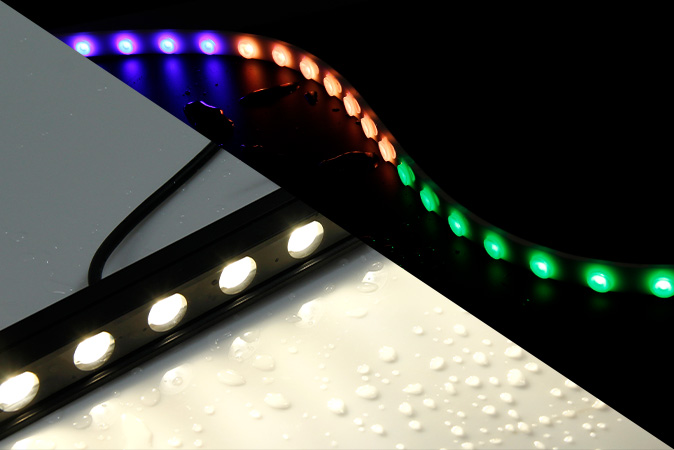

LED Wall Wash Strip / LED Wall Wash Light
Wash Strip: Indoor / Outdoor
Beam angles: 30° / 25×45°
Waterproof: IP65 / IP67
Wash Light: Could be long time outdoor
Beam angles: 10° / 20° / 45° / 20x45°
Waterproof: IP67

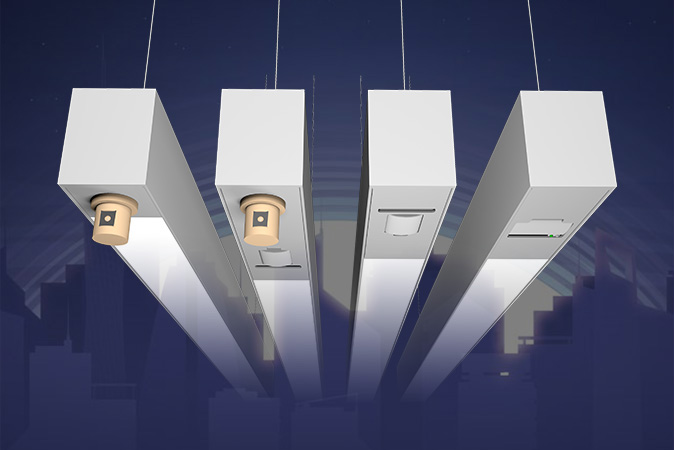

LED Smart Sensor / Daylight Sensor
Working Method: Microwave Sensor, infrared ray
Dimming way: 1~10V
Color: Silvery / White / Black

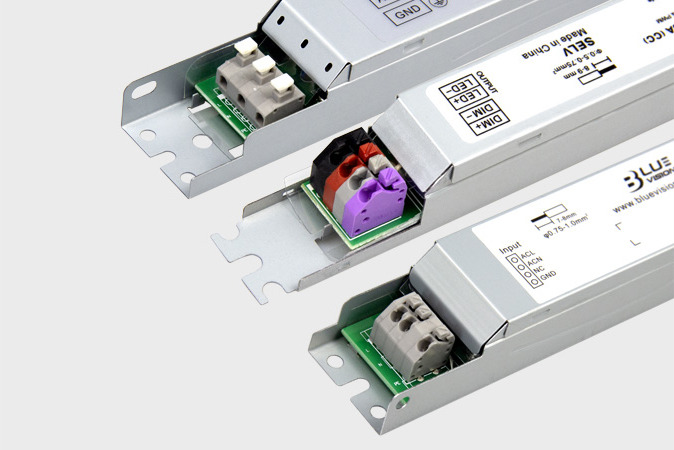

LED Linear Driver / LED Power Supply
Power: 30W / 60W / 96W
Input Voltage: 100~277VAC
Output Voltage: 24VDC
