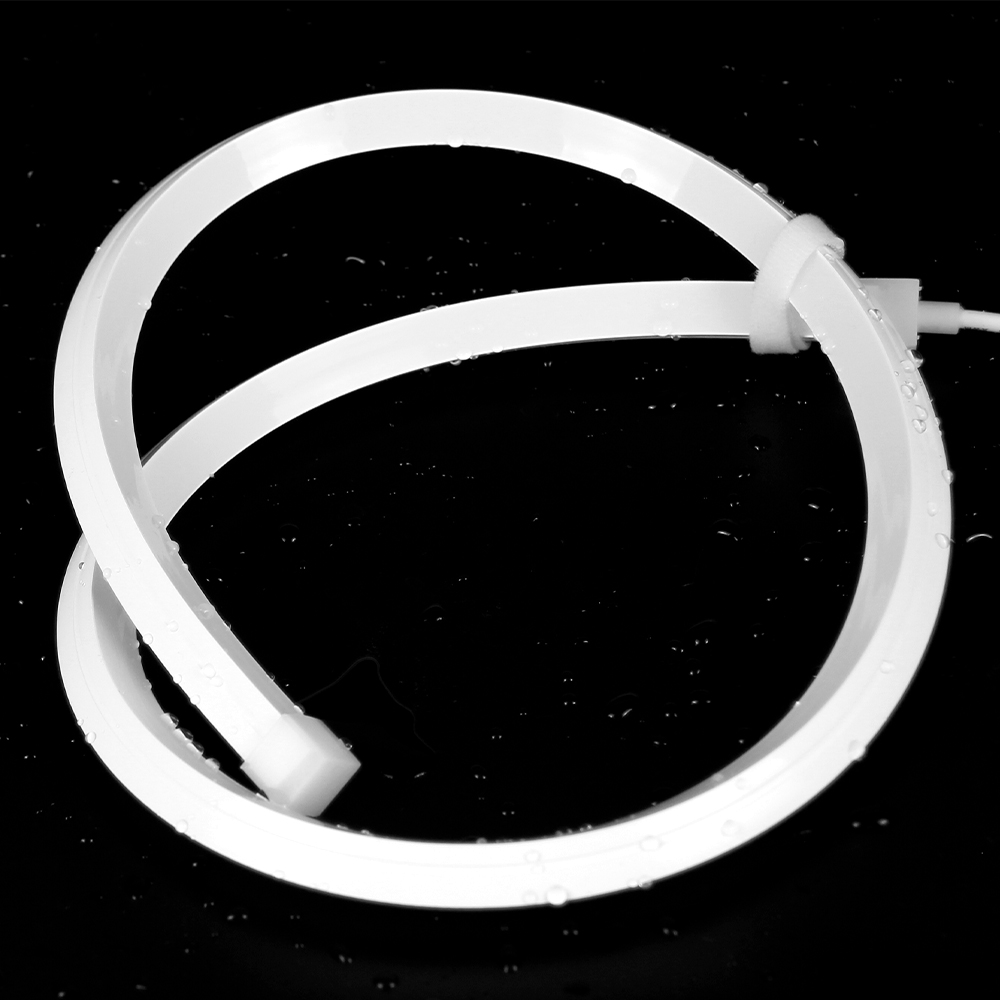

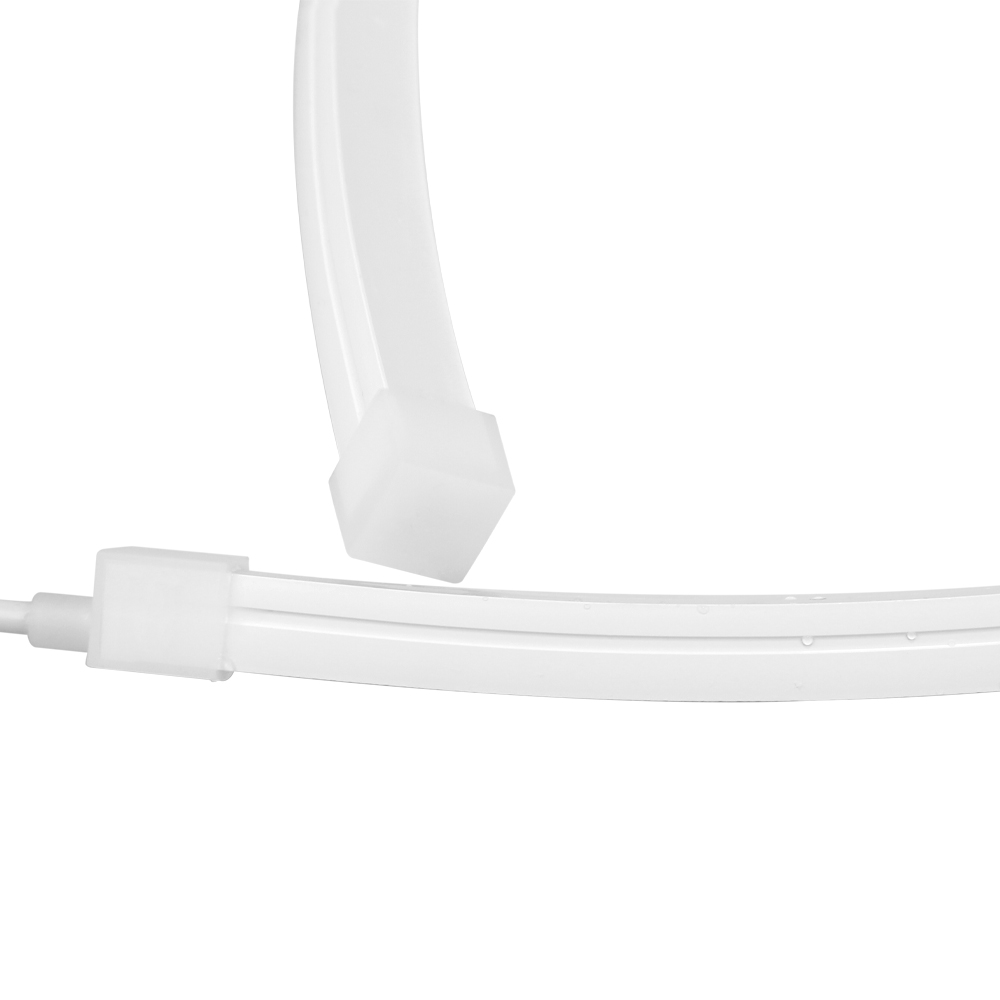

BV013013-3D Top & Side Freely Bendable Flexible LED Neon Light, 3D LED Neon Strip, UL, TUV CE, CB

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model BV013013-3D
Detailed item code S2835L140V24-5
Cutting unit 50mm
Power 7.2w/meter
Operating temperature -20℃～+45℃
Certification UL E487469, CE, ROHS, CB
Standard length 5 meters per roll
Application Indoor/Outdoor
Protection grade IP67/IK08
Detail

Parameter:



Item NO.     BV013013-3D   Top & side free-bend

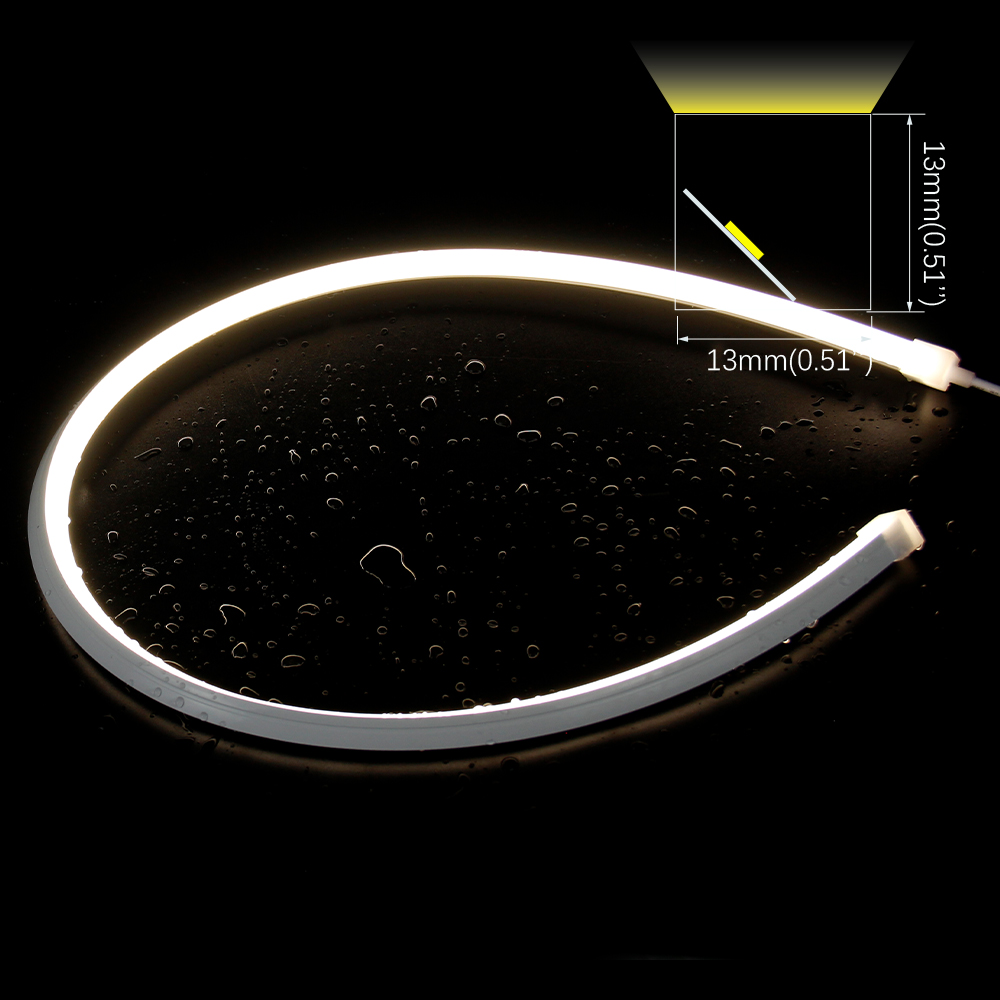

Size     5020mm (197.64”) x 13mm(0.51”) x 13mm(0.51”)
Power     7.2W/m
Voltage     DC24V
Light transmittance     77%

Minimum cutting

     50MM
CCT LED origin              2700K            I             3300K                I             4300K            I         6000K
CCT after silicone extrusion     2500K~2700K         I       2900K~3100K         I      3700K~4200K       I     5050K~5650K
Lumen/meter           608 LM/M          I           634 LM/M            I           698 LM/M         I      657 LM/M
Strip options     S2835L140V24-5
Anti-uv grade     UVA-340
CRI (Ra>)     90 +
IP Rating     IP 67 / IK08
Beam Angle     110°
Weight/meter     192g
Material     Silicone
Warranty

     Warranty 5-year, >50000 hours (L70B10)   (Not suitable for long-term immersion in water deeper than 0.5m)

Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

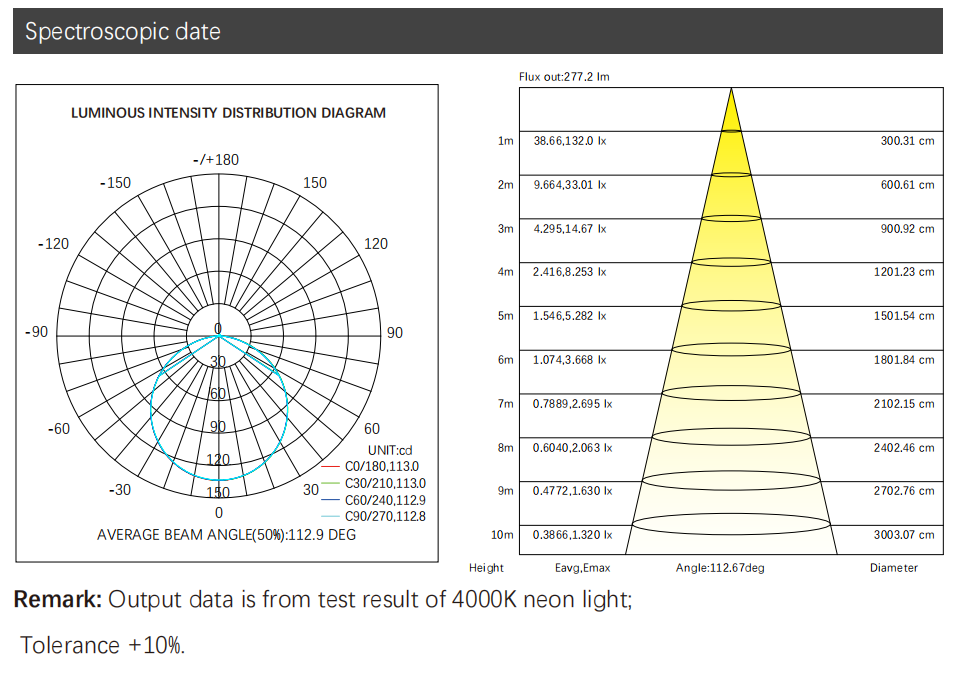

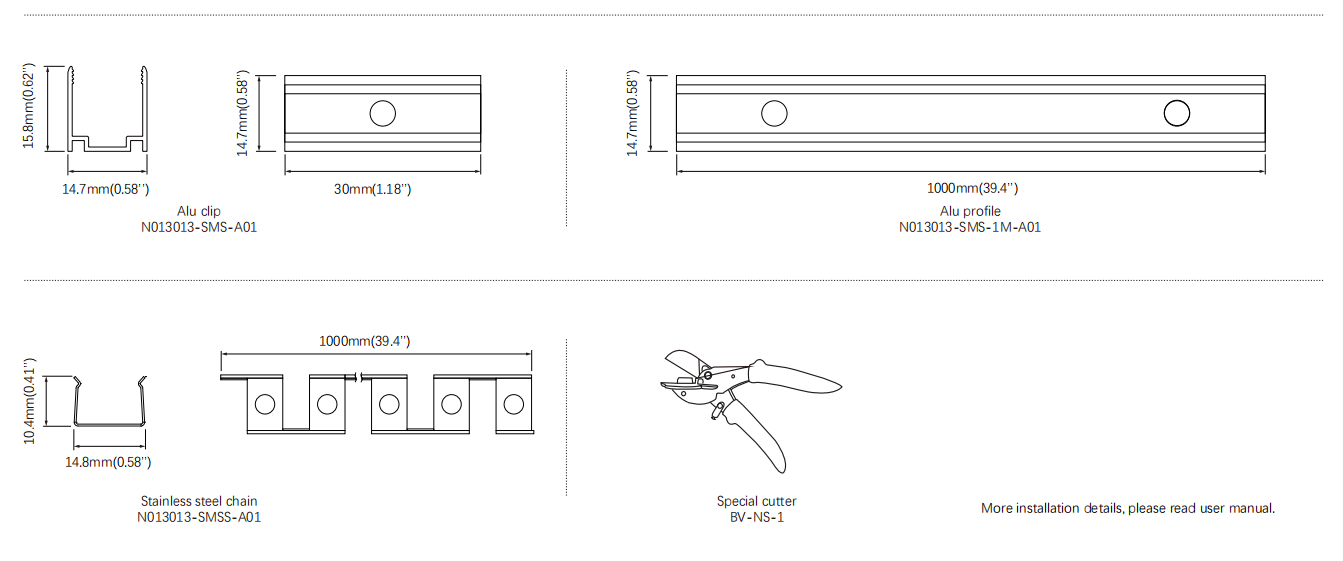

BV013013-3D-01.pngTop & Side bend.pngBV013013-3D-02.pngBV013013-3D-03.png霓虹灯展箱.png
