BV010018 Side bend, Horizontal Bend, Side Emitting LED Neon Light, UL, TUV CE, CB Certficates
BV010018 side bend, horizontal bend, side bending LED neon light
BLUEVISION LED neon light features:
Two-tone silicone extrusion+flexible FPC+highlight LED;
High light transmittance;
Anti-UV;
Flxible;
Mild and even light output;
Cuttable and bendable;
Hollow inside, protect LEDs well;
Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m);
Helps to set up an energy saving, flexible and multifunctional lighting effect, the products with the features of good heat radiation, anti-yellowing, strong weather resistance and easy installation.
Waterproof:
IP67 silicone extrusion, hollow inside;
Suitable for wet location and short time under water;
Suitable for indoor and outdoor projects.
| Item NO. | BV010018 Tricolor-color silicone extrusion |

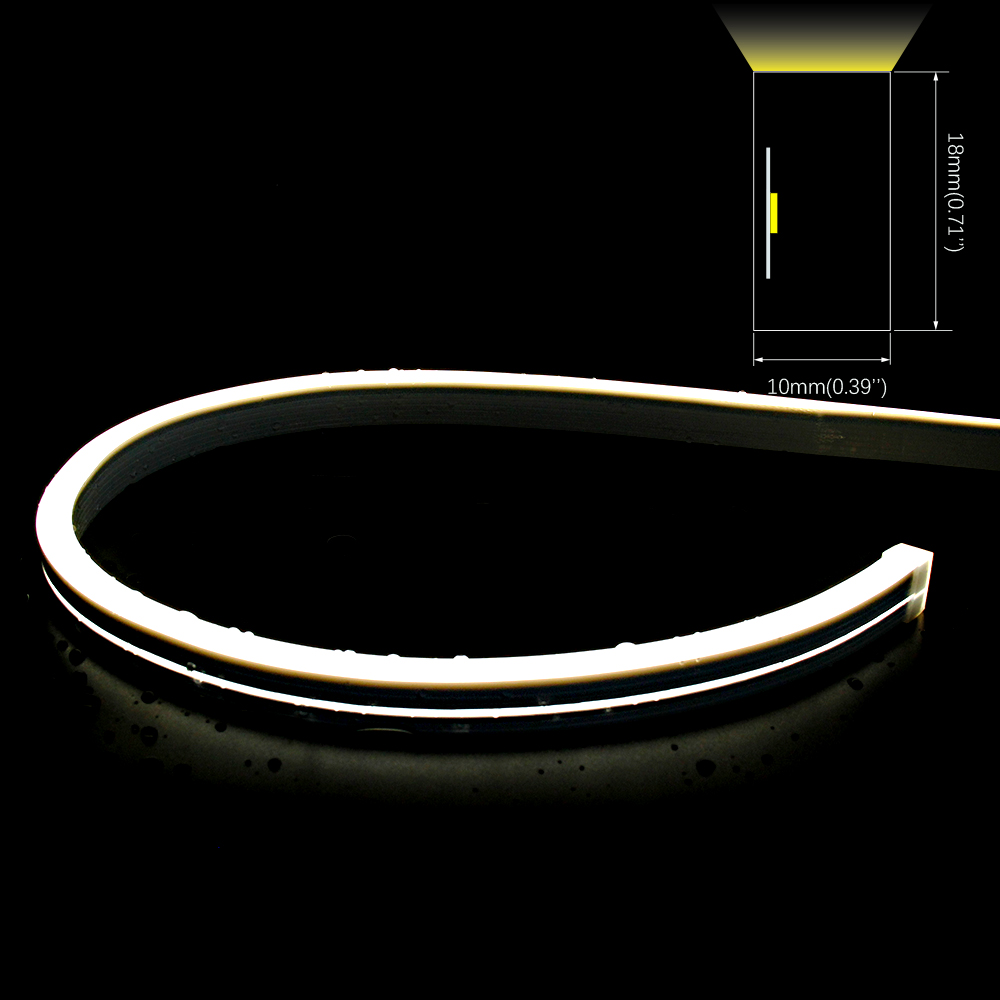

| Size | 5020mm (197.64”) x 10mm(0.39”) x 18mm(0.71”) |
| Power | 9.6W/m |
| Voltage | DC24V |
| Light transmittance | 29% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 298 LM/M I 311 LM/M I 345 LM/M I 323 LM/M |
| Strip options | S2835L140V24-10 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |

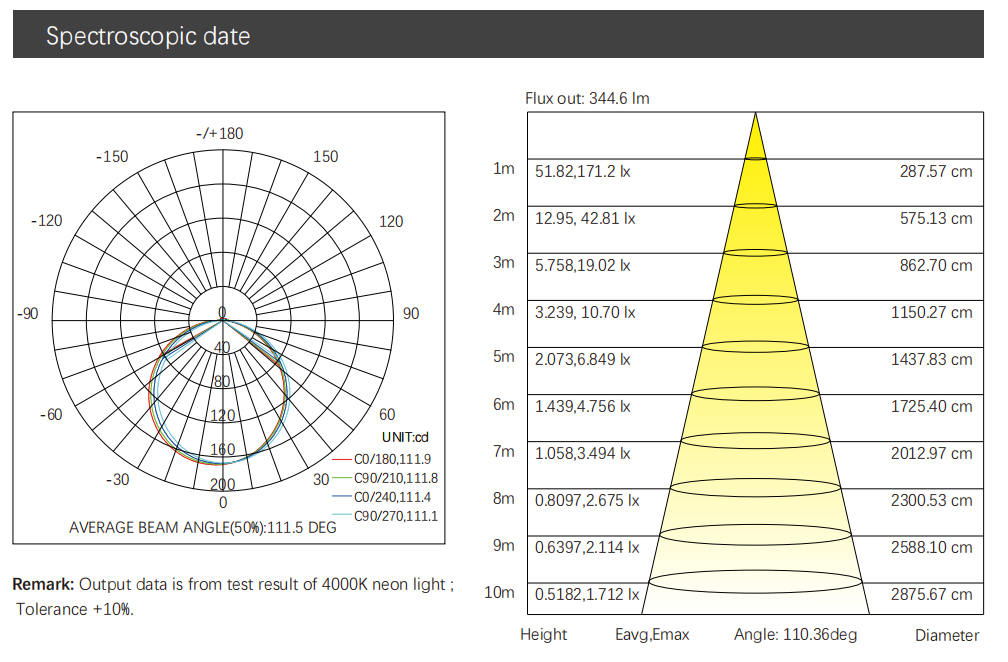

| Beam Angle | 115° |
| Weight/meter | 207g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV010018 ( Dual-colour ) |
| Size | 5020mm (197.64”) x 10mm(0.39”) x 18mm(0.71”) |
| Power | 9.6W/m (4.8W/m*2) |
| Voltage | DC24V |
| Light transmittance | 29% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 6000K I 4000K |
| CCT after silicone extrusion | 2500K~2700K I 5050K~5650K I 3600K~4200K |
| Lumen/meter | 139 LM/M I 157 LM/M I 297 LM/M |
| Strip options | S2835D140V24-10(2-in-1) |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |
| Beam Angle | 115° |
| Weight/meter | 207g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV010018 Tricolor-color silicone Tube |
| Size | 5020mm (197.64”) x 10mm(0.39”) x 18mm(0.71”) |
| Power | 9.6W/m |
| Voltage | DC24V |
| Light transmittance | 29% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 298 LM/M I 311 LM/M I 345 LM/M I 323 LM/M |
| Strip options | S2835L140V24-10 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 65 |
| Beam Angle | 115° |
| Weight/meter | 207g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for immersion in water) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
