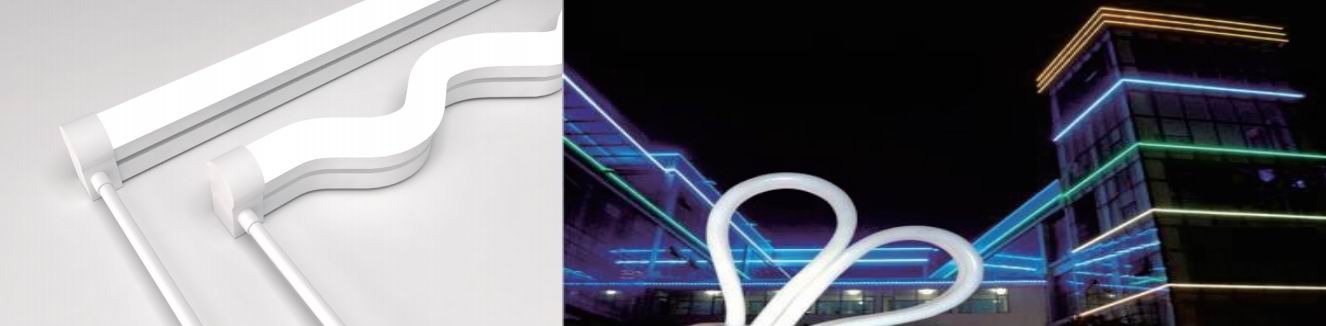

BV010022 Side Bend, Mild and Even Light Output, Dome Surface Neon Light, UL, TUV CE, CB Certficates

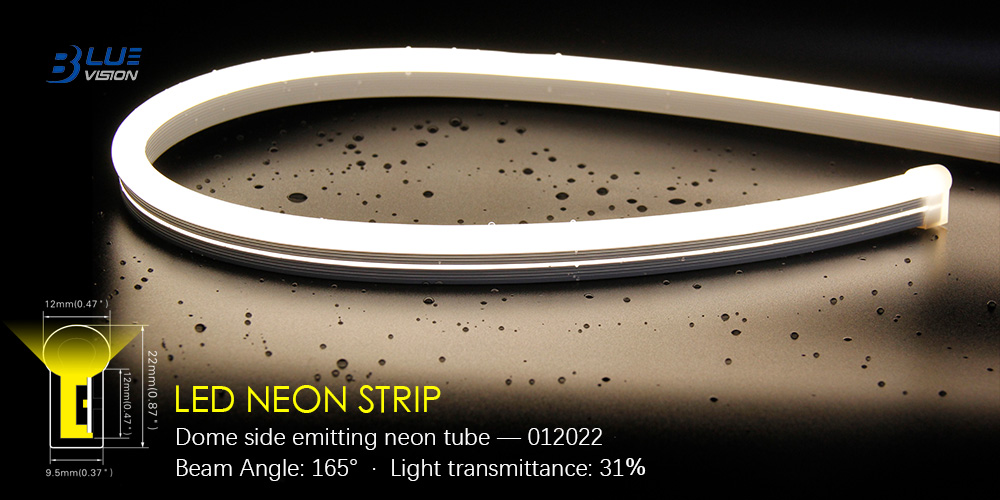

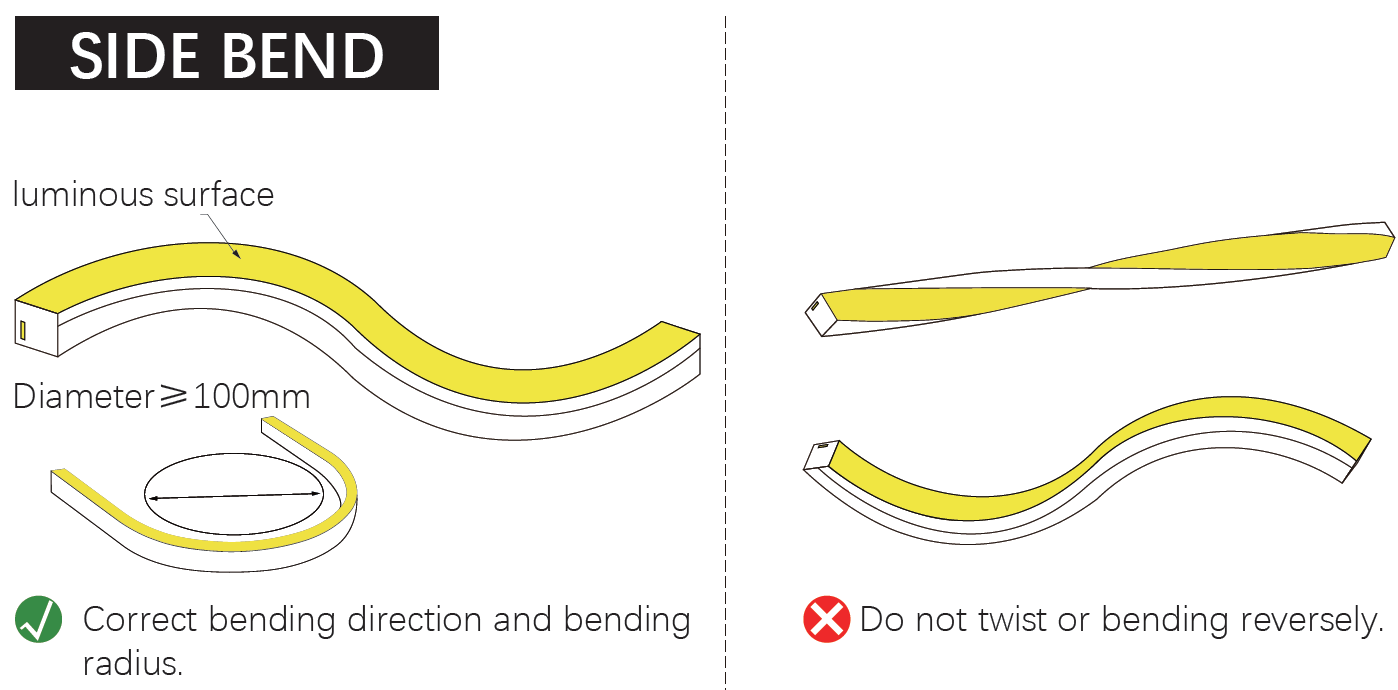

BV010022 side emitting, horizontal bend, side bend dome top LED neon light

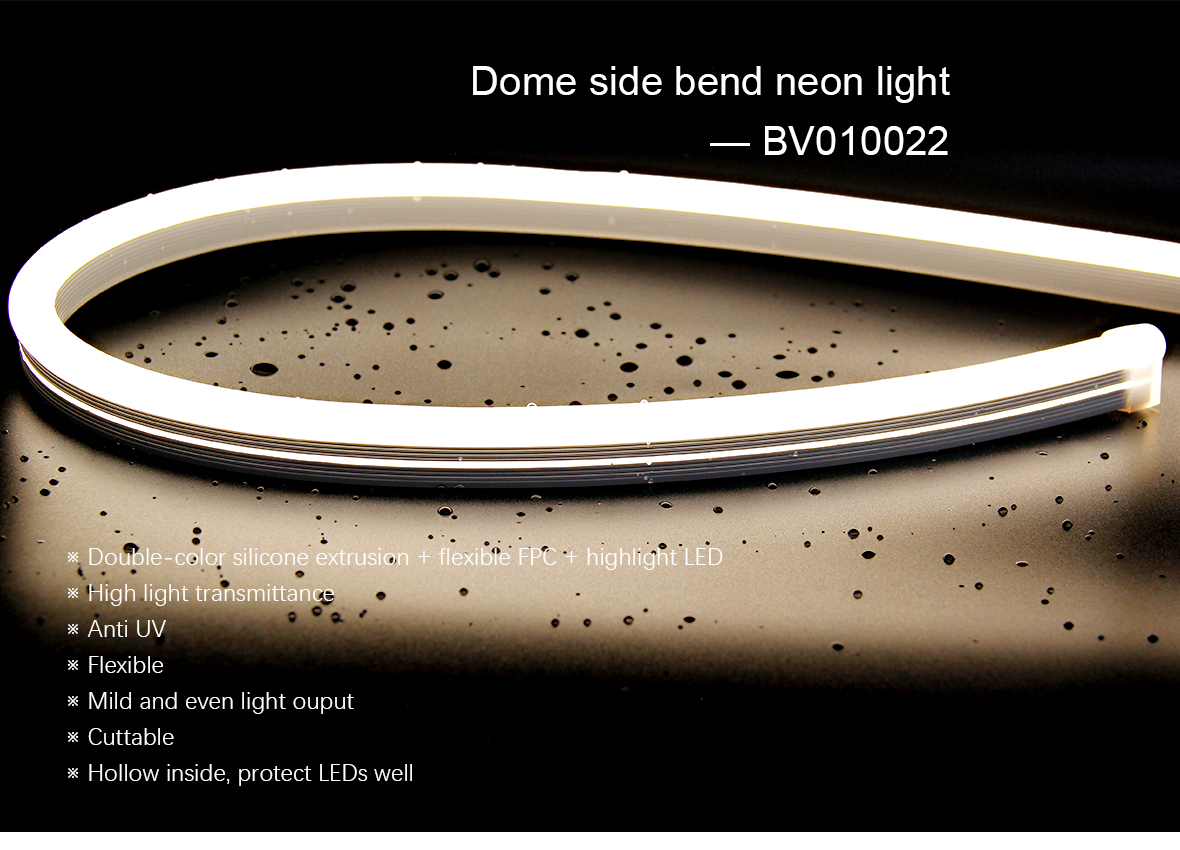

BLUEVISION LED neon light features:
Tricolor silicone extrusion+flexible FPC+highlight LED;
Mild and even light output;
Hollow inside, protect LEDs well;
High light transmittance;
High waterproof grade;
Cuttable;
Storage Tem.：0°C~+60°C;
Operating Tem.： -20°C~+45°C;
Anti-uv grade UVA-340;
Degradable packaging;
Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m).
Waterproof:
IP67 silicone extrusion, hollow inside;
Suitable for wet location and short time under water;
Suitable for indoor and outdoor projects.
| Item NO. | BV010022 Tricolor-color silicone extrusion |
| Size | 5020mm (197.64”) x 10mm(0.39”) x 22.4mm(0.88”) |
| Power | 9.6W/m |
| Voltage | DC24V |
| Light transmittance | 39% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 401 LM/M I 418 LM/M I 463 LM/M I 434 LM/M |
| Strip options | S2835L140V24-10 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |

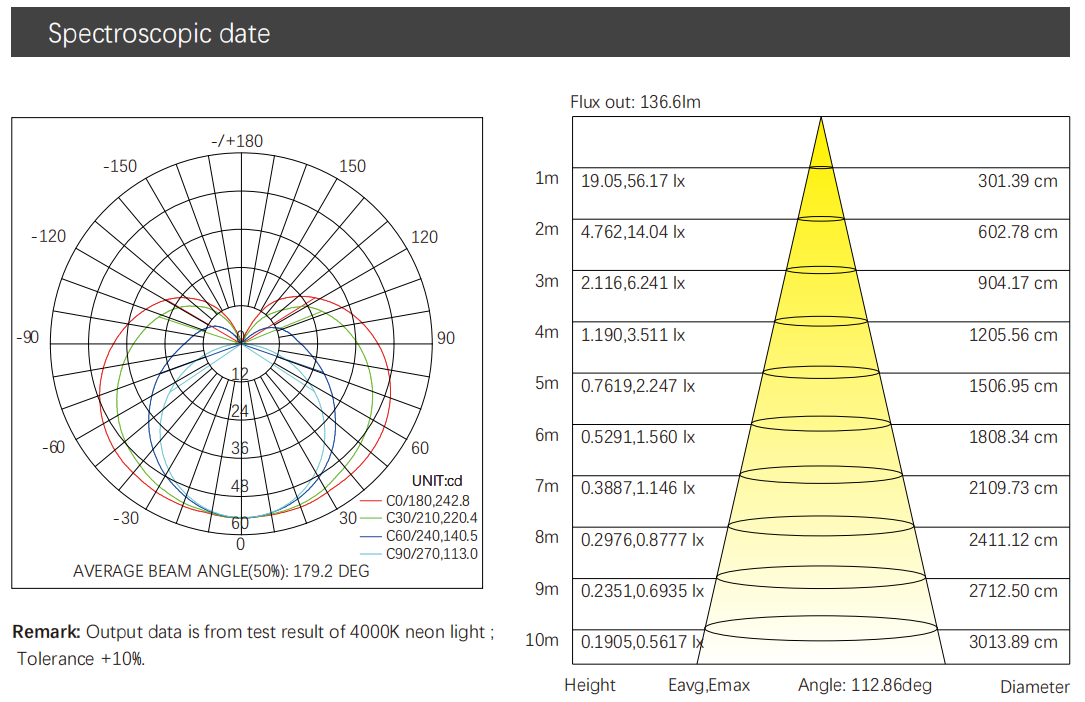

| Beam Angle | 165° |
| Weight/meter | 216g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV010022 ( Dual-colour ) |
| Size | 5020mm (197.64”) x 10mm(0.39”) x 22.4mm(0.88”) |
| Power | 9.6W/m (4.8W/m*2) |
| Voltage | DC24V |
| Light transmittance | 39% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 6000K I 4000K |
| CCT after silicone extrusion | 2500K~2700K I 5050K~5650K I 3600K~4200K |
| Lumen/meter | 187 LM/M I 211 LM/M I 399 LM/M |
| Strip options | S2835D140V24-10(2-in-1) |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |
| Beam Angle | 165° |
| Weight/meter | 216g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
