Model BV013013B
Detailed item code S2835L140V24-8
Cutting unit 50mm
Power 7.2w/meter
Operating temperature -20℃～+45℃
Certification UL E487469, CE, ROHS, CB
Standard length 5m
Application Indoor/Outdoor
Protection grade IP65
Detail

Parameter:



Item NO.     BV013013   Tricolor-color silicone extrusion

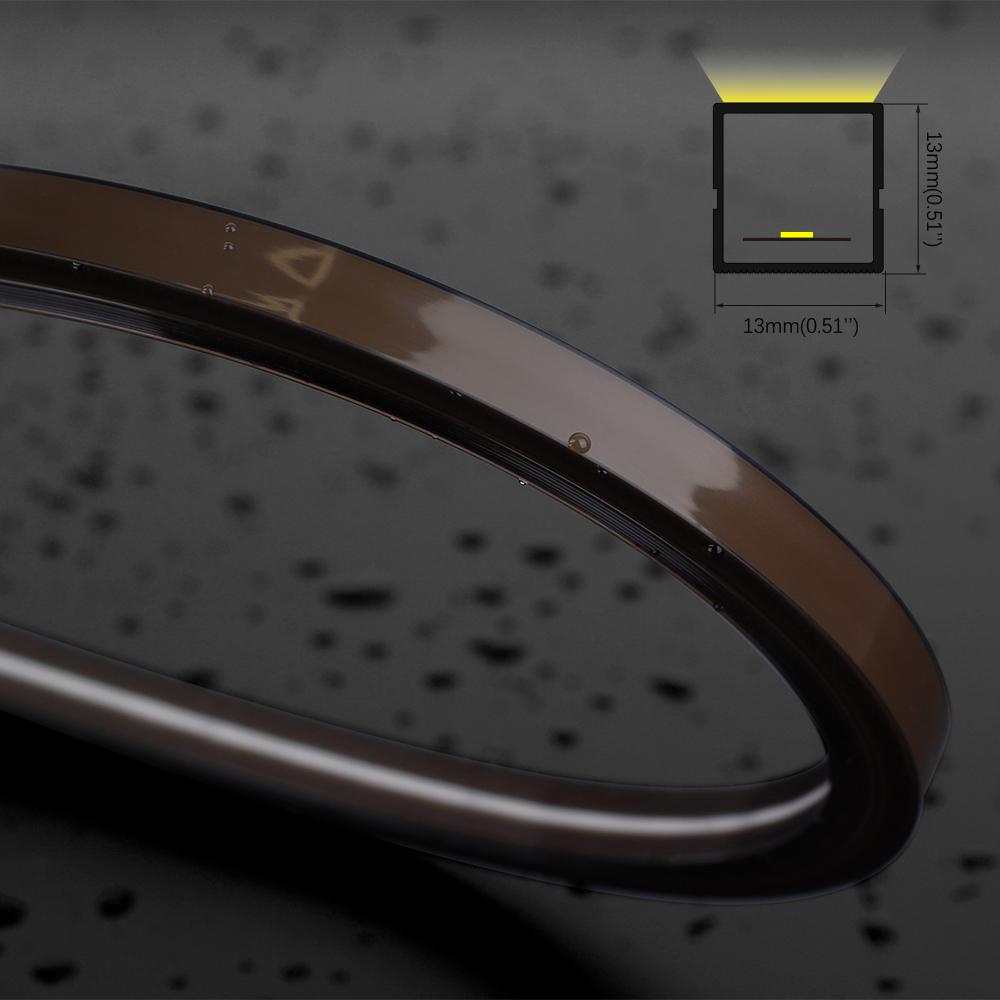

Size     5020mm (197.64”) x 13mm(0.51”) x 13mm(0.51”)
Power     7.2W/m
Voltage     DC24V
Light transmittance     10%

Minimum cutting

     50MM
CCT LED origin              3300K            I             4000K                I             5000K            I         6000K
CCT after silicone extrusion     2200K~2800K         I       2700K~3300K         I      3600K~4200K       I     4100K~4700K
Lumen/meter           79 LM/M            I           82 LM/M              I           91 LM/M           I       85 LM/M
Strip options     S2835L140V24-8
Anti-uv grade     UVA-340
CRI (Ra>)     90 +
IP Rating     IP 65
Beam Angle     115°
Weight/meter     216g
Material     Silicone
Warranty

     Warranty 5-year, >50000 hours (L70B10) (Not suitable for immersion in water)

Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

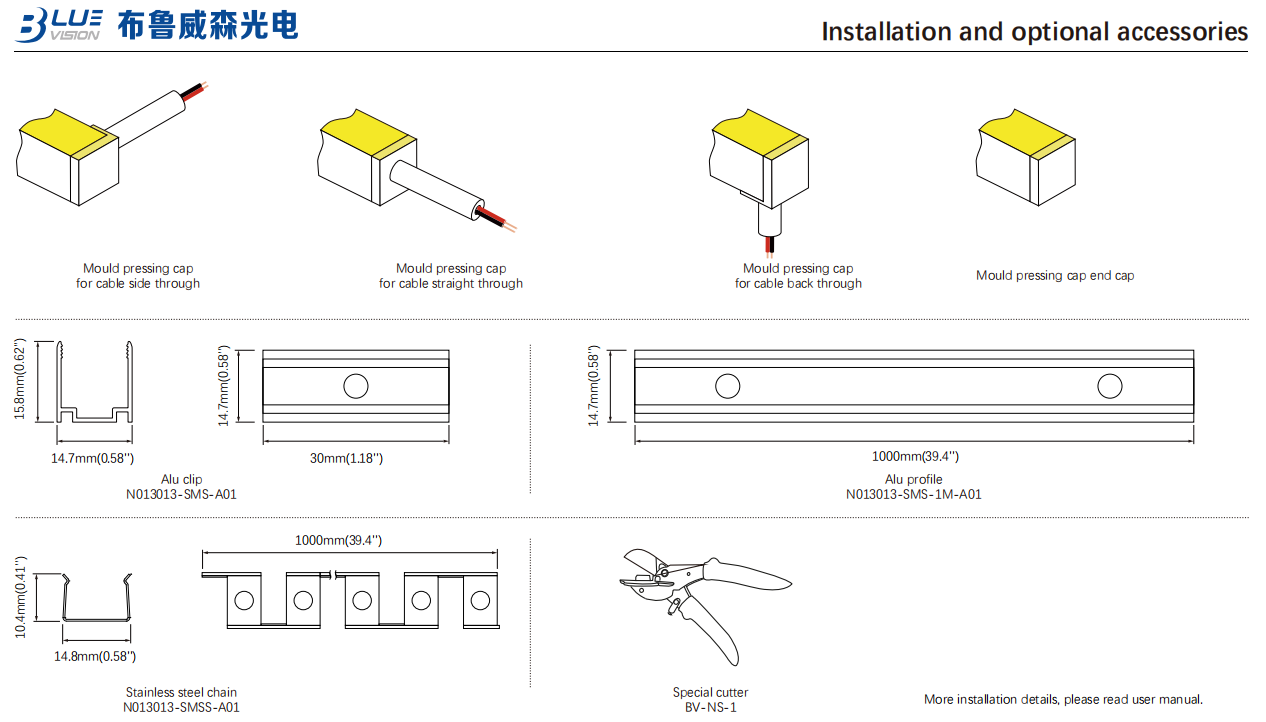

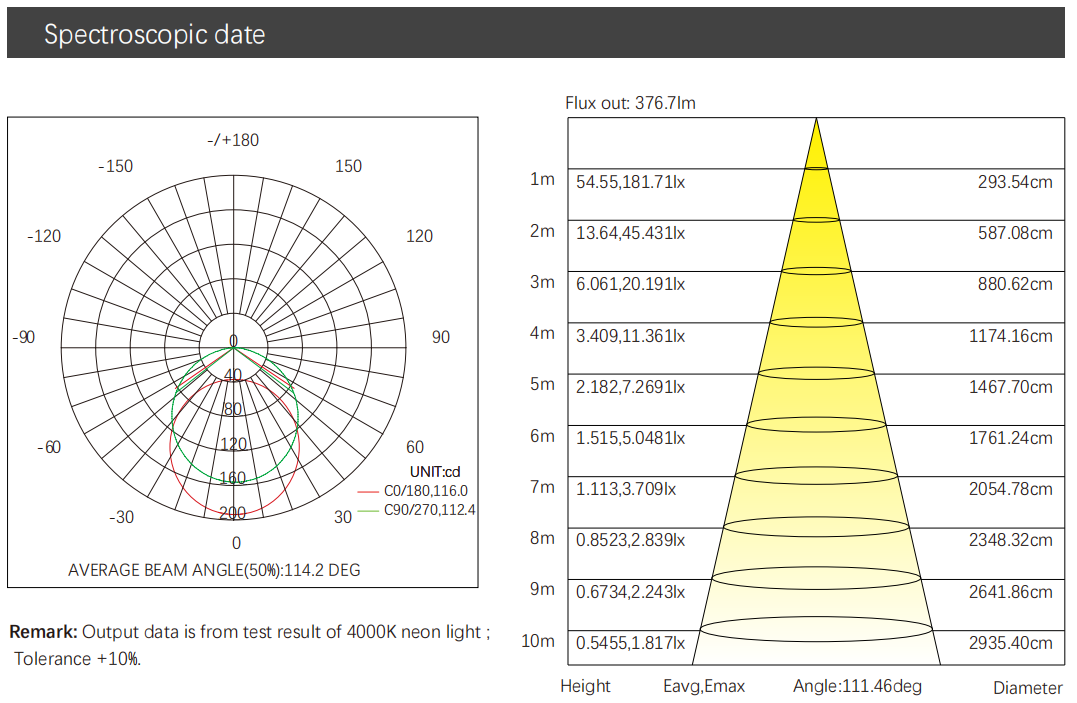

BV013013-01.pngTop bend.pngBV013013-02.png霓虹灯展箱.png
