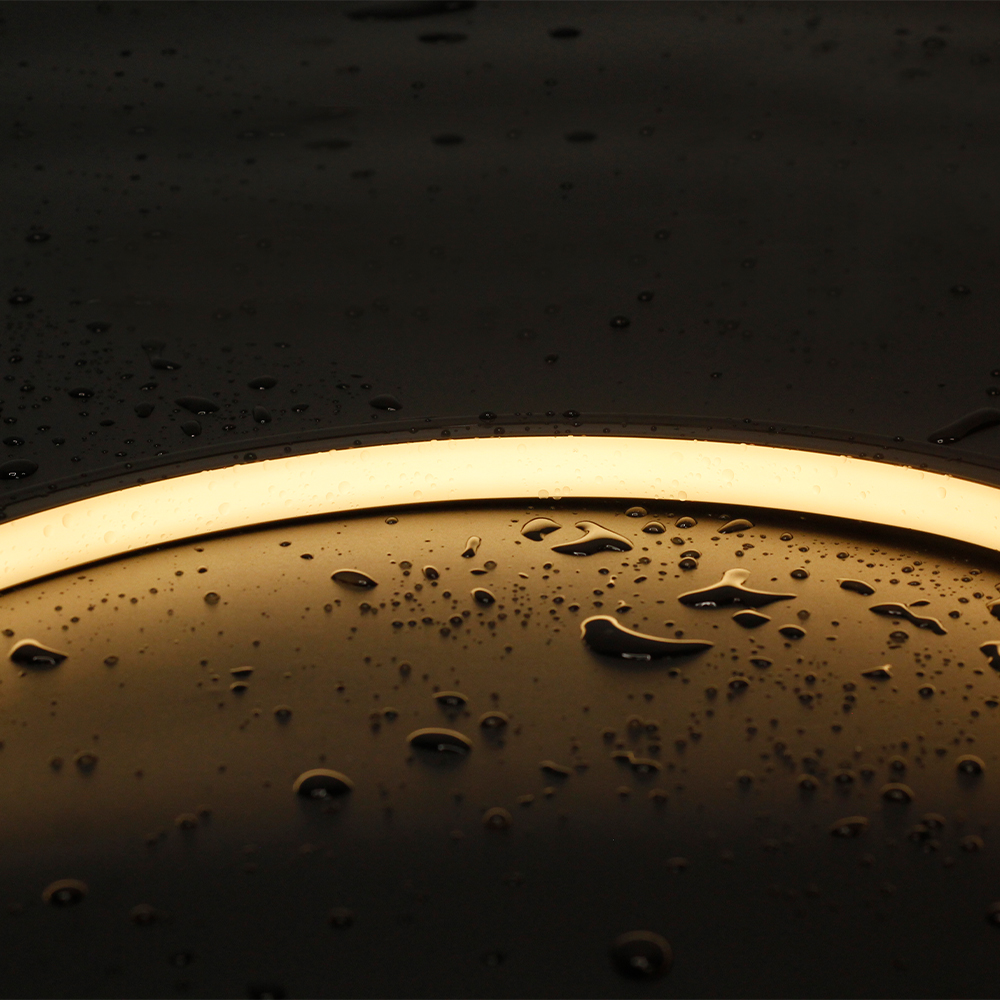

BV016016B Top Bend IP65 Silicone Tube Black Body LED Neon Light, UL, TUV CE, CB Certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model BV016016
Detailed item code S2835L140V24-12
Cutting unit 50mm
Power 9.6w/meter
Operating temperature -20℃～+45℃
Certification UL E487469, CE, ROHS, CB
Standard length 5 meters per roll
Application Indoor/Outdoor
Protection grade IP65
Detail


Item NO.     BV016016 ( IP65 black body)
Size     5020mm (197.64”) x 16mm(0.63”) x 16mm(0.63”)
Power     9.6W/m
Voltage     DC24V
Light transmittance     4.5%

Minimum cutting

      50MM
CCT LED origin              3300K            I             4000K                I             5000K            I         6000K
CCT after silicone extrusion     2200K~2800K         I       2700K~3300K         I      3600K~4200K       I     4100K~4700K
Lumen/meter             46 LM/M          I            48 LM/M             I           53 LM/M           I       50 LM/M
Strip options     S2835L140V24-12
Anti-uv grade     UVA-340
CRI (Ra>)     90 +
IP Rating     IP 65
Beam Angle     115°
Weight/meter     250g
Material     Silicone
Warranty

     Warranty 5-year, >50000 hours (L70B10) (Not suitable for immersion in water)

Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

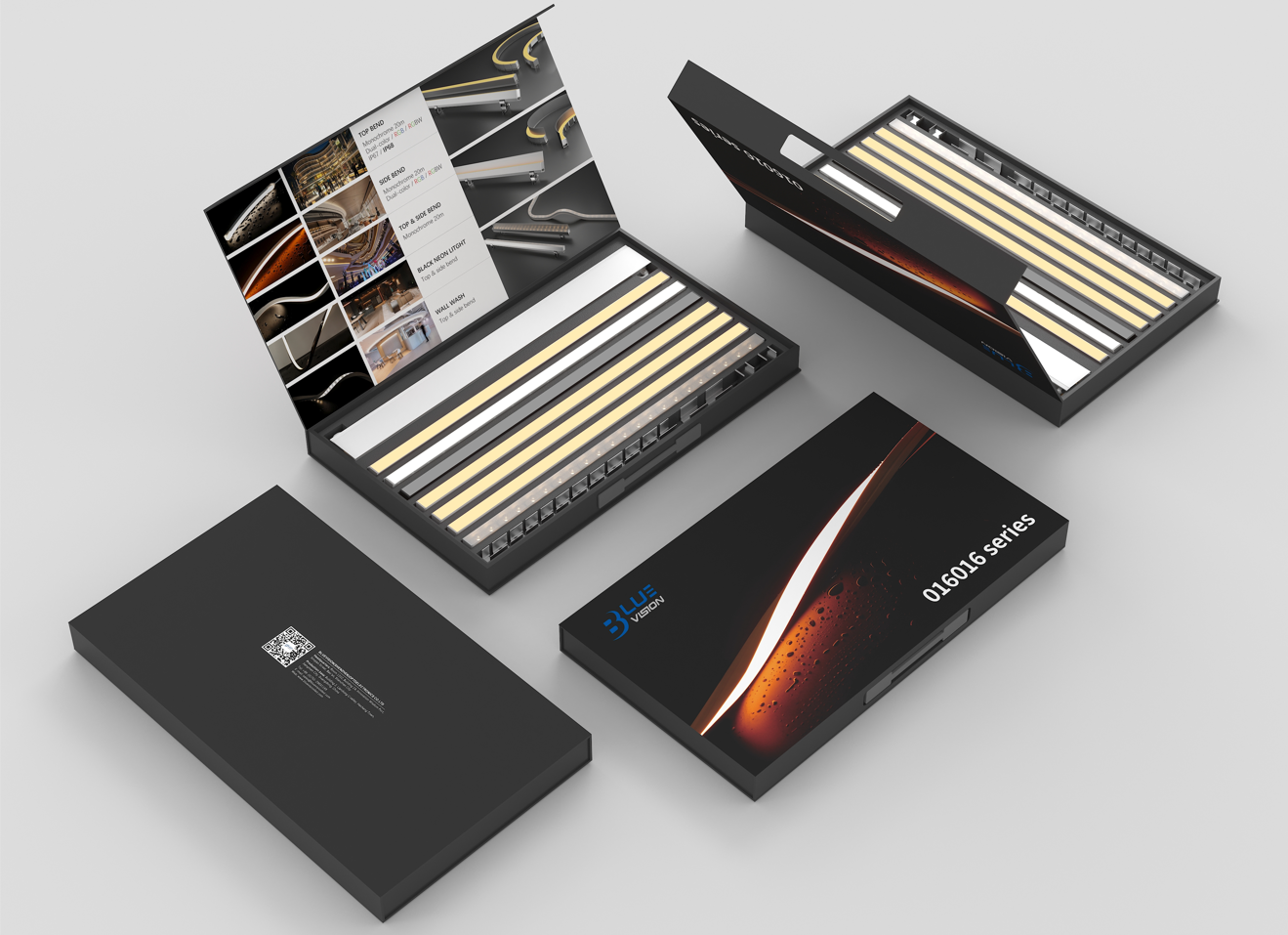

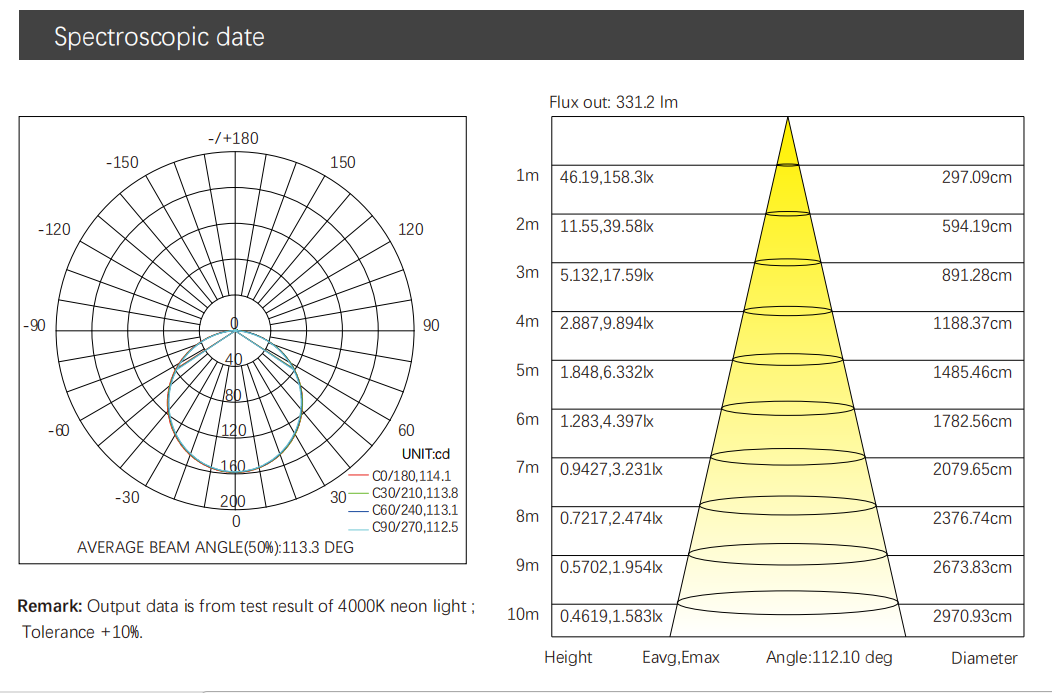

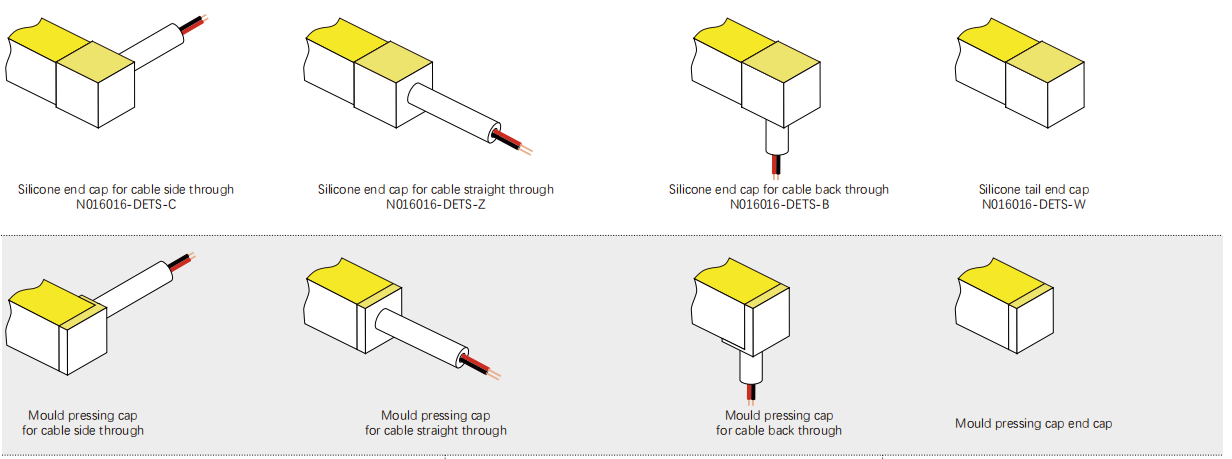

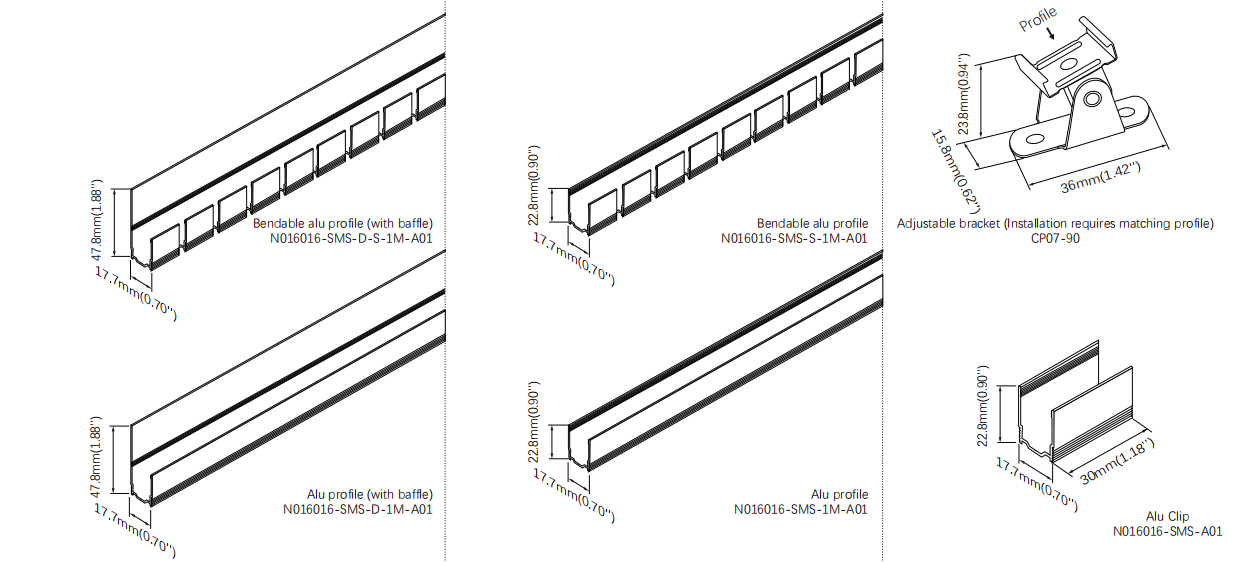

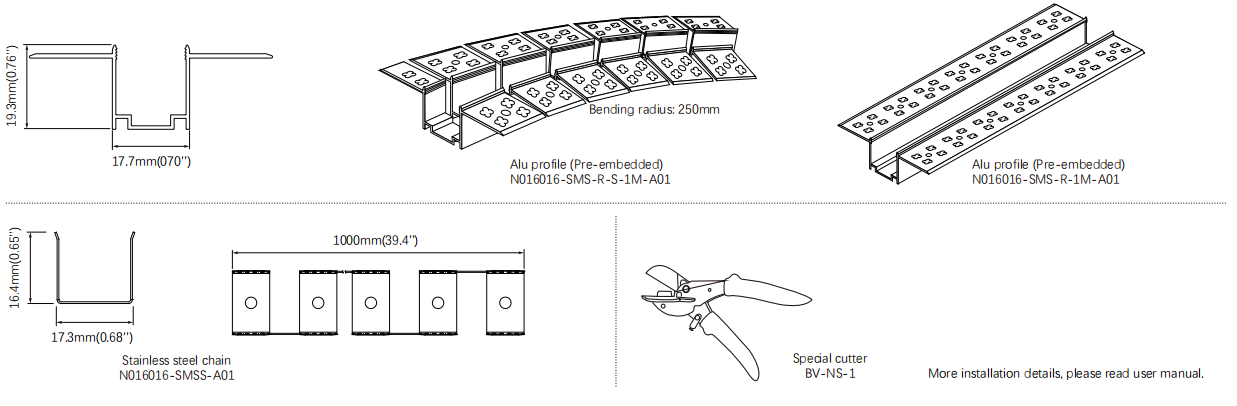

BV016016-black body-01.pngBV016016-01.pngBV016016-IP68-03.pngBV016016-IP68-04.pngTop bend.png霓虹灯展箱-016016.png
