BV016016-3D Top & Side Freely Bendable Anti-glare LED Neon Light, 3D Honeycomb LED Neon Strip
share
Detail
Parameter:
| Item NO. | BV016016-3D ( White honeycomb Top & side free-bend constant current ) |

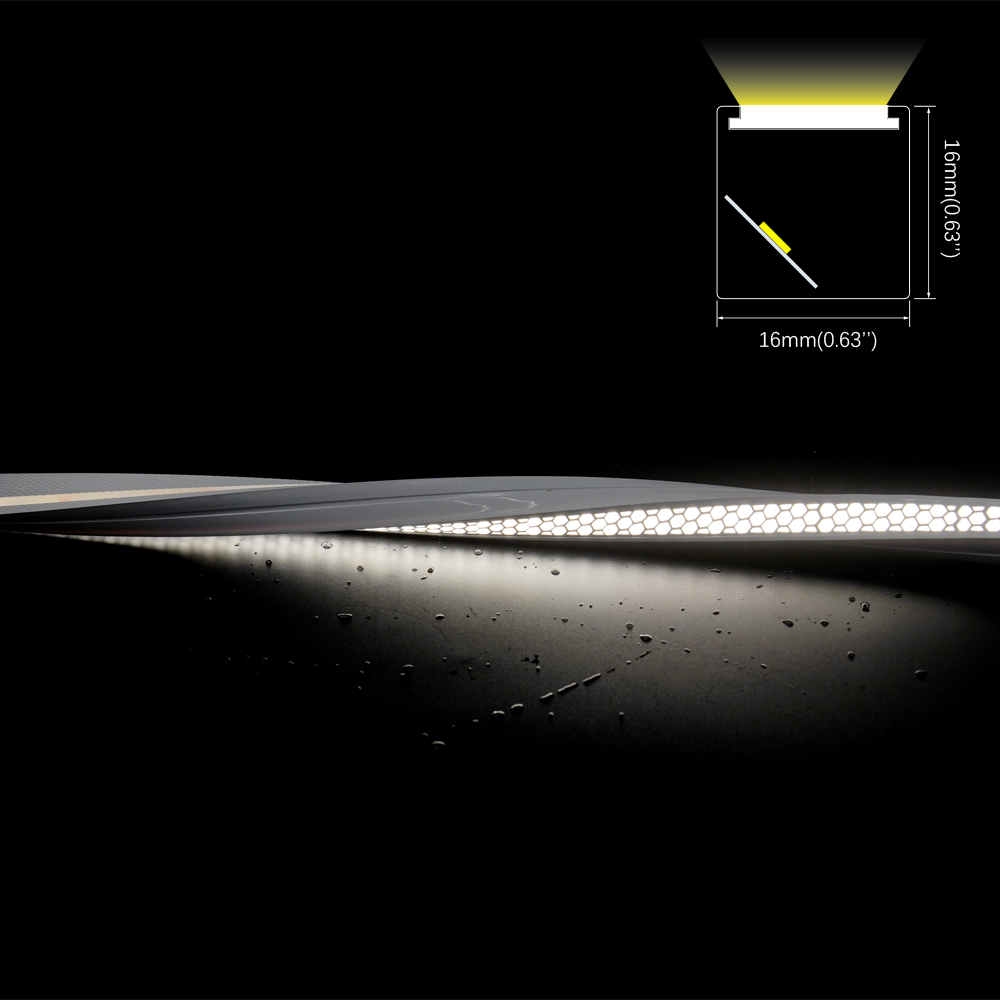

| Size | 20015mm (787.99”) x 16mm(0.63”) x 16mm(0.63”) |
| Power | 7.2W/m |
| Voltage | DC24V |
| Light transmittance | 41% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 278 LM/M I 289 LM/M I 319 LM/M I 300 LM/M |
| Strip options | S2835L120Q24-8 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |
| Beam Angle | 95° |
| Weight/meter | 255g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV016016-3D ( White honeycomb Top & side free-bend constant voltage) |
| Size | 5020mm (197.64”) x 16mm(0.63”) x 16mm(0.63”) |
| Power | 9.6W/m |
| Voltage | DC24V |
| Light transmittance | 41% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 421 LM/M I 440 LM/M I 487 LM/M I 457 LM/M |
| Strip options | S2835L140V24-8 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |
| Beam Angle | 95° |
| Weight/meter | 255g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV016016-3D ( White honeycomb Top & side free-bend Dual-colour ) |
| Size | 5020mm (197.64”) x 16mm(0.63”) x 16mm(0.63”) |
| Power | 9.6W/m (4.8W/m*2) |
| Voltage | DC24V |
| Light transmittance | 41% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 6000K I 4000K |
| CCT after silicone extrusion | 2500K~2700K I 5050K~5650K I 3600K~4200K |
| Lumen/meter | 197 LM/M I 222 LM/M I 419 LM/M |
| Strip options | S2835D140V24-8 (2-in-1) |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 67 |
| Beam Angle | 95° |
| Weight/meter | 255g |
| Material | Silicone |
| Warranty | Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
