BV016016B-3D Black Body Top & Side Freely Bendable LED Neon Light, IP67 LED Neon Light, Black Neon Light

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model BV016016-3D
Detailed item code S2835L120Q24-8
Detailed item code S2835L140V24-8
Cutting unit 50mm
Power 9.6w/meter
Operating temperature -20℃～+45℃
Certification UL E487469, CE, ROHS, CB
Standard length 5 meters per roll
Application Indoor/Outdoor
Protection grade IP67
Detail

Parameter:



Item NO.     BV016016-3D (Black body Top & side free-bend constant current )

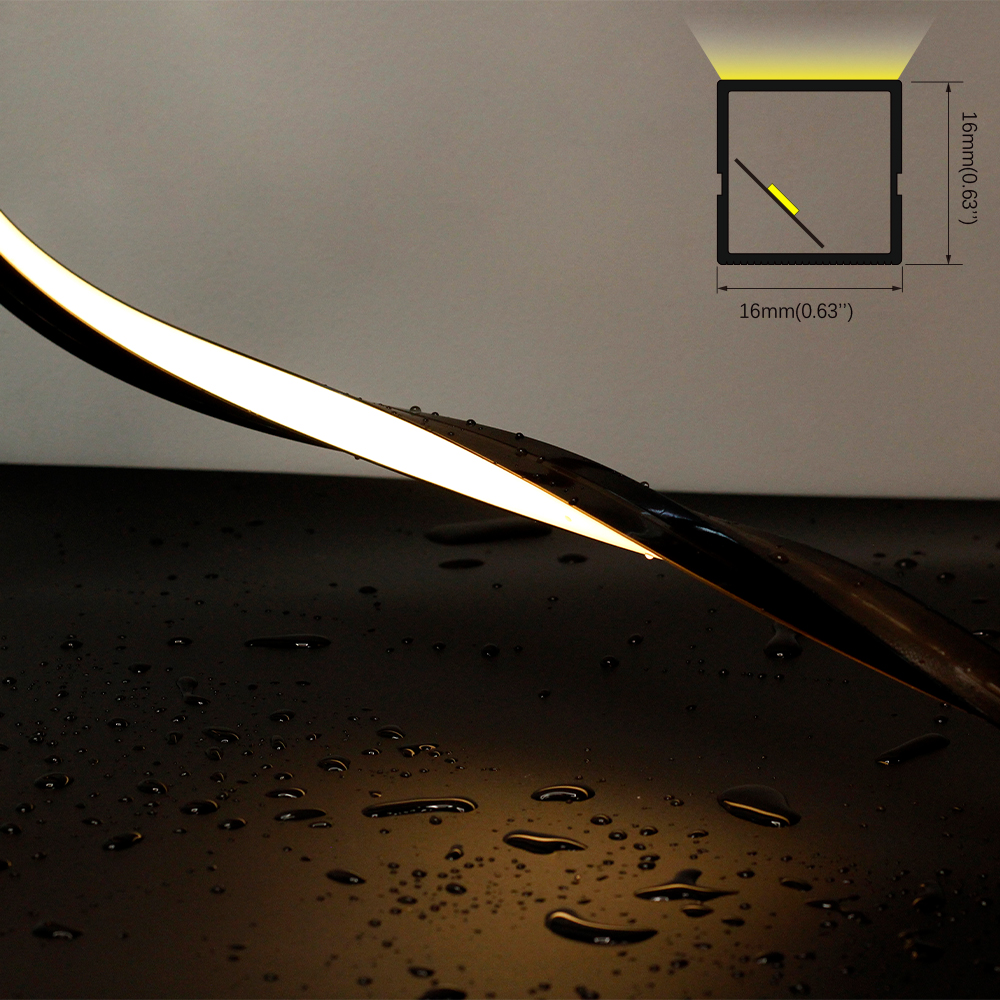

Size     20015mm (787.99”) x 16mm(0.63”) x 16mm(0.63”)
Power     7.2W/m
Voltage     DC24V
Light transmittance     4%

Minimum cutting

      50MM
CCT LED origin              2700K            I             3300K                I             4300K            I         6000K
CCT after silicone extrusion     2500K~2700K         I       2900K~3100K         I      3700K~4200K       I     5050K~5650K
Lumen/meter             41 LM/M          I             43 LM/M            I           48 LM/M           I       45 LM/M
Strip options     S2835L120Q24-8
Anti-uv grade     UVA-340
CRI (Ra>)     90 +
IP Rating     IP 67
Beam Angle     115°
Weight/meter     260g
Material     Silicone
Warranty

     Warranty 5-year, >50000 hours (L70B10)   (Not suitable for long-term immersion in water deeper than 0.5m)

Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃




Item NO.     BV016016-3D ( Black body Top & side free-bend constant voltage)
Size     5020mm (197.64”) x 16mm(0.63”) x 16mm(0.63”)
Power     9.6W/m
Voltage     DC24V
Light transmittance     4%

Minimum cutting

      50MM
CCT LED origin              2700K            I             3300K                I             4300K            I         6000K
CCT after silicone extrusion     2500K~2700K         I       2900K~3100K         I      3700K~4200K       I     5050K~5650K
Lumen/meter             27 LM/M          I            28 LM/M             I           31 LM/M           I       29 LM/M
Strip options     S2835L140V24-8
Anti-uv grade     UVA-340
CRI (Ra>)     90 +
IP Rating     IP 67
Beam Angle     115°
Weight/meter     260g
Material     Silicone
Warranty

     Warranty 5-year, >50000 hours (L70B10)   (Not suitable for long-term immersion in water deeper than 0.5m)

Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃
