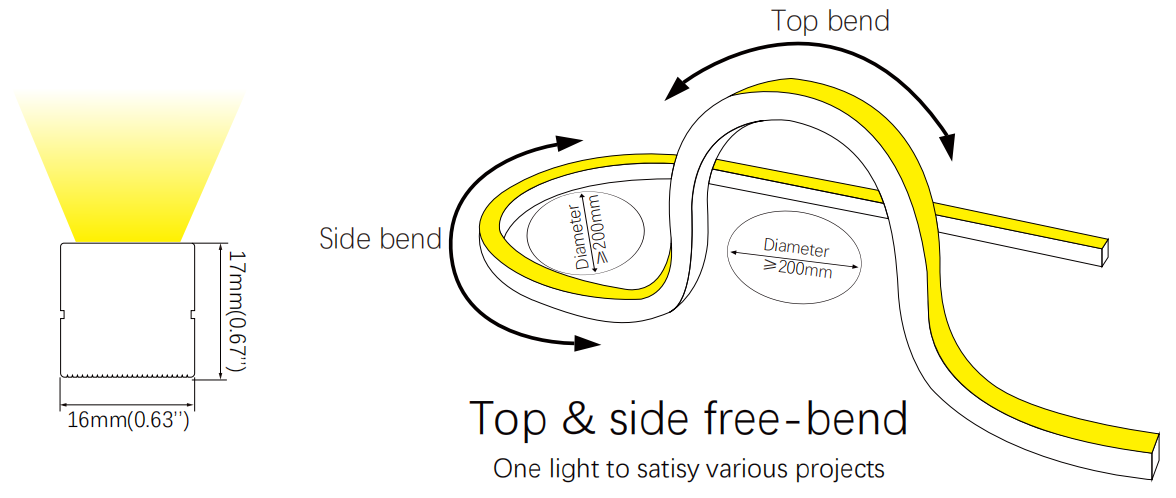

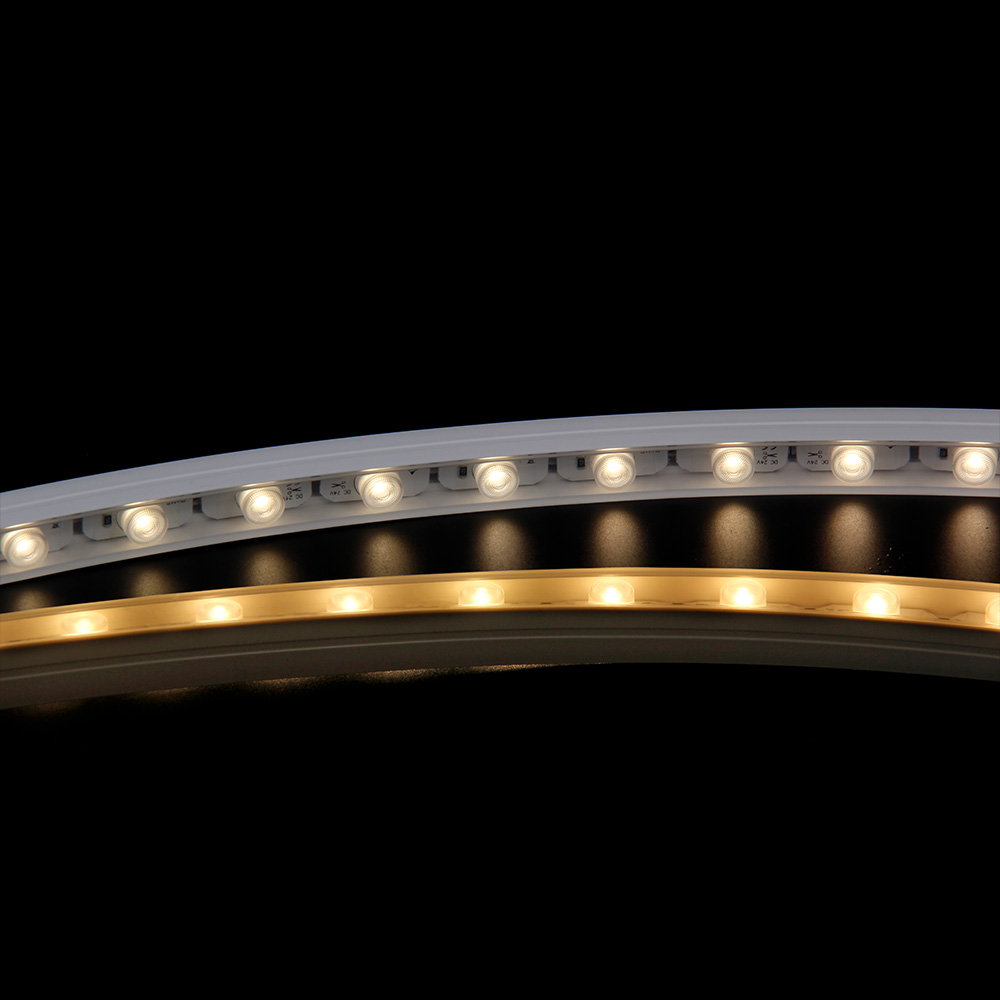

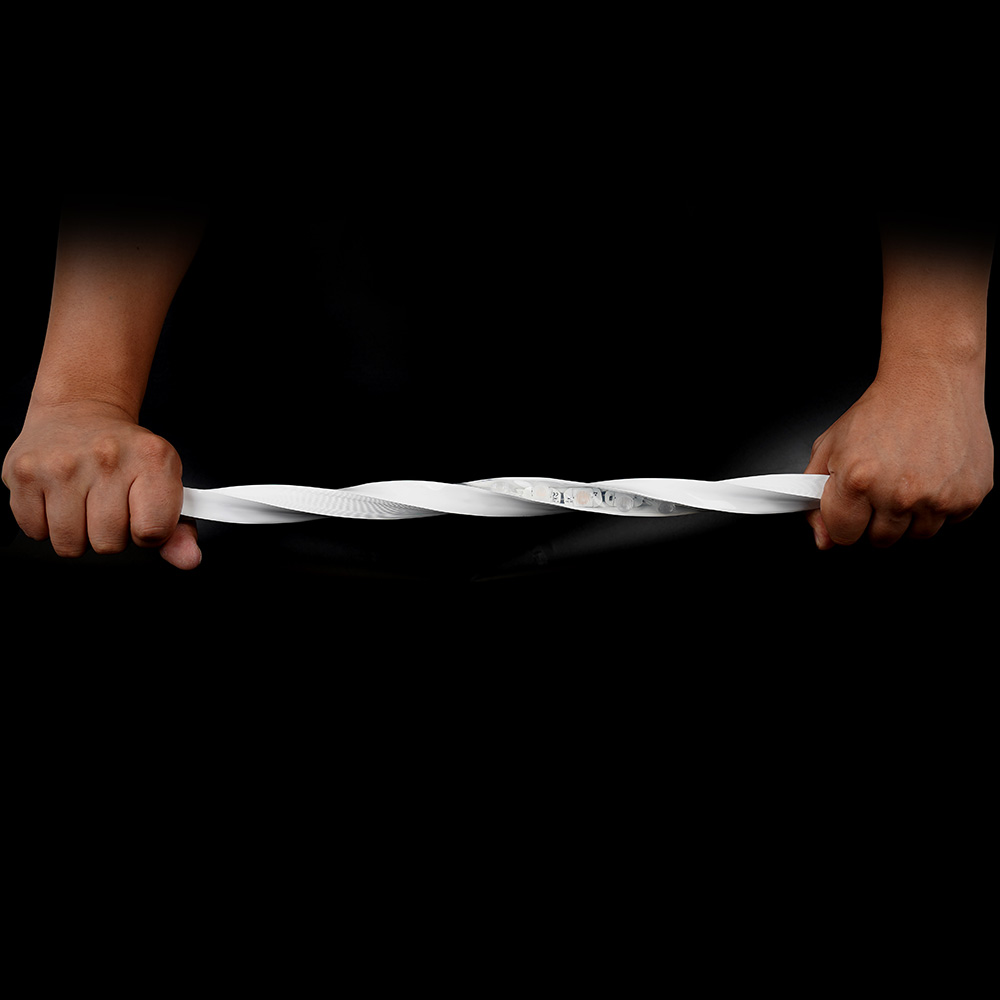

Top & side freely bendable 30°/60°/30*55° IP65 3D LED Wall Washer Light, LED Grazer Light BVW016016

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model BVW016016
Detailed item code S2835L40V24X9IP65-12-A30
FPC width 12mm
Cutting unit 100mm
Power 16W/m
Operating temperature -20℃～+45℃
Storage temperature 0℃～+60℃
Environment humidity 40～70% RH
Standard length 5 meters per roll
Application Indoor/Outdoor
Protection grade IP65
Detail

Parameter:



Item NO.     BVW016016

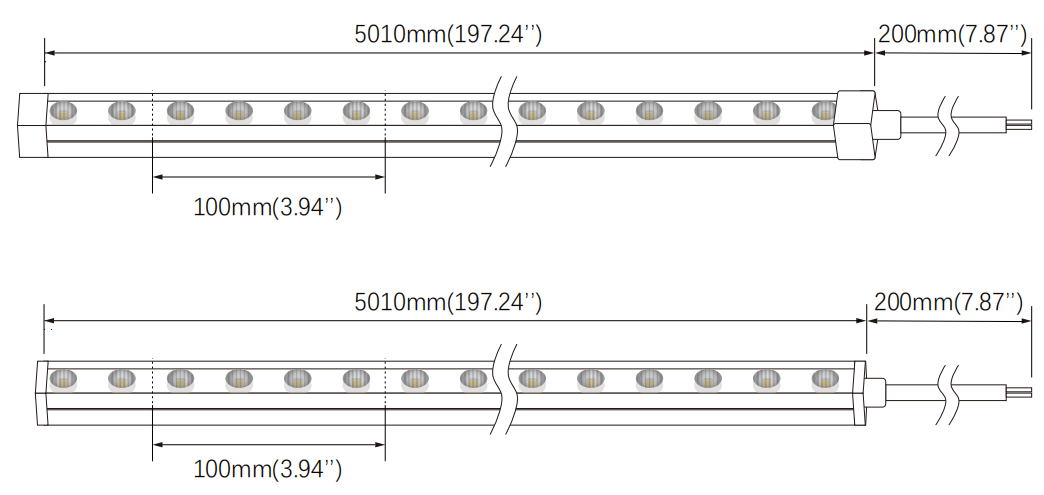

Size     5010mm×16mm×17mm
Power     16W/m (4.88W/ft)
FPC
     S2835L40V24X9IP65-12-W016016-3D-A30
Voltage     DC24V
PCB Width     12mm
LED/m     40pcs/m
CCT     2700K / 3000K / 4000K / 6500K
Lumen/meter     2700K 1652LM/m / 3000K 1727LM/m / 4000K 1826LM/m / 6500K 1631LM/m
CRI (Ra>)     90 +
Cut length     100mm/unit
Beam Angle     30° / 60° / 30*55°
IP Rating     IP65
Warranty     Warranty 5-year, >50000 hours (L70B10) for indoor usage，Warranty 3-year, >30000 hours (L70B10) for outdoor usage
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

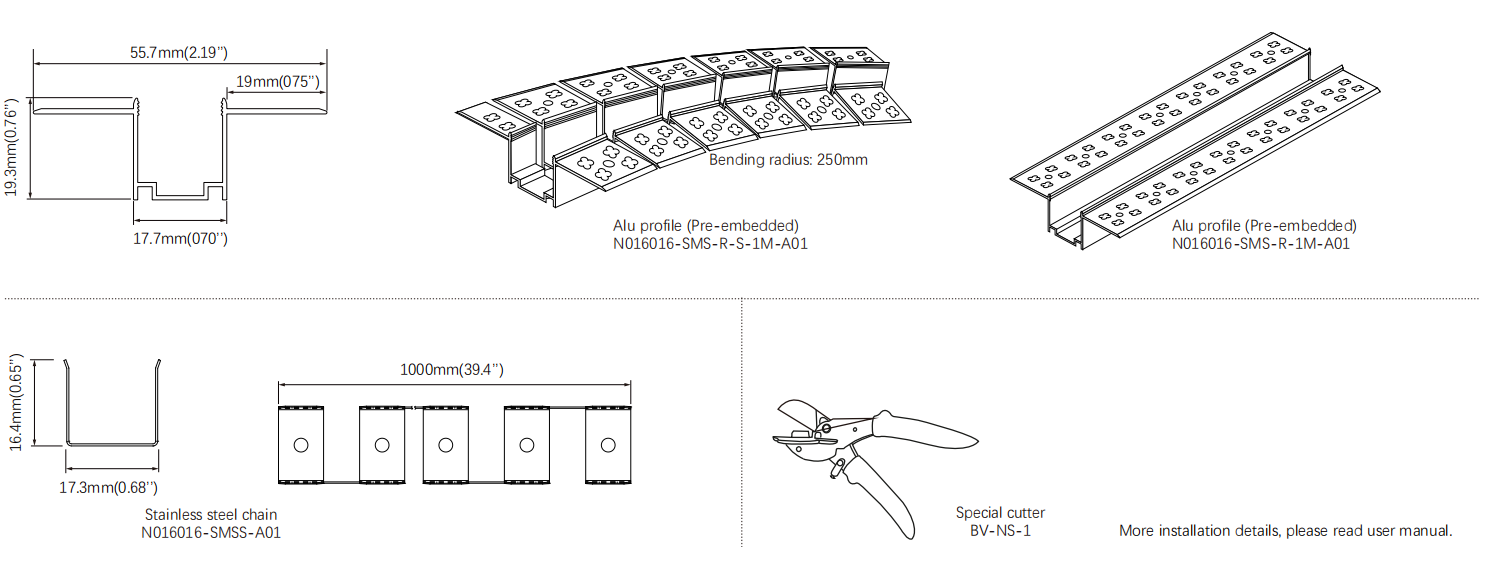

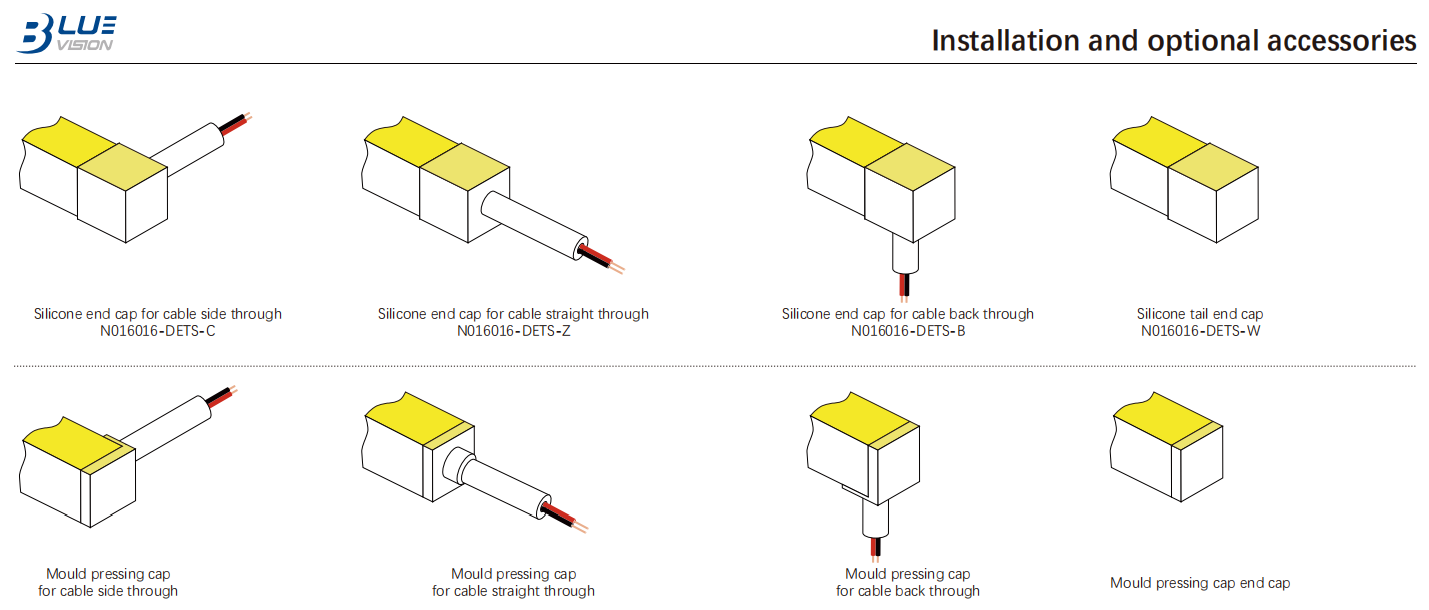

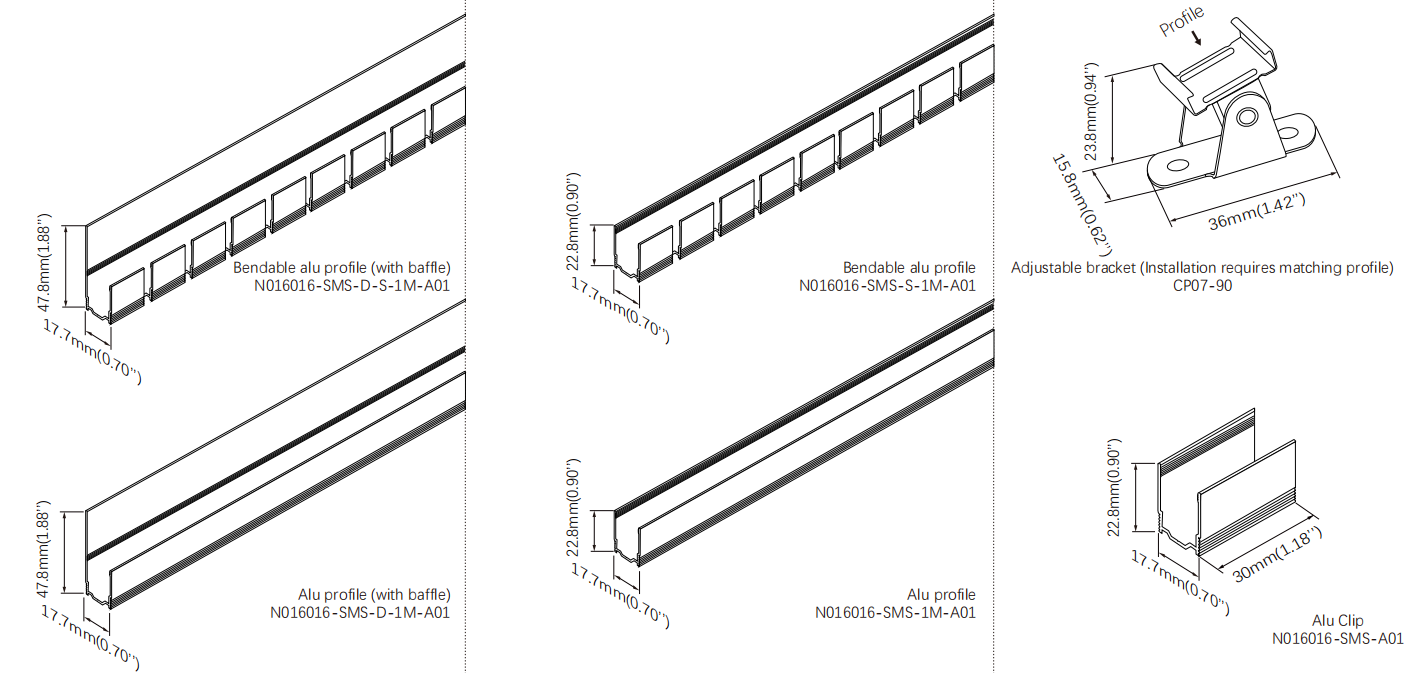

‍QQ20260728-095045.jpgQQ20260728-095035.jpgQQ20260728-100058.jpgQQ20260728-100030.jpgQQ20260728-100039.jpg
