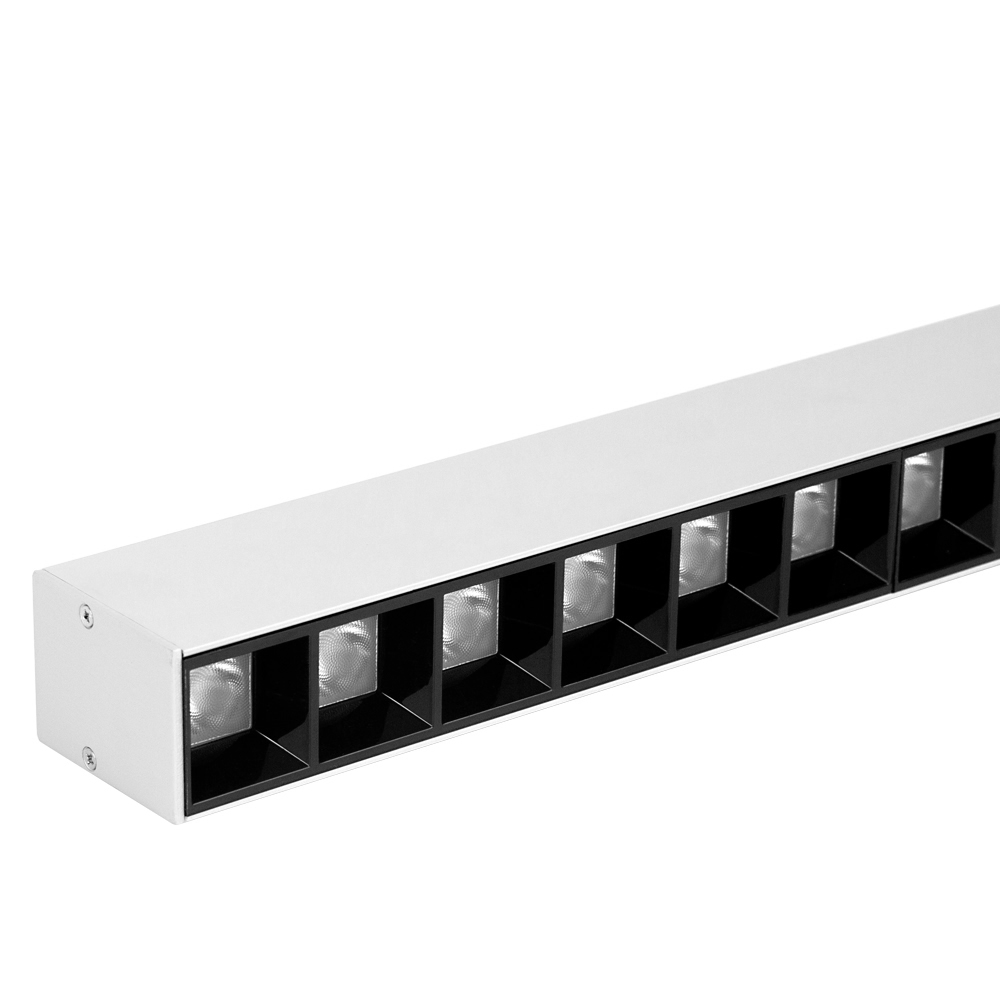

L3040-A21S 4FT Lens light non-linkable LED linear light, ETL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L3040-A21S
Power 21W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Surface color Silvery, White, Black
Cover type PC cover, Grille cover
Standard length 1206*30*40mm
Application Indoor
Installation way Pendant, Surface mounted, Recessed
Protection grade IP40
Detail

Video




Parameter:



Item NO.     L3040-A21S
Size     1206mm(3.96ft) x 30mm(0.10ft) x 40mm(0.13ft)
Power     21W (5.25w/ft)
Lumen     2273~2410lm (568~603lm/ft)
Cover     Lens light (25° UGR＜16)
CRI     80+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
