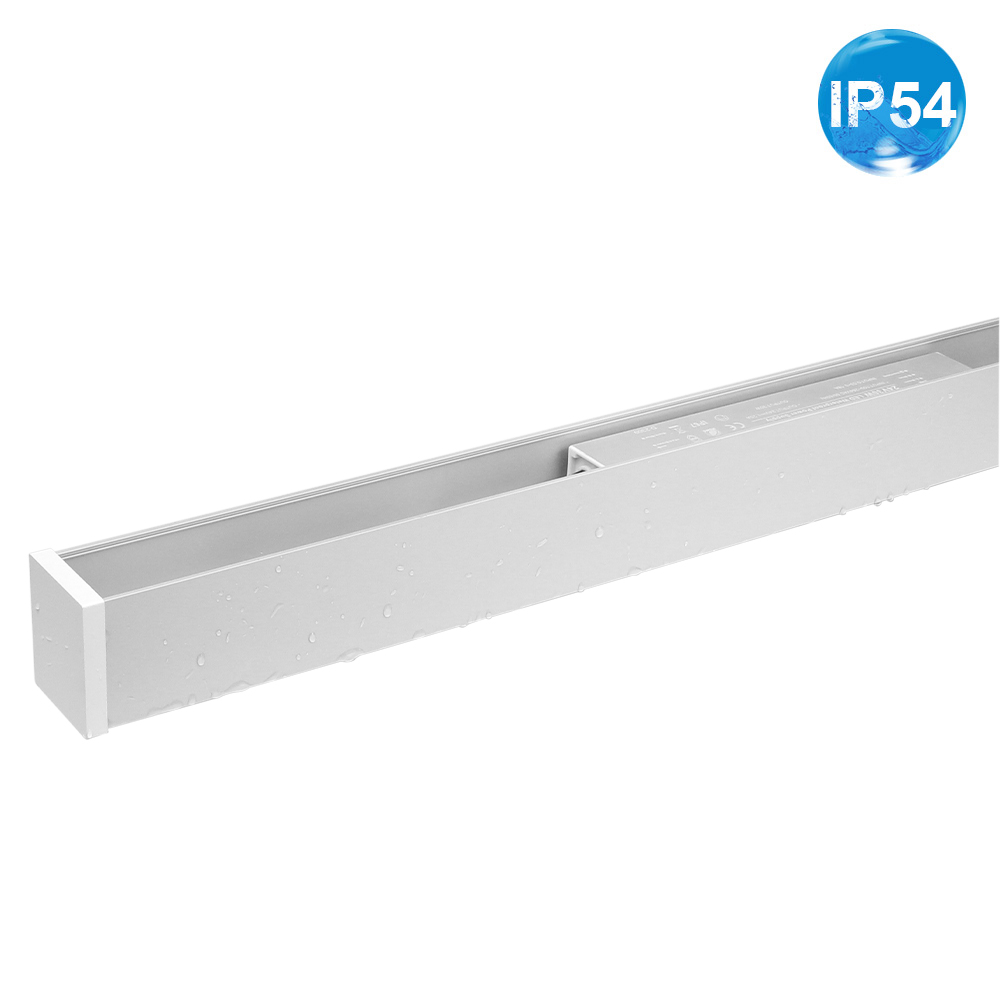

L4050C-A28S IP54 4FT non-linkable waterproof LED linear light, ETL, FCC, TUV CE, CB,certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L4050C-A28S
Power 28W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Surface color Silvery, White, Black
Cover type PC cover
Standard length 4ft
Application Indoor/Outdoor
Installation way Pendant / Ceiling mounted
Protection grade IP54
Detail


Parameter:



Item NO.     L4050C-A28S(Non-linkable version)
Size     L1156mm(3.79ft) x W40mm(0.13ft) x H50mm(0.16ft)
Power     28W (7.0w/ft)
Lumen     2207~2340lm (673~713lm/ft)
Cover     PDM (105°)
CRI     85+ / 90+
CCT     3000K/ 3500K/ 4000K/ 5000K/ 6000K/ customization
PF     ≥0.9
IP grade     IP 54
Working Voltage     AC120~277V 60Hz / AC220~240V 50Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
