Model L5070C
Detailed item code L5070C-WW31S, L5070C-NW31S, L5070C-W31S
Detailed item code L5070C-WW46S, L5070C-NW46S, L5070C-W46S
Detailed item code L5070C-WW61S, L5070C-NW61S, L5070C-W61S
Power 31W, 46W, 61W
Operating temperature -20℃~+45℃
Storage temperature -40℃~+60℃
Certification ETL, CE, CB
Surface color Silvery, White, Black

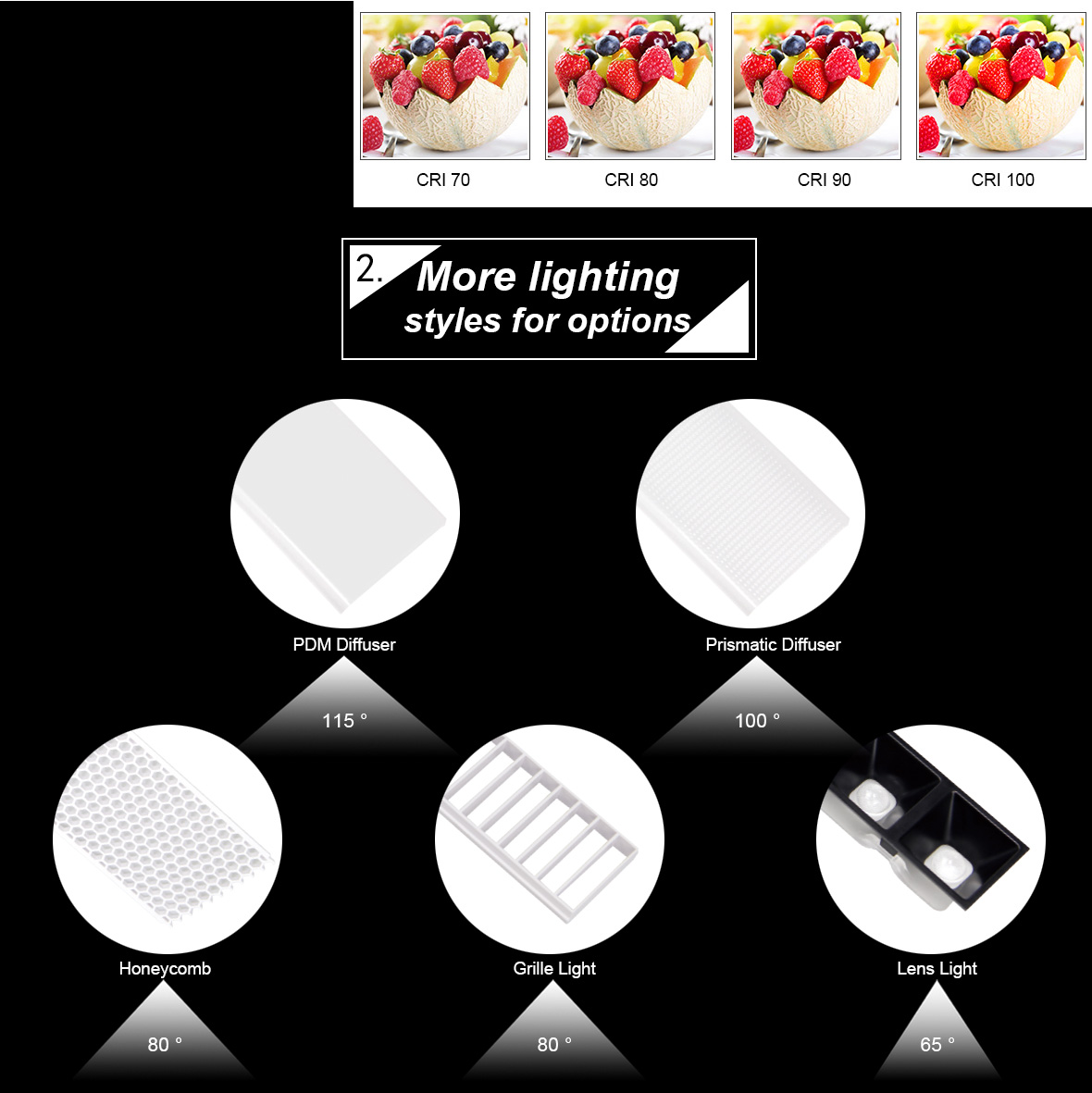

Cover type Grille Light
Standard length 4ft/6ft/8ft
Application Indoor

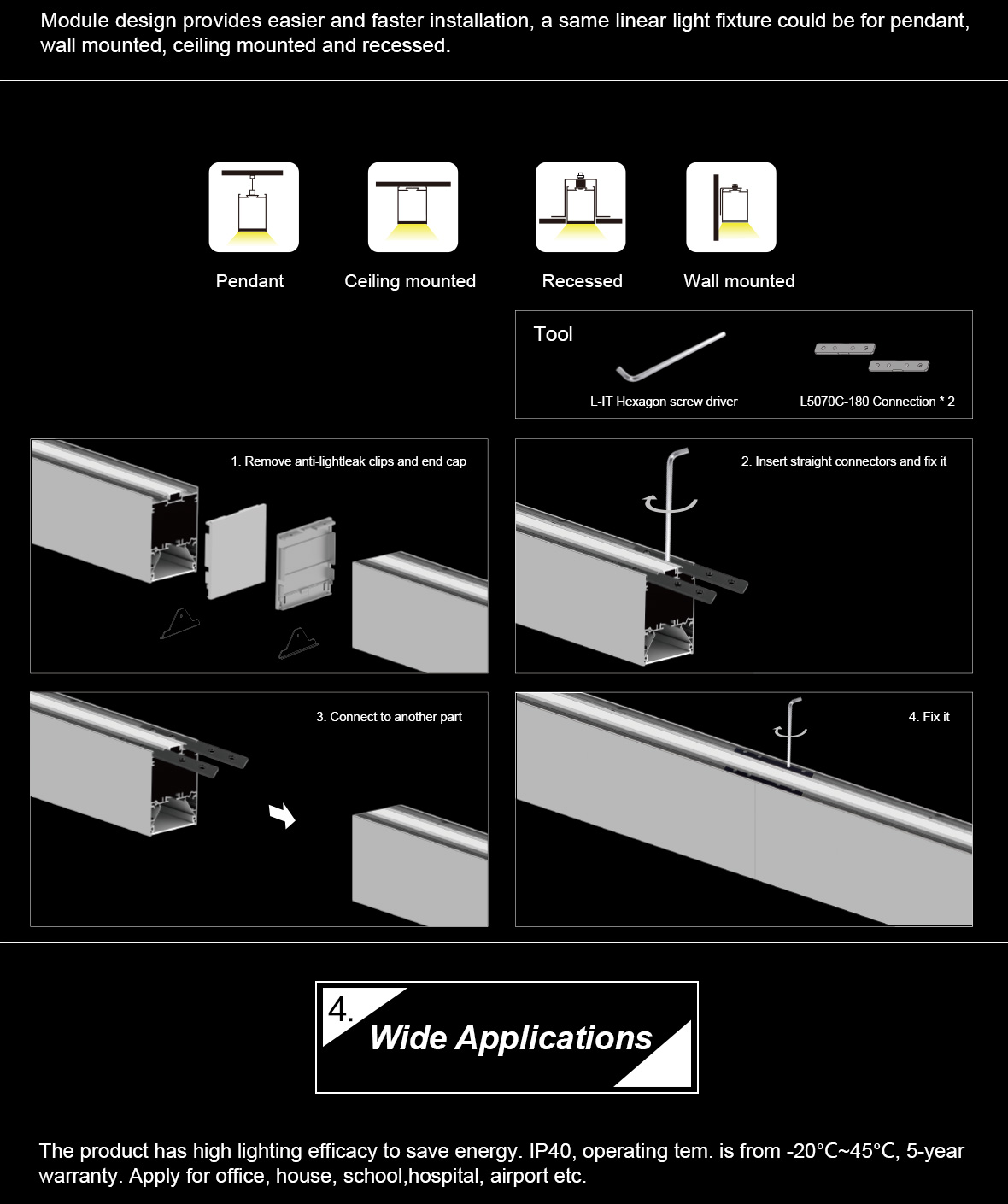

Installation way Pendant / Ceiling mounted / Recessed / Wall mounted
Protection grade IP40
Detail

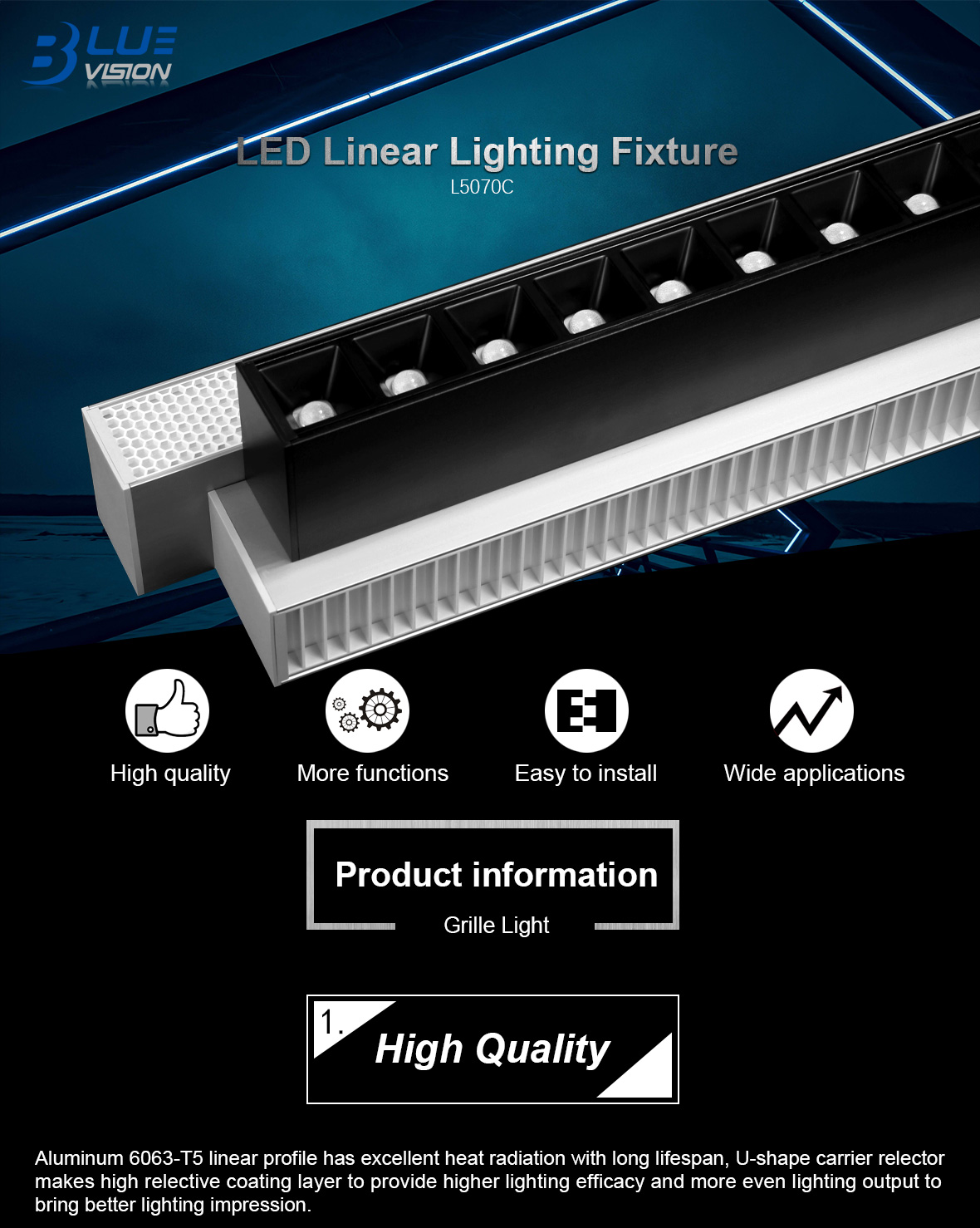

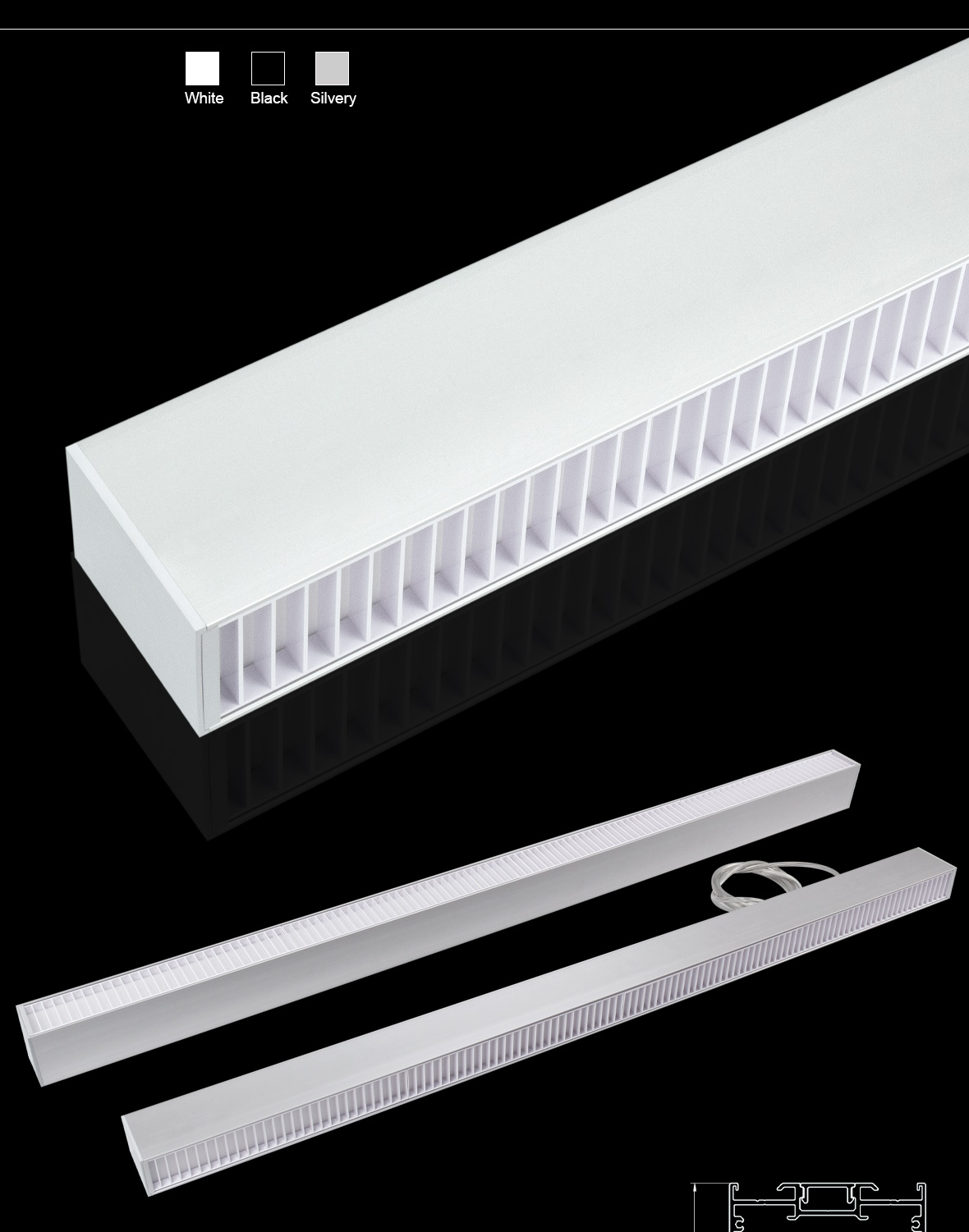

L5070C 4FT/6FT/8FT down light only, LED linear grille light, LED linear light

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Long lifespan > 50000 Hours;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland);

  • 5-year warranty

Parameter:



Grille Light                      L5070C-A31S                      I                      L5070C-A46S                        I                      L5070C-A61S

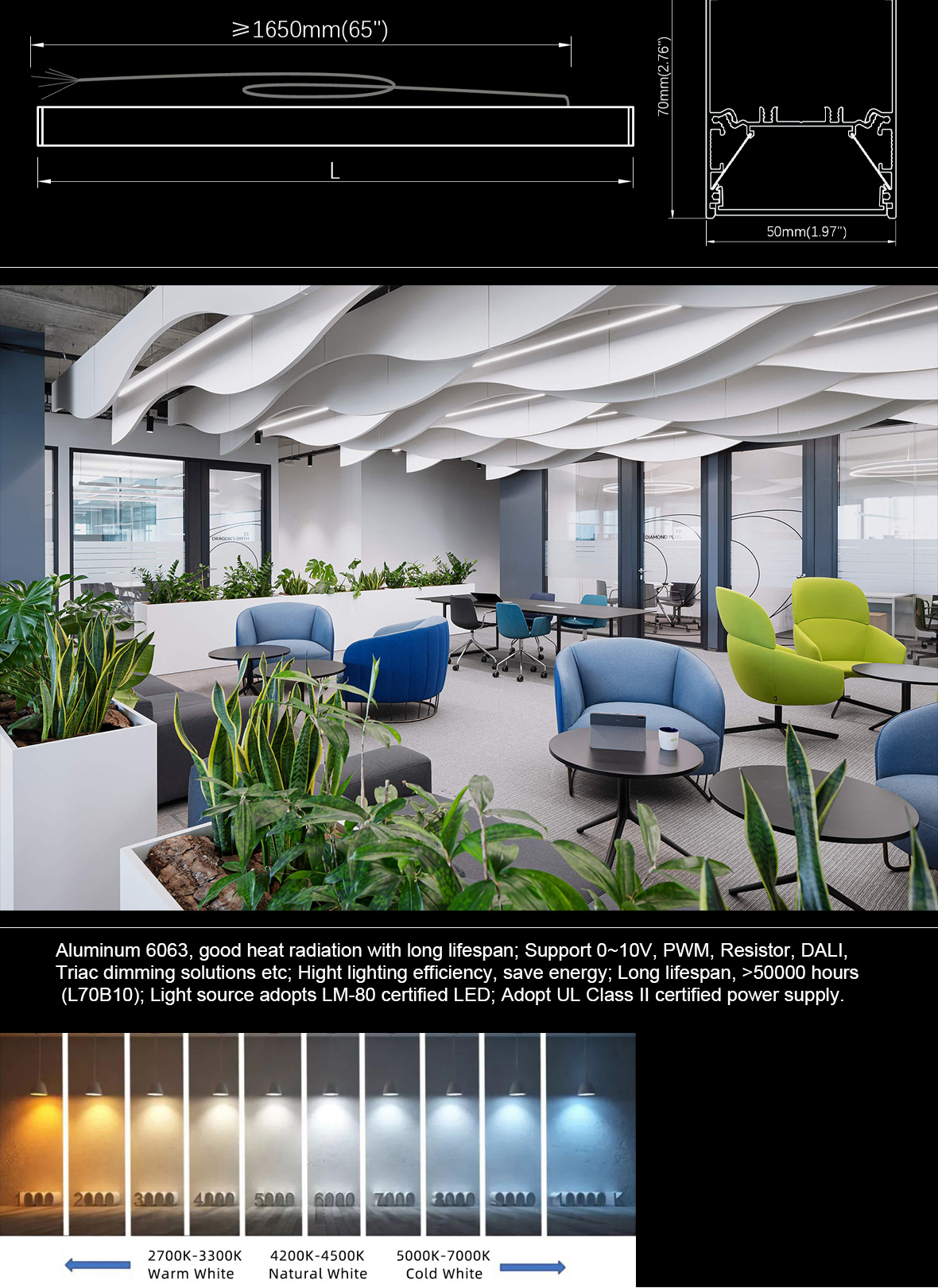

Size              1126mm×50mm×70mm               I                1686mm×50mm×70mm              I                2240mm×50mm×70mm
Power                             31W                               I                              46W                              I                              61W
Lumen                    2193lm~2325lm                  I                      3253lm~3450lm                    I                    4314lm~4575lm
Emitting type                                                                                          Down light only

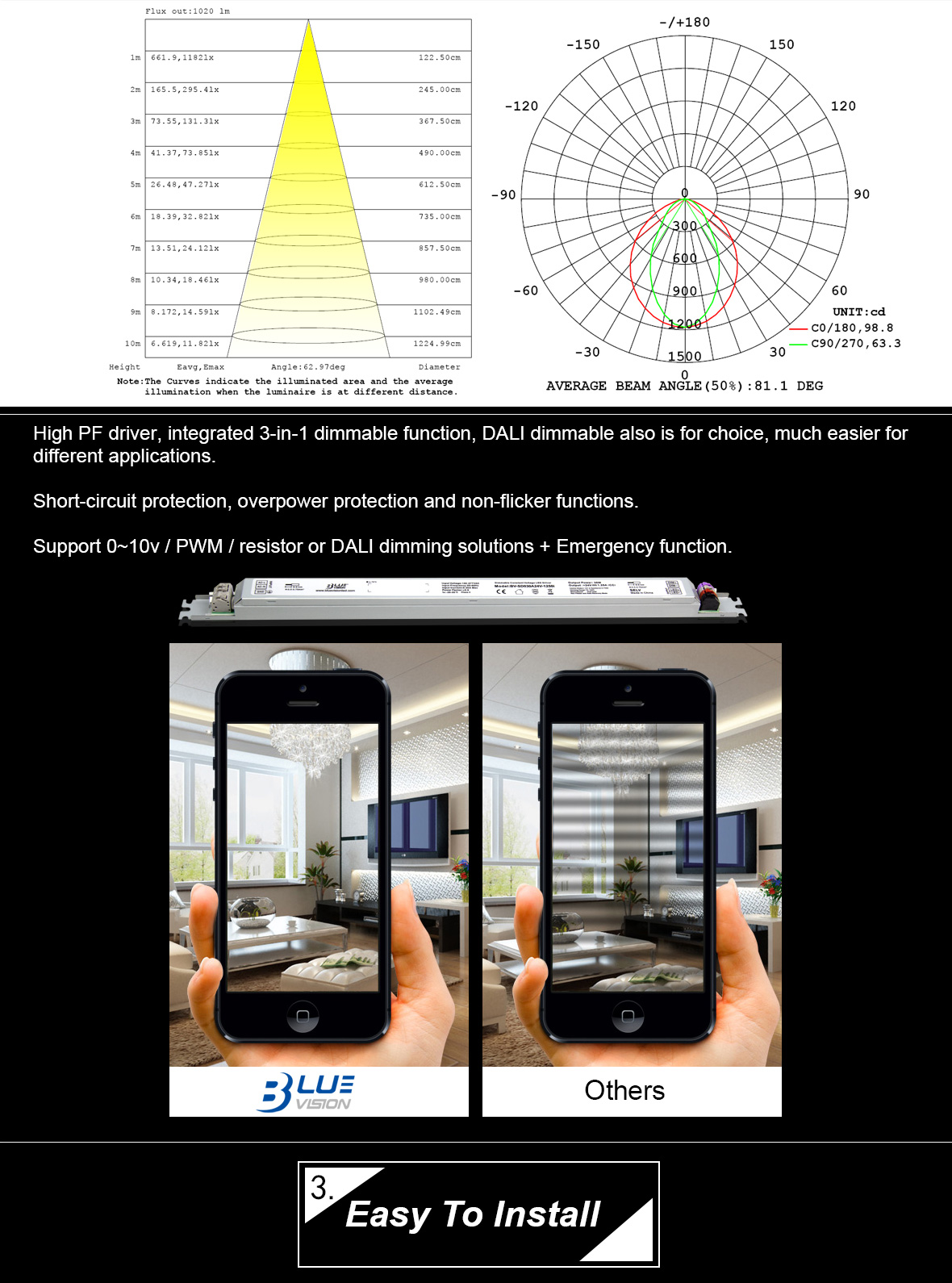

Beam angle                                                                                                  80°
CRI                                                                                                   85+
CCT                                                                           3000K/4000K/6000K (3500K 、5000K)
IP grade                                                                                                   IP 40
PF                                                                                                    ≥0.9
Working voltage                                                                 AC120~277V, 60Hz / AC200~240V,50Hz
Max Input current                                                                                                      6A
Installation way                                                               Pendant / Ceiling mounted / Recessed / Wall mounted
Dimming range                                                                                                  1~100%
Profile color                                                            Silvery (RAL9006) / Black (RAL9004) / White (RAL9003)
Operating temperature                                                                                           -20℃ ~ +45℃
Storage temperature                                                                                            -40℃ ~ +60℃


L5070C英文详情_01.jpgL5070C英文详情_02.jpgL5070C英文详情_03.jpgL5070C英文详情_04.jpgL5070C英文详情_05.jpgL5070C英文详情_06.jpgL5070C英文详情_07.jpg
