L5570-A+B21R 4FT rimless recessed tunable LED linear light, ETL, FCC, TUV CE, CB certficates

Video

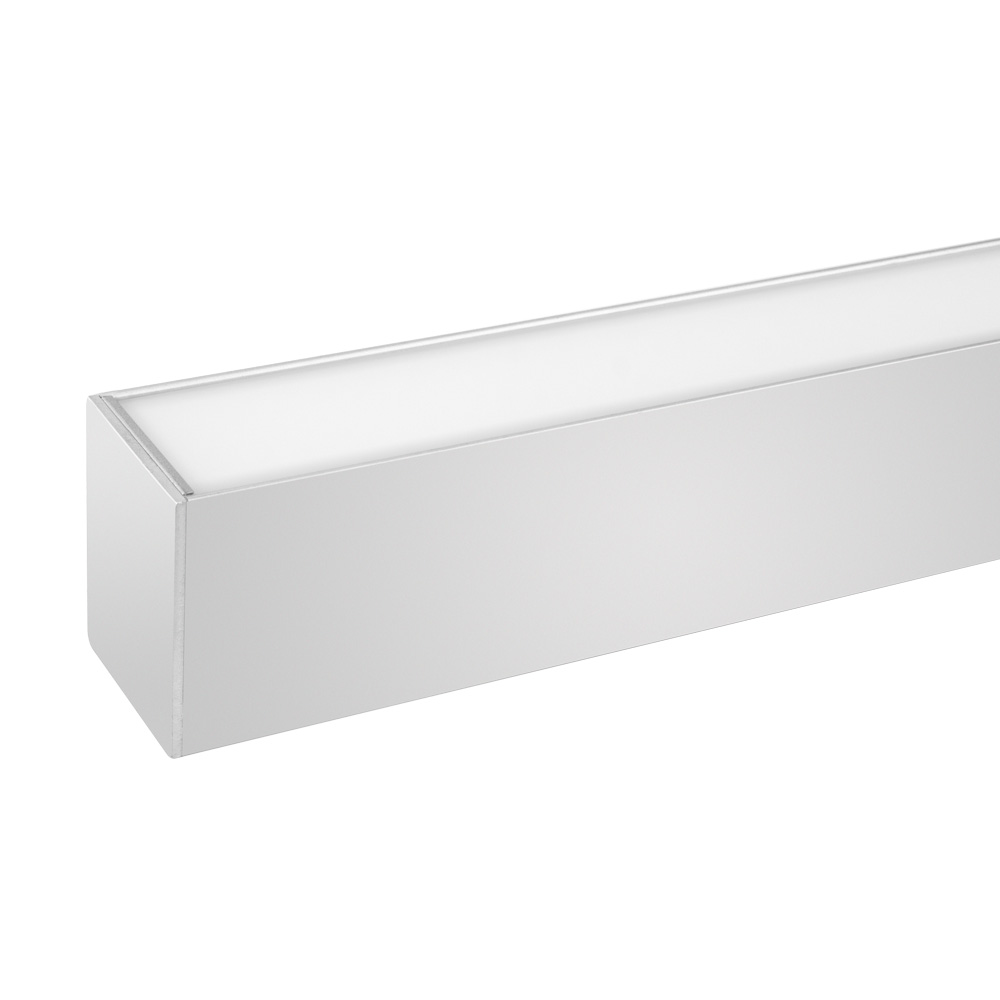

L5570-A+B21R 4FT recessed tunable LED linear light

Feature:

• Aluminum 6063-T5, good heat radiation with long lifespan;

• Non-dimmable, 1~10V, DALl, Triac dimming solutions etc.(optional);

• High lighting efficacy, save more energy;

• CCT 2700K~6000K tunable;

• Long lifespan > 50000 Hours;

• Light source adopts LM-80 cerfified LED;

• Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland)

Parameter:

• Size:                                 1230mm (4.04ft) * 55mm (0.18ft) * 70mm (0.23ft)

• Cover:                               Planar diffusion mask / UGR (anti-glare)

• Installation way:                Rimless recessed

• Profile Color:                     Silvery / White / Black

• CCT:                                  2700k~6000k tunable or other CCT

• Lumen:                              68~2250LM (17~563LM/ft)

• Beam Angle:                     96° (PDM) / 83° (UGR)

• CRI:                                  80+ / 90+

• PF:                                    >0.9

• IP Grade:                          IP40

• Working Voltage:              100~240VAC / 50~60Hz

• Dimming Range:              1~100%

• Input Power:                     21w (5.3w/ft)

• Lighting Efficacy:             100LM/w

• Energy Efficiency:             A+

• Operating Temperature:   -20~+45℃

• Storage Temperature:      -40~+60℃
