L5580D-A44S 4FT non-linkable up and down LED linear light, ETL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L5580D-A44S
Detailed item code L5580D-WW44S
Detailed item code L5580D-NW44S
Detailed item code L5580D-W44S
Power 44W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Certification ETL, FCC, CE, ROHS
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 4ft
Application Indoor
Installation way Pendant
Protection grade IP40
Detail

L5580D-A44S 4FT non-linkable up and down light LED linear light

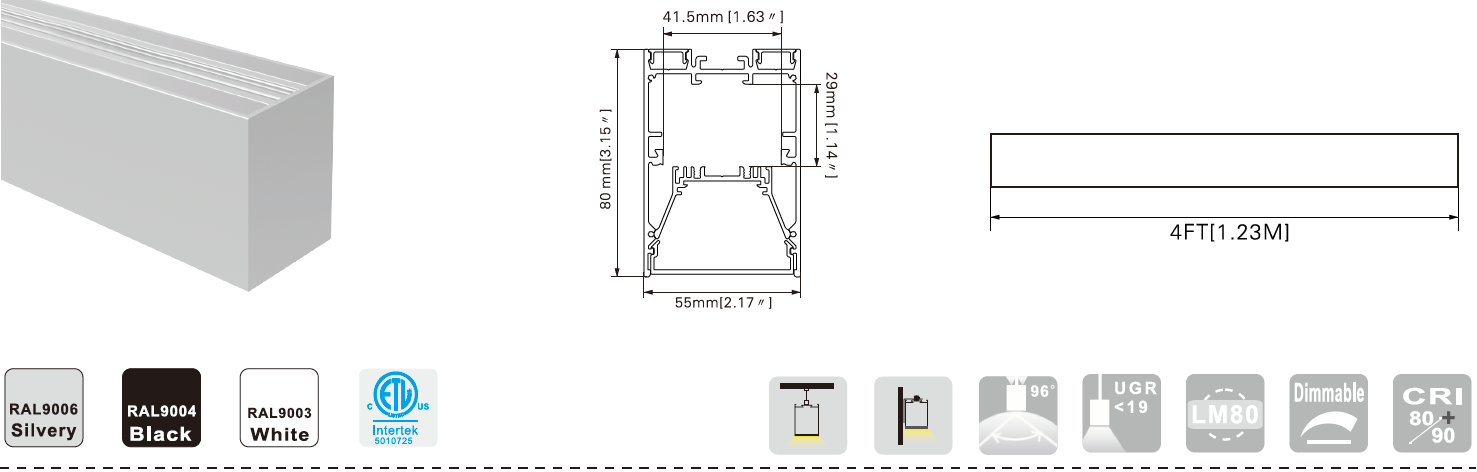

L5580D up and down led linear light

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Warranty 5-year, >50000 hours (L70B10) ;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC

Parameter:



Item NO.     L5580D-A44S
Size     1232mm(4.04ft) x 55mm(0.18ft) x 80mm(0.26ft)
Power     44W (11w/ft)     Up:18W (4.5w/ft)      Down:27W (6.7w/ft)
Lumen     4200~4455LM (1050~1113LM/ft)     Up:1680~1780LM (420~445LM/ft)     Down:2520~2675LM (630~669LM/ft)
Cover     PDM (96°) / Prismatic diffuser (83° UGR＜19)
CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃



L5580D英文详情_01.jpgL5580D英文详情_02.jpgL5580D英文详情_03.jpgL5580D英文详情_04.jpgL5580D英文详情_06.jpgL5580D英文详情_05.jpgL5580D英文详情_07.jpg

bluevision led linear light certificates
