L5580D-A89S 8FT non-linkable LED linear light, ETL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L5580D-A89S
Detailed item code L5580D-WW89S
Detailed item code L5580D-NW89S
Detailed item code L5580D-W89S
Power 89W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Certification ETL, FCC, CE, ROHS
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 8ft
Application Indoor
Installation way Pendant
Protection grade IP40
Detail

Video

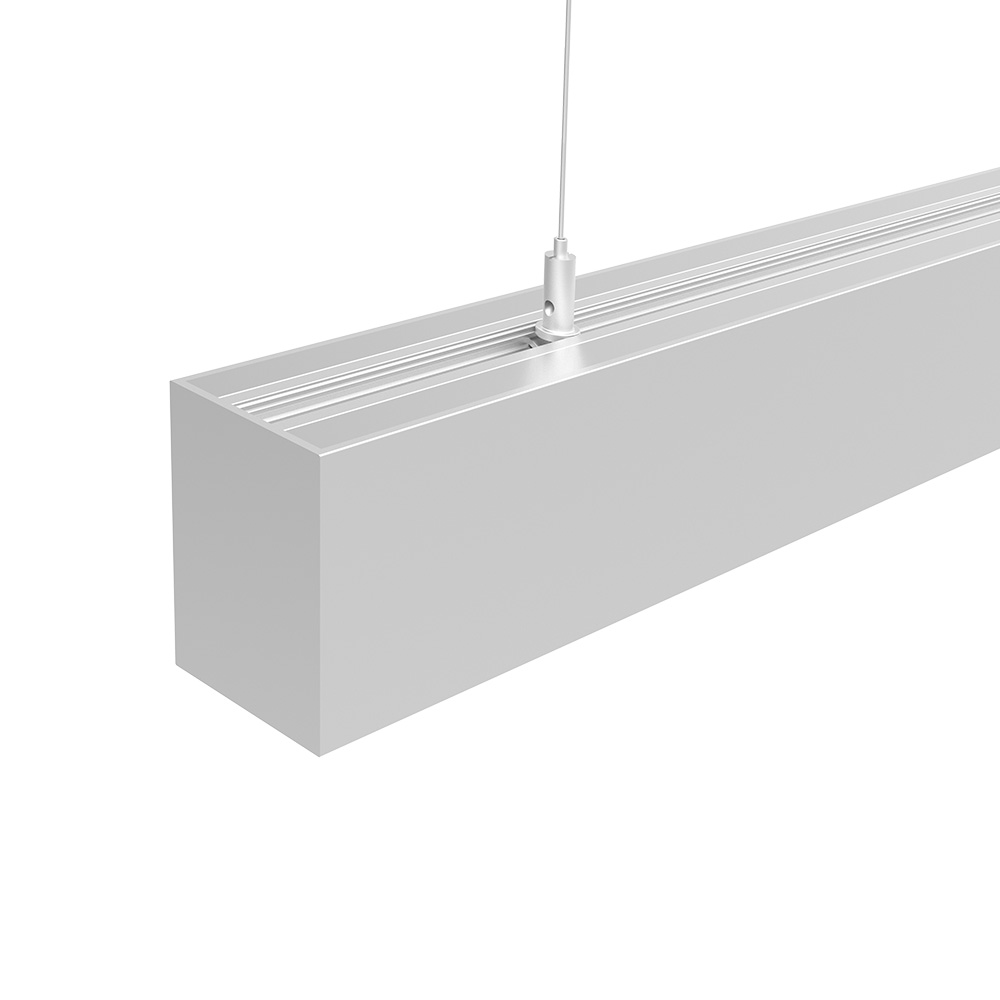

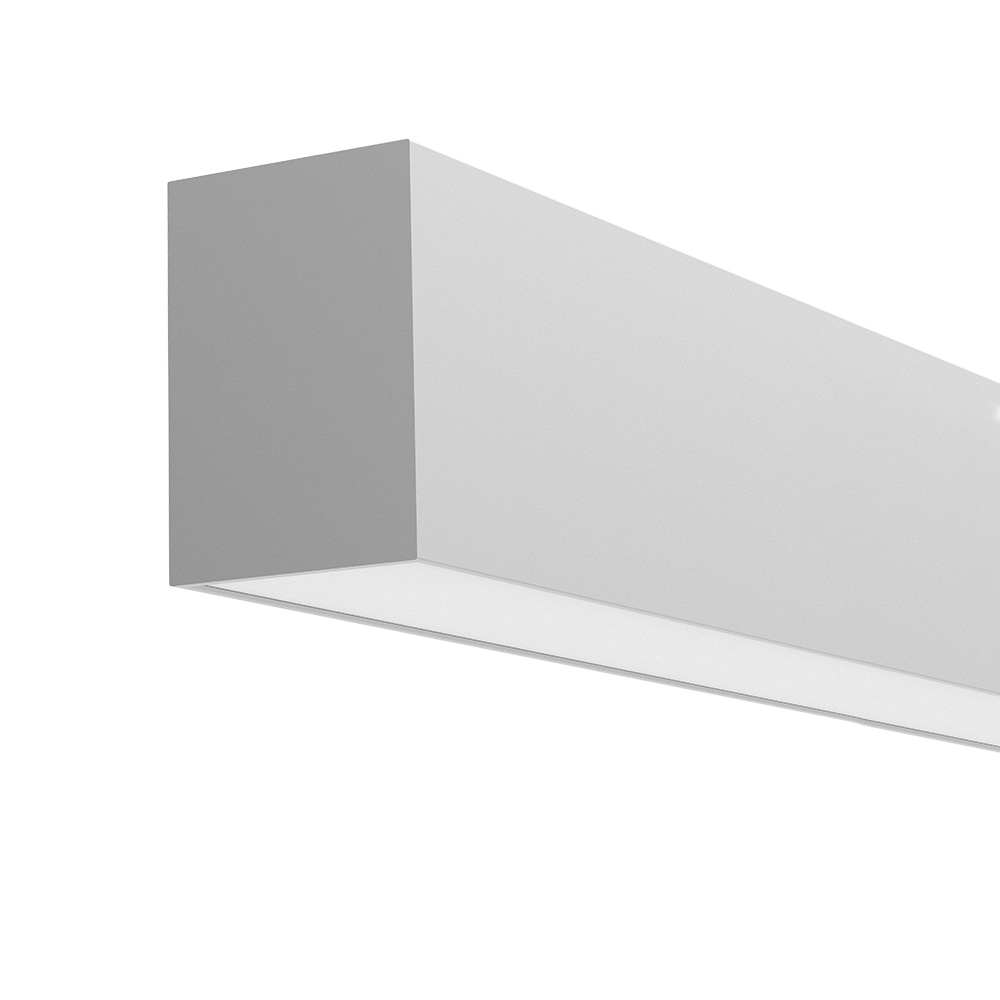

L5580D-A89S 8FT non-linkable up and down light LED linear light

up and down led linear light

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Long lifespan > 50000 Hours;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC


Parameter:



Item NO.     L5580D-A89S
Size     2451mm(8.03ft) x 55mm(0.18ft) x 80mm(0.26ft)
Power     89W (11w/ft)     up: 36W(4.5w/ft) down: 53W(6.7w/ft)
Lumen     8400~8910LM (1050~1113LM/ft)     up: 3360~3565lm down: 5040~5350lm
Cover     PDM (96°) / UGR (83° UGR＜19)
CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A

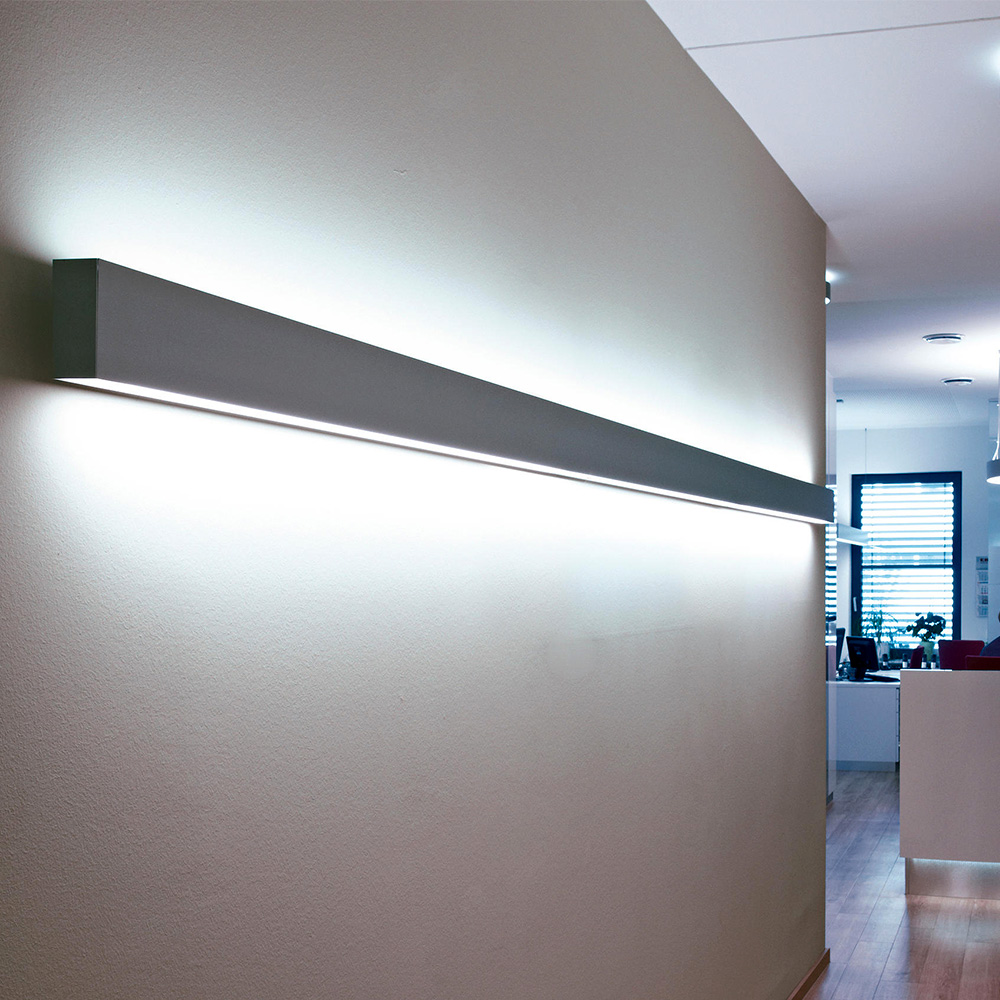

Installation way     Pendant / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃



L5580D英文详情_01.jpgL5580D英文详情_02.jpgL5580D英文详情_03.jpgL5580D英文详情_04.jpgL5580D英文详情_05.jpgL5580D英文详情_06.jpgL5580D英文详情_07.jpg

bluevision led linear light certificates
