L5580D-A89 8FT Linkable up& down LED linear light, ETL, TUV CE, CB certficates

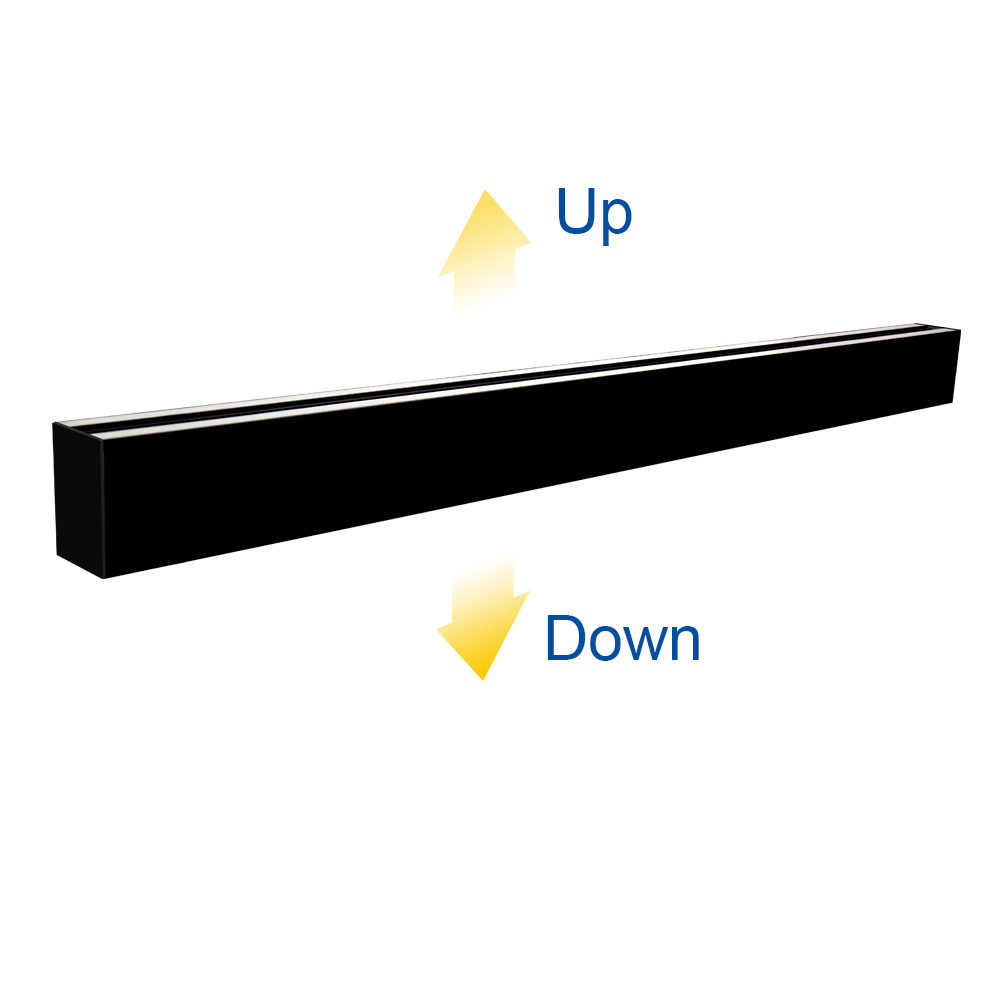

L5580D-A89 8FT Linkable up and down light LED linear light
L5580D up and down light LED linear light quick linkage series are launched by BlueVision LED whom is a LINEAR LIGHTING SOLUTIONS PROVIDER to achieve different shape designs with easy and quick linkage, these products redefined user experience of linear light through modularity design and quick assembly & installation, it broke the idea restriction of traditional lighting fixtures and complicated wiring of old versions linear light, achieve “three quick”: quick assembly, quick linkage, quick corner connection.
Feature:
Aluminum 6063-T5, good heat radiation with long lifespan;
Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);
High lighting efficacy, save more energy;
Linear light fixtures could be linked to very long line but use only one set of AC cables;
Long lifespan > 50000 Hours;
Light source adopts LM-80 cerfified LED;
Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC
Parameter:

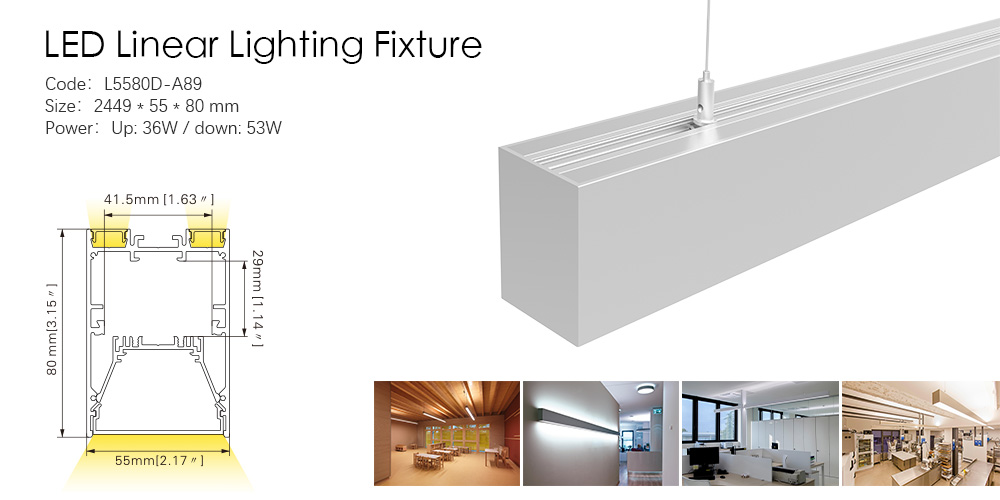

| Item NO. | L5580D-A89 |

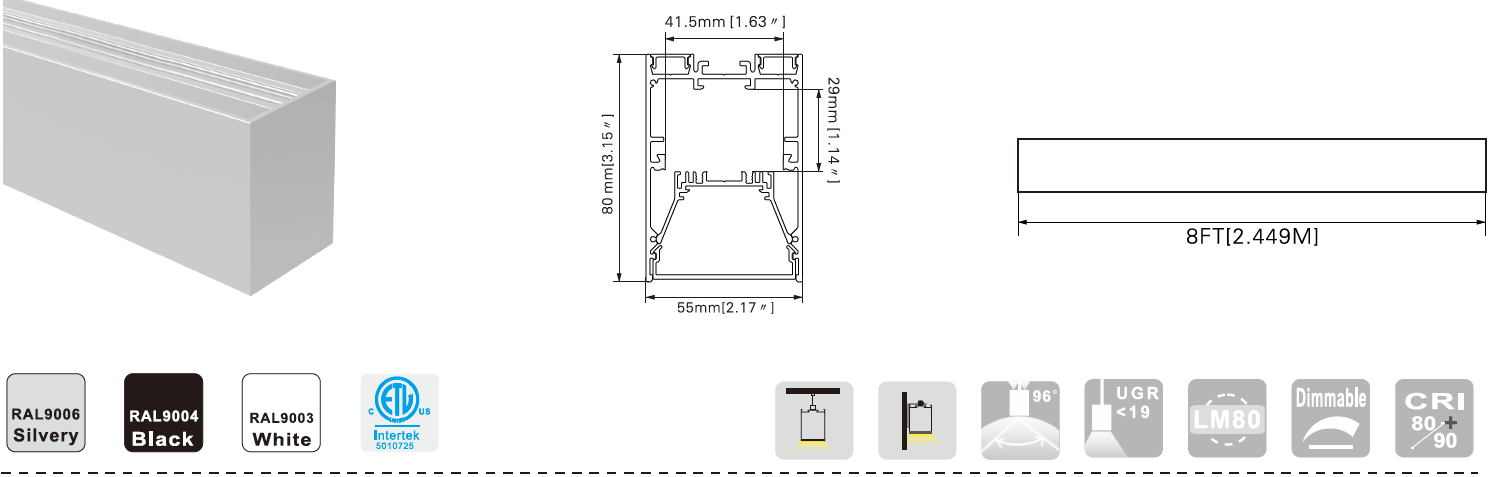

| Size | 2451mm(8.03ft) x 55mm(0.18ft) x 80mm(0.26ft) |
| Power | 89W (11w/ft) up: 36W(4.5w/ft) down: 53W(6.7w/ft) |
| Lumen | 8400~8910LM (1050~1113LM/ft) up: 3360~3565lm down: 5040~5350lm |
| Cover | PDM (96°) / UGR (83° UGR＜19) |
| CRI | 85+ / 90+ |
| CCT | 3000K / 4000K / 6000K (3500K / 5000K) |
| PF | ≥0.9 |
| IP grade | IP 40 |
| Working Voltage | AC100~277V / 50~60Hz |
| Max Input Current | 6A |
| Installation way | Pendant / Wall mounted |
| Profile color | Silvery (ral9006) / Black (ral9004) / White (ral9003) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | -40℃ ~ +60℃ |
