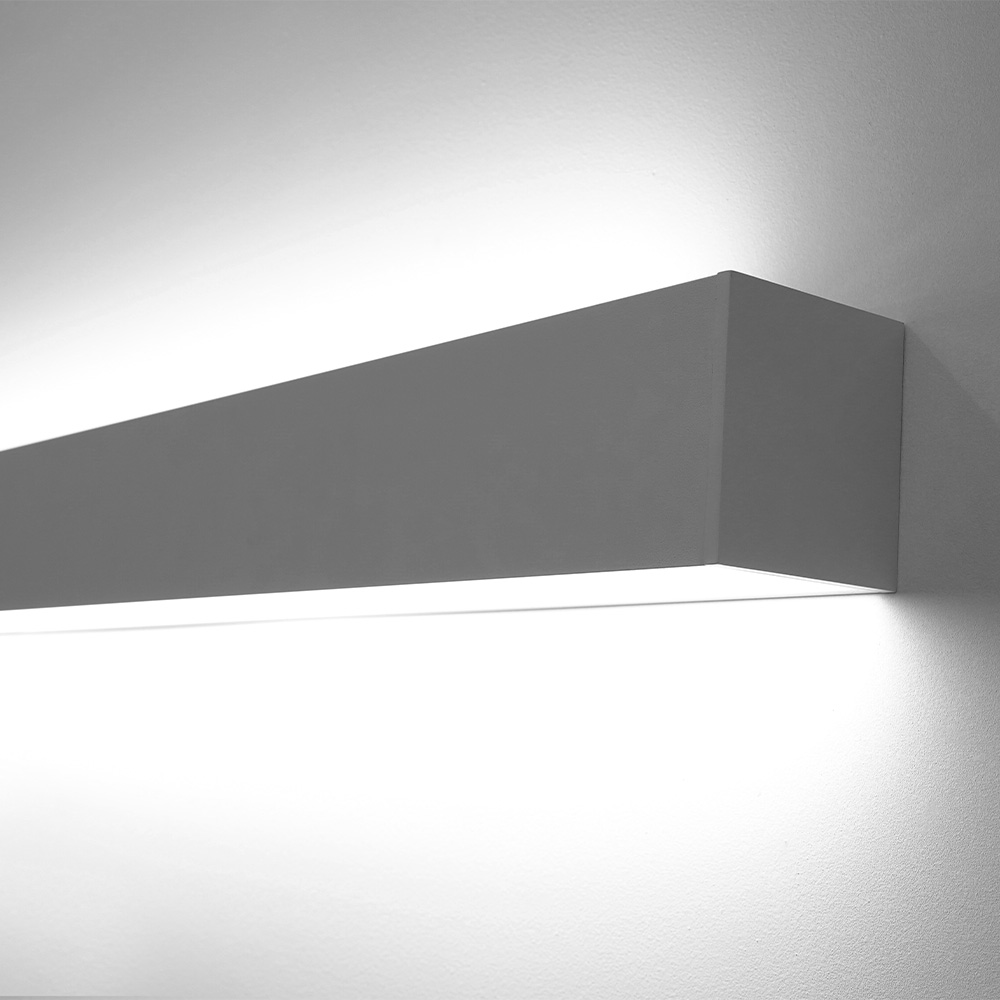

L7380 Quick & sturdy connection Linear light light Up and down light without light leak, ETL, FCC, TUV CE, CB

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L7380
Detailed item code L7380-A45
Detailed item code L7380-A68
Detailed item code L7380-A90
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Environment humidity 40～70% RH
Cover type PDM cover
Application Indoor
Installation way Pendant / Ceiling mounted / Recessed / Wall mounted
Protection grade IP40
Detail

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

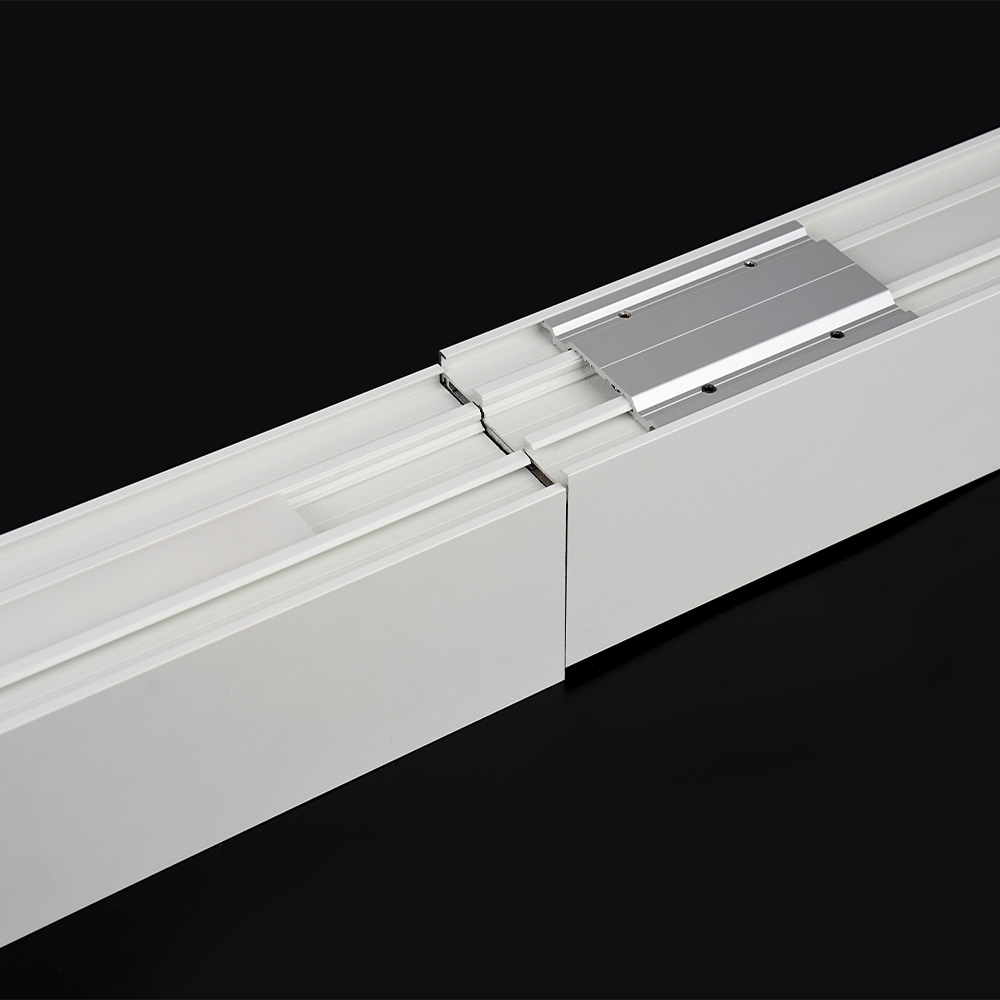

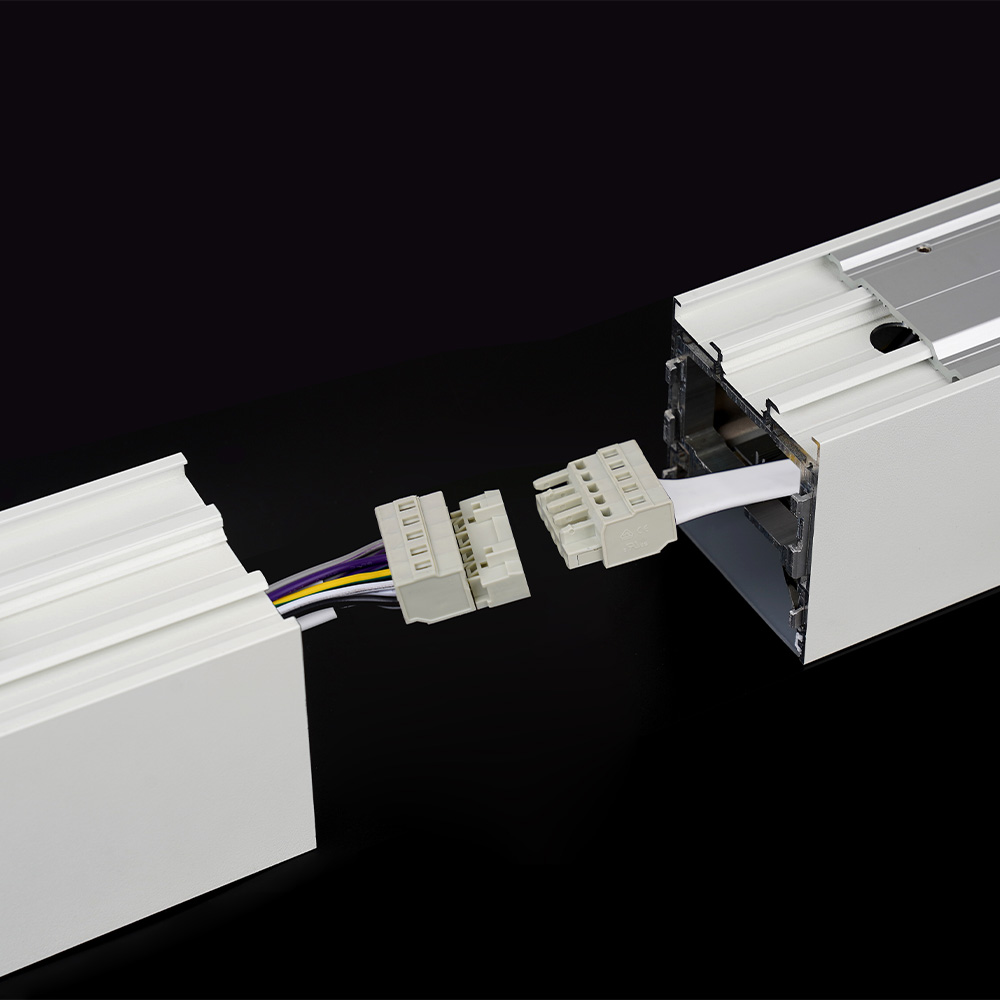

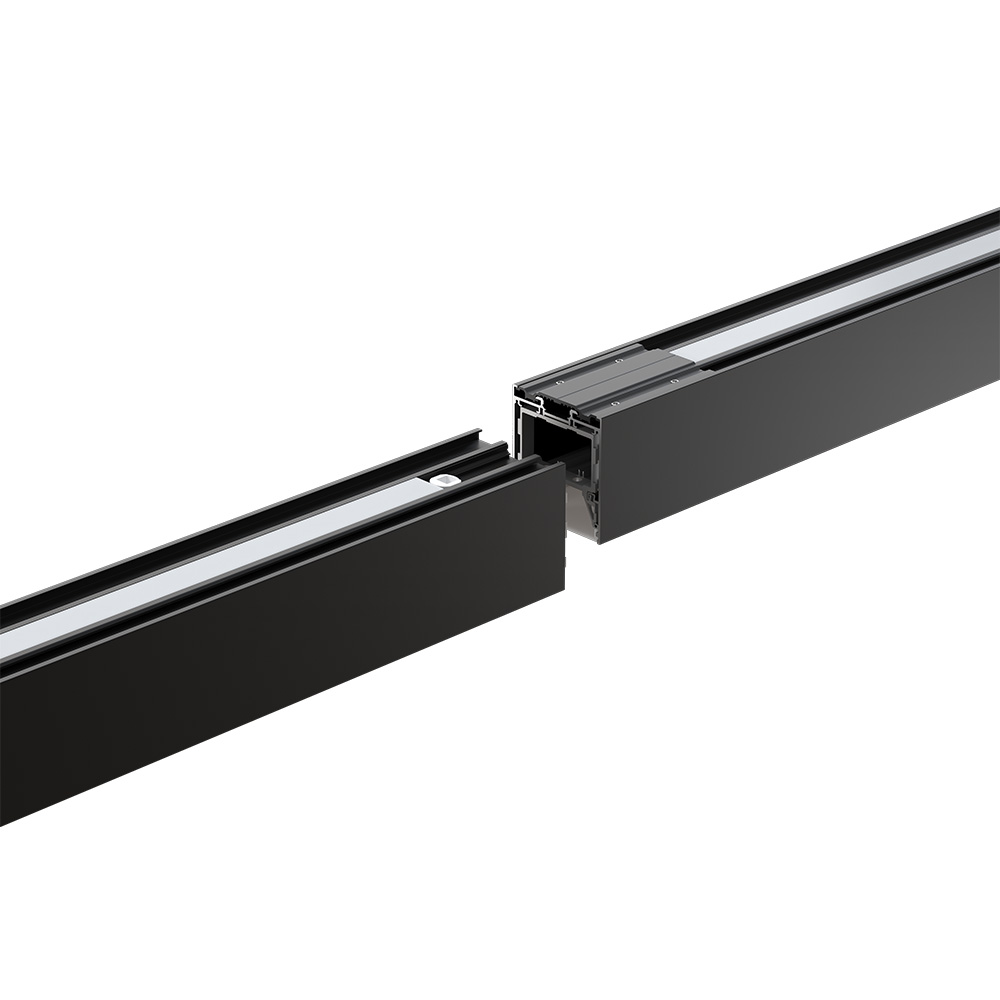

  • Quick & sturdy connection;

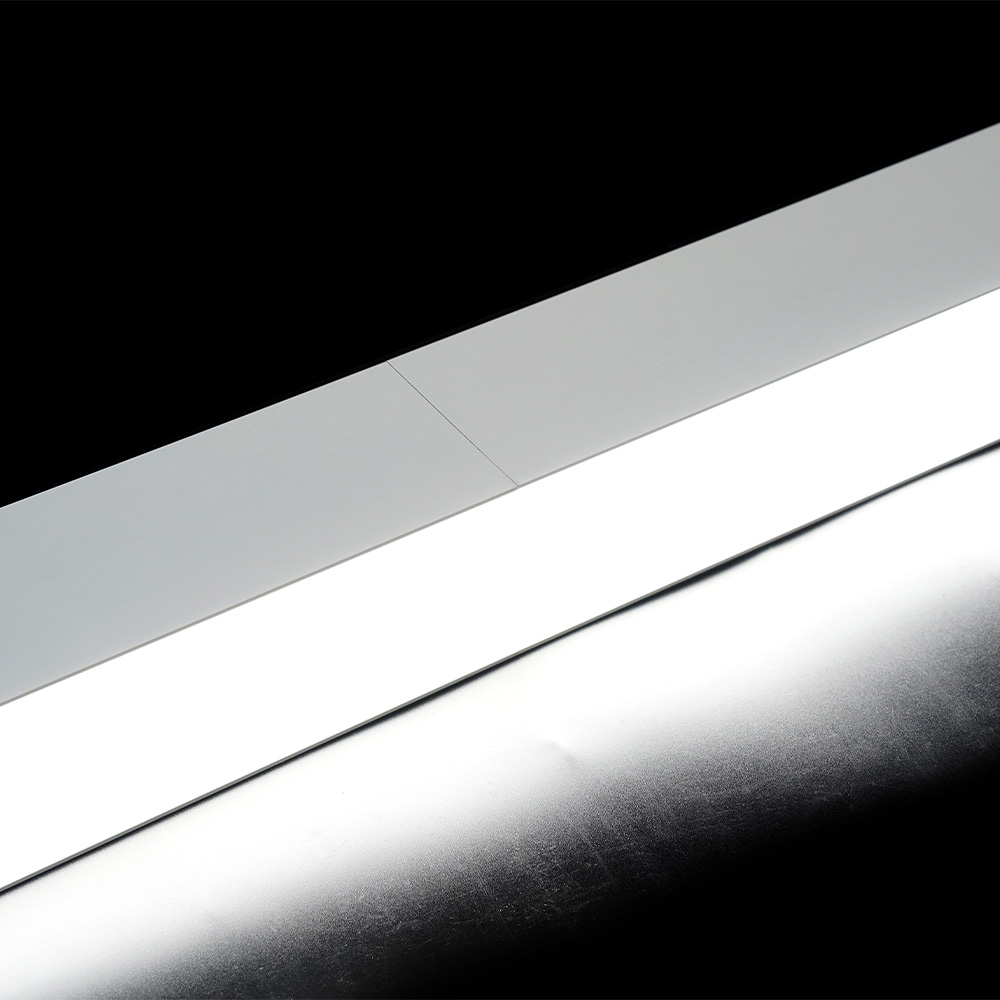

  • Without light leak;

  • Long lifespan > 50000 Hours;

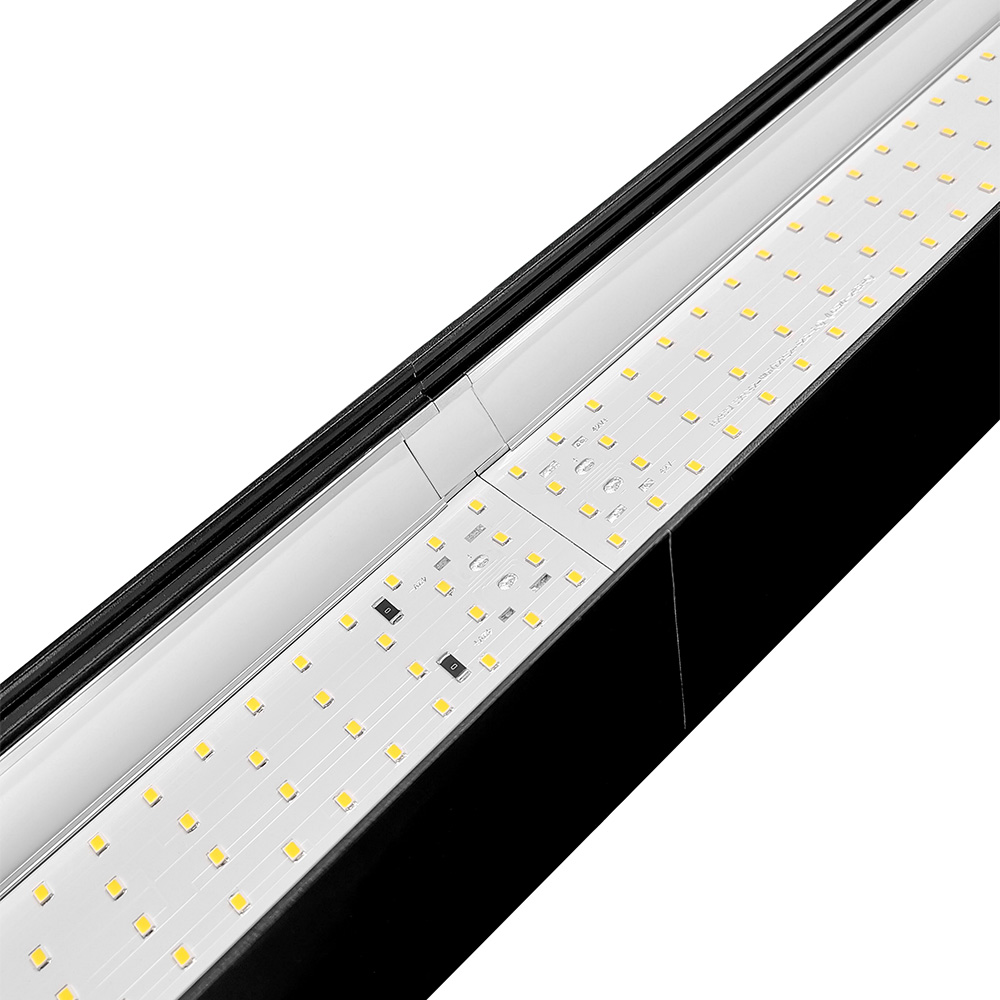

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland)

Parameter:



Item NO.     L7380
Size     1234mm(4.05ft) / 1843mm(6.05ft)   / 2455mm(8.05ft)      x 73mm(0.24ft) x 80mm(0.26ft)
Power             45W           /            68            /           90
Lumen      4097~4344LM   /   6145~6516LM   /   8193~8688LM
Cover     PDM (105°)
CRI     85+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Recessed / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃




Item NO.     L7380S
Size              1234mm(4.05ft)            /          1843mm(6.05ft)        /       2455mm(8.05ft)            x 73mm(0.24ft) x 80mm(0.26ft)
Power     45W（up:18W down:27W） /   68（up:27W down:41W）/   90（up:36W down:54W）
Lumen

     up：1784~1892LM                /      up：2767~2838LM       /      up：3568~3784LM

     down：2676~2838LM           /      down：4015~4257LM   /      down：5353~5676LM

Cover     PDM (105°)
CRI     85+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Recessed / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
