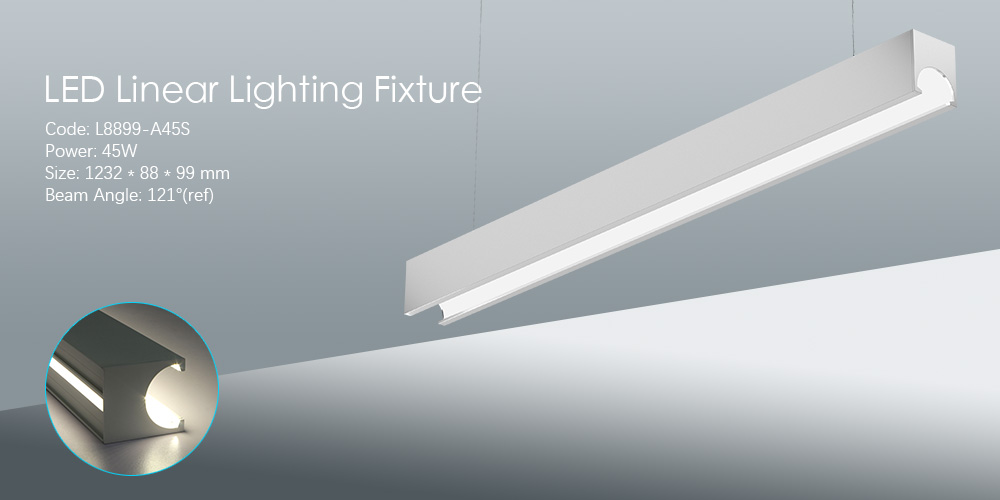

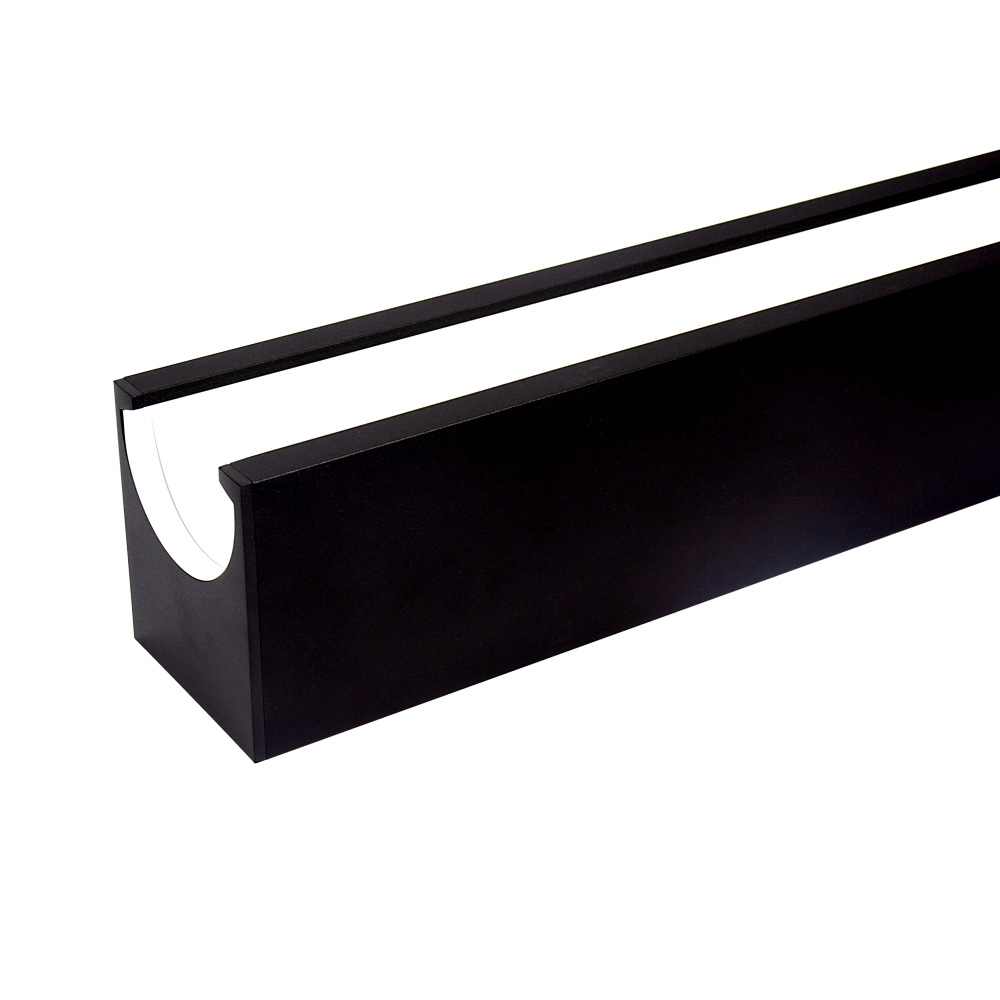

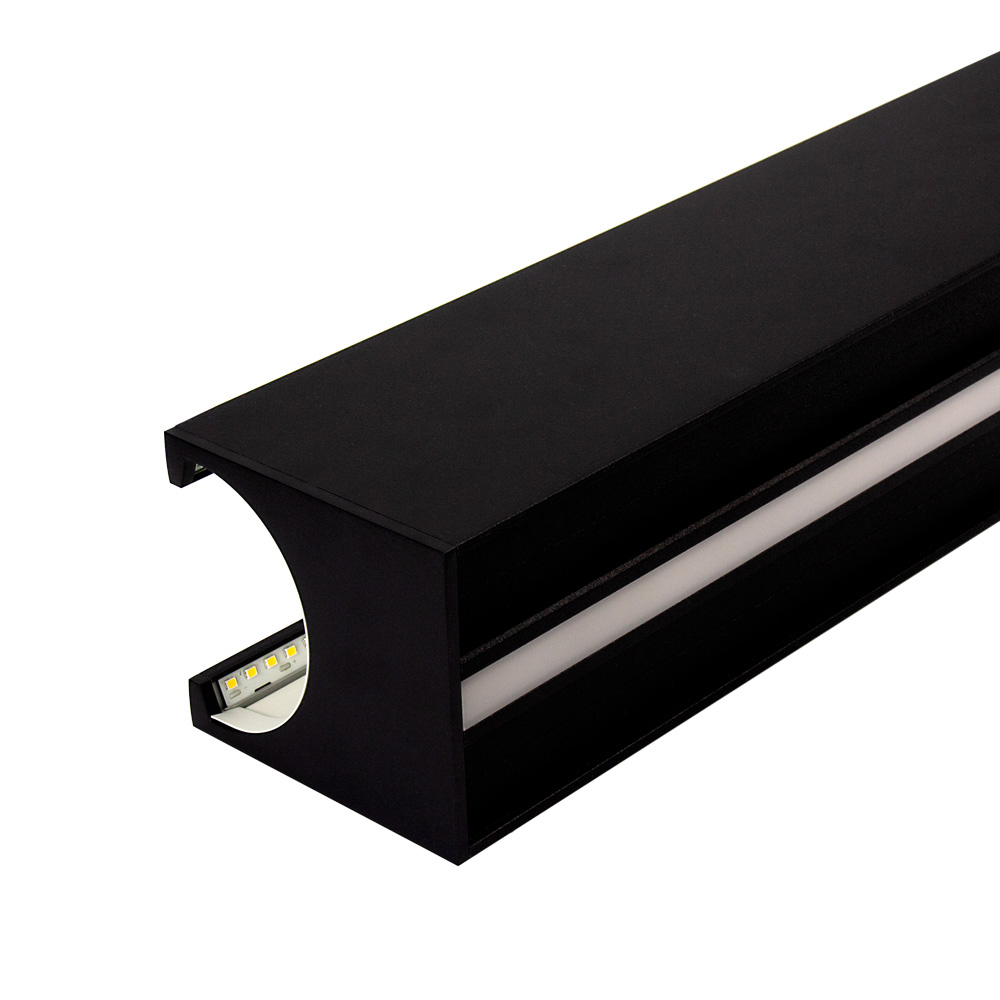

L8899S-A45S up and down 4FT non-linkable LED linear light, ETL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L8899S-A45S
Power 45W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Surface color Silvery, White, Black
Cover type Arc-lamp reflector
Standard length 1232*88*99mm

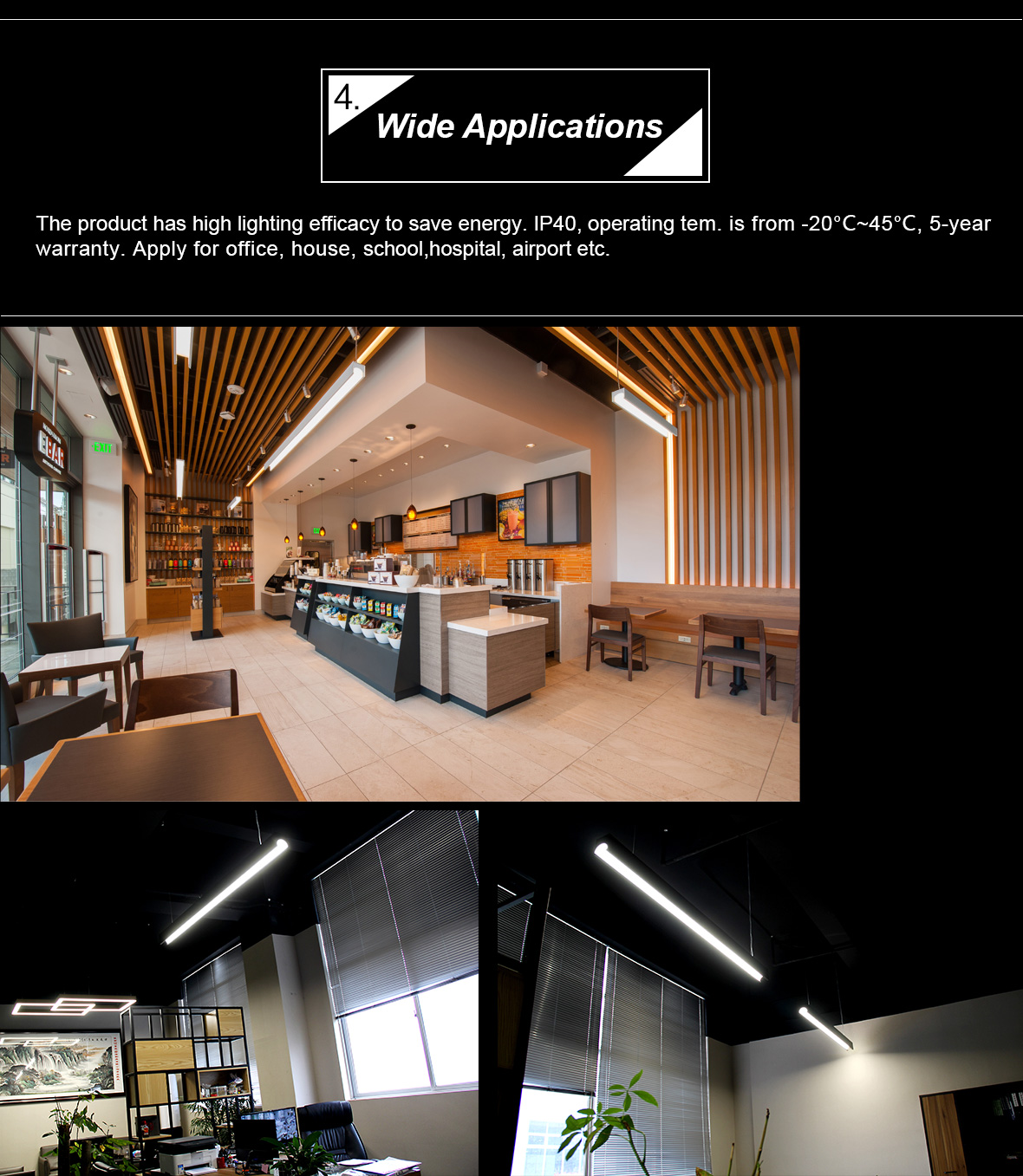

Application Indoor

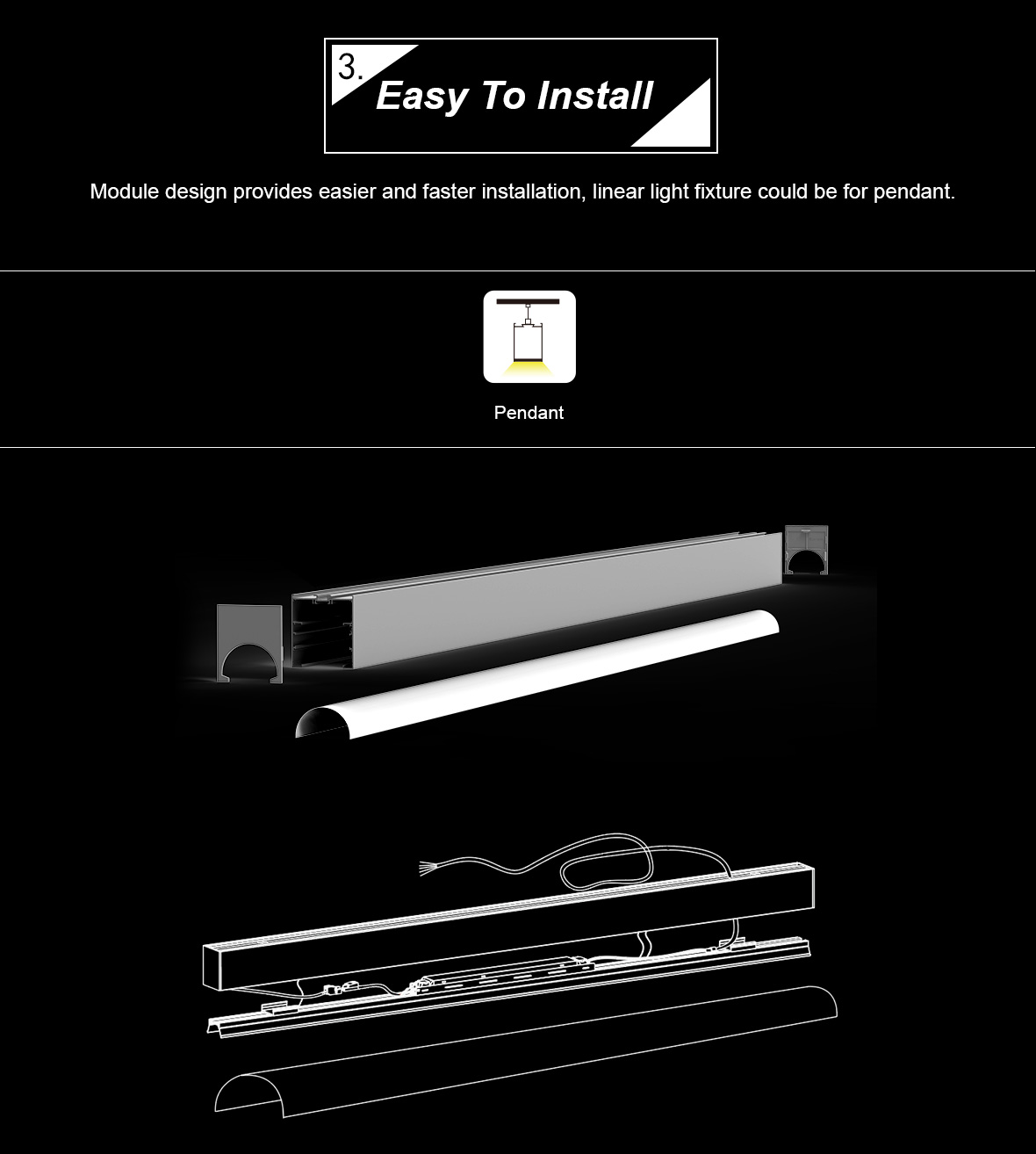

Installation way Pendant, Surface mounted
Protection grade IP40
Detail



Parameter:



Item NO.     L8899S-A45S

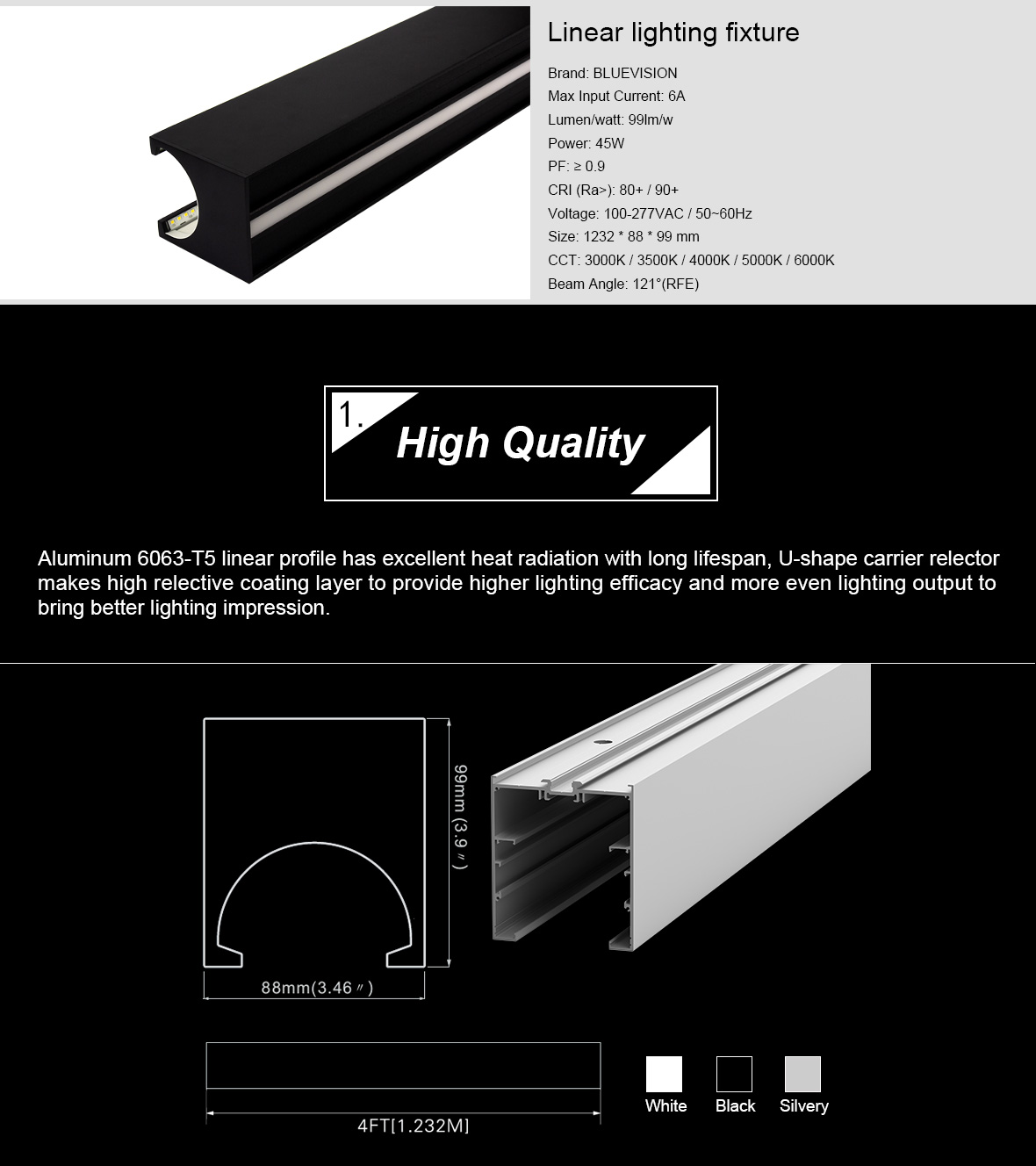

Size     1232mm(4.04ft) x 88mm(0.29ft) x 99mm(0.32ft)
Power     45W (11.3w/ft)     up:11W (2.8w/ft)      down:34W (8.5w/ft)
Lumen     4195~4445lm    up:1050~1110lm down:3145~3335lm

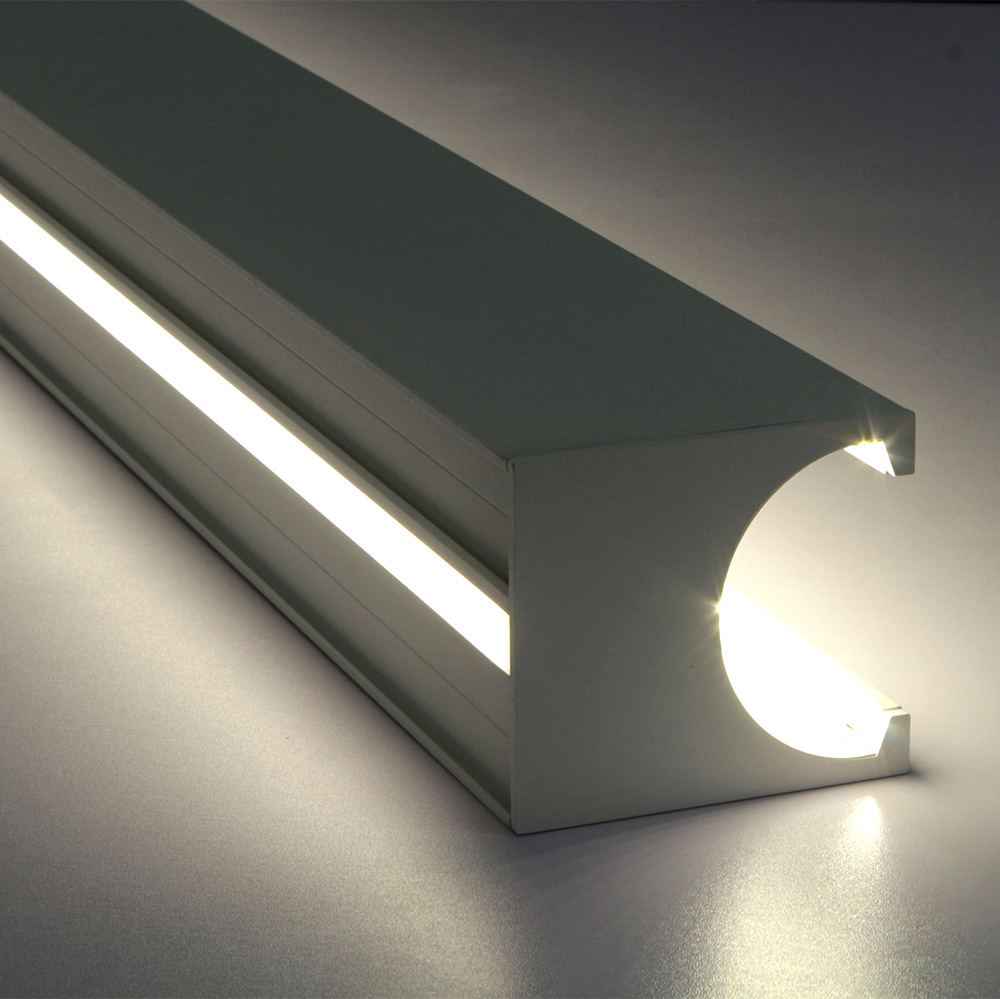

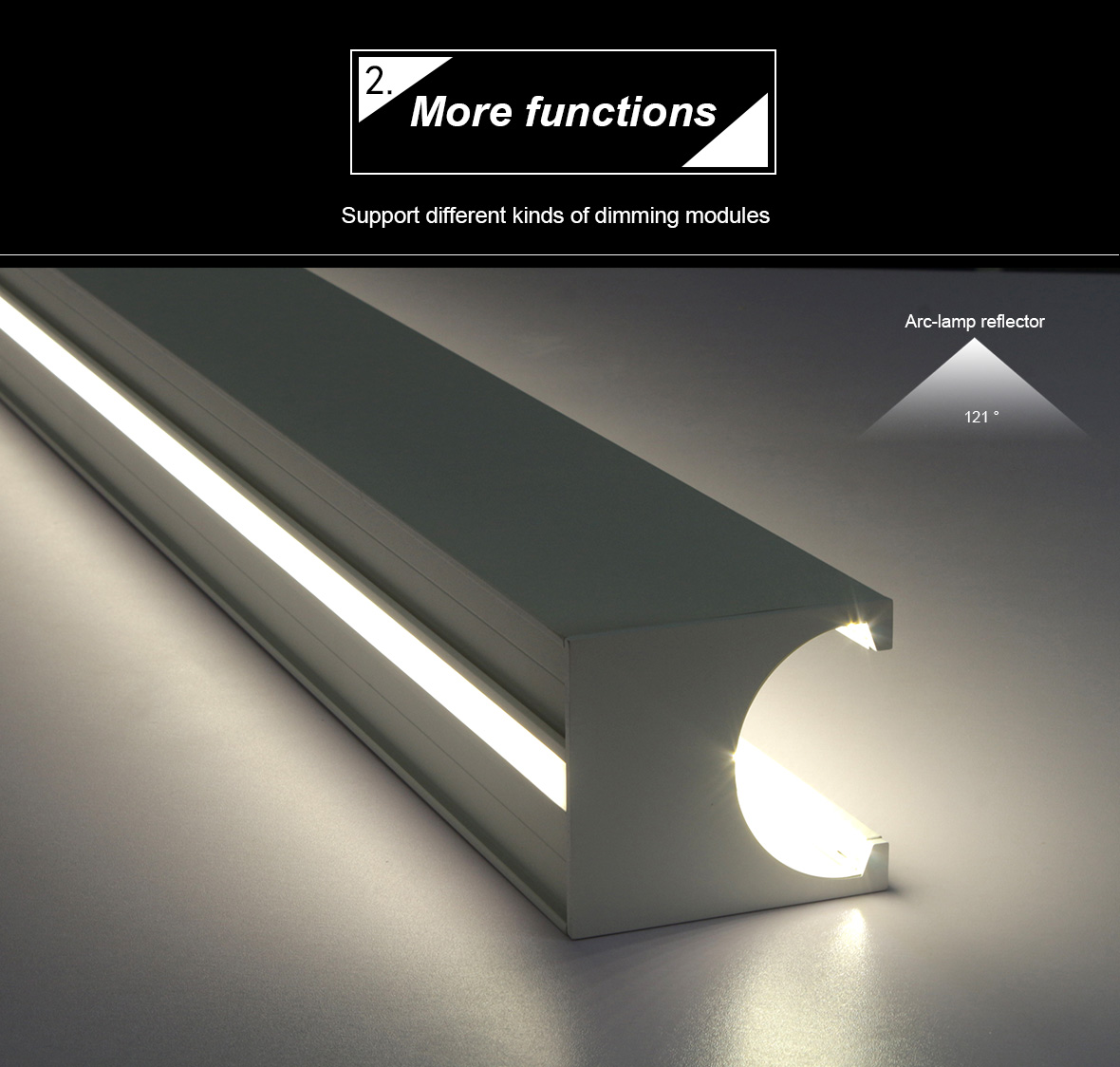

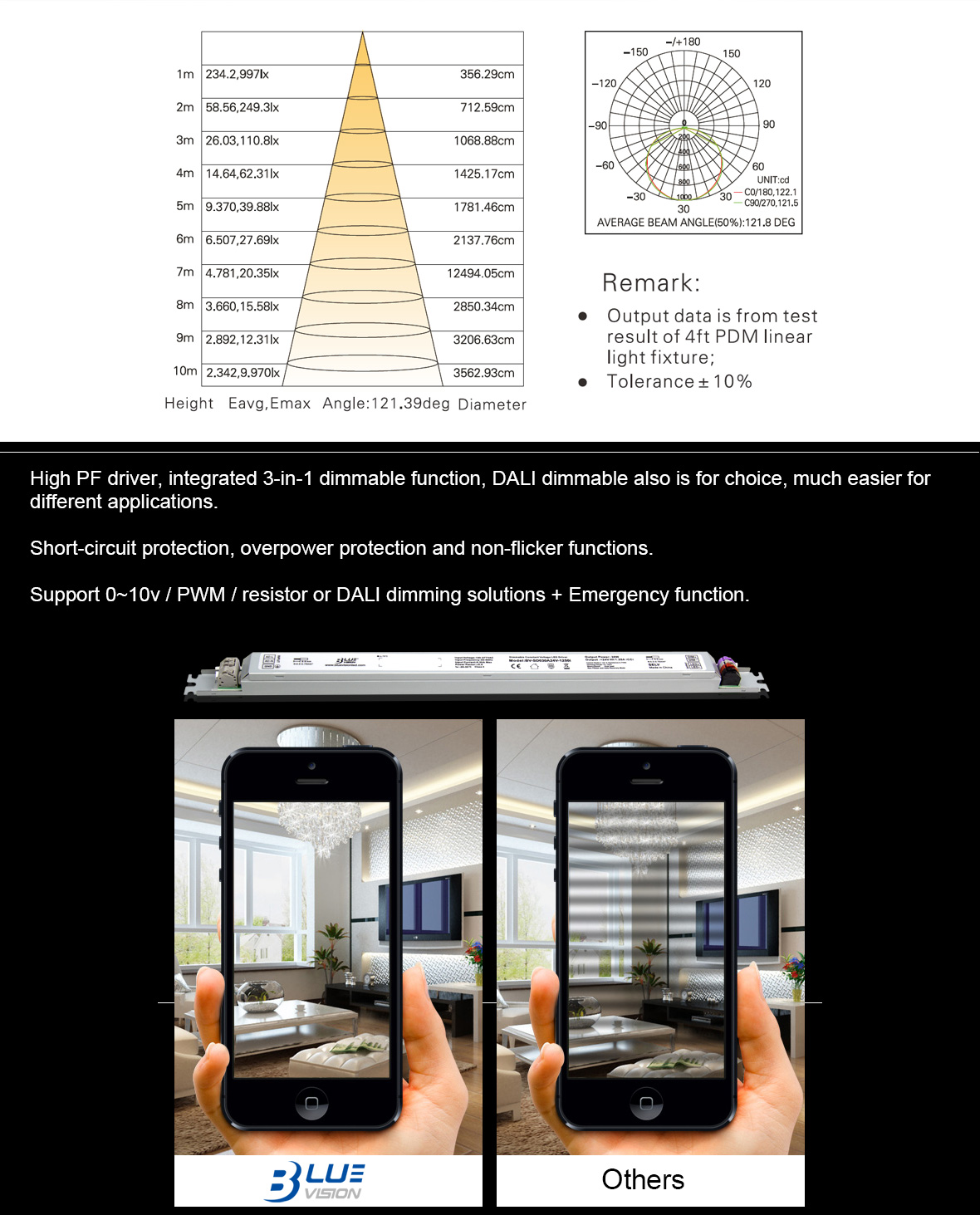

Cover     Arc-lamp reflector (121°)

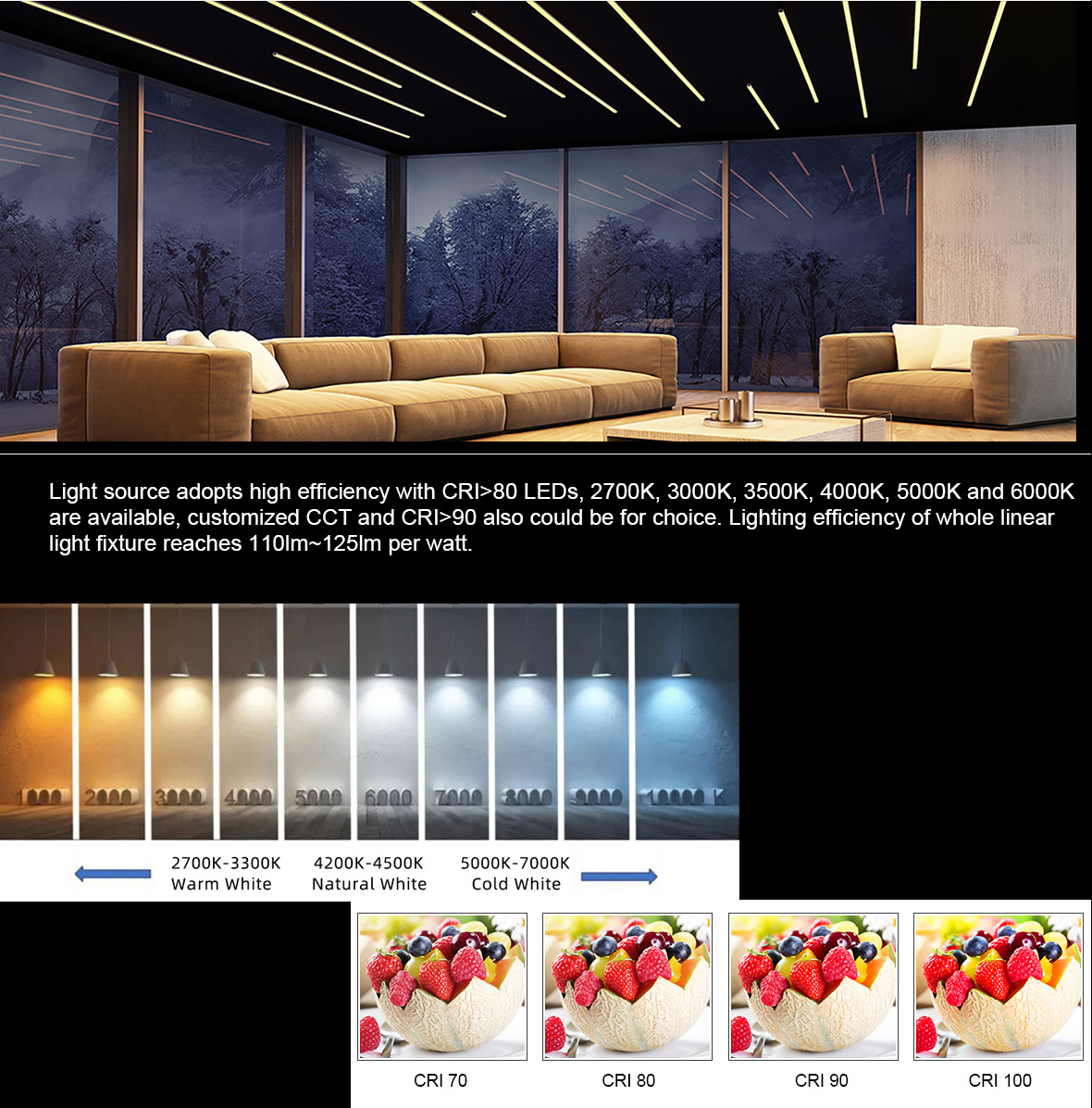

CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
