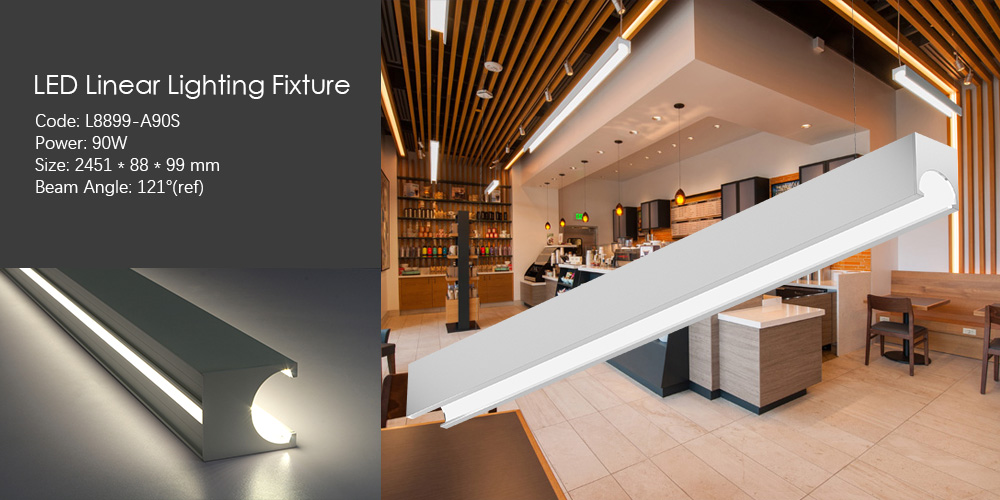

L8899S-A90S up and down 8FT non-linkable LED linear light, ETL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L8899S-A90S
Power 90W(up:22W/down:68W)
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Surface color Silvery, White, Black
Cover type Arc-lamp reflector
Standard length 2451*88*99

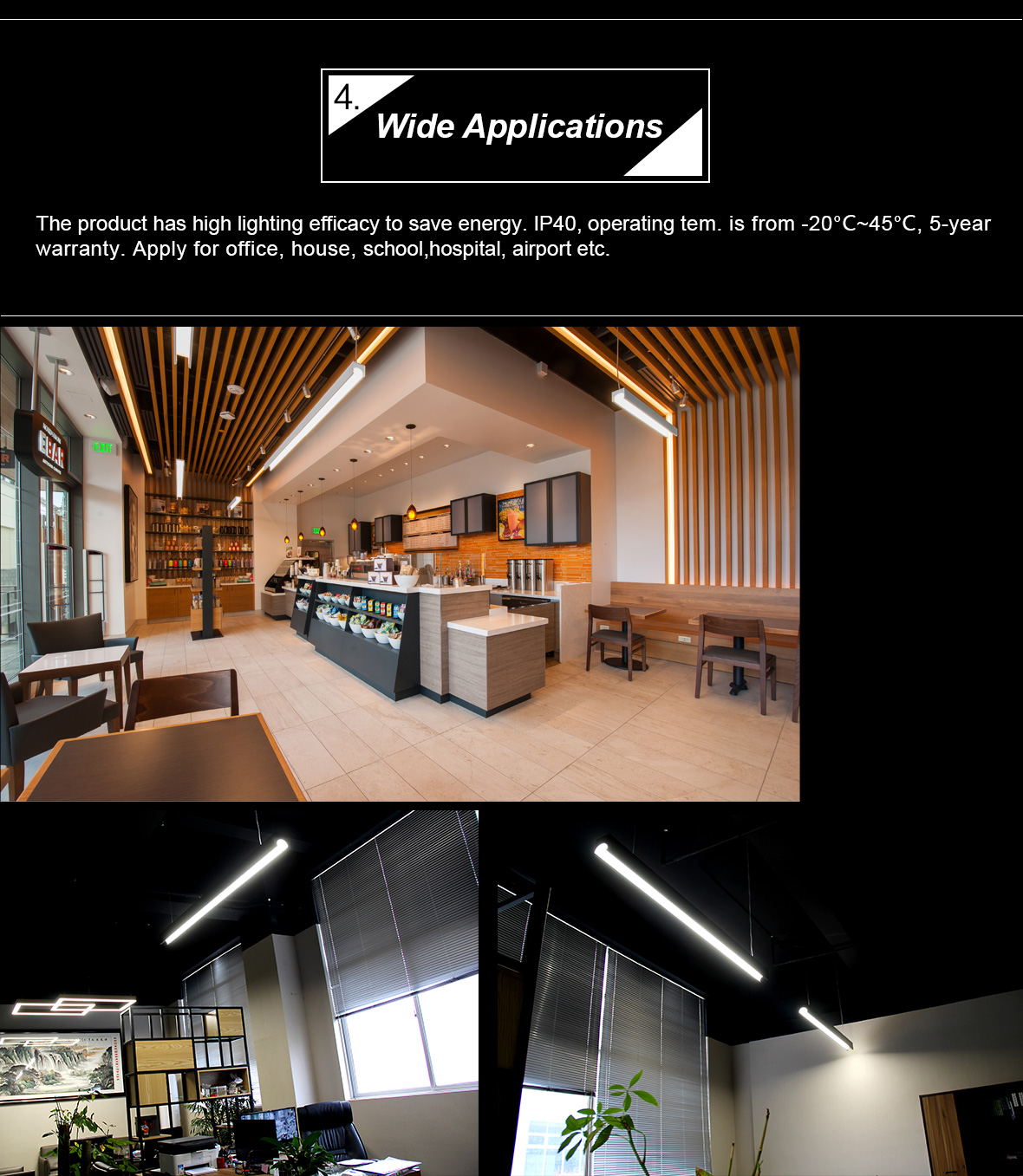

Application Indoor
Installation way Pendant, Surface mounted
Protection grade IP40
Detail



Parameter:



Item NO.     L8899S-A90S

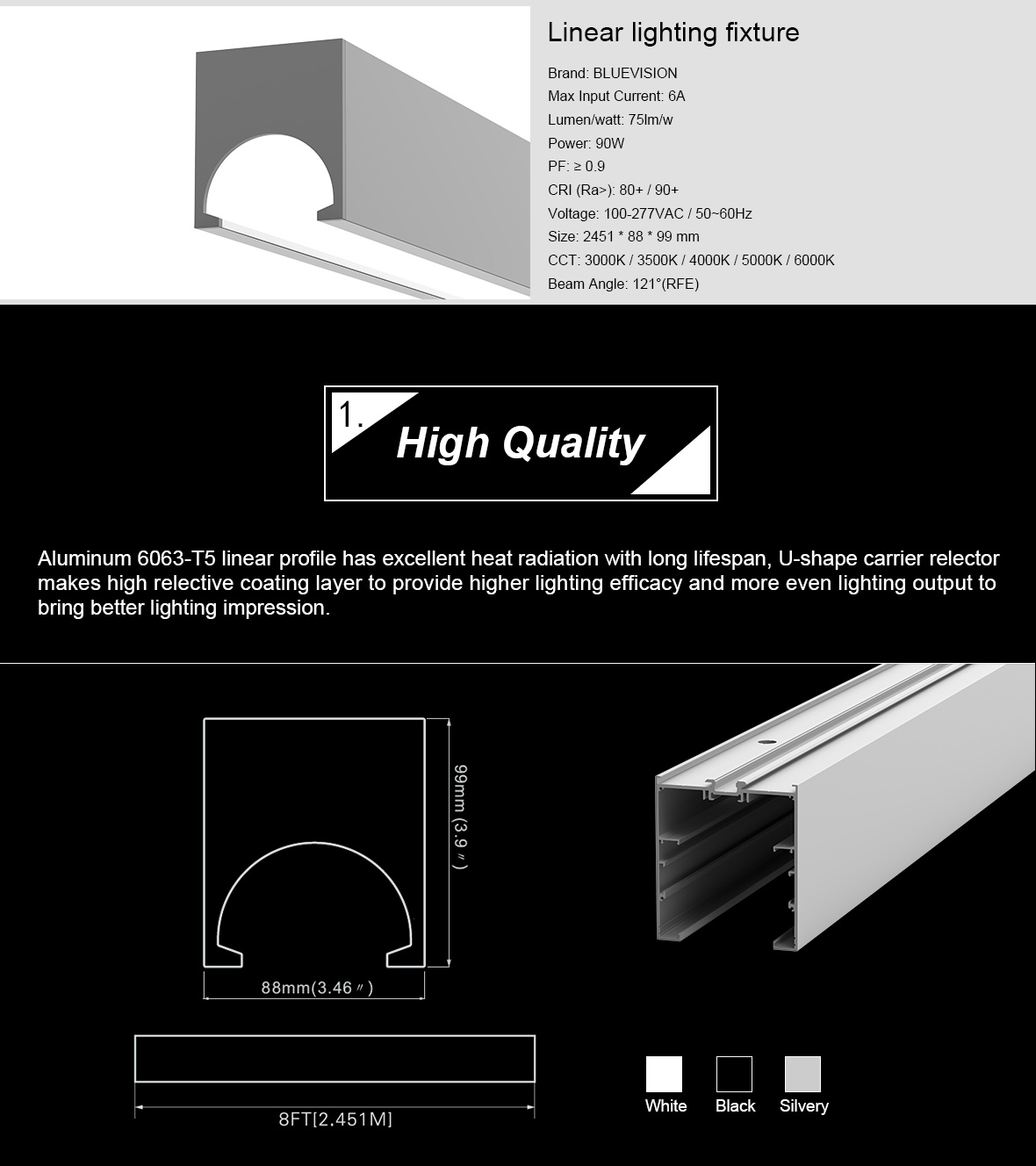

Size     2451mm(8.03ft) x 88mm(0.29ft) x99mm (0.32ft)
Power     90W (11.3w/ft)     up:23W (2.8w/ft) down:67W (8.5w/ft)
Lumen     8390~8895lm    up:2100~2225lm down:6290~6670lm

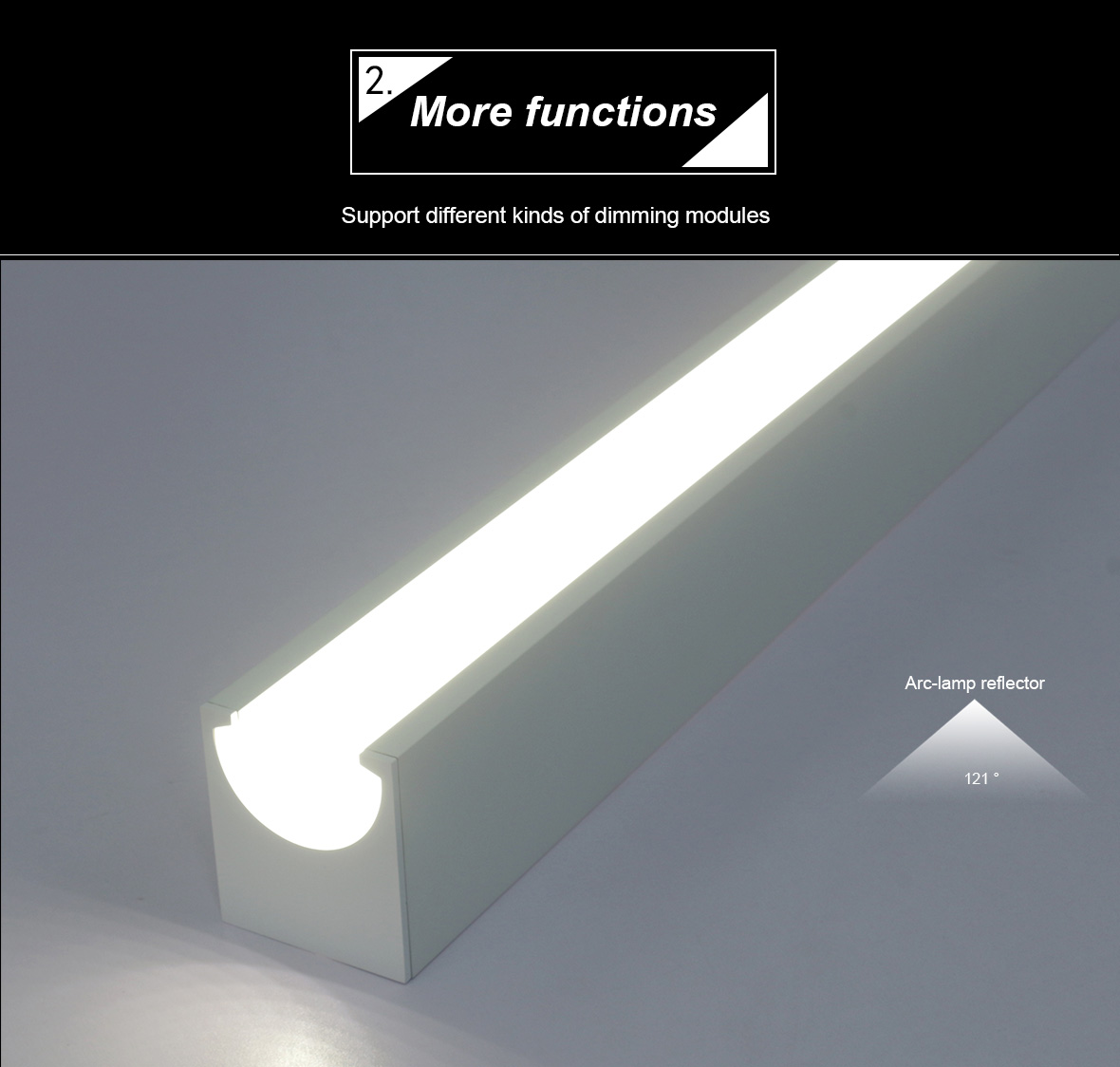

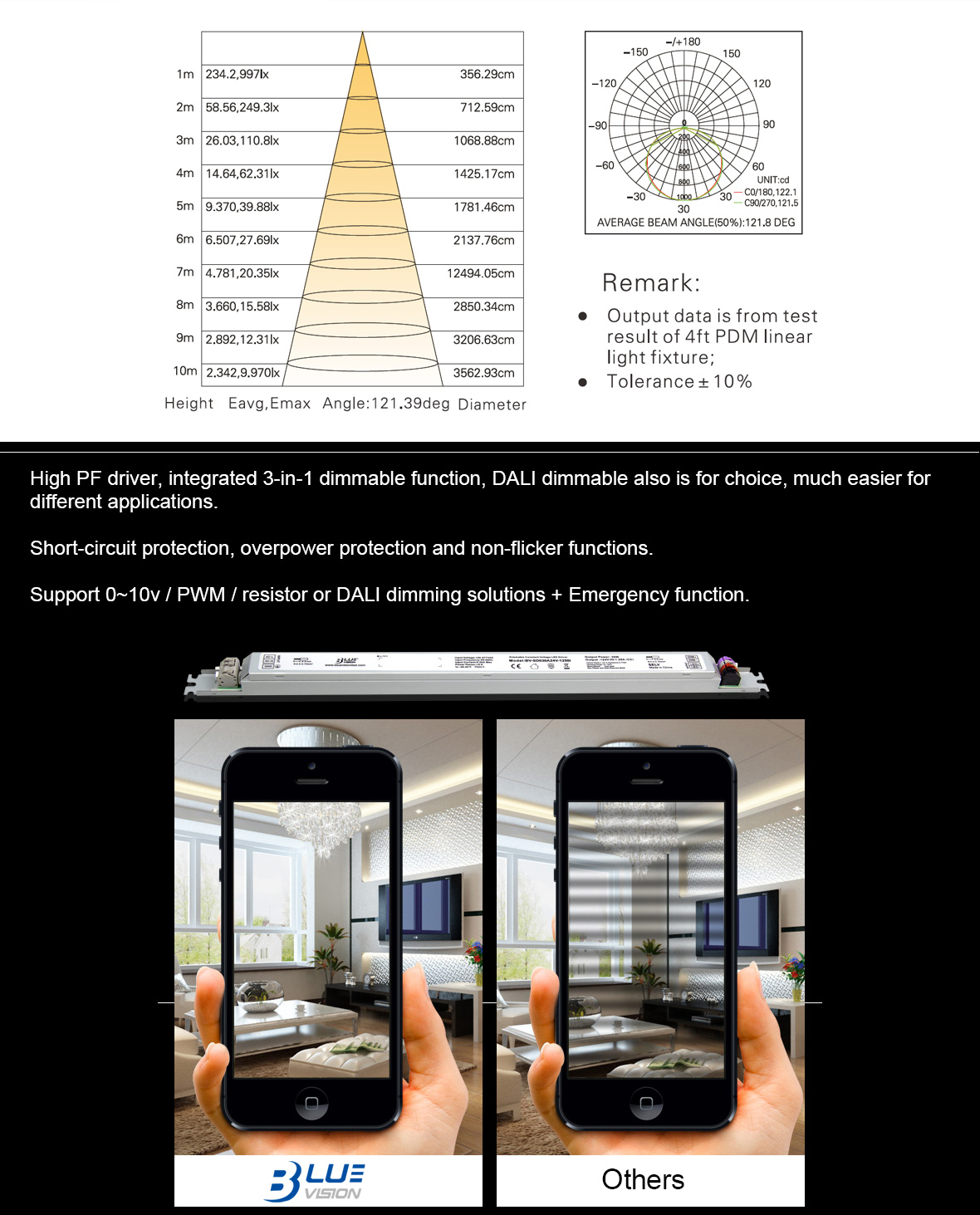

Cover     Arc-lamp reflector (121°)
CRI     85+ / 90+

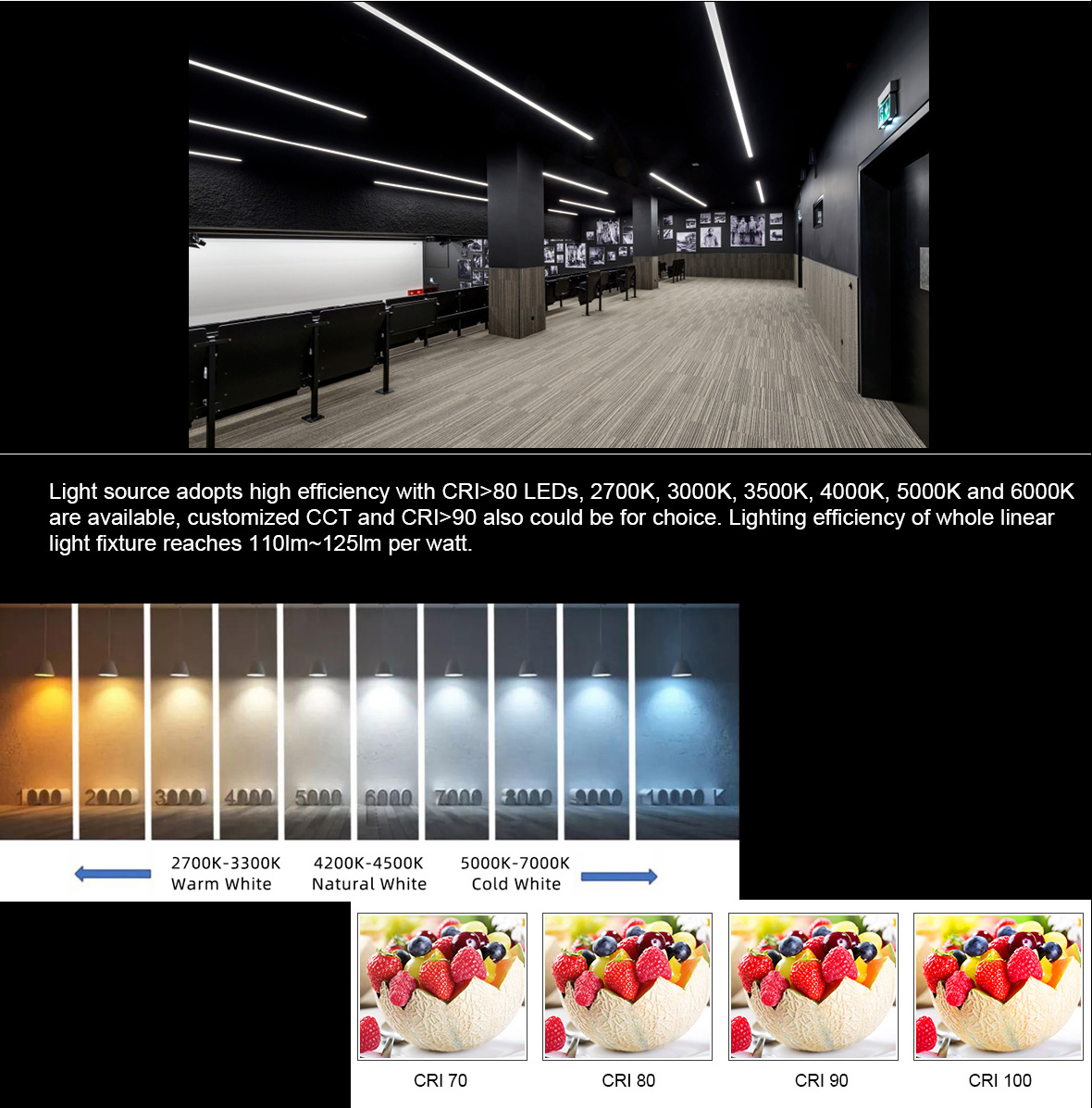

CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A

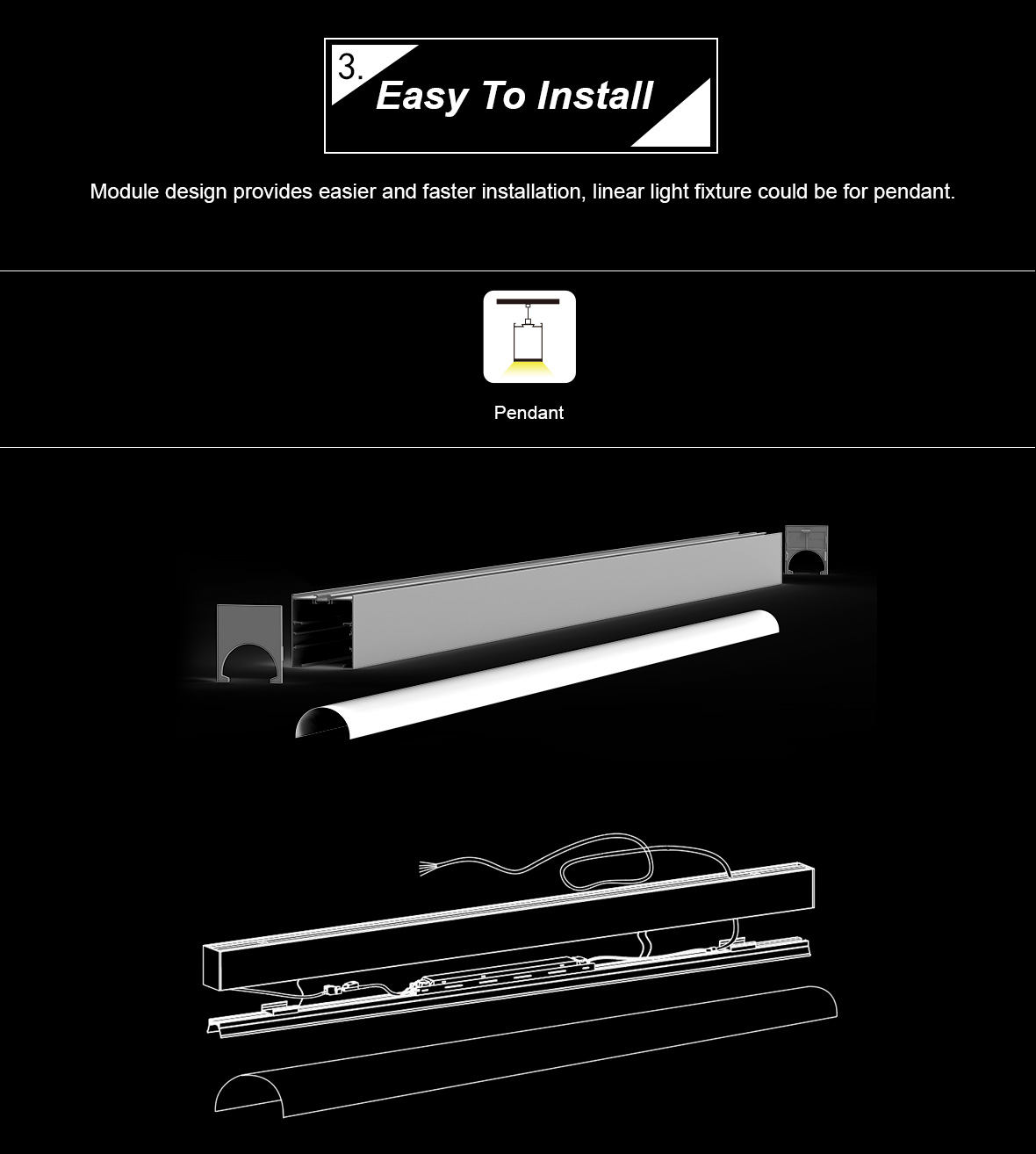

Installation way     Pendant
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
