L9086-A45S 4FT non-linkable LED linear light, ETL, TUV CE, CB, CCC certficates

Model L9086-A45S
Detailed item code L9086-WW45S
Detailed item code L9086-NW45S
Detailed item code L9086-W45S
Power 45W
Operating temperature -20℃~+45℃
Storage temperature -40℃~+60℃
Certification ETL, FCC, CE, ROHS, CCC
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 4ft
Application Indoor
Installation way Pendant, Surface mounted
Protection grade IP40
Detail

Video

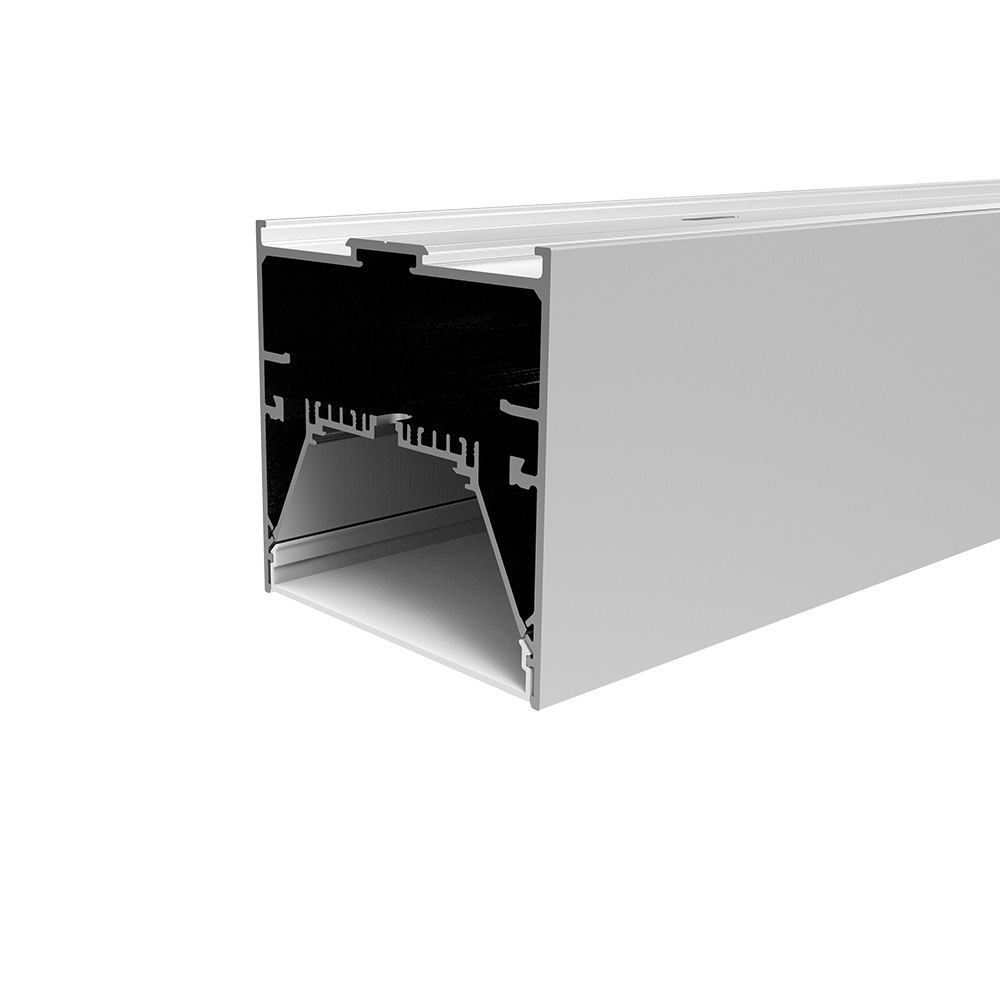

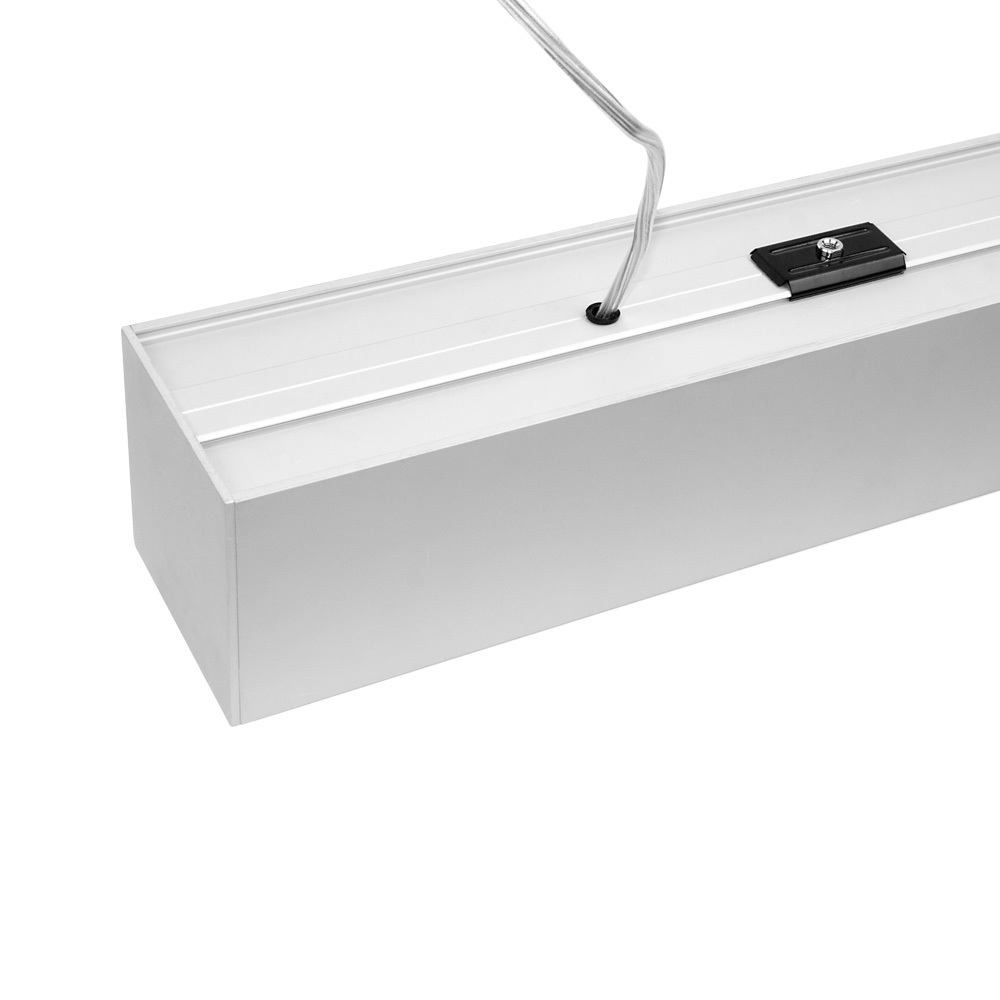

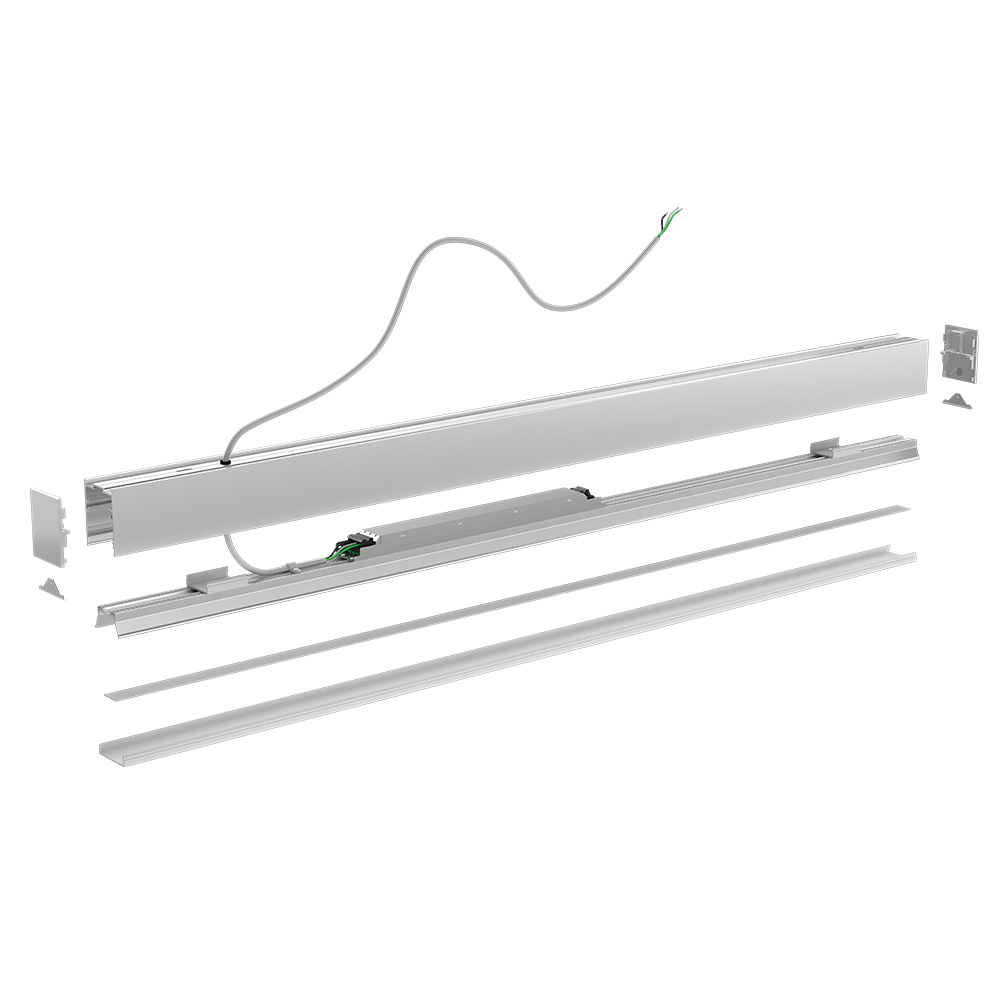

L9086-A45S 4FT non-linkable LED linear light

L9086 4ft led linear light

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Long lifespan > 50000 Hours;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC


Parameter:



Item NO.     L9086-A45S
Size     1232mm(4.04ft) x 90mm (0.30ft) x 86mm(0.28ft)
Power     45W (11.3w/ft)
Lumen     4715~5000lm (1178~1250lm/ft)
Cover     PDM (98°) / UGR (81° UGR<19)
CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Recessed
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃



Chinese LED linear lightChina LED linear lightLED linear lightChinese LED linear lightH2835L252C42FMDH2835L252C42FMD-W01-(L9086-18B14C)led linear light project

bluevision led linear light certificates
