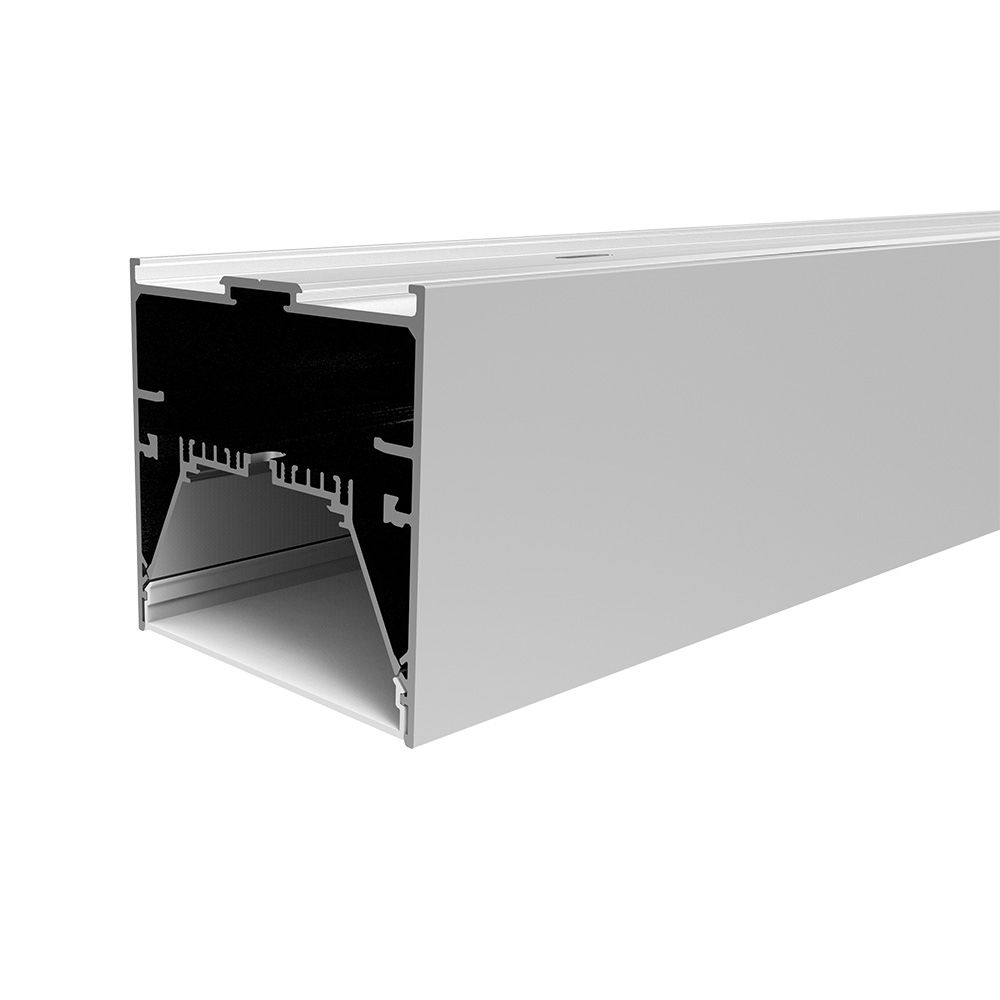

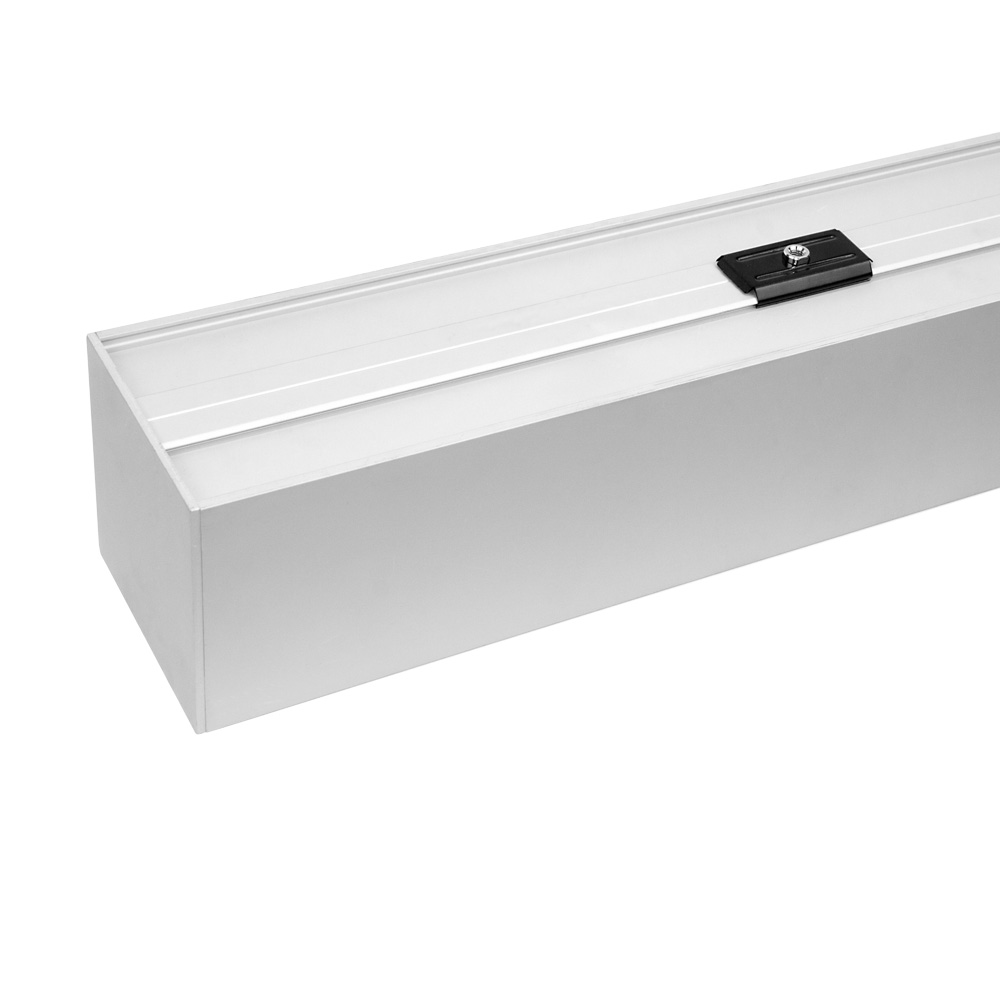

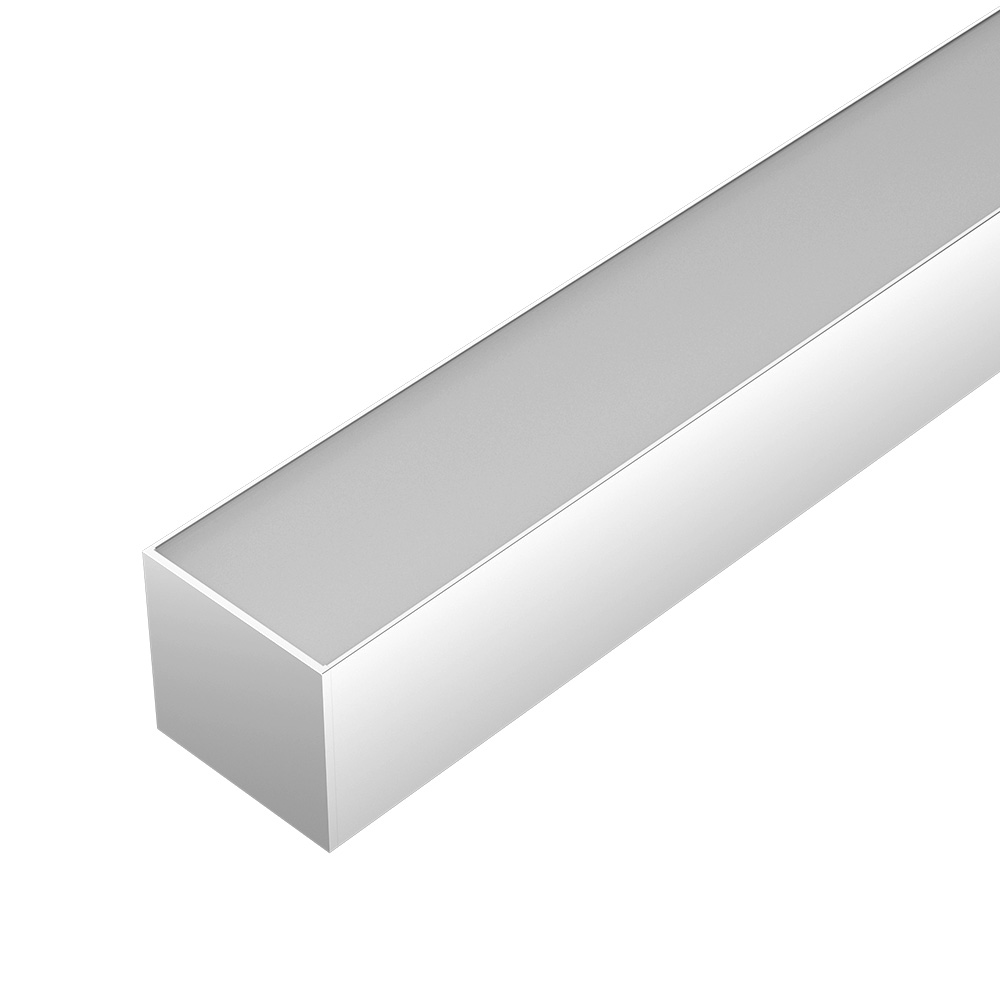

L9086-A45 4FT Linkable LED linear light
L9086 LED linear light quick linkage series are launched by BlueVision LED whom is a LINEAR LIGHTING SOLUTIONS PROVIDER to achieve different shape designs with easy and quick linkage, these products redefined user experience of linear light through modularity design and quick assembly & installation, it broke the idea restriction of traditional lighting fixtures and complicated wiring of old versions linear light, achieve “three quick”: quick assembly, quick linkage, quick corner connection.
Feature:
Aluminum 6063-T5, good heat radiation with long lifespan;
Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);
High lighting efficacy, save more energy;
Linear light fixtures could be linked to very long line but use only one set of AC cables;
Long lifespan > 50000 Hours;
Light source adopts LM-80 cerfified LED;
Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland)
Parameter:
| Item NO. | L9086-A45 |
| Size | 1232mm(4.04ft) x 90mm (0.30ft) x 86mm(0.28ft) |
| Power | 45W (11.3w/ft) |
| Lumen | 4715~5000lm (1178~1250lm/ft) |
| Cover | PDM (98°) / UGR (81° UGR＜19) |
| CRI | 85+ / 90+ |
| CCT | 3000K / 4000K / 6000K (3500K / 5000K) |
| PF | ≥0.9 |
| IP grade | IP 40 |
| Working Voltage | AC100~277V / 50~60Hz |
| Max Input Current | 6A |
| Installation way | Pendant / Ceiling mounted / Recessed |
| Profile color | Silvery (ral9006) / Black (ral9004) / White (ral9003) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | -40℃ ~ +60℃ |
