Model R6836-A62
Detailed item code R6836-WW62
Detailed item code R6836-NW62
Detailed item code R6836-W62
Power 62W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Certification ETL, FCC, CE, ROHS
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 8ft
Application Indoor
Installation way Recessed
Protection grade IP40
Detail

Video

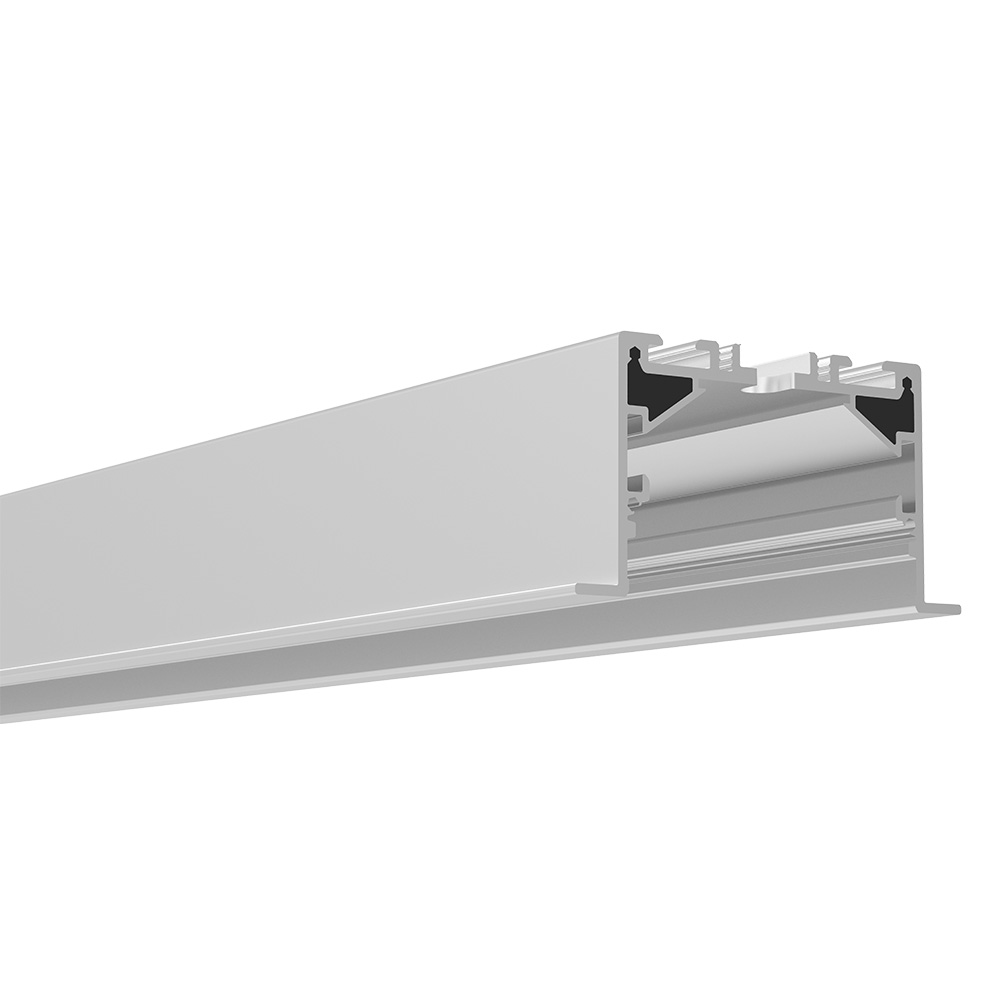

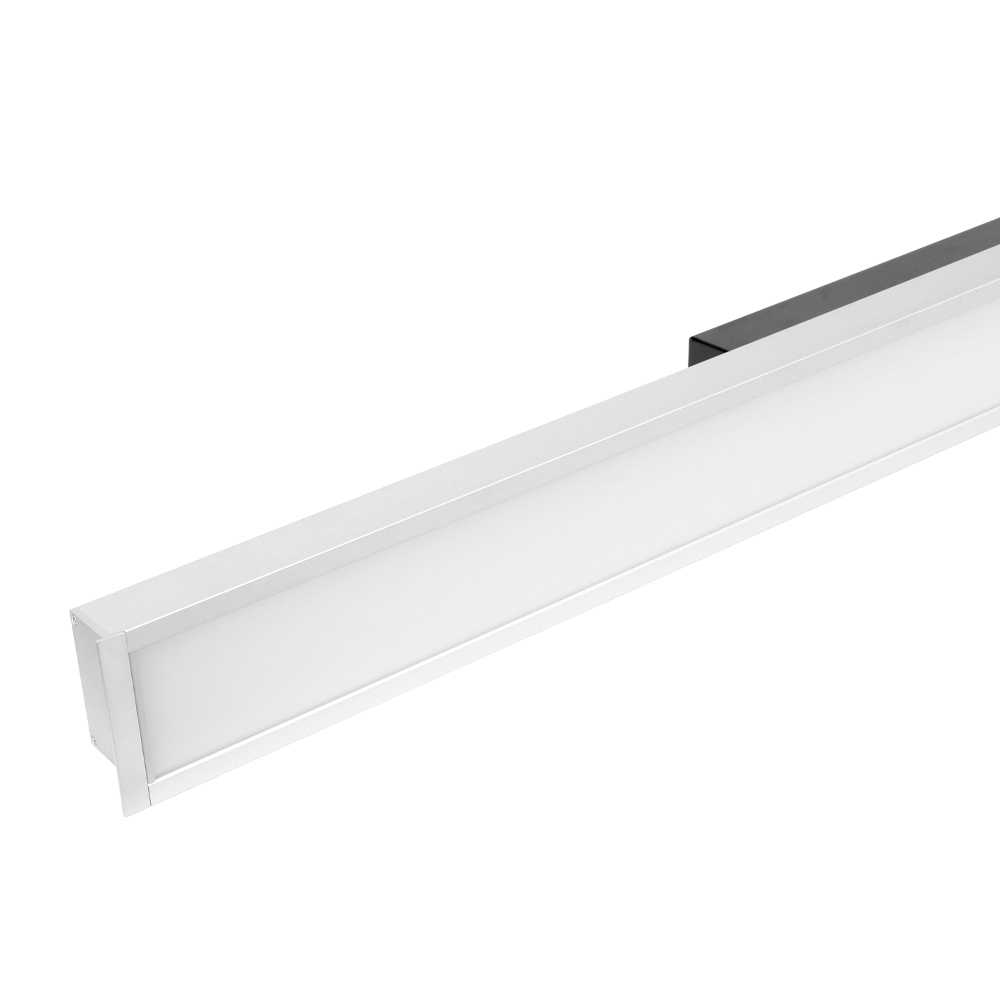

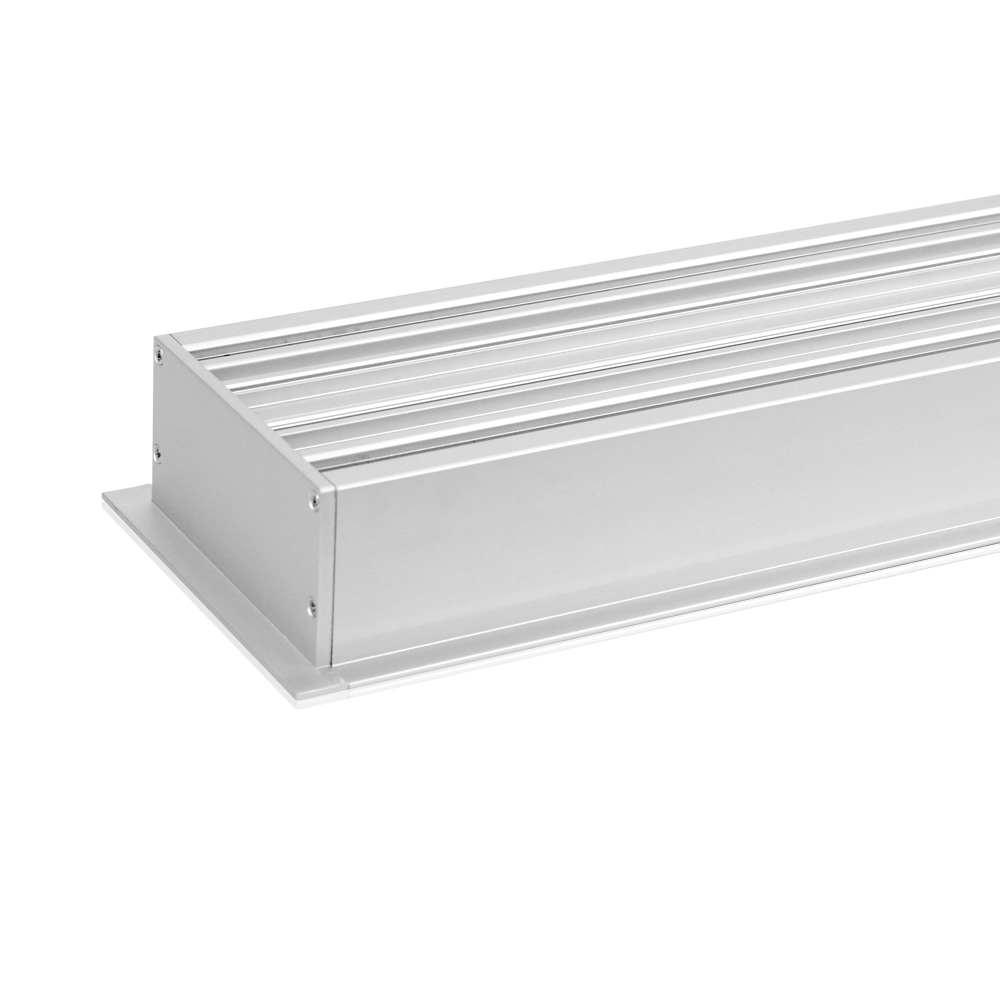

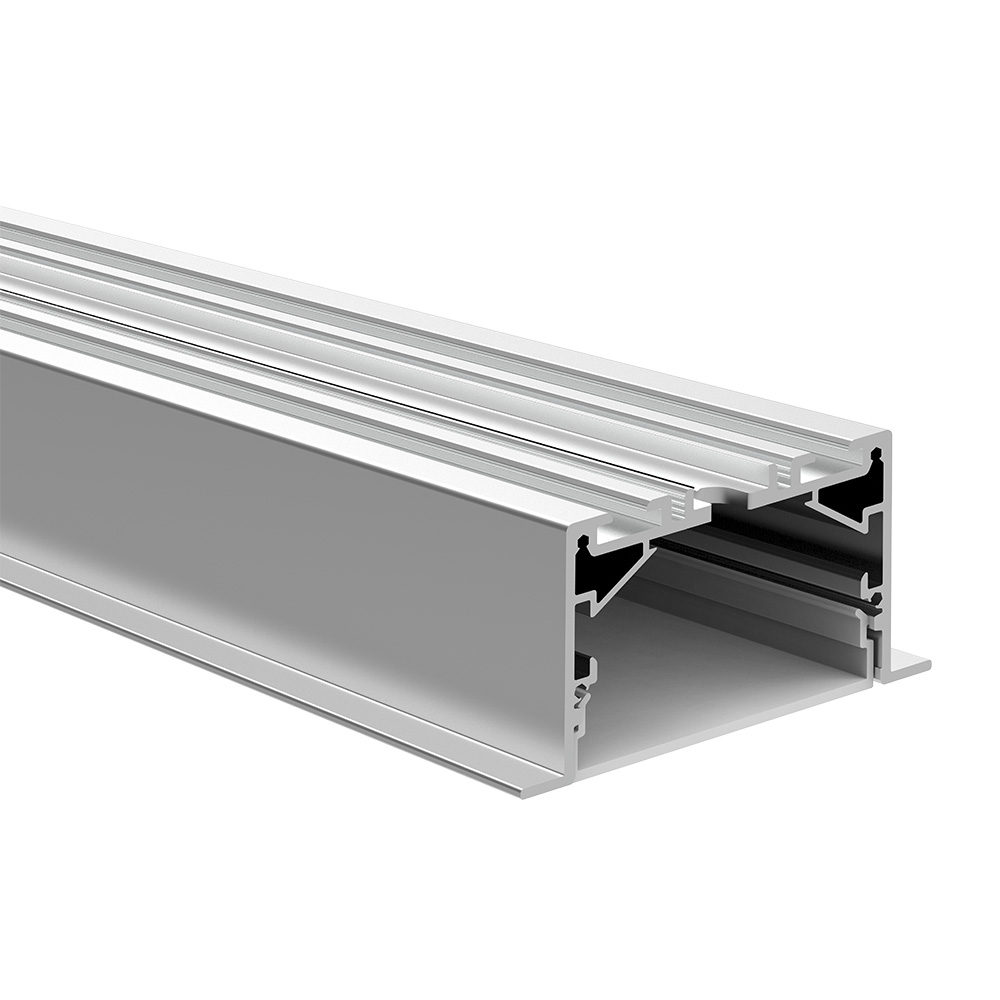

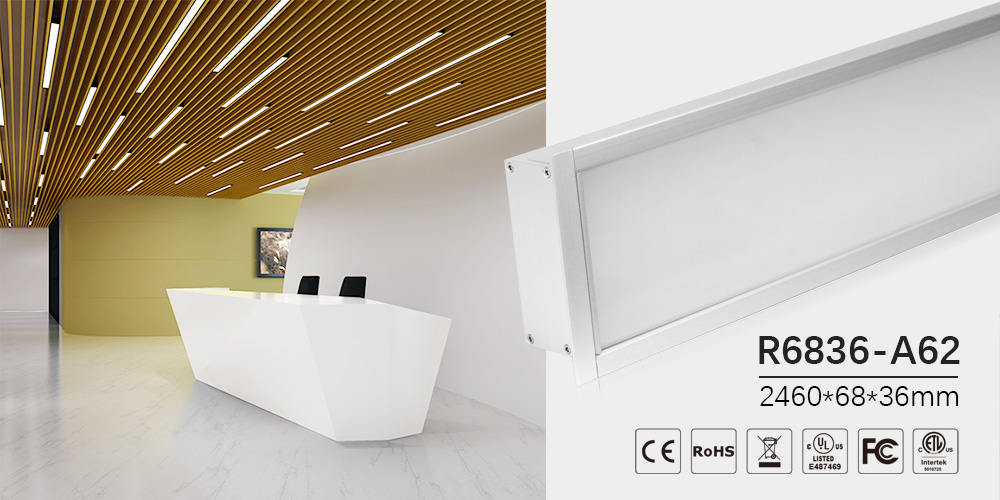

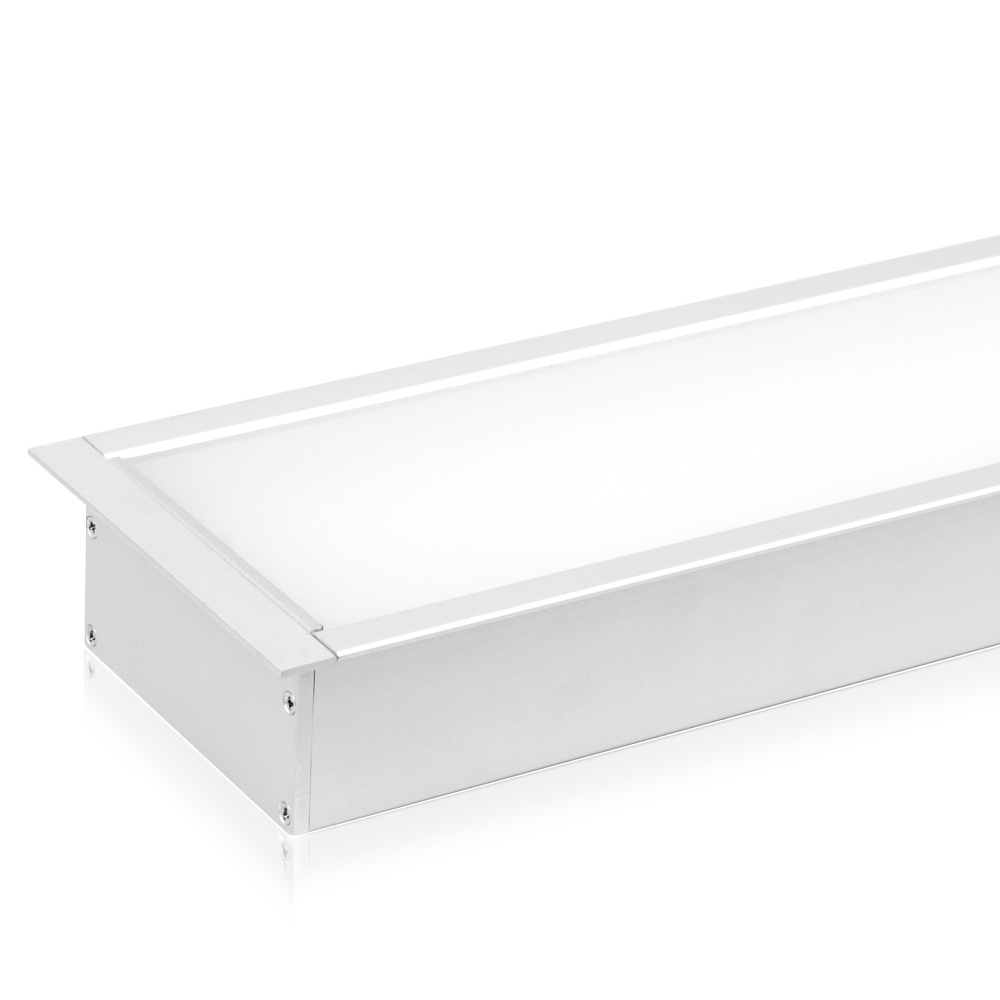

R6836-A62 8FT recessed LED linear light

R6836 8ft led linear light

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Warranty 5-year, >50000 hours (L70B10);

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland), CCC

Parameter:



Item NO.     R6836-A62
Size     2460mm (8.07ft) x 68mm(0.22ft) x 36mm(0.12ft)
Power     62W (8.0w/ft)
Lumen     5120~5430lm (640~687lm/ft)
Cover     PDM (97°) / Prismatic diffuser (85° UGR＜19)
CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Recessed
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃




bluevision led linear light certificates
