R8636-A68 8FT rim recessed LED linear light, ETL, FCC, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model R8636-A68
Detailed item code R8636-WW68
Detailed item code R8636-NW68
Detailed item code R8636-W68
Power 68W
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Certification ETL, FCC, CE, ROHS
Surface color Silvery, White, Black
Cover type PC cover, UGR cover
Standard length 8ft

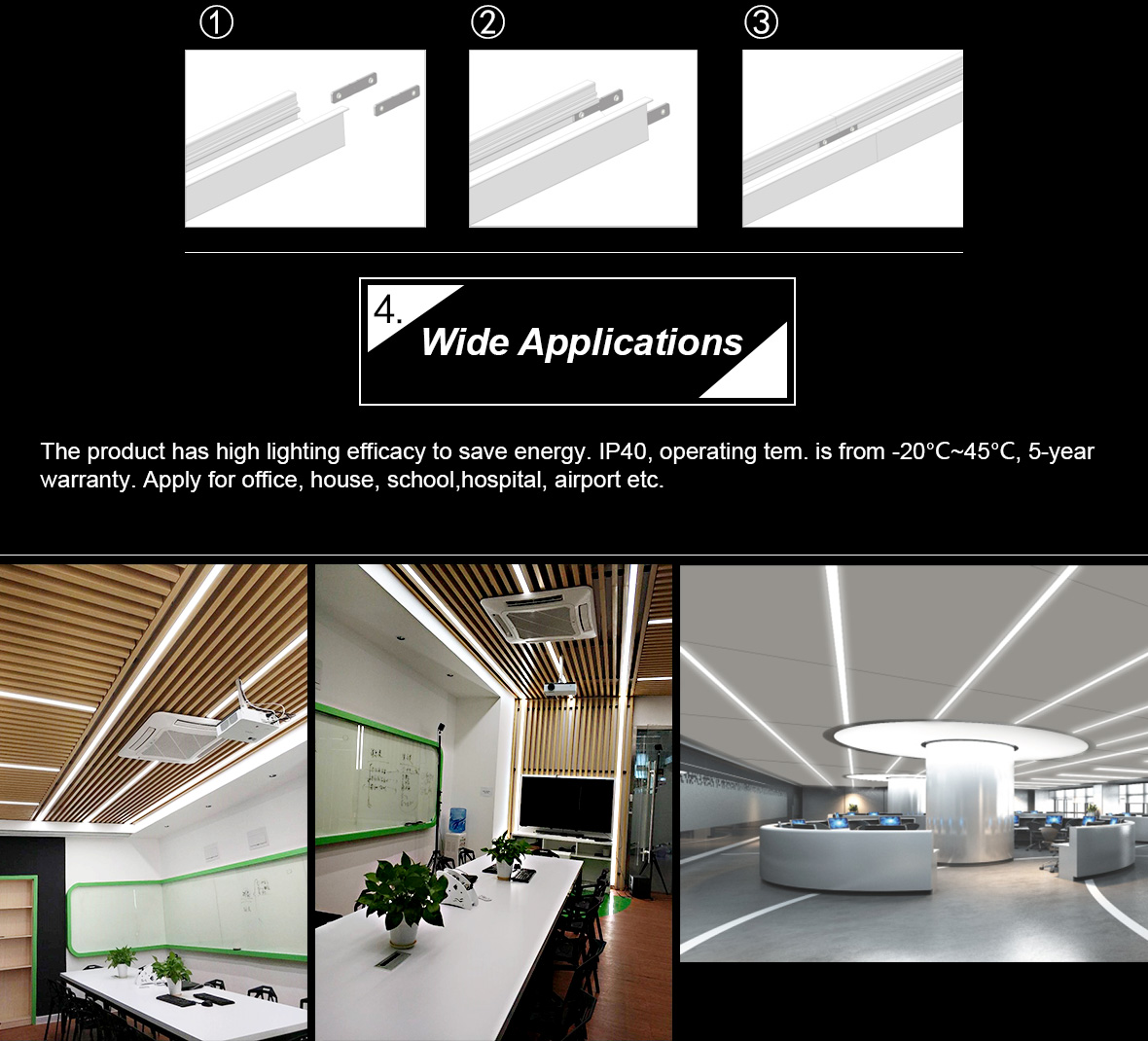

Application Indoor
Installation way Recessed
Protection grade IP40
Detail

Video

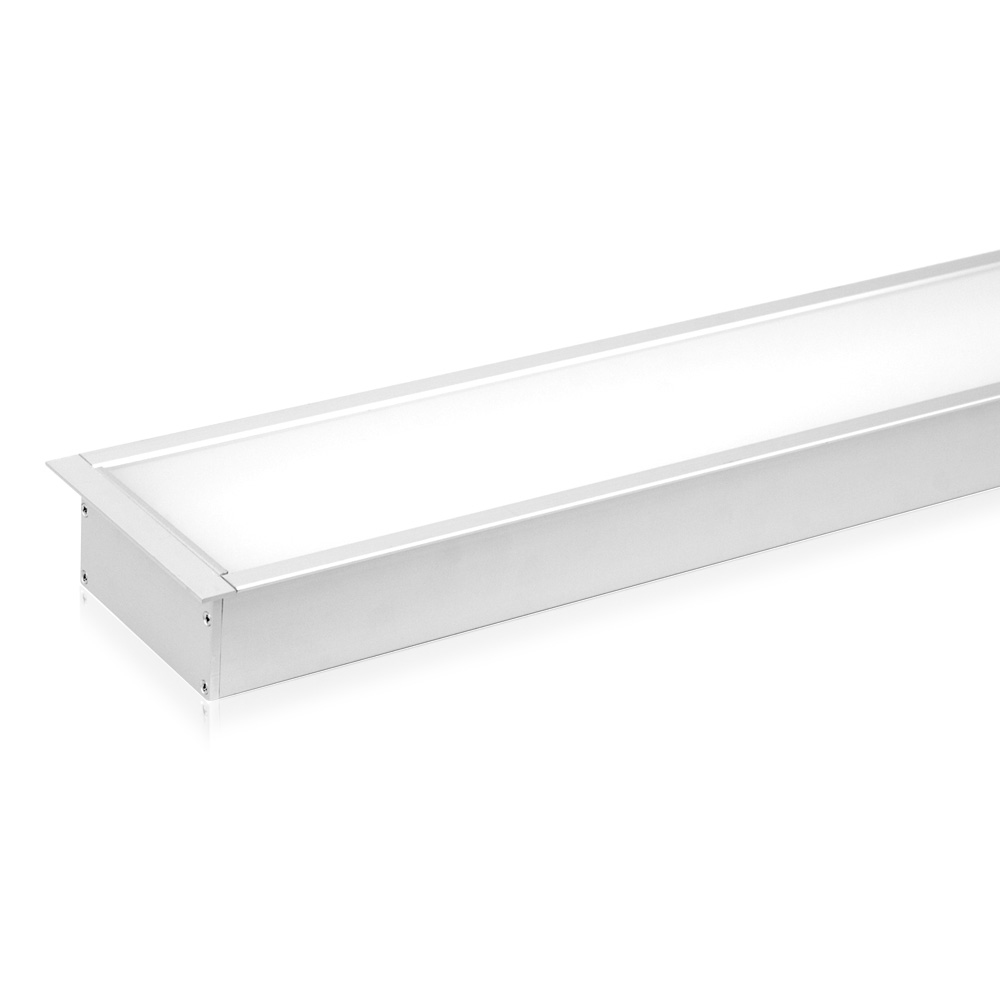

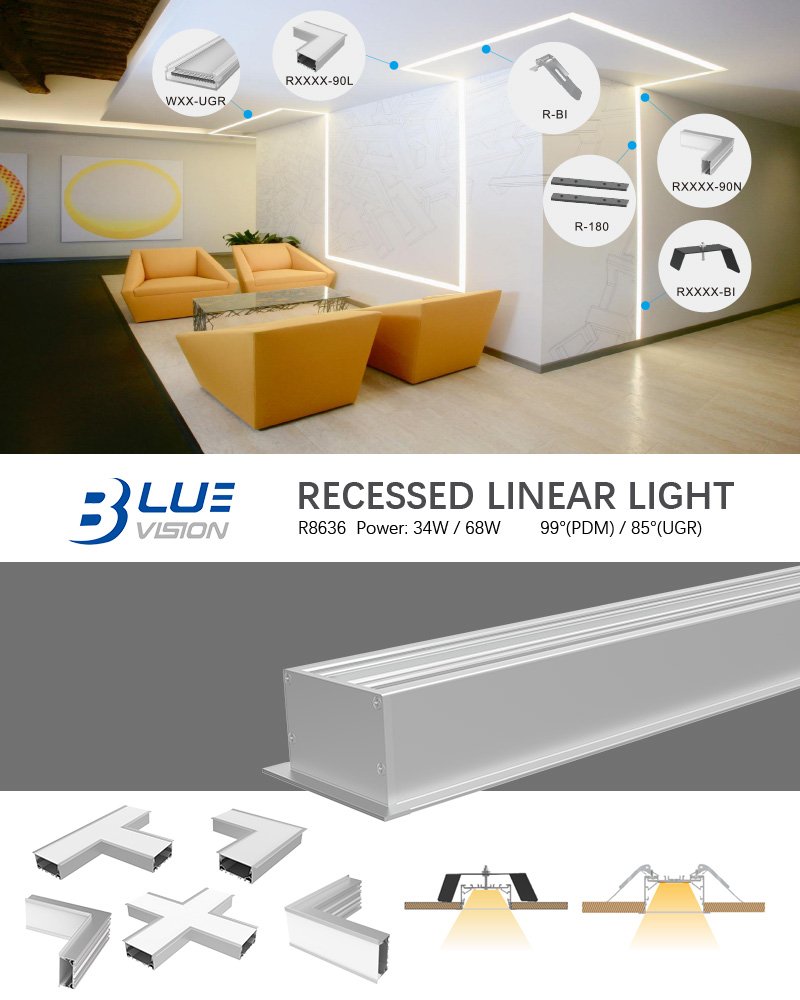

R8636-A68 8FT recessed LED linear light

R8636 8ft led linear light

Feature:

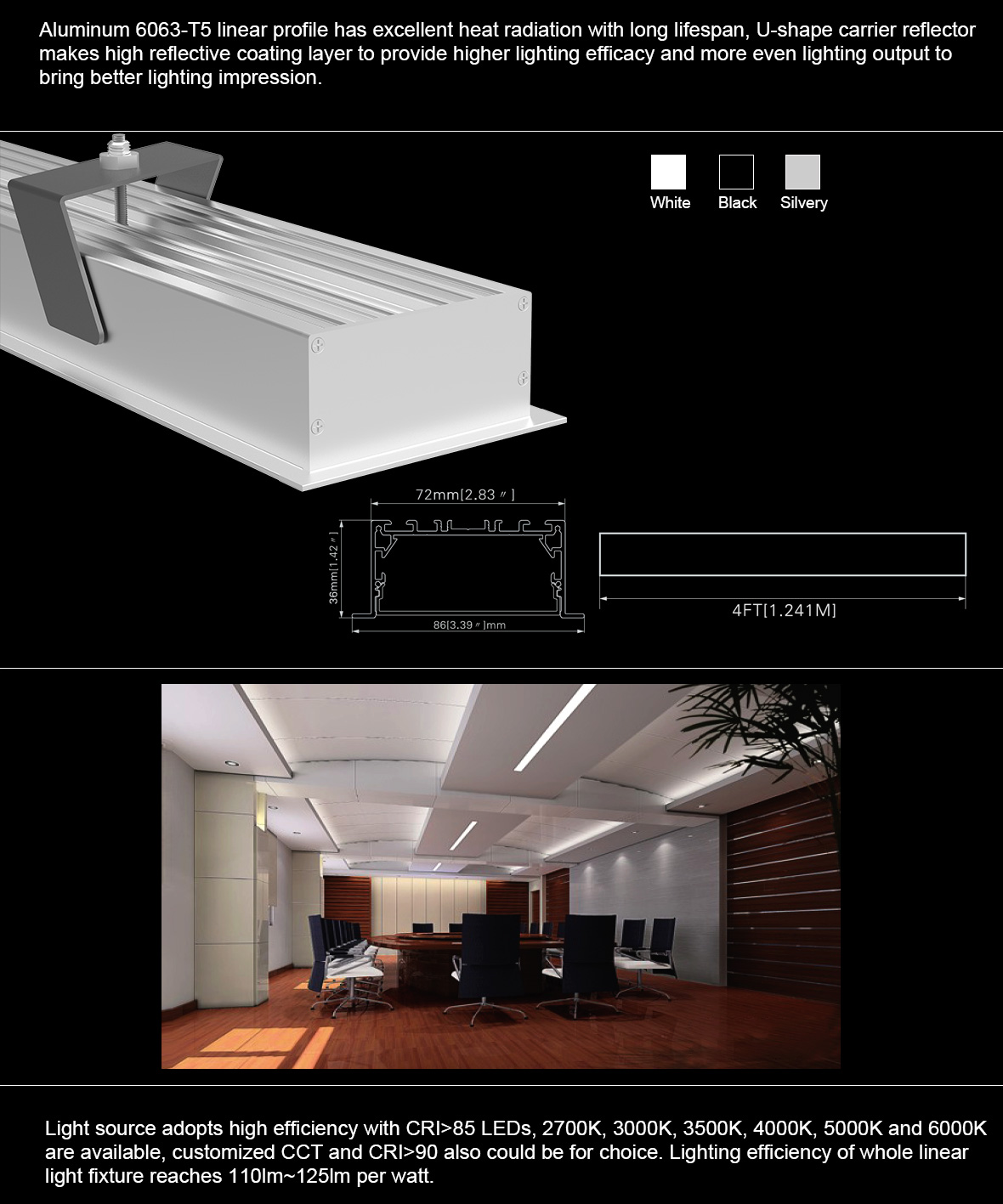

  • Aluminum 6063-T5, good heat radiation with long lifespan;

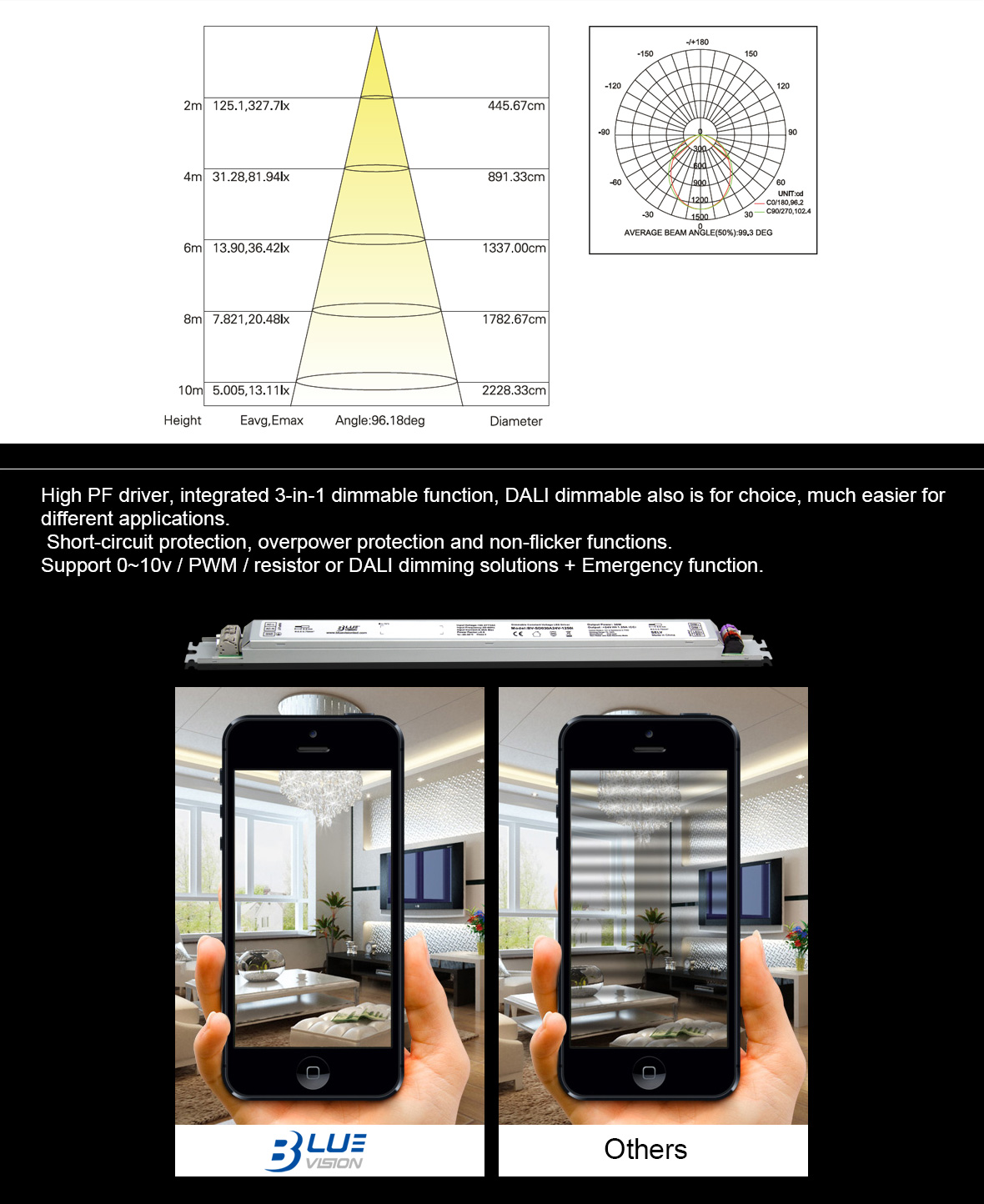

  • Support 0~10v, PWM and Resistor dimming solutions (smart, DALI and Triac are for choice);

  • High lighting efficacy, save more energy;

  • Warranty 5-year, >50000 hours (L70B10);

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland)

Parameter:



Item NO.     R8636-A68

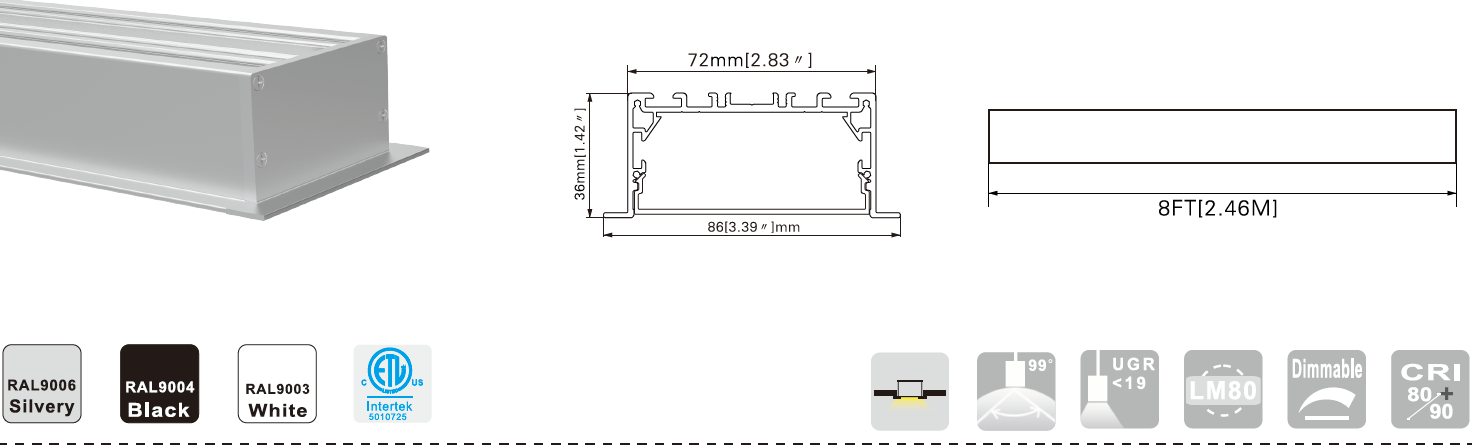

Size     2460mm (8.07ft) x 86mm(0.28ft) x 36mm(0.12ft)
Power     68W (8.5w/ft)
Lumen     6190~6560lm (773~820lm/ft)

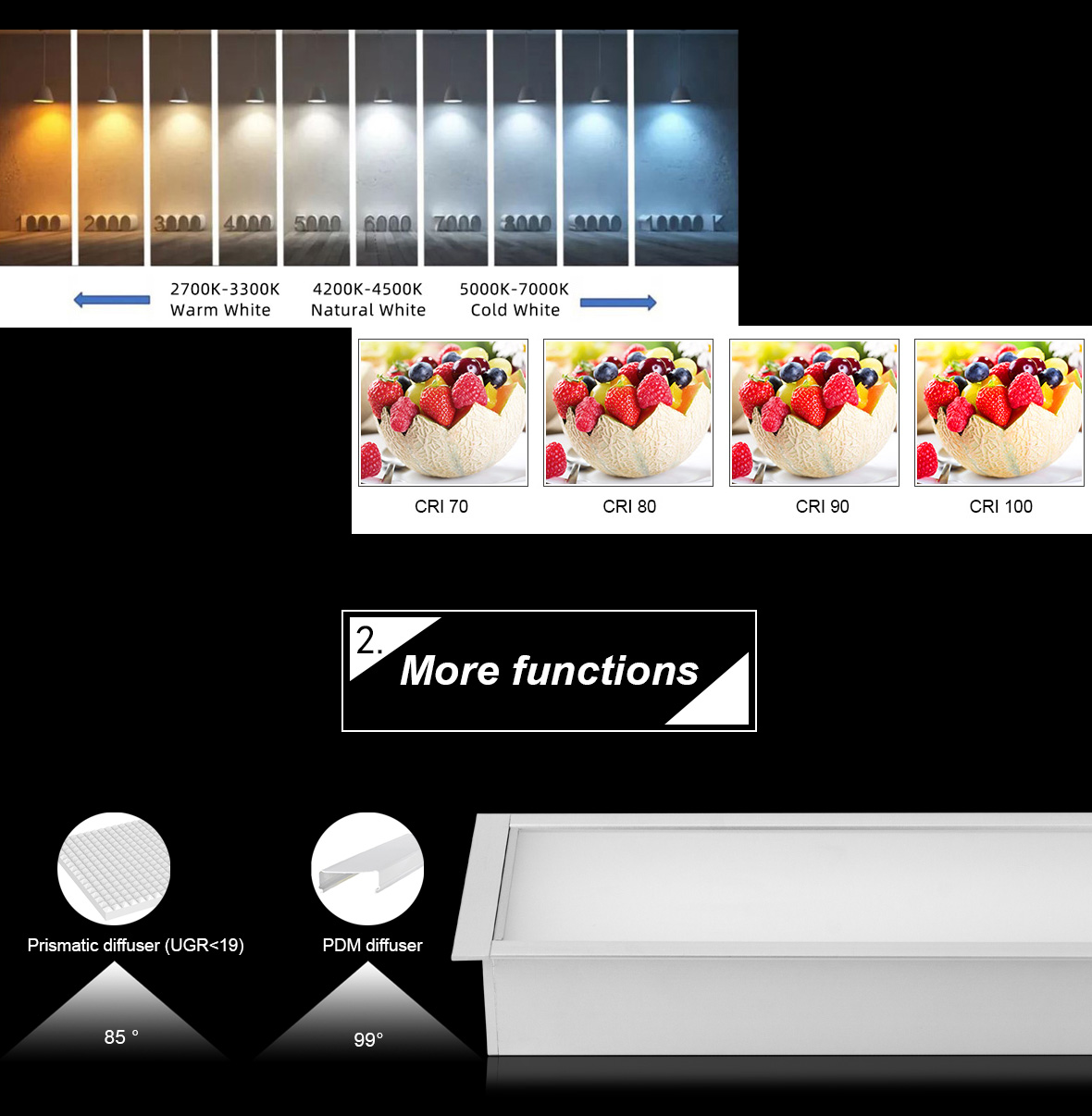

Cover     PDM (99°) / Prismatic diffuser (85° UGR＜19)
CRI     85+ / 90+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A

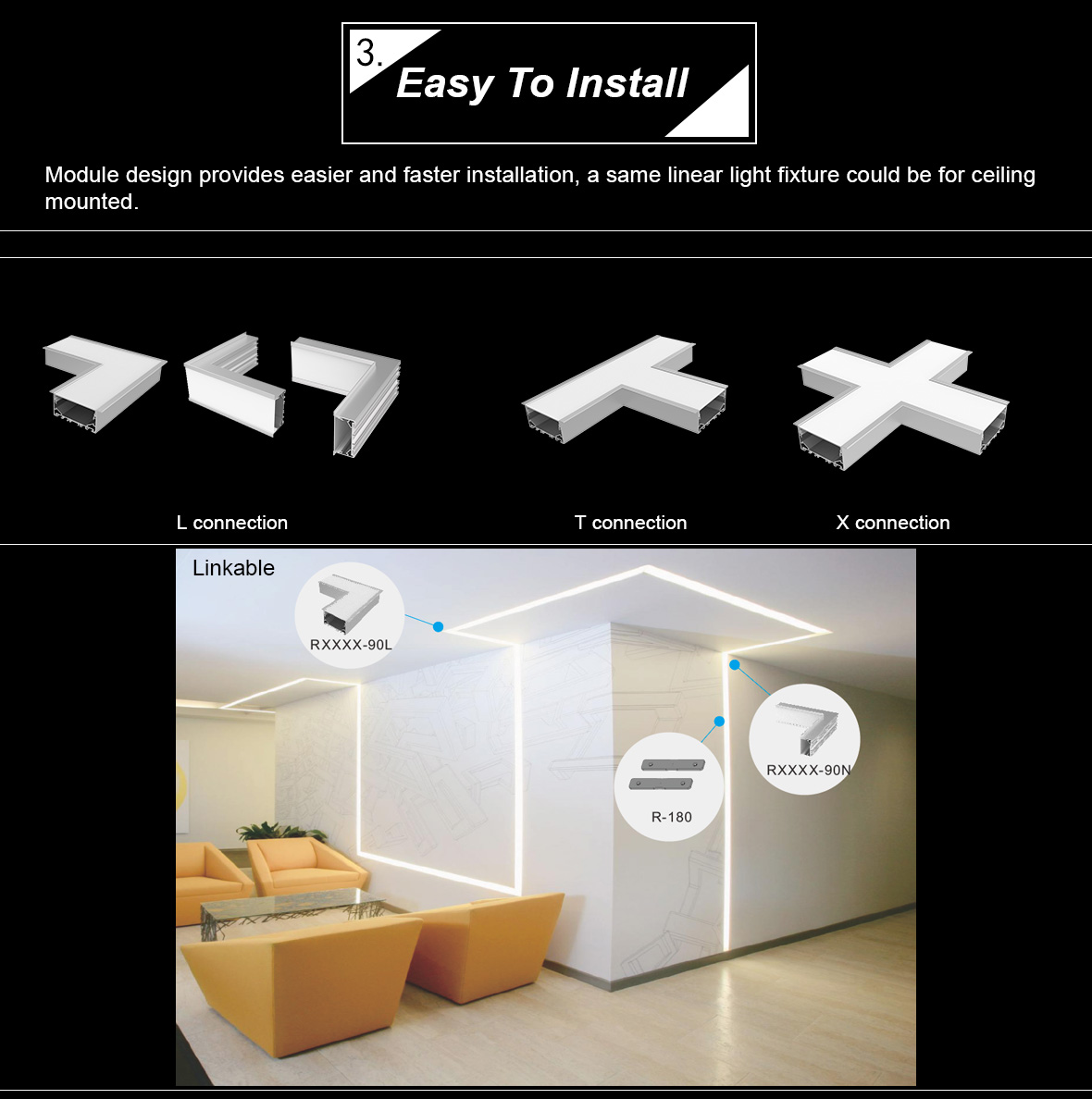

Installation way     Recessed
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
