S2835L108V48 10mm width high light efficacy LED tape light, UL, TUV CE, CB certficates

Model S2835L108V48
Detailed item code S2835L108V48WW27K8IP20-10
Detailed item code S2835L108V48WW30K8IP20-10
Detailed item code S2835L108V48NW40K8IP20-10
Detailed item code S2835L108V48W60K8IP20-10
FPC width 10mm
Cutting unit 166.7mm
Power 5.8w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP66, IP67, IP68
Detail

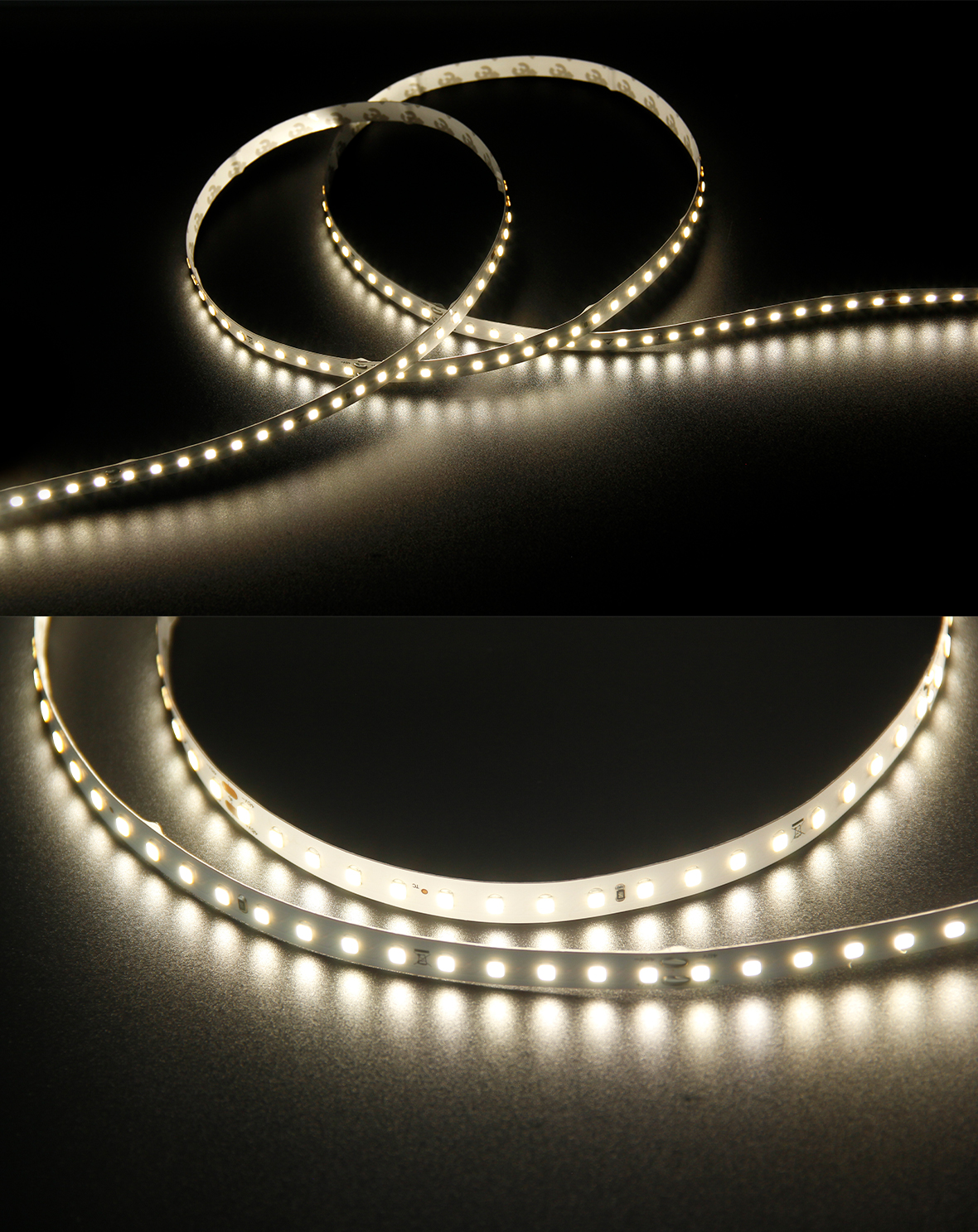

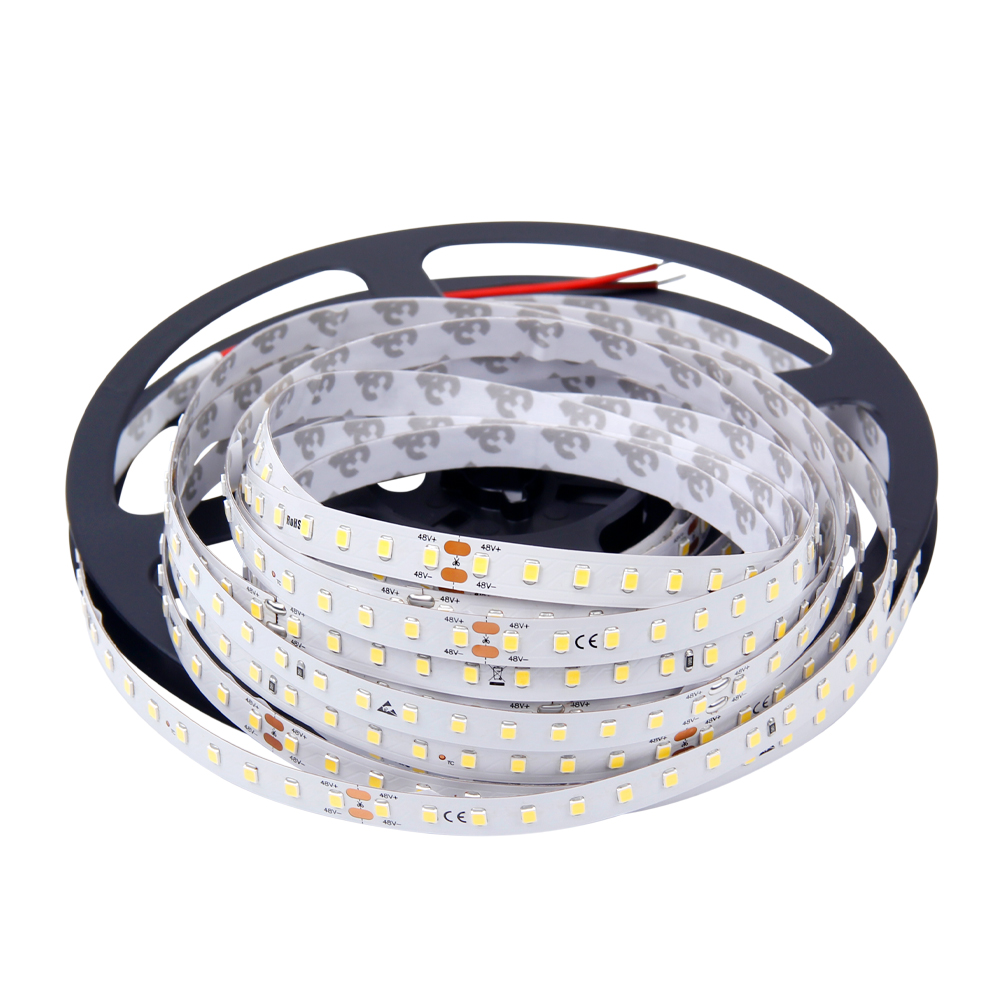

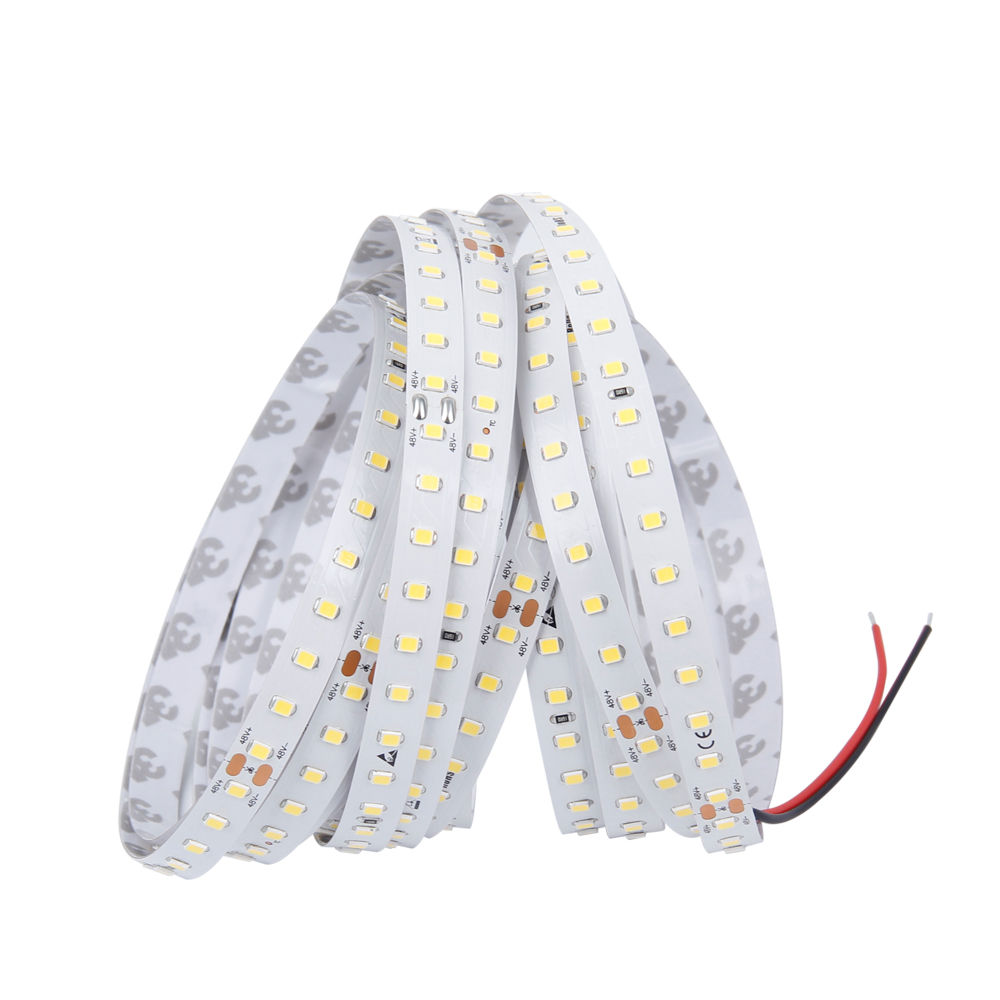

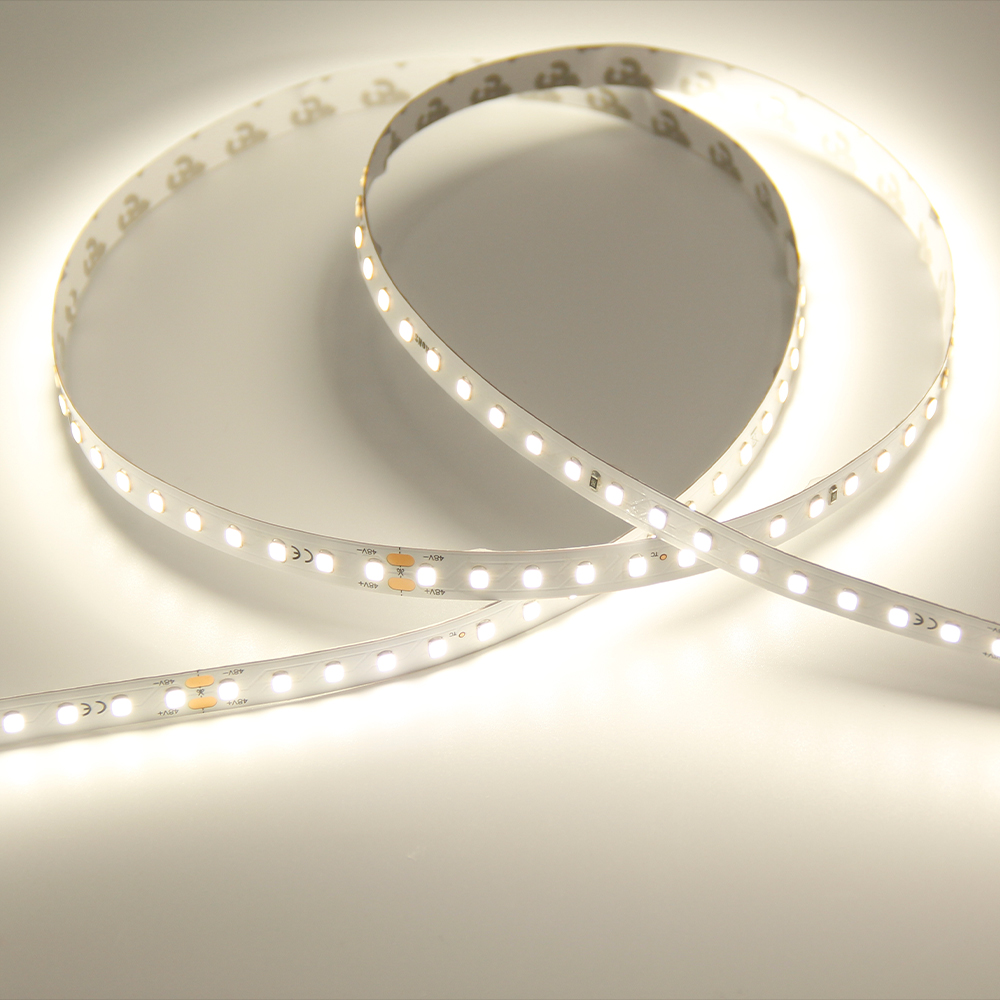

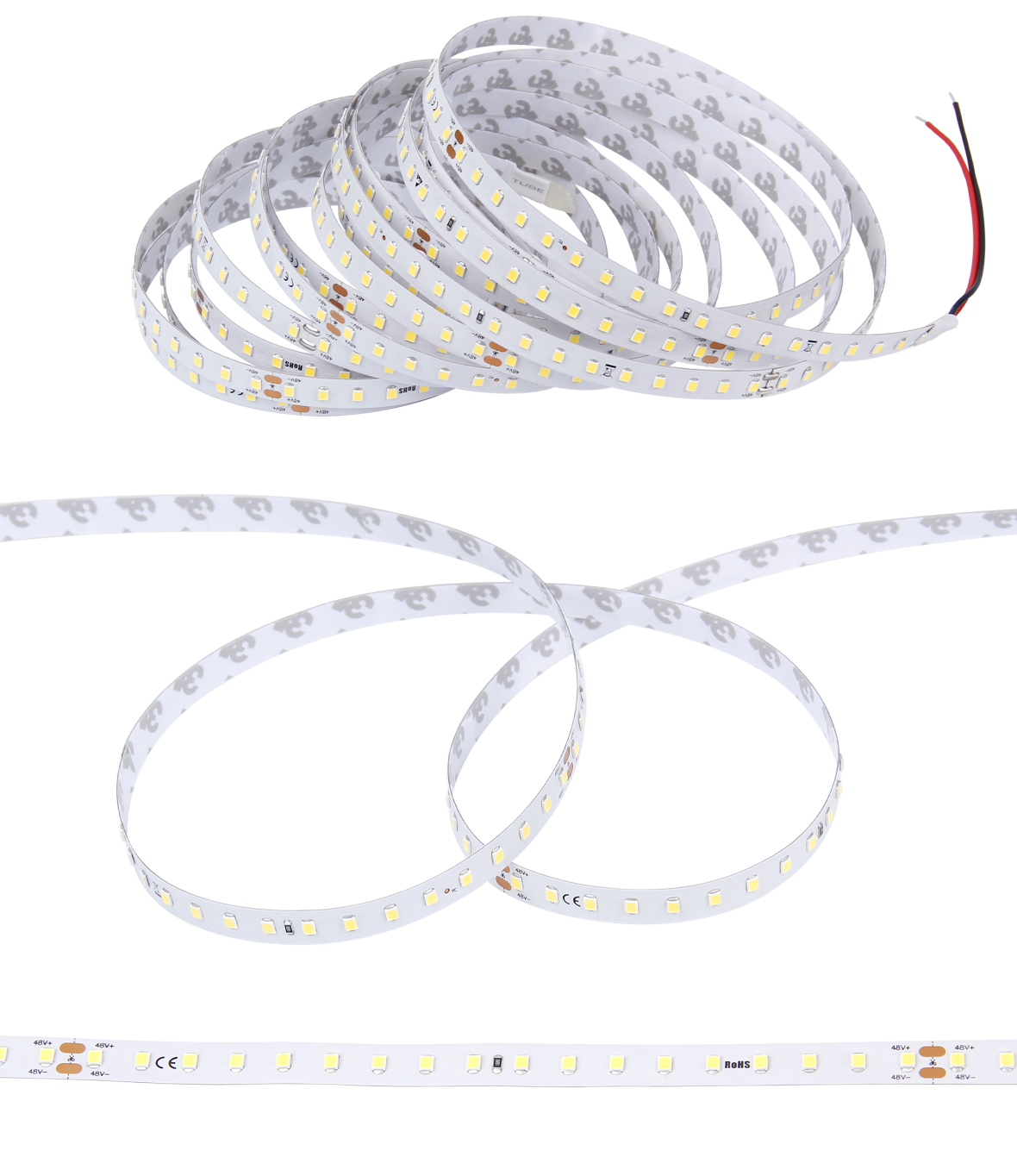

S2835L108V48 LED tape light

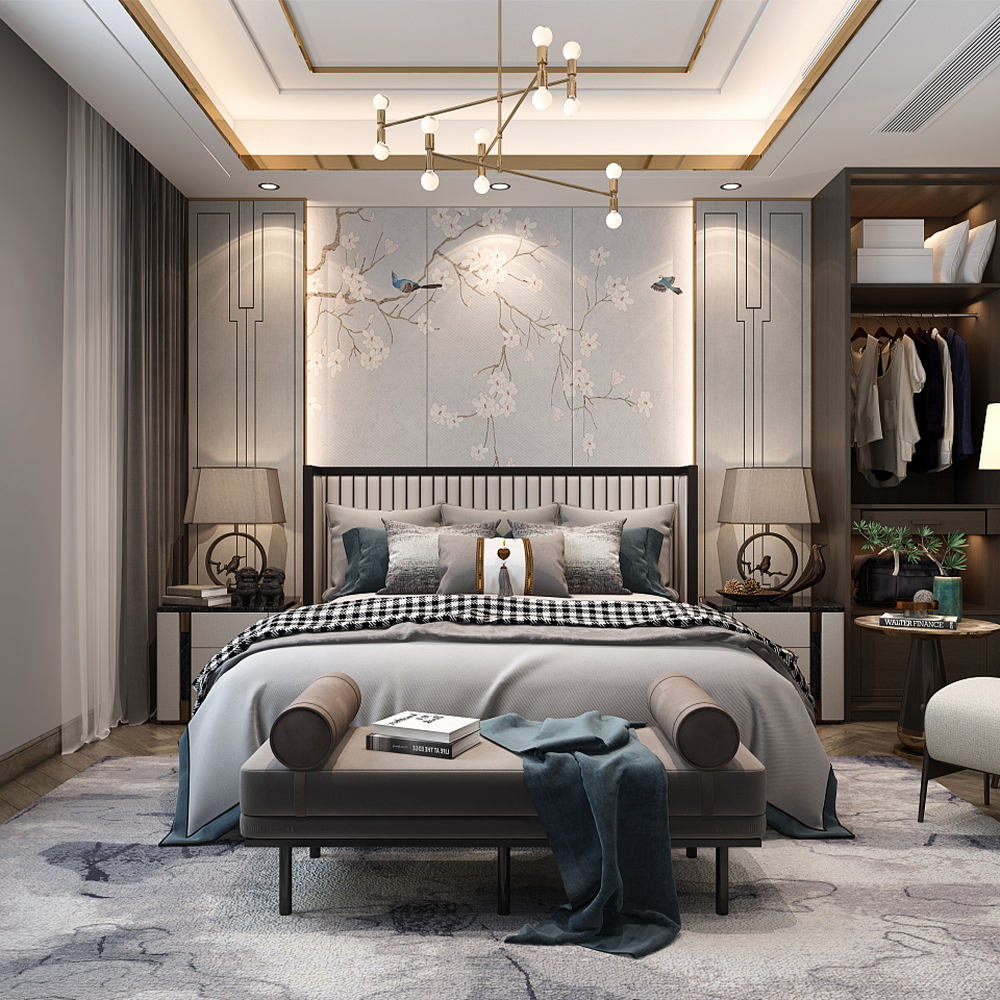

S2835L108V48 10mm width ultra high light efficacy LED tape light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.

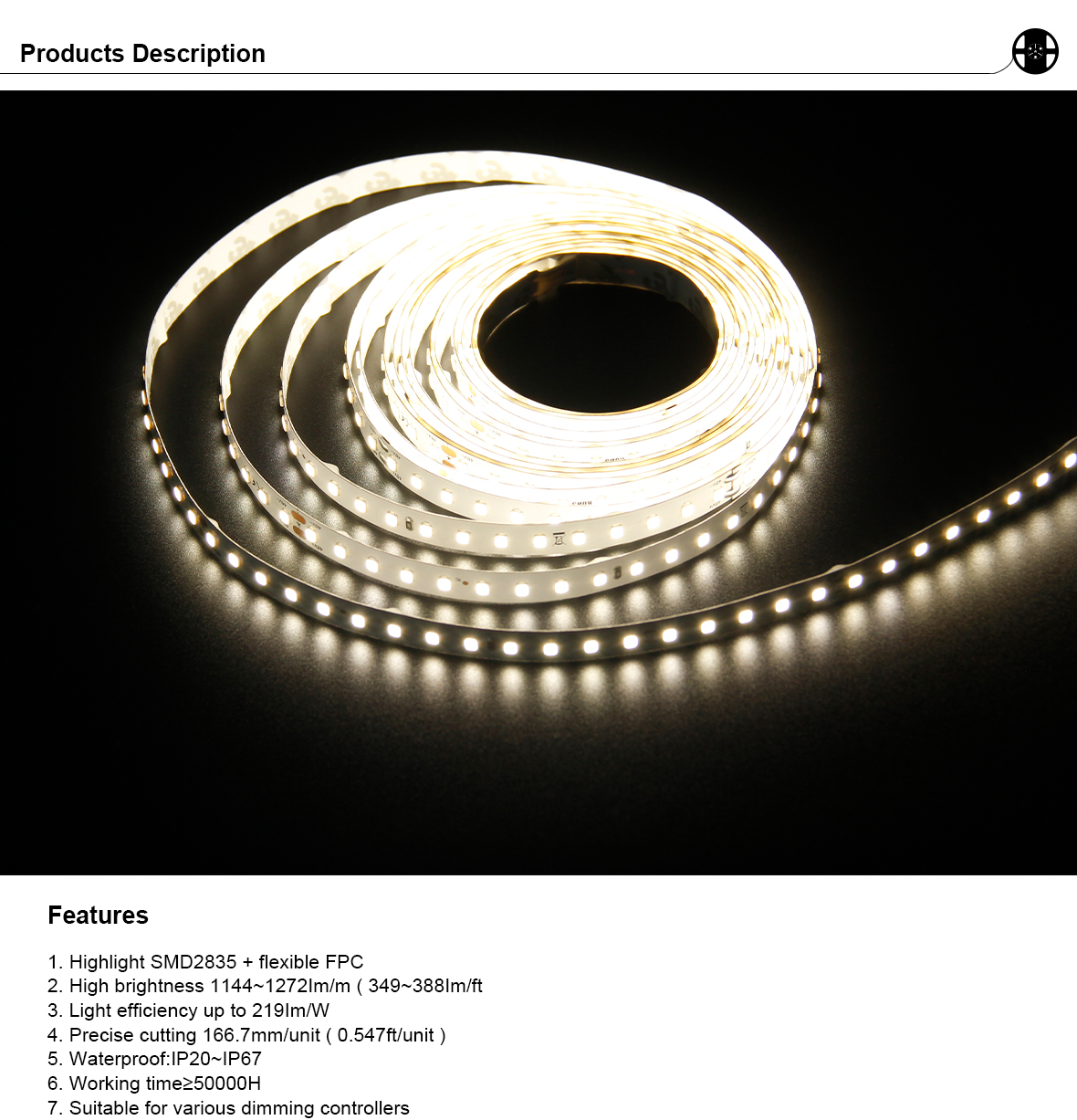

Features:

  • LED tape light (LED ribbon light, LED strip light): highlight SMD2835 + FPC

  • LED quantity 108 LEDs per meter

  • Brightness 1144~1272lm/m (349~388lm/ft)

  • Light efficacy is up to 219lm/W

  • Precise cutting 166.7mm/unit (0.547ft/unit)

  • Waterproof: IP20~IP67

  • Working time≥50000H

  • Suitable for various dimming controllers


Parameter:



Item NO.     S2835L108V48

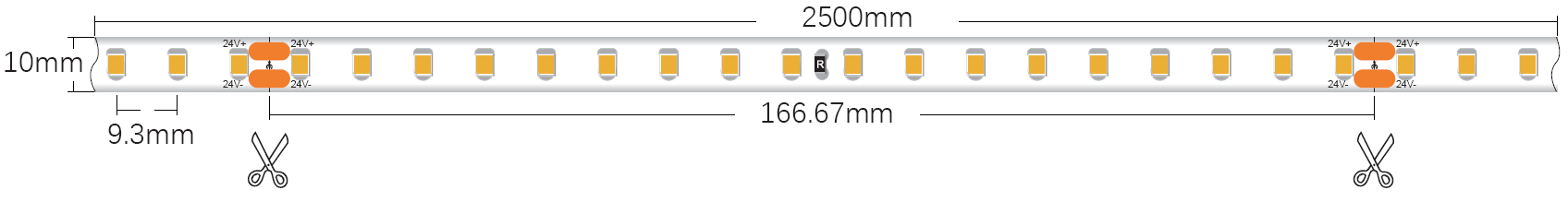

Size     2500mm×10mm×1.4mm
Power     5.8W/m (1.77W/ft)
Current     0.12A/m (0.037A/ft)
Voltage     DC48V
Brightness     1144~1272lm/m (349~388lm/ft)
LED/m     108pcs/m
CCT     2700K/ 3000K/ 4000K/ 6000K
Lumen/meter     2700K 1144lm/m(349lm/ft)   3000K 1201lm/m(366lm/ft)   4000K 1272lm/m(388lm/ft)   6000K 1263lm/m(385lm/ft)
CRI (Ra>)     80 +
Cut length     166.67mm/unit (6.56")
Beam Angle     120°
LED Pitch     9.3mm (0.37’’)
IP Rating     IP20/ IP55/ IP65/ IP66/ IP67
Warranty     IP20 (5 years) Waterproof (3 years)
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃



S2835L108V48IP20-10英文详情_01.jpgS2835L108V48IP20-10英文详情_02.jpgS2835L108V48IP20-10英文详情_03.jpgS2835L108V48IP20-10英文详情_04.jpgS2835L108V48IP20-10英文详情_05.jpg灯带认证.jpg
