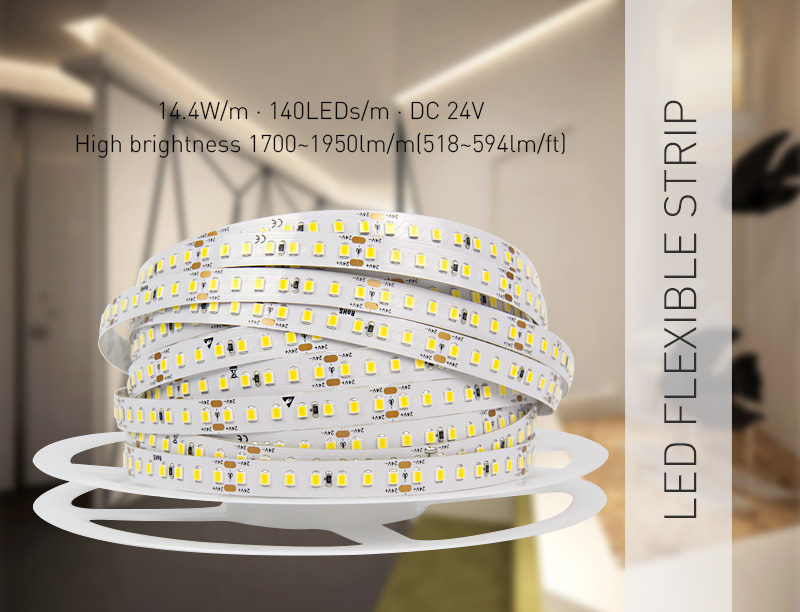

S2835L140V24 10mm width LED tape light, UL, TUV CE, CB certficates

Model S2835L140V24 (10mm)
Detailed item code S2835L140V24WW27K8IP20-10
Detailed item code S2835L140V24WW30K8IP20-10
Detailed item code S2835L140V24NW40K8IP20-10
Detailed item code S2835L140V24W60K8IP20-10
FPC width 10mm
Cutting unit 50mm
Power 14.4w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP66, IP67, IP68

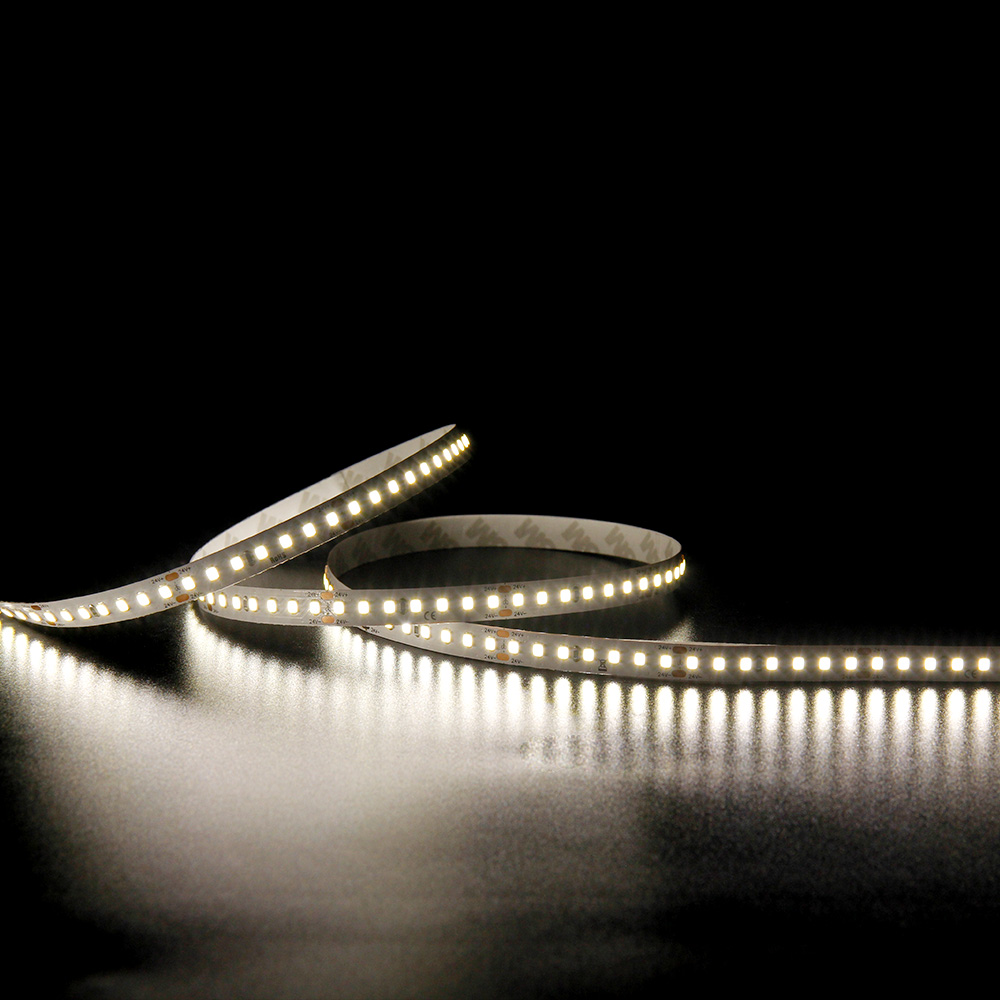

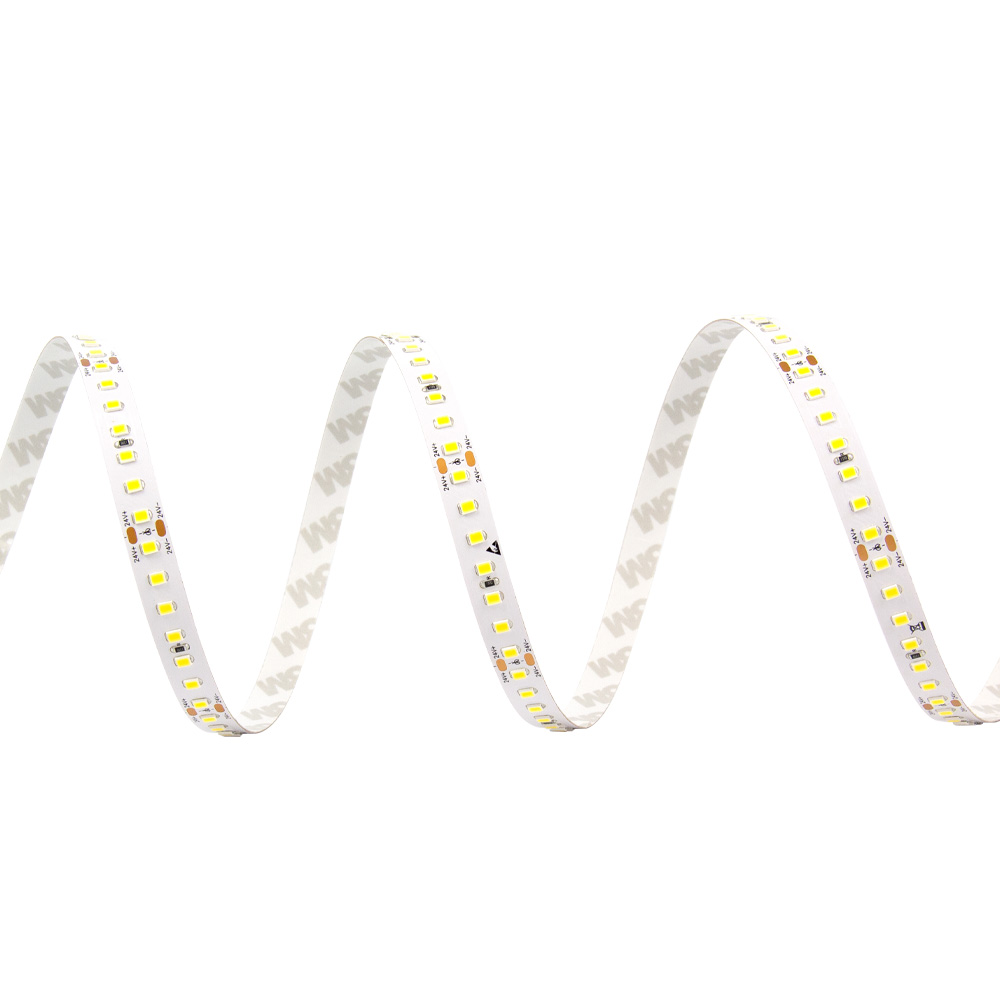

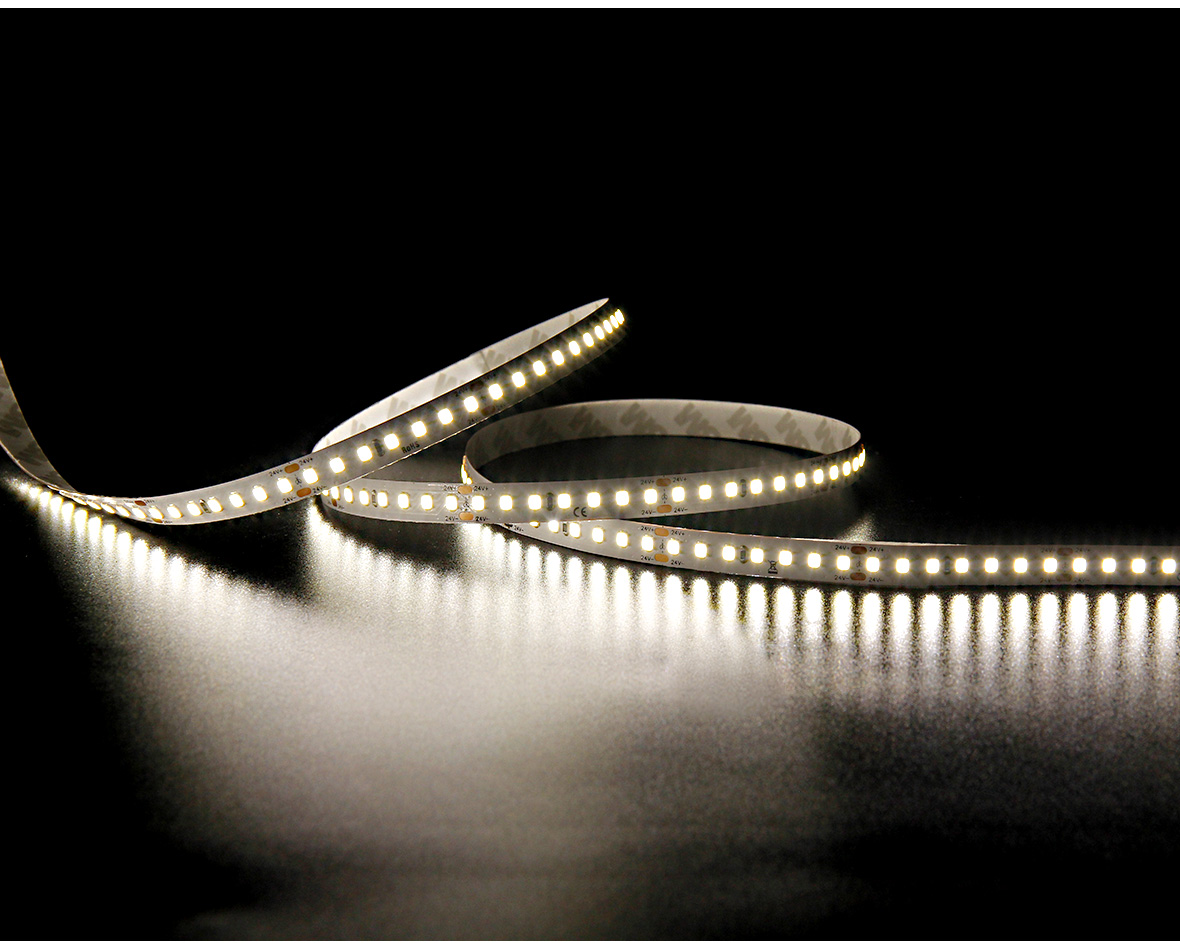

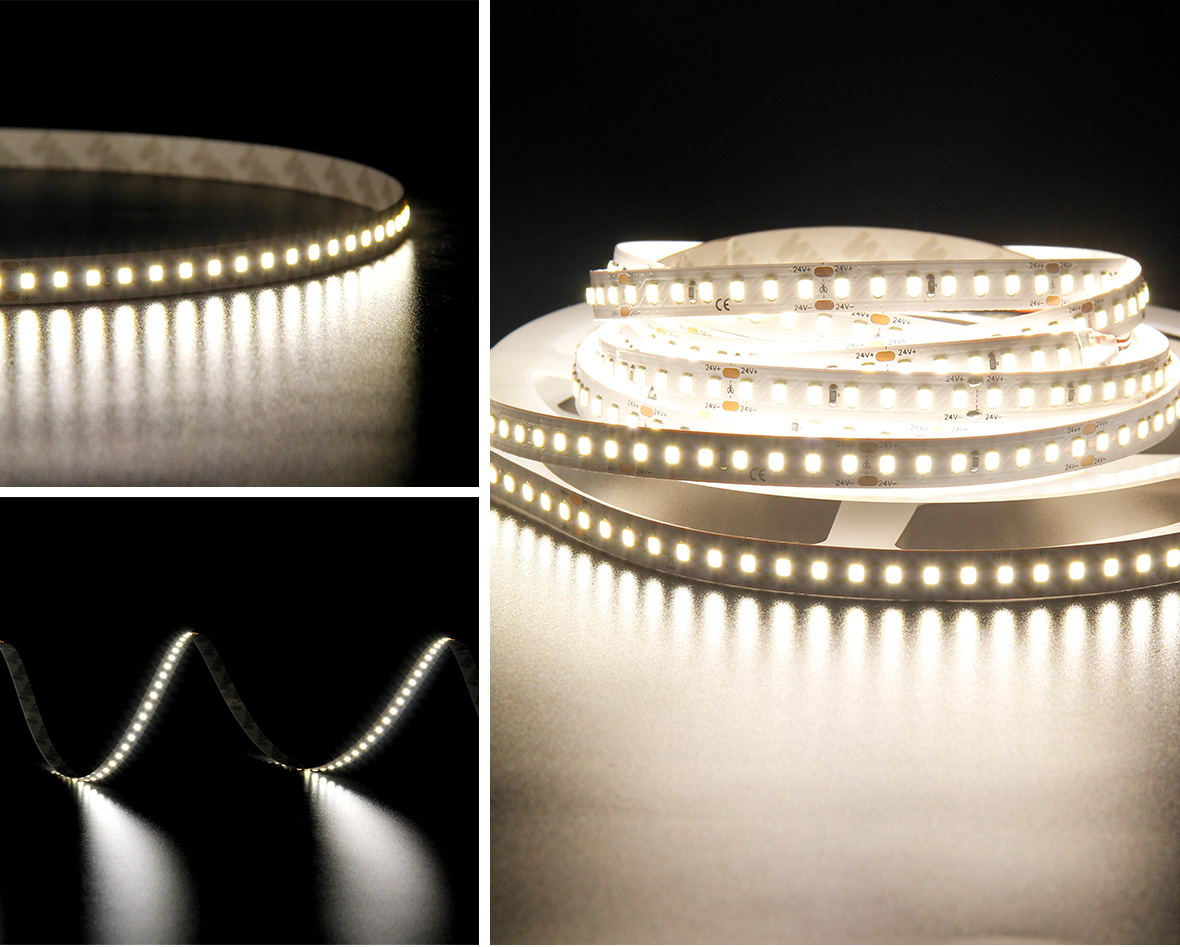

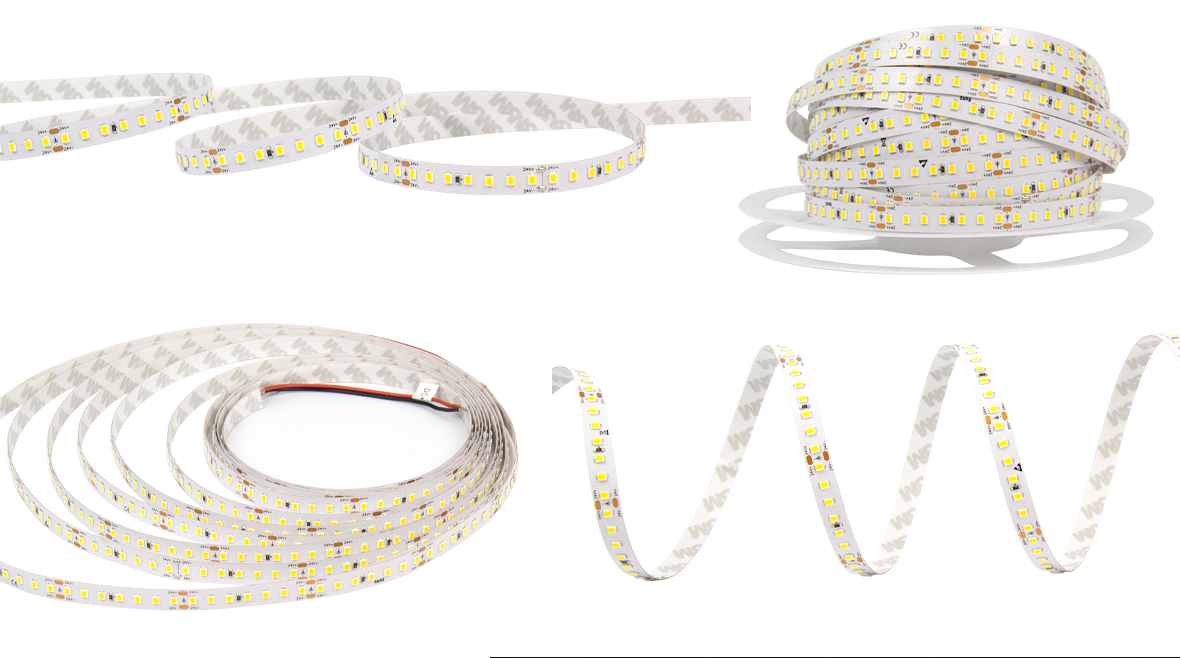

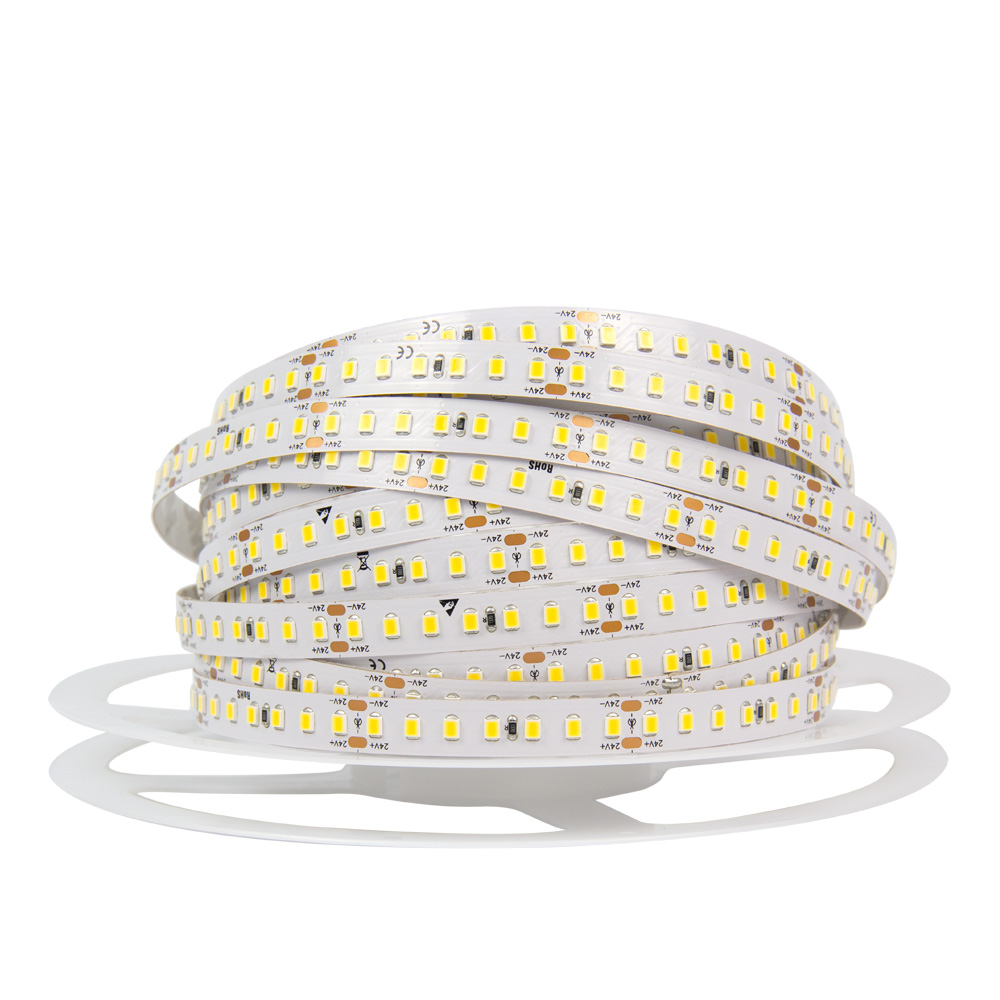

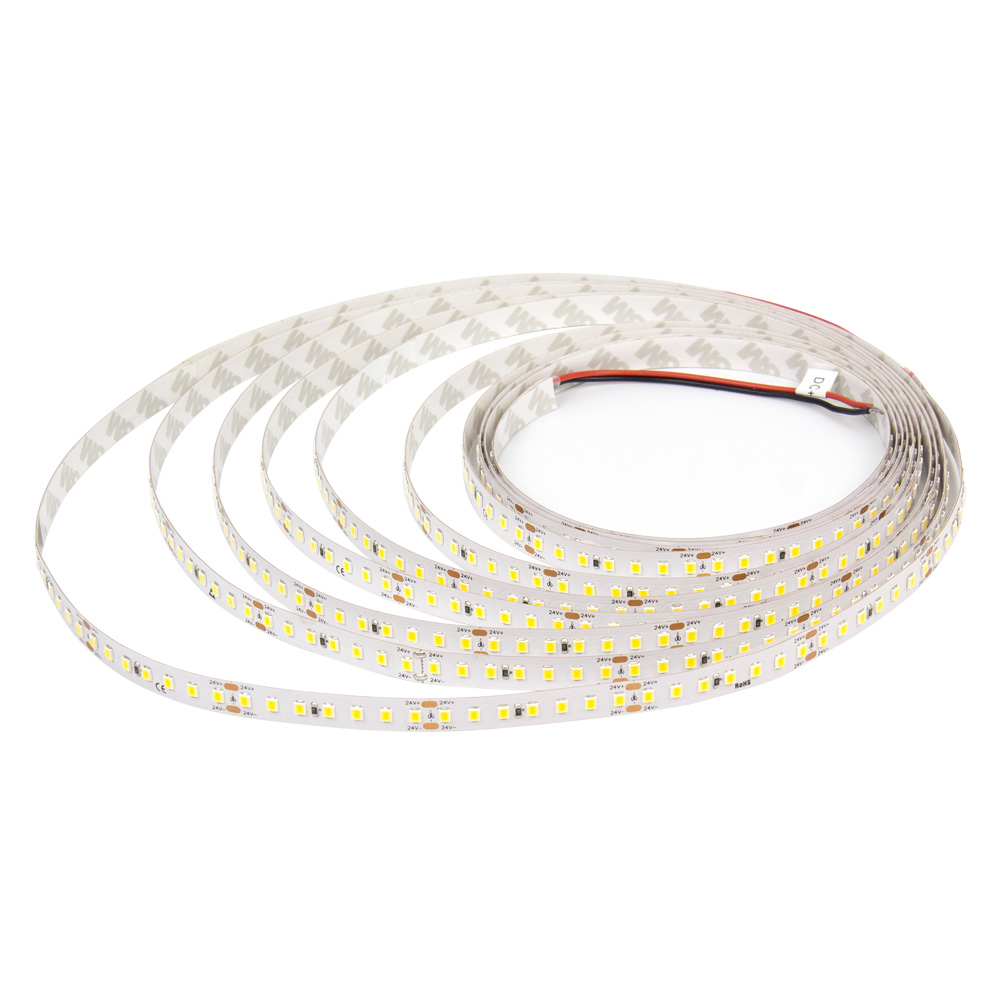

S2835L140V24 (10mm) LED tape light

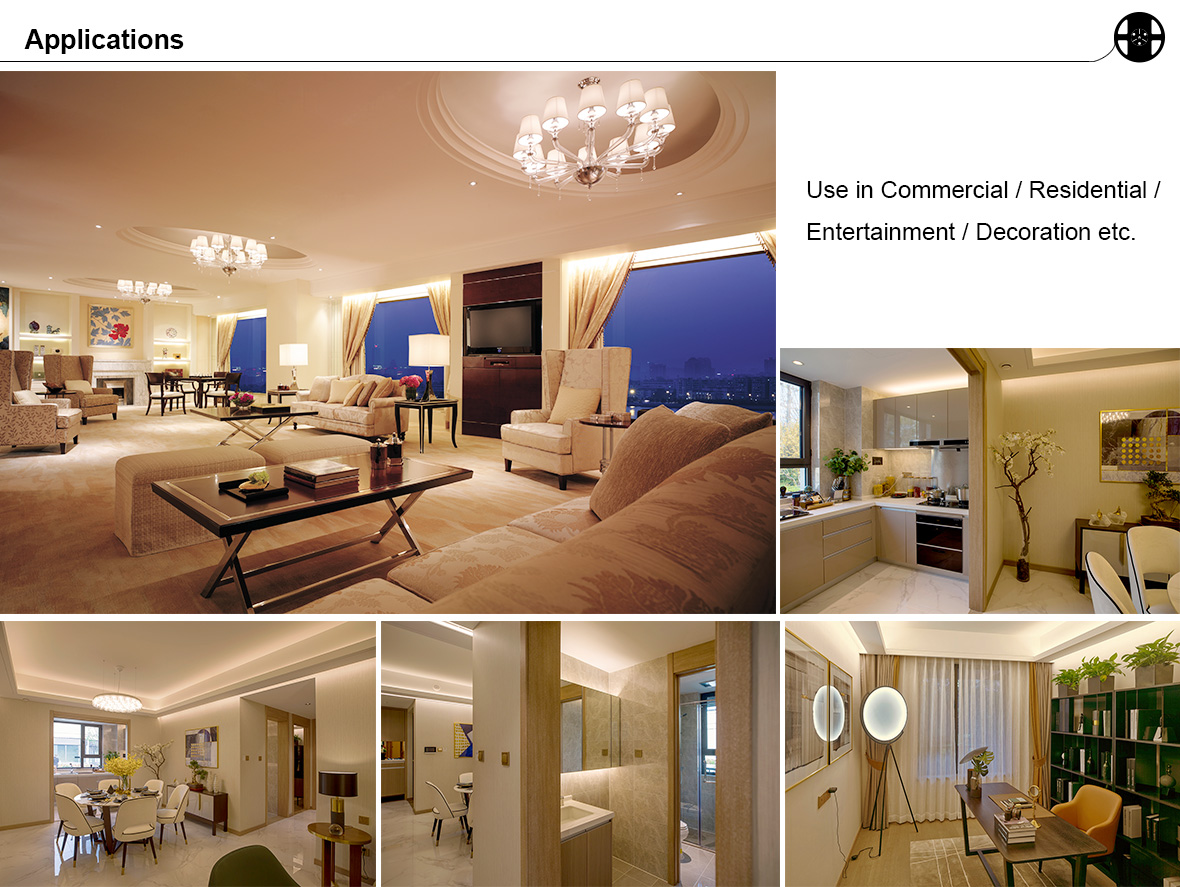

S2835L140V24 10mm width LED tape light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.

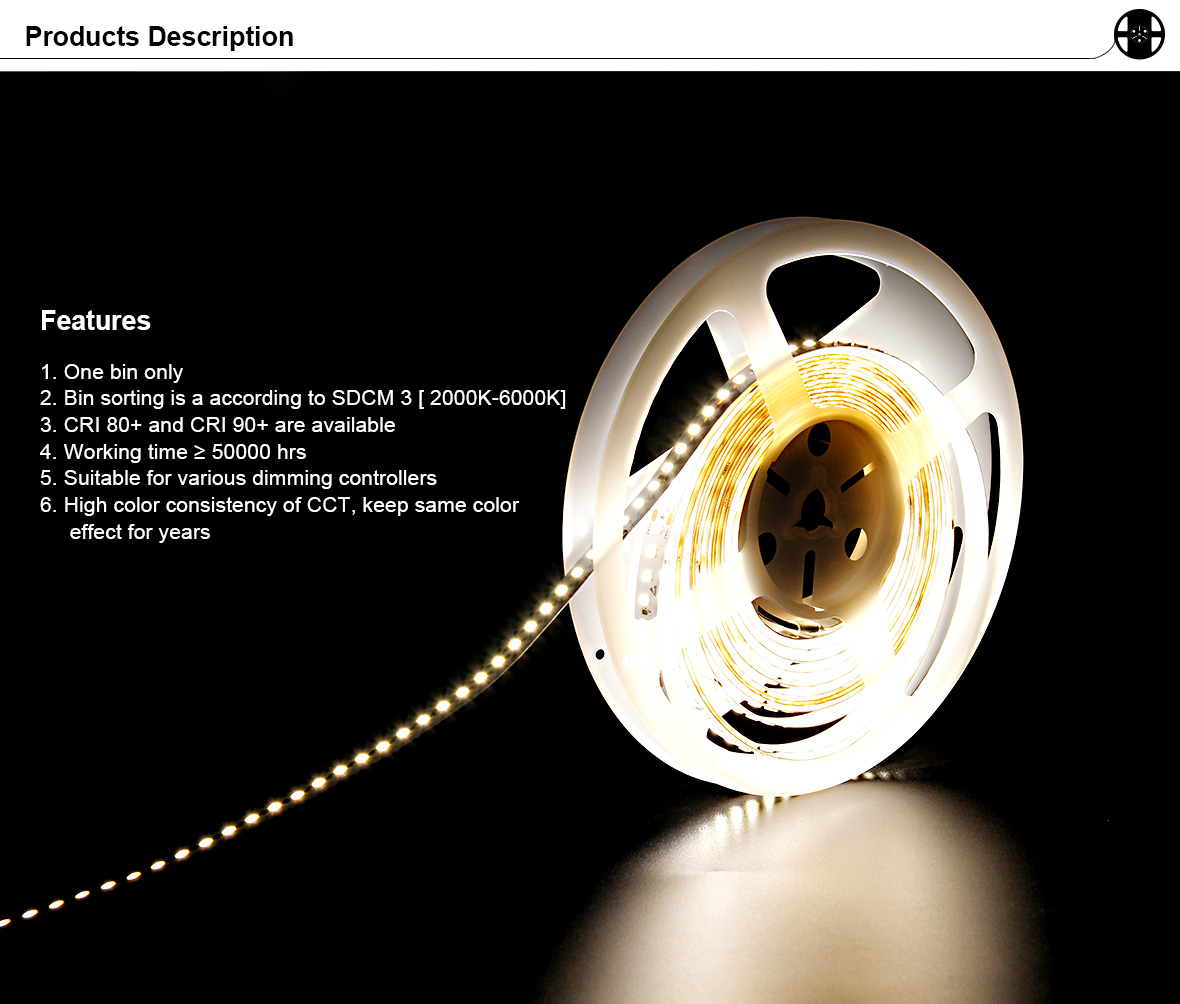

  • LED tape light (LED strip light, LED ribbon light): highlight SMD2835 + FPC

  • LED quantity 140 LEDs per meter

  • Brightness 1700~1950lm/m (518~594lm/ft)

  • Light efficacy is up to 135lm/W

  • Precise cutting 50mm/unit (0.164ft/unit)

  • Waterproof: IP20~IP68

  • Working time≥50000H

  • Suitable for various dimming controllers


Item NO.     S2835L140V24
Size     5000mm×10mm×1.4mm
Power     14.4W/m (4.4W/ft)
Current     0.6A/m (0.183A/ft)
Voltage     DC24V
Brightness     1700~1950lm/m (518~594lm/ft)
LED/m     140pcs/m
CCT     2700K/ 3000K/ 4000K/ 6000K
Lumen/meter     2700K 1712lm/m(522lm/ft)   3000K 1836lm/m(560lm/ft)   4000K 1947lm/m(594lm/ft)   6000K 1897lm/m(587lm/ft)
CRI (Ra>)     85 + / 90 +

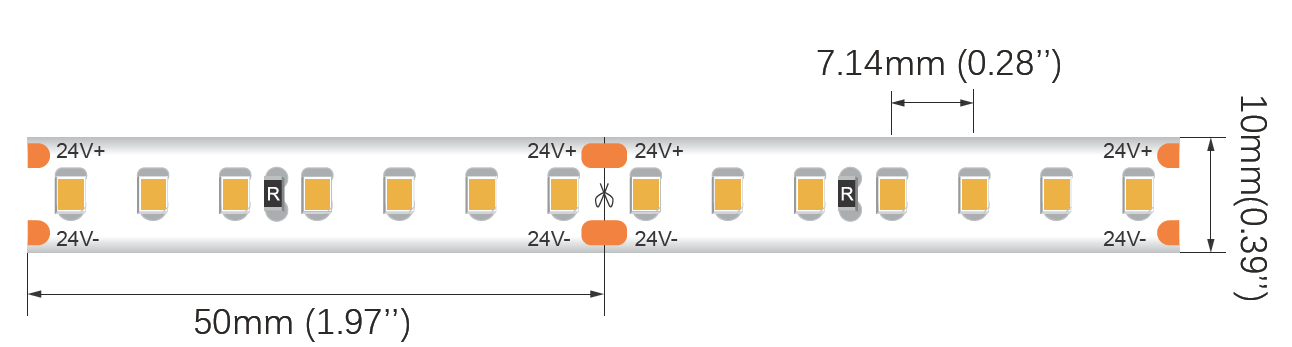

Cut length     50mm (1.97’’)
Beam Angle     120°
LED Pitch     7.14mm (0.28’’)
IP Rating     IP20/ IP55/ IP65/ IP66/ IP67
Warranty     IP20 (5 years) Waterproof (3 years)
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

S2835L140V24 led strip accessories.png

dimming led strip light.png
