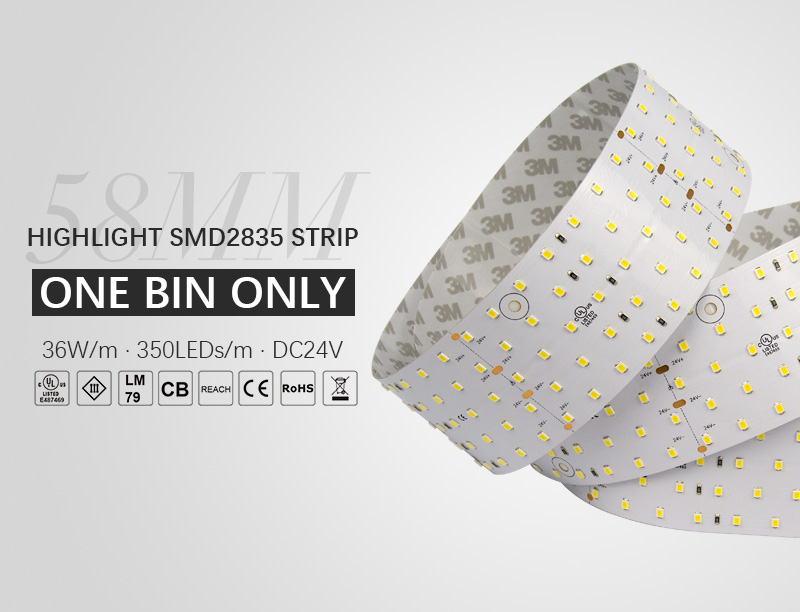

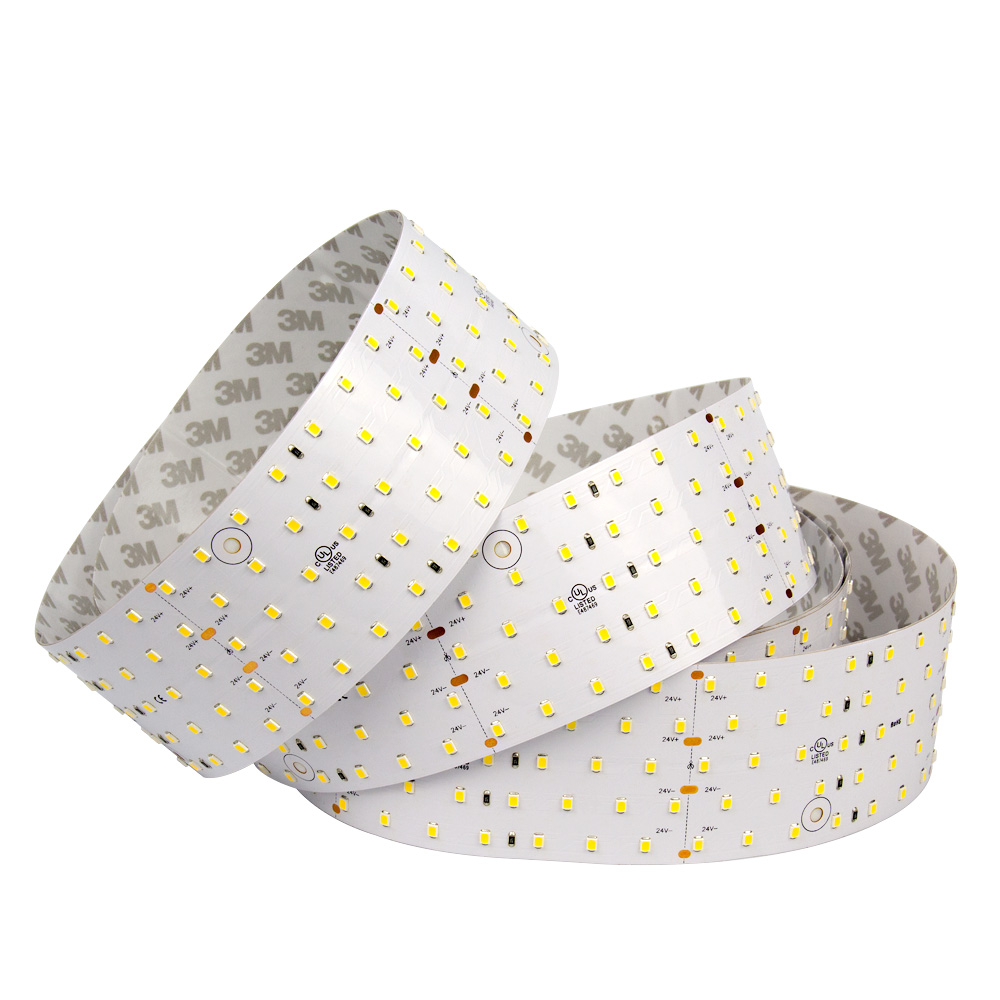

S2835L350V24 58mm width main lighting level LED tape light, UL, TUV CE, CB certficates
Model S2835L350V24
Detailed item code S2835L350V24WW27K8IP20-58
Detailed item code S2835L350V24WW30K8IP20-58
Detailed item code S2835L350V24NW40K8IP20-58
Detailed item code S2835L350V24W60K8IP20-58
FPC width 58mm
Cutting unit 100mm
Power 36w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20
Parameters
Model
S2835L350V24
Detailed item code
S2835L350V24WW27K8IP20-58
Detailed item code
S2835L350V24WW30K8IP20-58
Detailed item code
S2835L350V24NW40K8IP20-58
Detailed item code
S2835L350V24W60K8IP20-58
FPC width
58mm
Cutting unit
100mm
Power
36w/meter
Operating temperature
-20℃~+45℃
Storage temperature
0℃~+60℃
Environment humidity
40~70% RH
Certification
UL E487469, CE, ROHS
Protection grade
IP20
I know
Detail

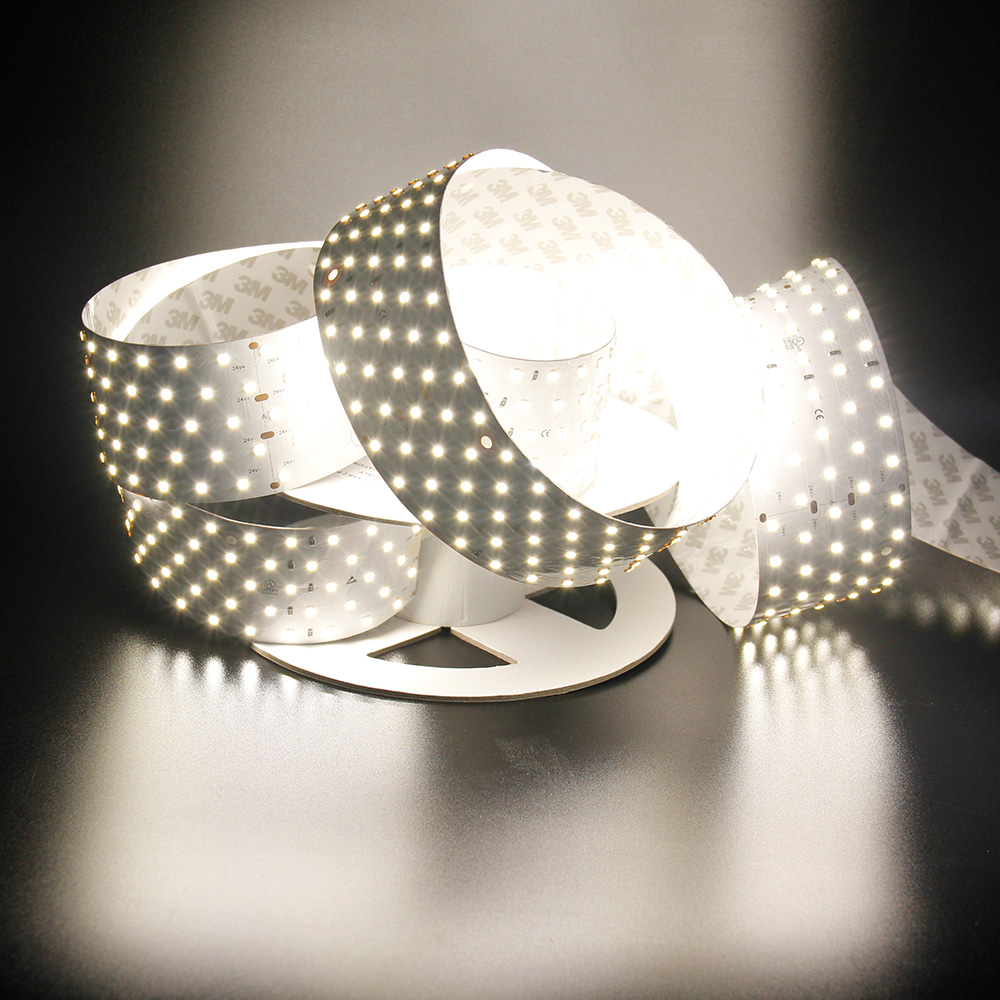

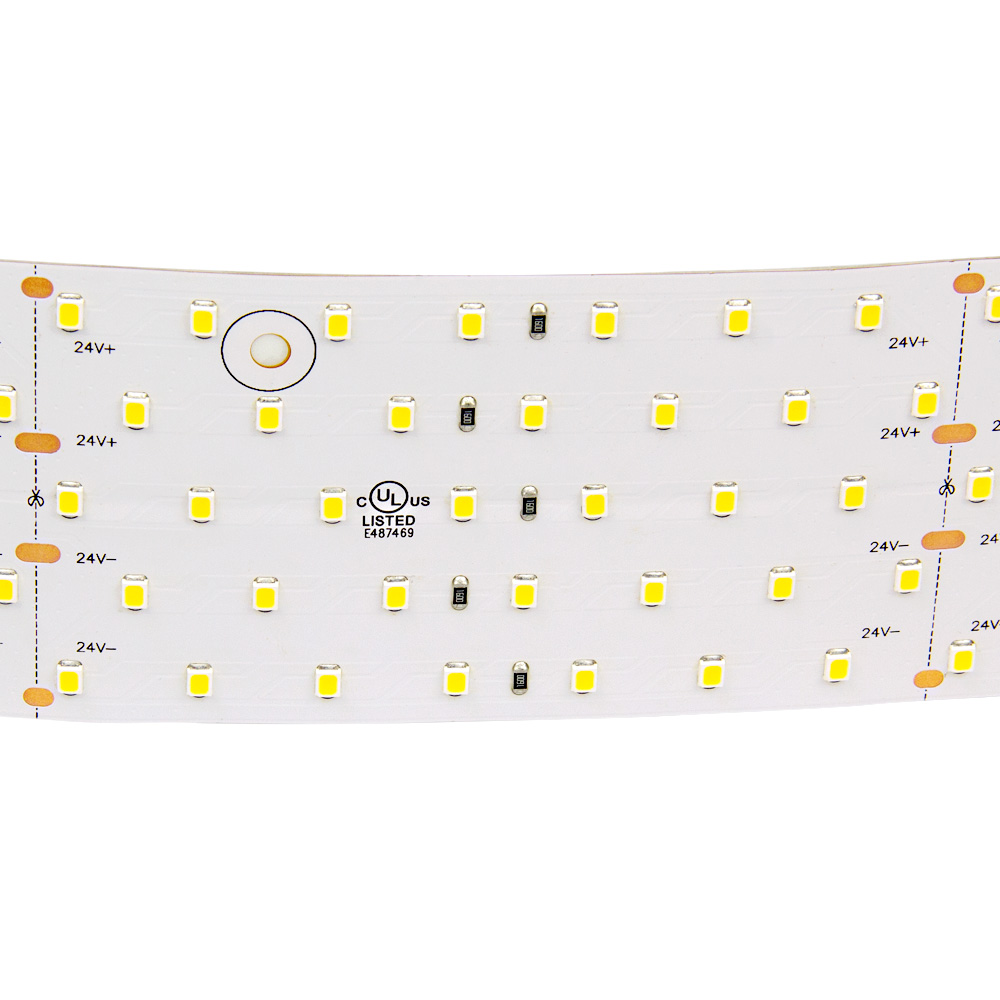

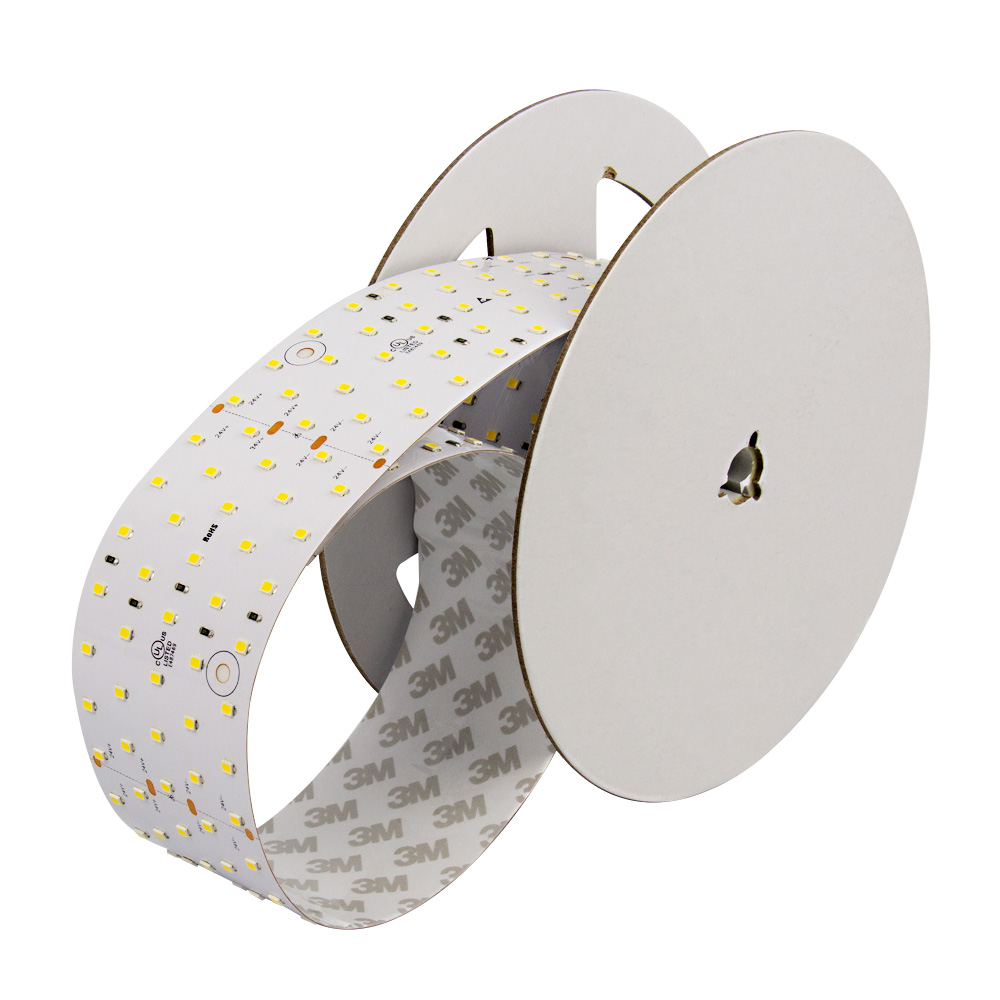

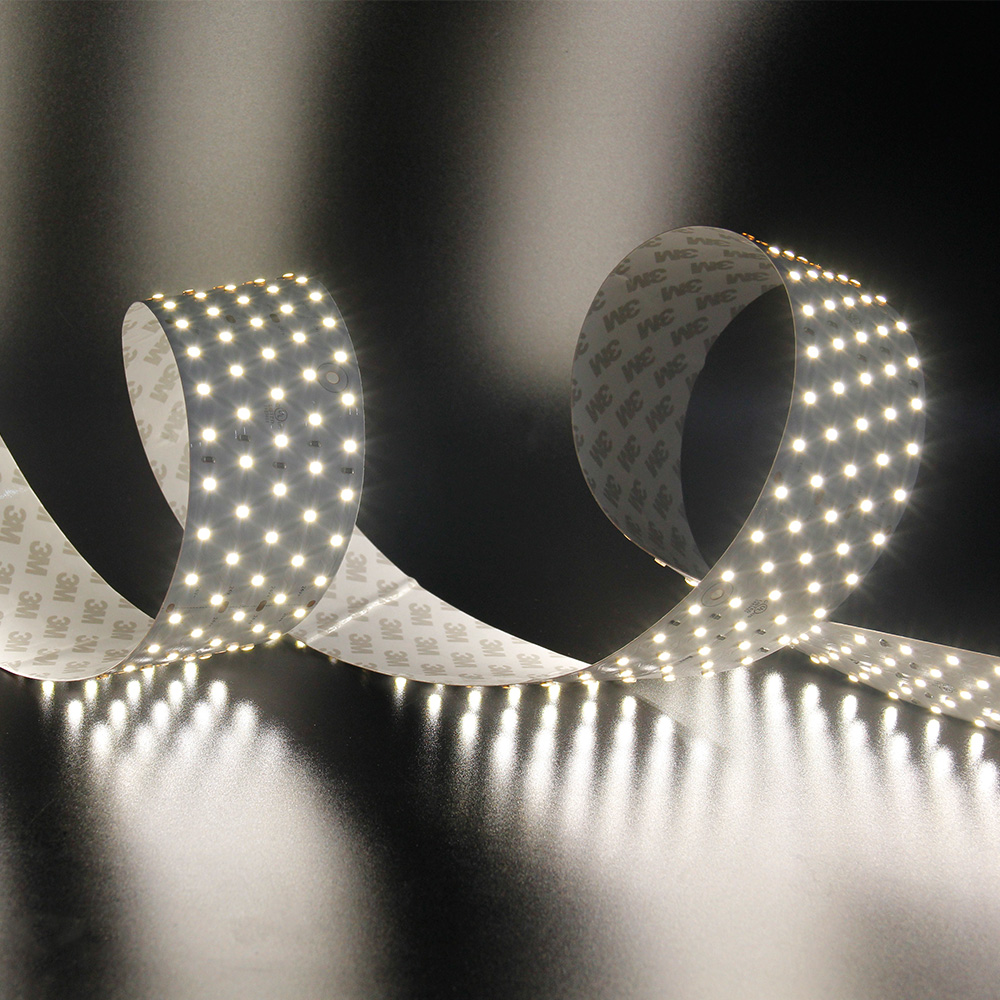

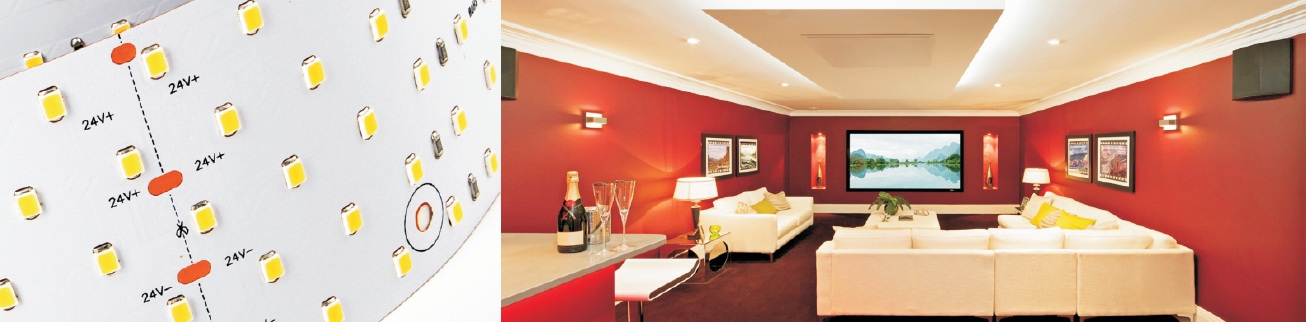

S2835L350V24 LED tape light

S2835L350V24 LED tape light

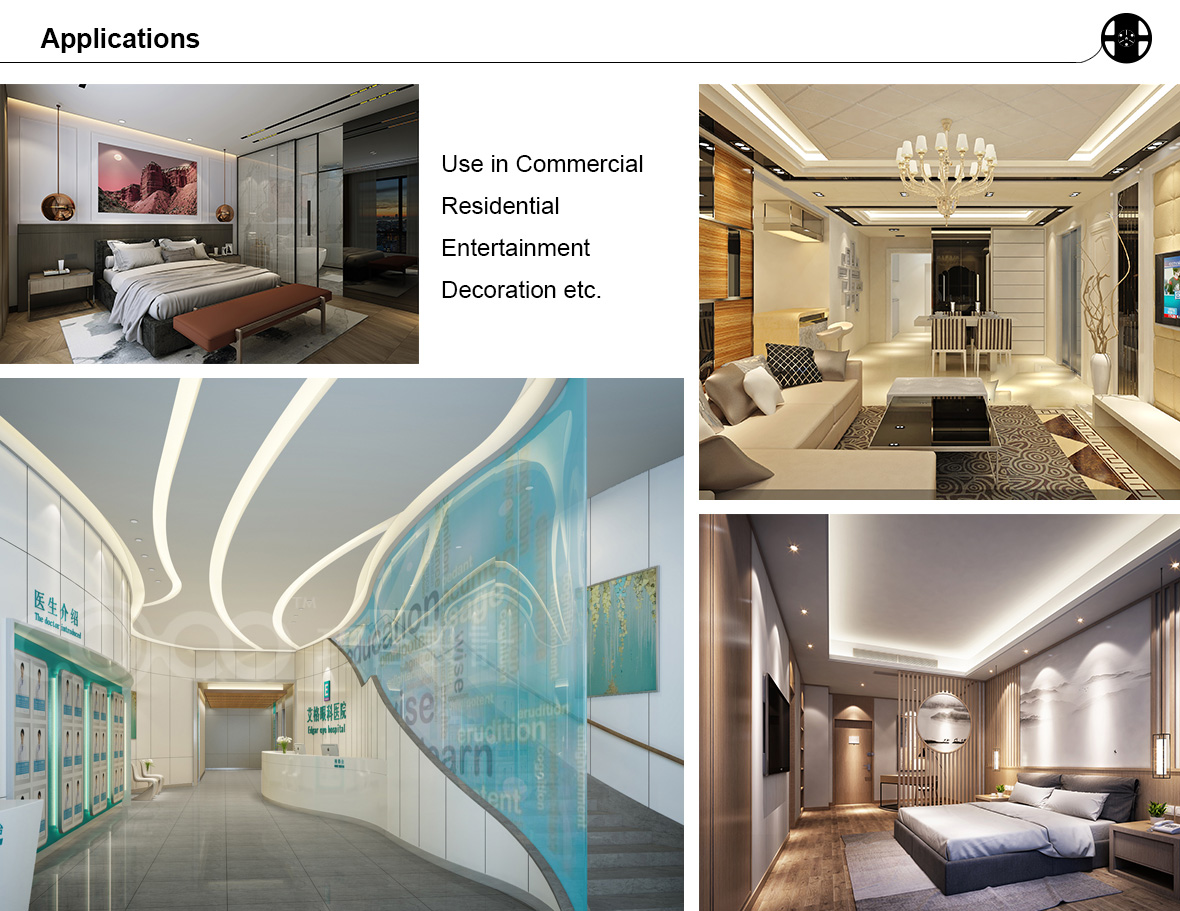

S2835L350V24 58mm width main lighting level LED tape light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.


Features:

  • LED tape light (LED strip light, LED ribbon light): highlight SMD2835 + FPC

  • LED quantity 350 LEDs per meter

  • Brightness 4280~4870lm/m (1305~1484lm/ft)

  • Light efficacy is up to 135lm/W

  • Precise cutting 100mm/unit (0.328ft/unit)

  • Waterproof: IP20

  • Working time≥50000H

  • Suitable for various dimming controllers


Parameter:

  • Input voltage: 24V DC

  • Beam angle: 120°

  • CCT 2700K, 3000K, 4000K, 6000K, customized

  • CRI: 80+/90+

  • Power: 36W/m (11W/ft)

  • Brightness: 4280~4870lm/m (1305~1484lm/ft)

  • Standard length: 2.5 meters (8.2ft) or 5 meters (16.4ft) per roll

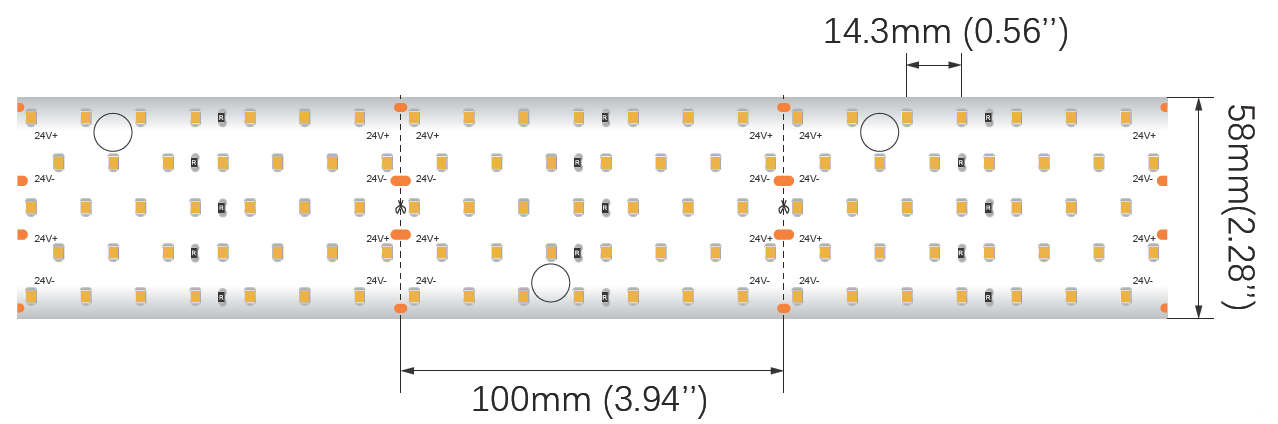

  • FPC width: 58mm (2.28in)

  • Cutting unit: 100mm/unit (0.328ft/unit)

  • IP options: IP20

  • 36w/m (11w/ft): 2700K-4281LM/m (1305LM/ft); 3000K-4589LM/m (1399LM/ft); 4000K-4866LM/m (1483LM/ft); 6000K-4743LM/m (1446LM/ft)

  • 36w/m (11w/ft): 2300K-4200LM/m (1280LM/ft); 3500K-4620LM/m (1408LM/ft); 5000K-4780LM/m (1457LM/ft)

S2835L350V24 led strip accessories.png

dimming led strip light.png

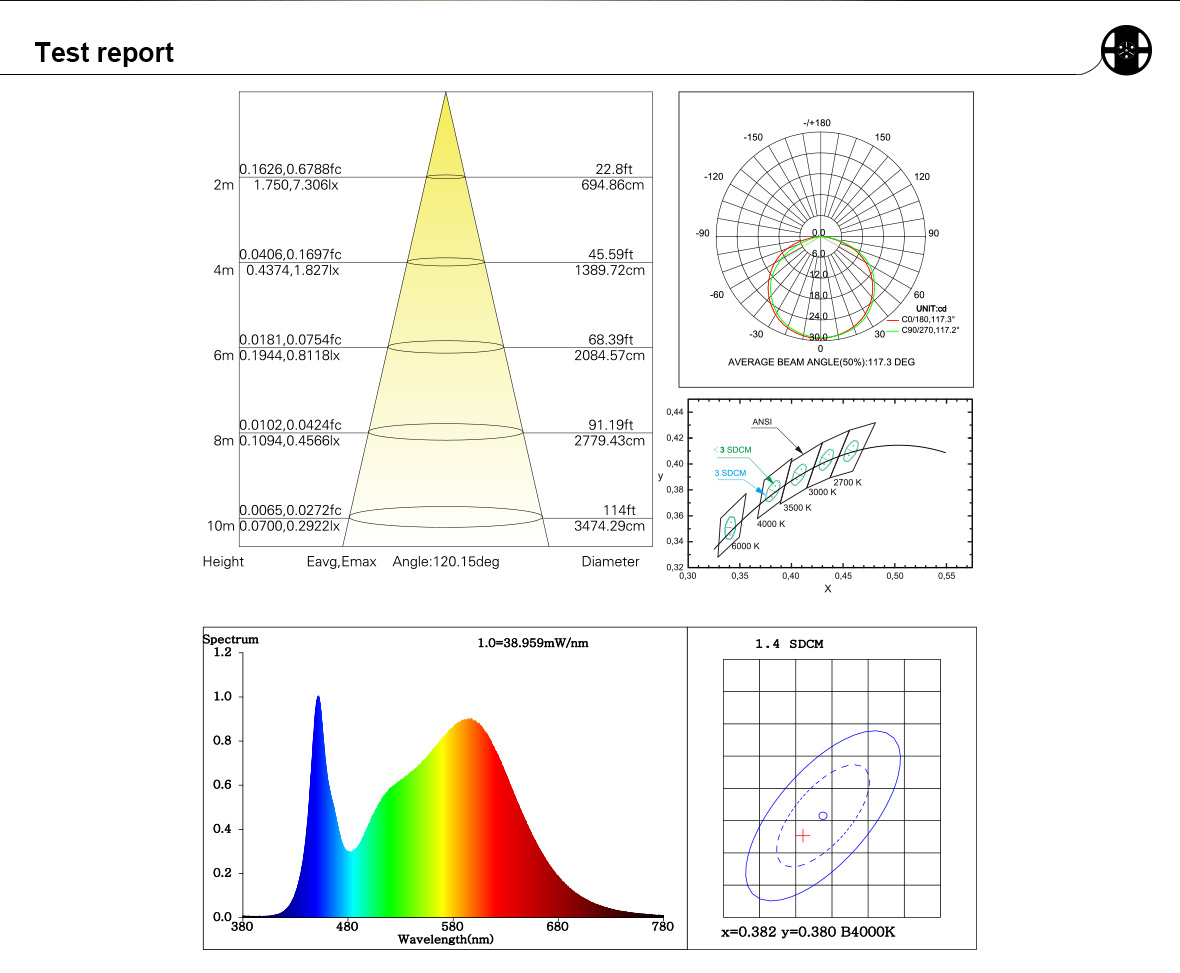

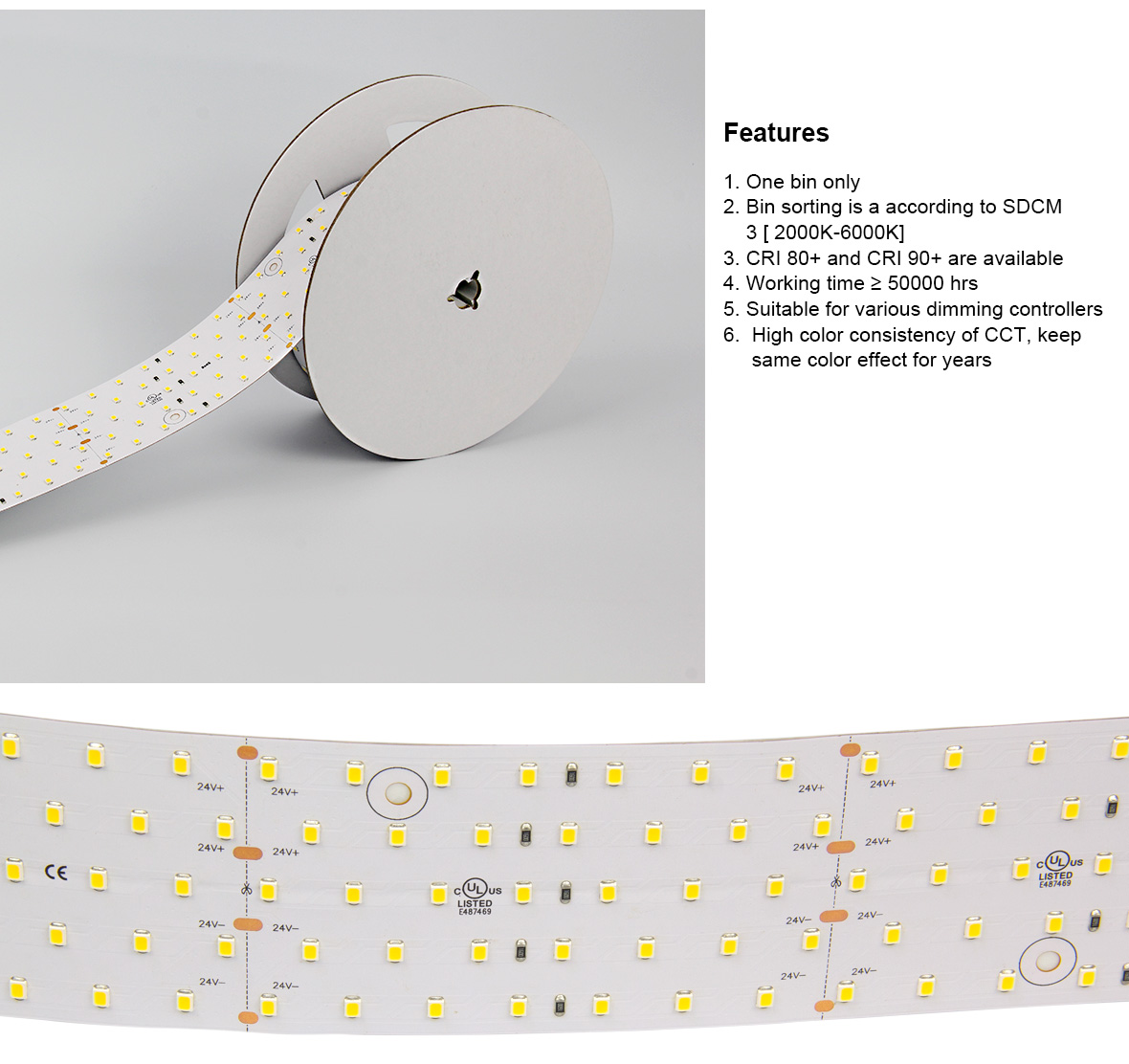

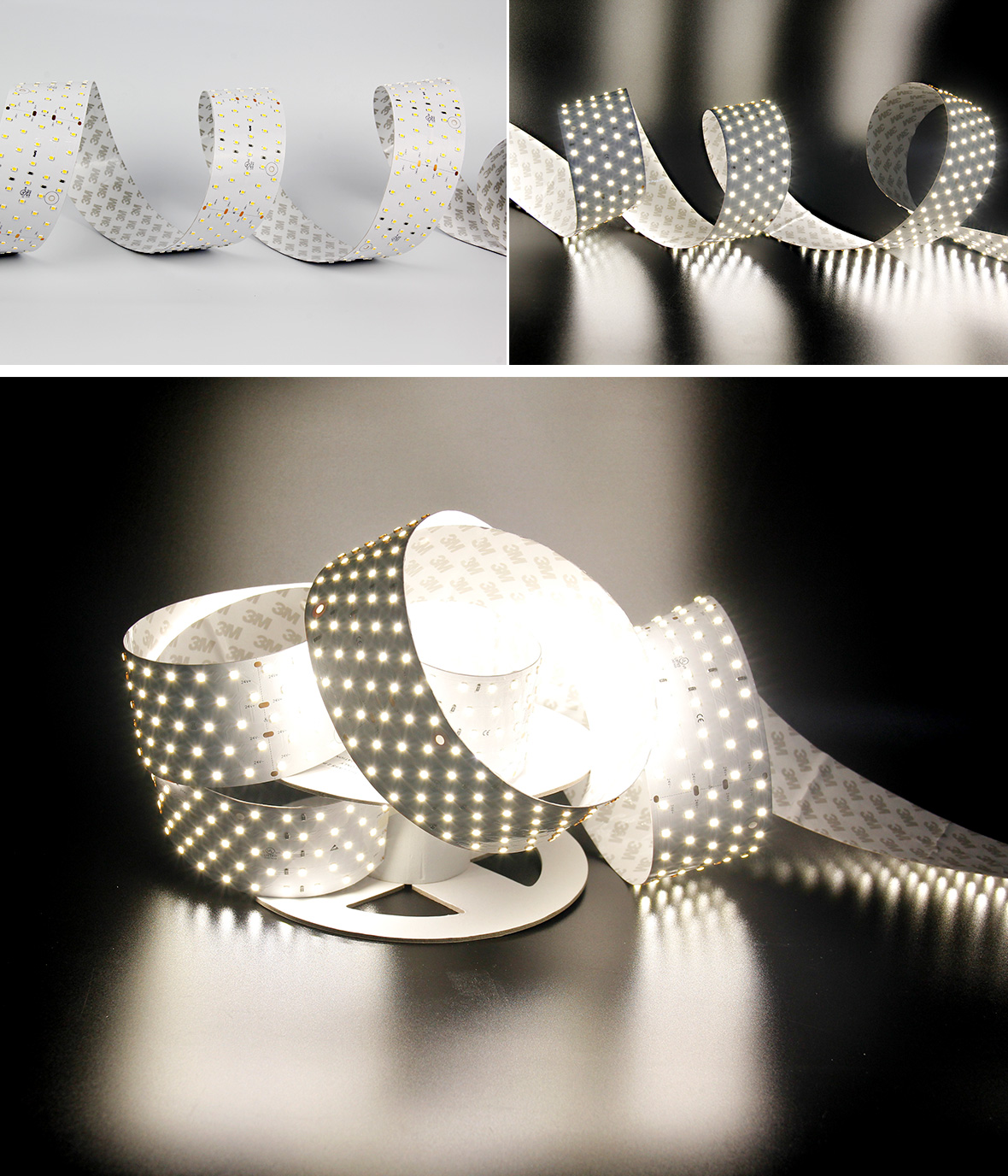

S2835L350V24-58详情_01.jpgS2835L350V24-58详情_02.jpgS2835L350V24-58详情_03.jpgS2835L350V24-58详情_04.jpgS2835L350V24-58详情_05.jpg灯带认证.jpg
