Model S2835L420V24
Detailed model S2835L420V24WW27K8IP20-40
Detailed model S2835L420V24WW30K8IP20-40
Detailed model S2835L420V24NW40K8IP20-40
Detailed model S2835L420V24W60K8IP20-40
FPC width 40mm
Cutting unit 50mm
Power 40w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20
Parameters
Model
S2835L420V24
Detailed model
S2835L420V24WW27K8IP20-40
Detailed model
S2835L420V24WW30K8IP20-40
Detailed model
S2835L420V24NW40K8IP20-40
Detailed model
S2835L420V24W60K8IP20-40
FPC width
40mm
Cutting unit
50mm
Power
40w/meter
Operating temperature
-20℃~+45℃
Storage temperature
0℃~+60℃
Environment humidity
40~70% RH
Certification
UL E487469, CE, ROHS
Protection grade
IP20
I know
Detail

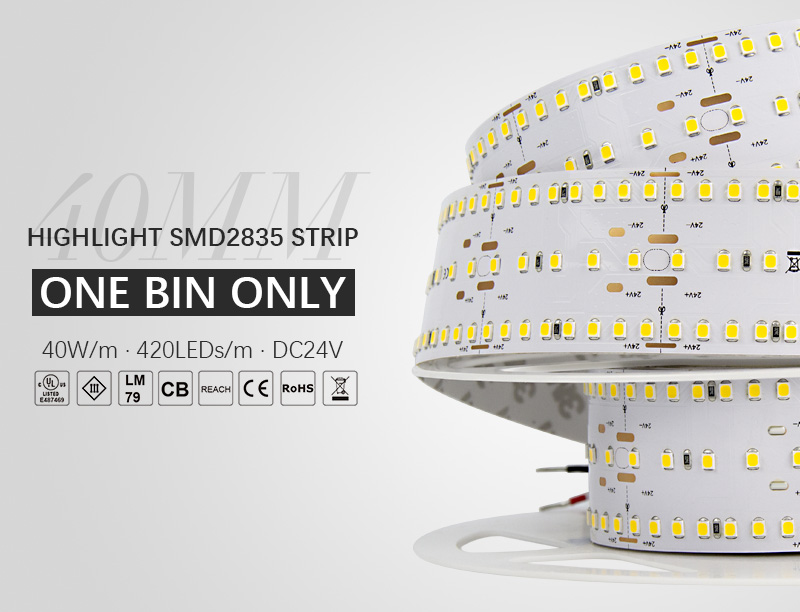

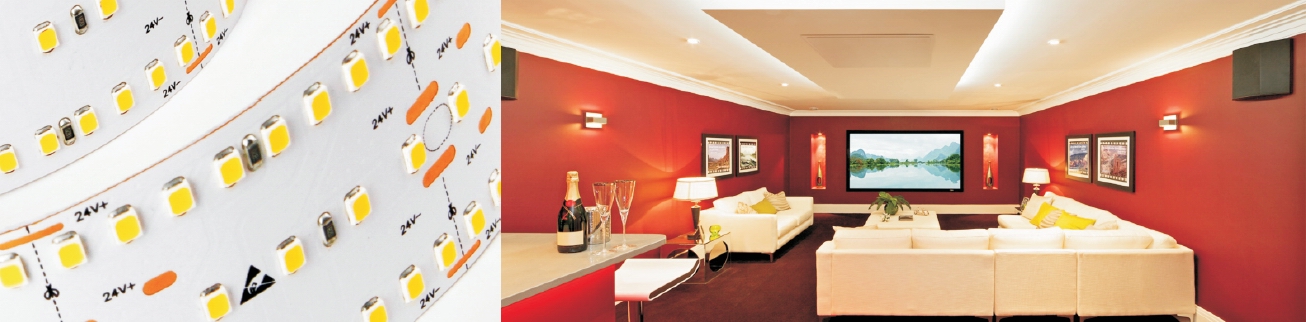

S2835L420V24-40 IMAGE

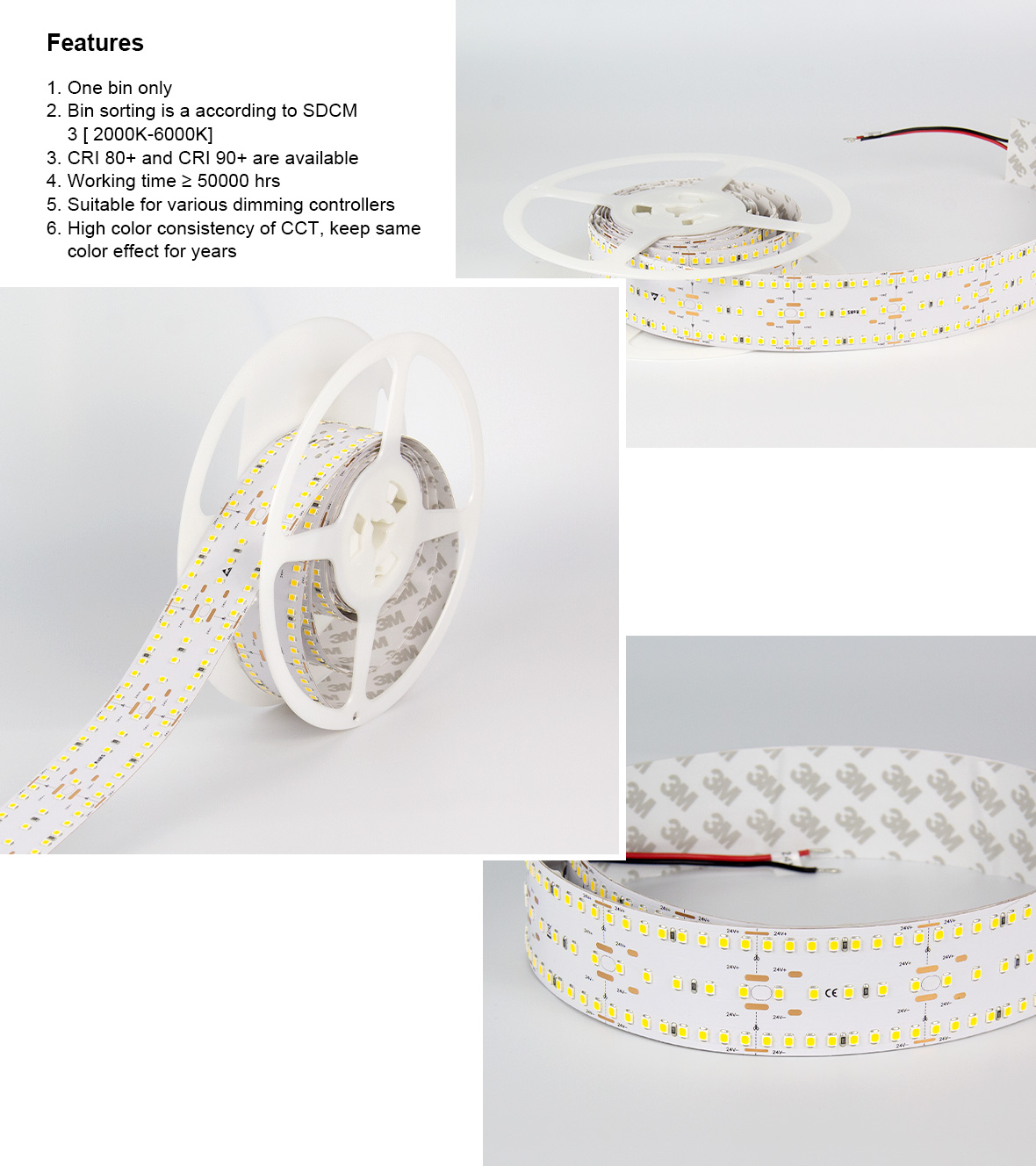

FeaturesBV standard product
  • LED strip (LED ribbon, tape light): Highlight SMD2835 + FPC

  • Help to set up an energy conservation, flexible and multifunctional home lighting,

    the architecture quality led strips with the features of low power, high brightness,

    high light efficiency, high CRI and high waterproof, various of connection accessories

    and dimming control systems are for choice.


  • CRI80+/90+


  • High brightness 4610~5315lm/m (1406~1620lm/ft)

Parameter
  • Light efficiency up to 135lm/W

  • Input voltage

  • 24Vdc


  • Precise cutting 50mm/unit (0.164ft/unit)

  • Beam angle

  • 120°


  • Waterproof: IP20

  • CCT

  • 2700K/3000K/4000K/6000K (2300K/3500K/5000K)


  • Working time≥50000H

  • CRI

  • 80+/90+


  • Suitable for various dimming controllers

  • Power

  • 40W/m (12.2W/ft)


Standard CCT

  • Brightness

  • 4610~5315lm/m (1406~1620lm/ft)


  • Length / reel

  • 2.5 (8.2ft) / 5M (16.4ft)


  • Cut length

  • 50mm/unit (0.164ft/unit)


Narrow spectrum
  • IP grade

  • IP20

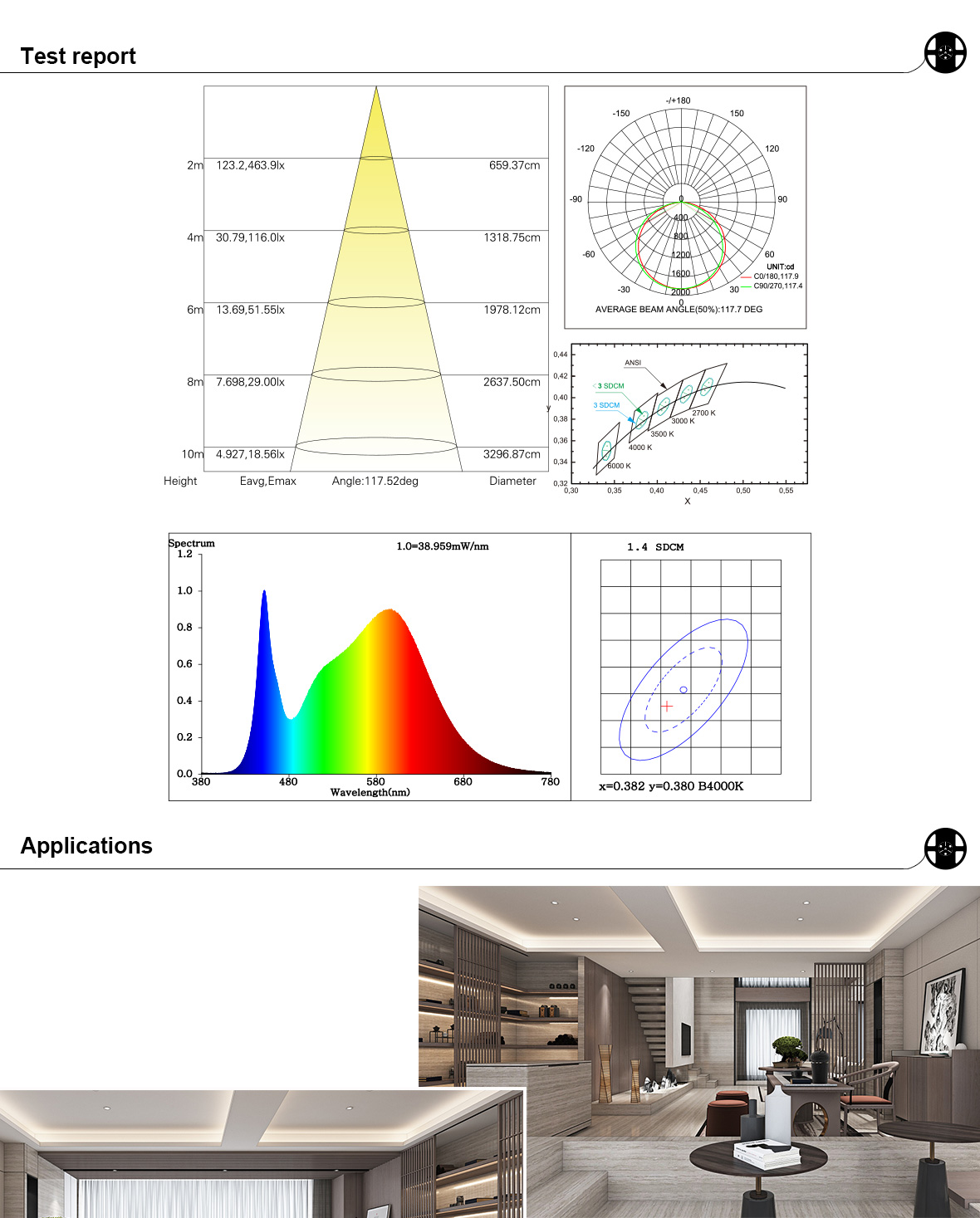

 Test report
2835 TEST REPORT
  • Impressive color consistency within 3 Step MacAdam

    over each individual LED,One Bin Only


Various waterproof solution
IP20

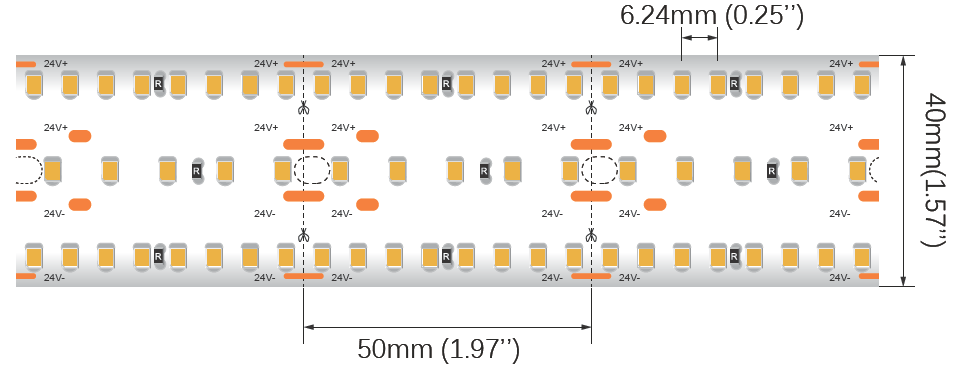

Dimension

S2835L420V24 DIMENSION.png
Power&Lumen

  • 40w/m (12.2w/ft): 2700K-4613LM/m (1406LM/ft); 3000K-5093LM/m (1552LM/ft); 4000K-5315LM/m (1620LM/ft); 6000K-5241LM/m (1598LM/ft)


  • 2300K-4500LM/m (1372LM/ft); 3500K-5150LM/m (1570LM/ft); 5000K-5280LM/m (1609LM/ft)


Optional accessories
BV-XC-JXD-H2BV-XC-JXD-T2BV-XC-JXD-D2BV-XC-PD-1T02

BV-XC-JXD-H2

DC/AC Max 300V 10A

for 18 ~ 22AWG

BV-XC-JXD-T2

DC/AC Max 300V 10A

for 18 ~ 22AWG

BV-XC-JXD-D2

DC/AC Max 300V 6A

for 18 ~ 22AWG

Connectible

BV-XC-PD-1T02

DC/AC Max 300V 6A

for 18 ~ 22AWG

Compatible with BV-XC-JXD-D2,   1 for 2 connector


Triac dimming
TRIAC DIMMING.jpg
0-10V dimming
0-10V DIMMING.jpg
Smart dimming
SMART DIMMING.jpg
