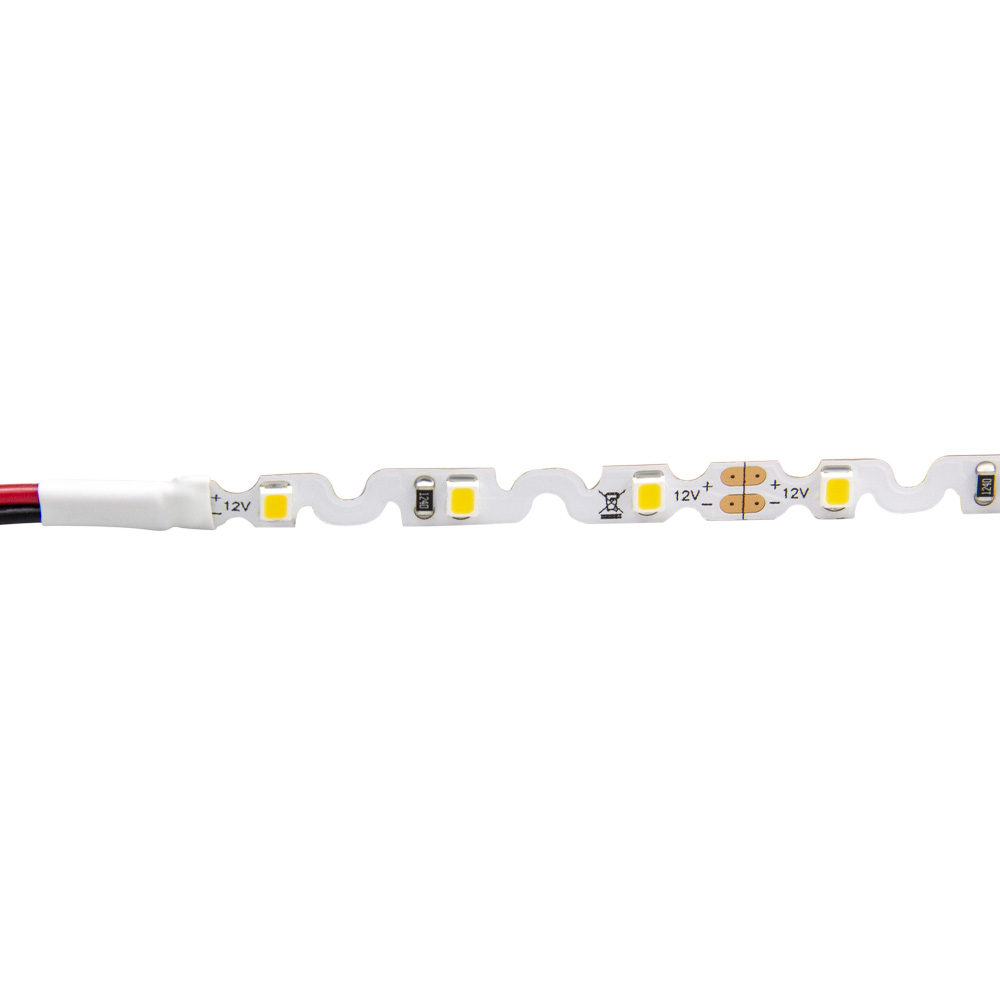

S2835L60V24 8mm width LED ribbon light, UL, TUV CE, CB certficates

Model S2835L60V24
Detailed item code S2835L60V24WW27K8IP20-8
Detailed item code S2835L60V24WW30K8IP20-8
Detailed item code S2835L60V24NW40K8IP20-8
Detailed item code S2835L160V24W60K8IP20-10
FPC width 8mm
Cutting unit 100mm
Power 7.2w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP66, IP67, IP68

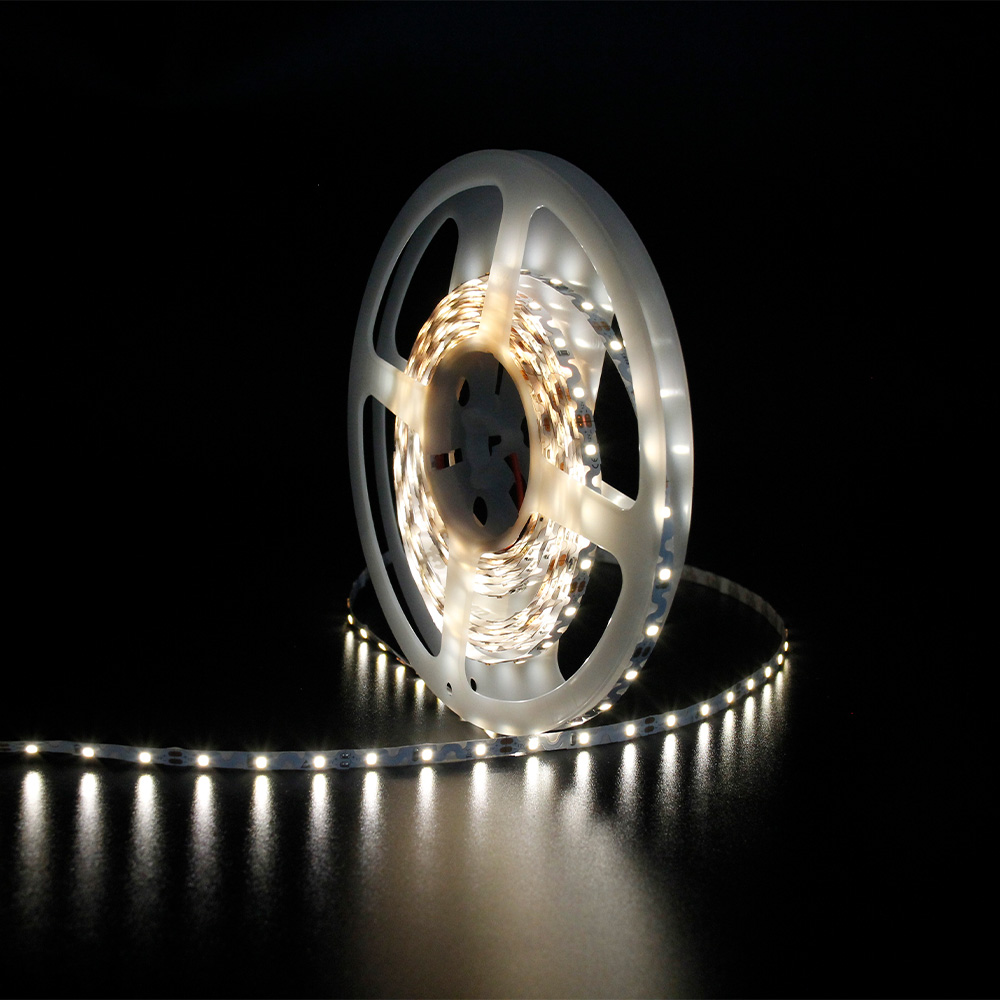

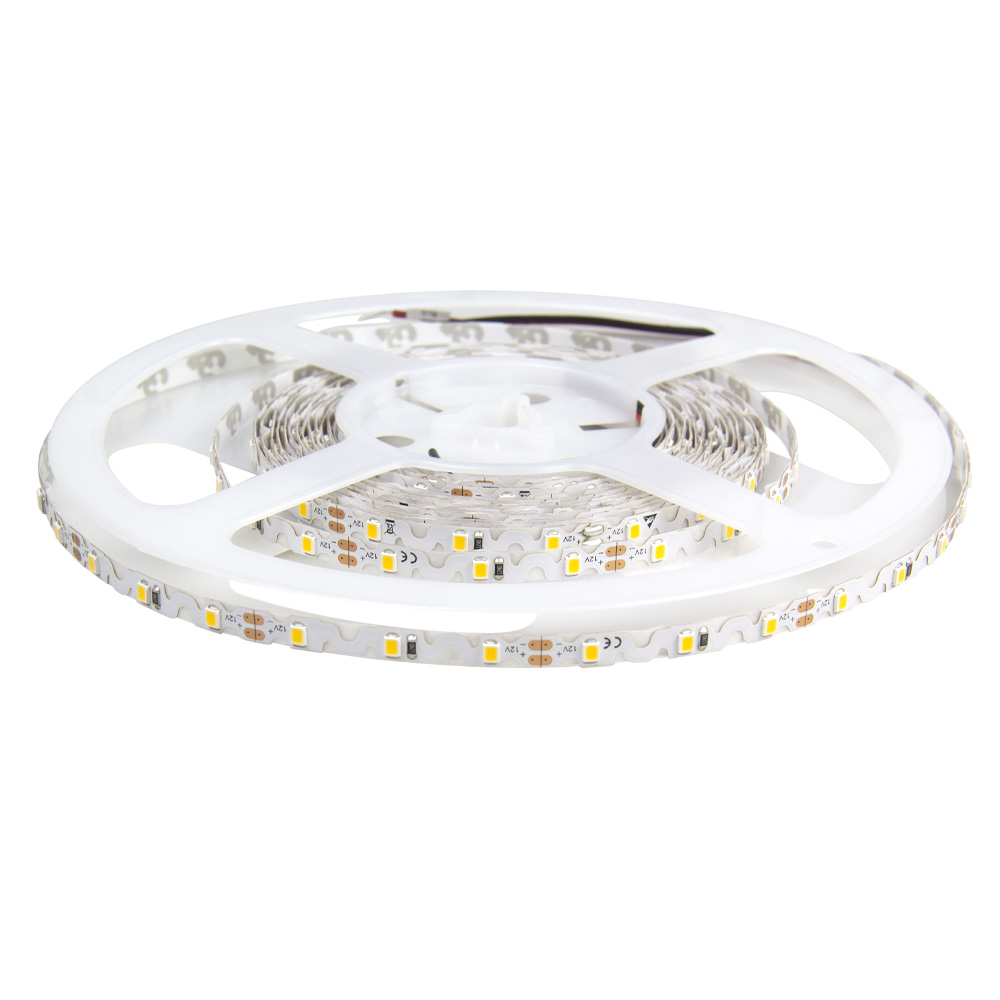

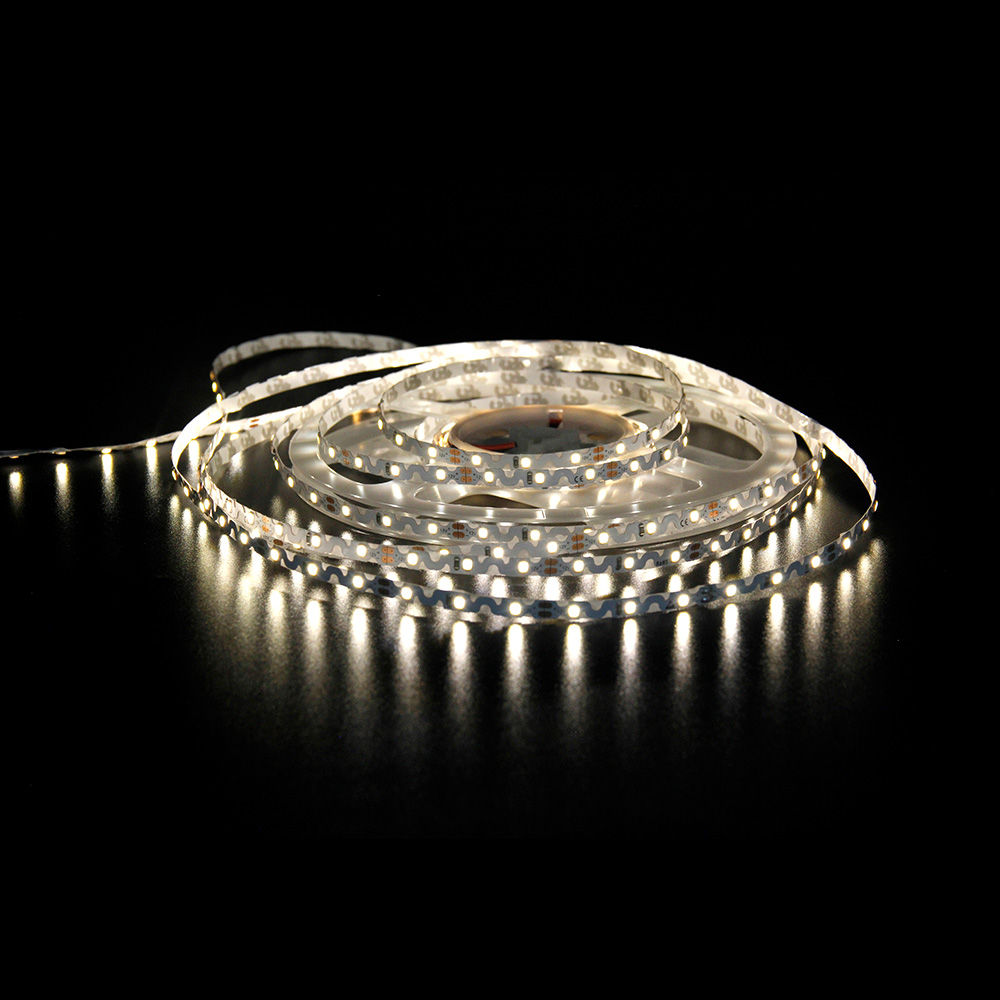

S2835L60V24 LED ribbon light

S2835L60V24 8mm width LED ribbon light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.


  • LED ribbon light (LED tape light, LED strip light): highlight SMD2835 + FPC

  • LED quantity 60 LEDs per meter

  • Brightness 730~850lm/m (222~259lm/ft)

  • Light efficacy is up to 115lm/W

  • Precise cutting 100mm/unit (0.328ft/unit)

  • Waterproof: IP20~IP68

  • Working time≥50000H

  • Suitable for various dimming controllers


Item NO.     S2835L60V24
Size     5000mm×8mm×1.4mm
Power     7.2W/m (2.19W/ft)
Current     0.3A/m (0.091A/ft)
Voltage     DC24V
Brightness     730~850lm/m (222~259lm/ft)
LED/m     60pcs/m
CCT     2700K/ 3000K/ 4000K/ 6000K
Lumen/meter     2700K 734lm/m(224lm/ft)   3000K 787lm/m(240lm/ft)   4000K 834lm/m(254lm/ft)   6000K 813lm/m(249lm/ft)
CRI (Ra>)     85 + / 90 +
Cut length     100mm (3.94’’)
Beam Angle     120°
LED Pitch     16.7mm (0.66’’)
IP Rating     IP20/ IP55/ IP65/ IP66/ IP67
Warranty     IP20 (5 years) Waterproof (3 years)
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

S2835L60V24 led strip accessories.png

dimming led strip light.png
