Model S3014L80V24
Detailed item code S3014L80V24WW27K8IP20-8
Detailed item code S3014L80V24WW30K8IP20-8
Detailed item code S3014L80V24NW40K8IP20-8
Detailed item code S3014L80V24W65K8IP20-8
FPC width 8mm
Cutting unit 100mm
Power 4.8w/meter
Operating temperature -20℃～+45℃
Storage temperature 0℃～+60℃
Environment humidity 40～70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP66, IP67, IP68
Detail

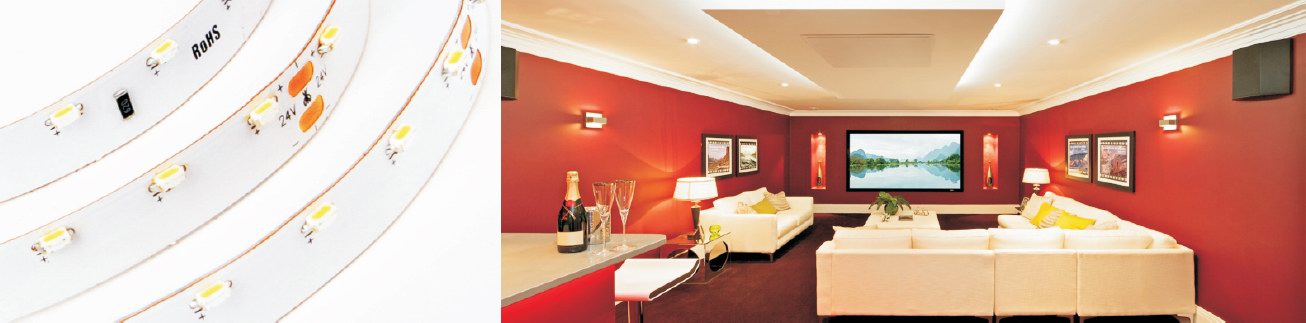

S3014L80V24 LED strip light

S3014L80V24 LED strip light.jpg


S3014L80V24 8mm width sideview LED strip light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.


Features:

  • LED strip light (LED ribbon light, LED tape light): highlight SMD3014 + FPC

  • LED quantity 80 LEDs per meter

  • Brightness 600~700lm/m (183~213lm/ft)

  • Light efficacy is up to 140lm/W

  • Precise cutting 100mm/unit (0.328ft/unit)

  • Waterproof: IP20~IP67

  • Working time≥50000H

  • Suitable for various dimming controllers


Parameter:

  • Input voltage: 24V DC

  • Beam angle: 120°

  • CCT 2700K, 3000K, 4000K, 6000K, customized

  • CRI: 80+/90+

  • Power: 4.8W/m (1.46W/ft)

  • Brightness: 600~700lm/m (183~213lm/ft)

  • Standard length: 5 meters (16.4ft) per roll

  • FPC width: 8mm (0.31in)

  • Cutting unit: 100mm/unit (0.328ft/unit)

  • IP options: IP20/IP55/IP65/IP66/IP67

  • 4.8w/m (1.46w/ft): 2700K-639LM/m (195LM/ft); 3000K-642LM/m (196LM/ft); 4000K-646LM/m (197LM/ft); 6000K-668LM/m (204LM/ft);

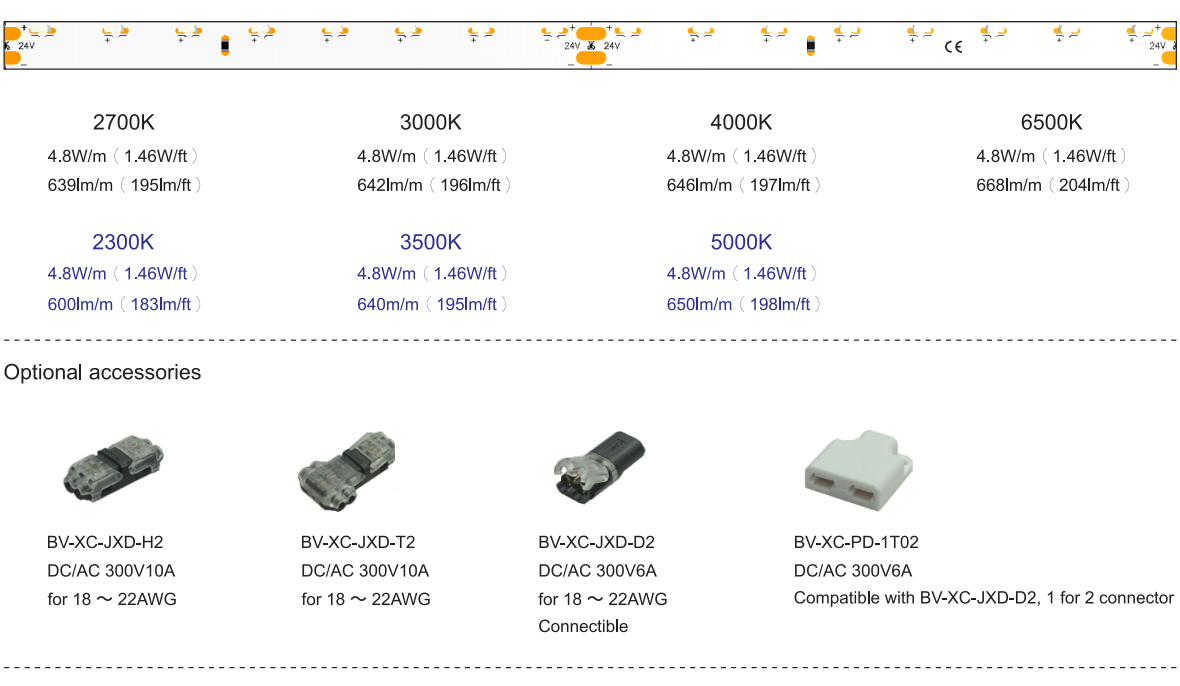

S3014L80V24 LED strip light accessories.pngdimming led strip light.png
