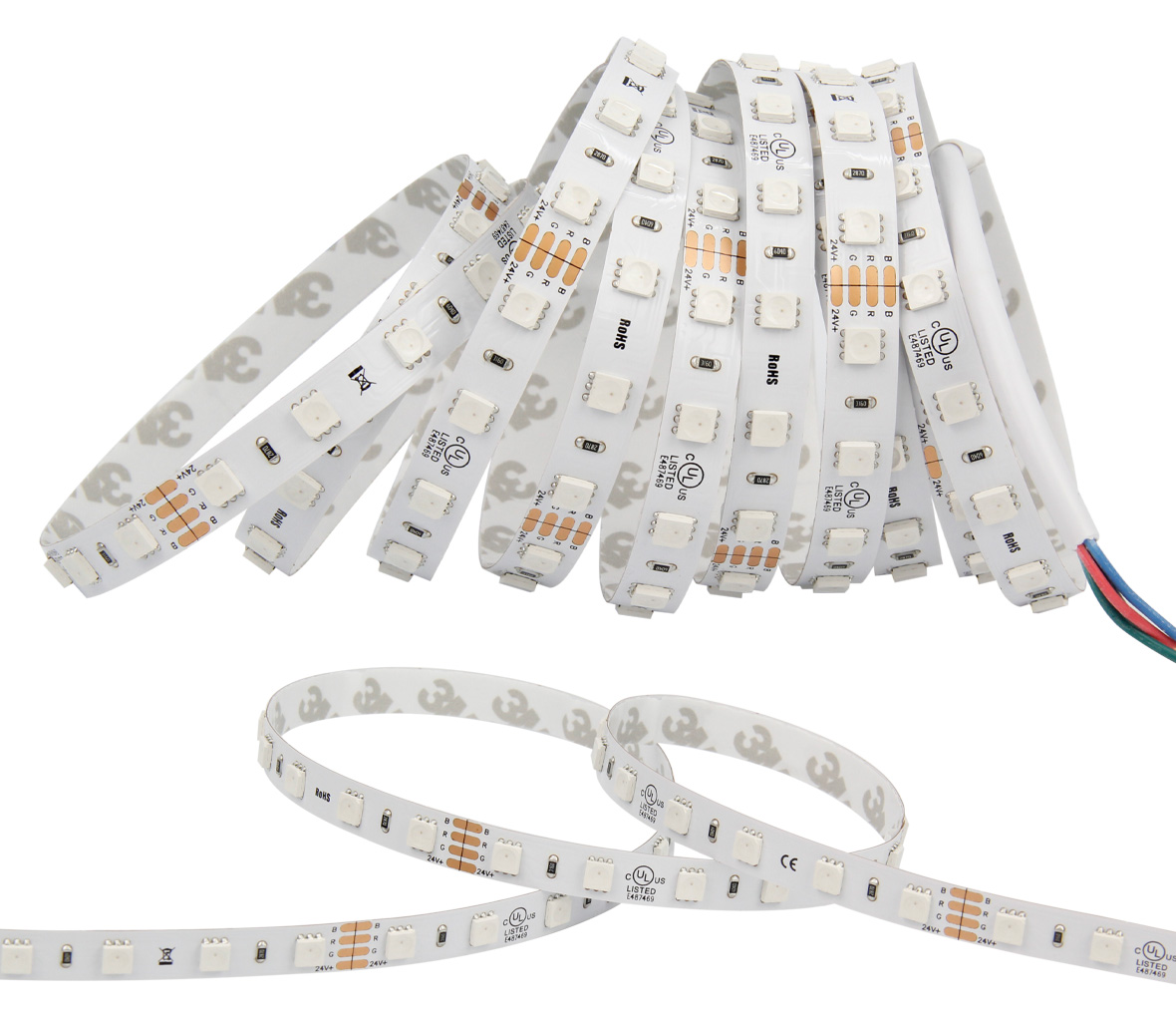

S5050M60V24RGB 10mm width LED tape light, UL, TUV CE, CB certficates

Model S5050M60V24RGB
Detailed item code S5050M60V24RGB0IP20-10
Detailed item code S5050M60V24RGB0IP55-10
Detailed item code S5050M60V24RGB0IP65-10
Detailed item code S5050M60V24RGB0IP68-10
FPC width 10mm
Cutting unit 100mm
Power 14.4w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP66, IP67, IP68

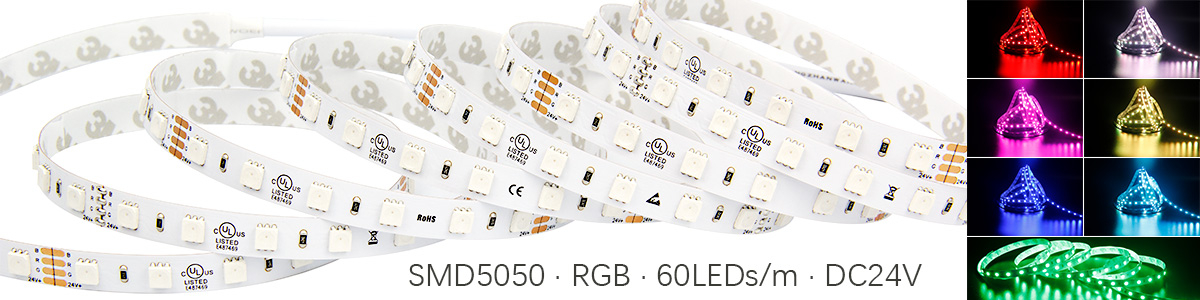

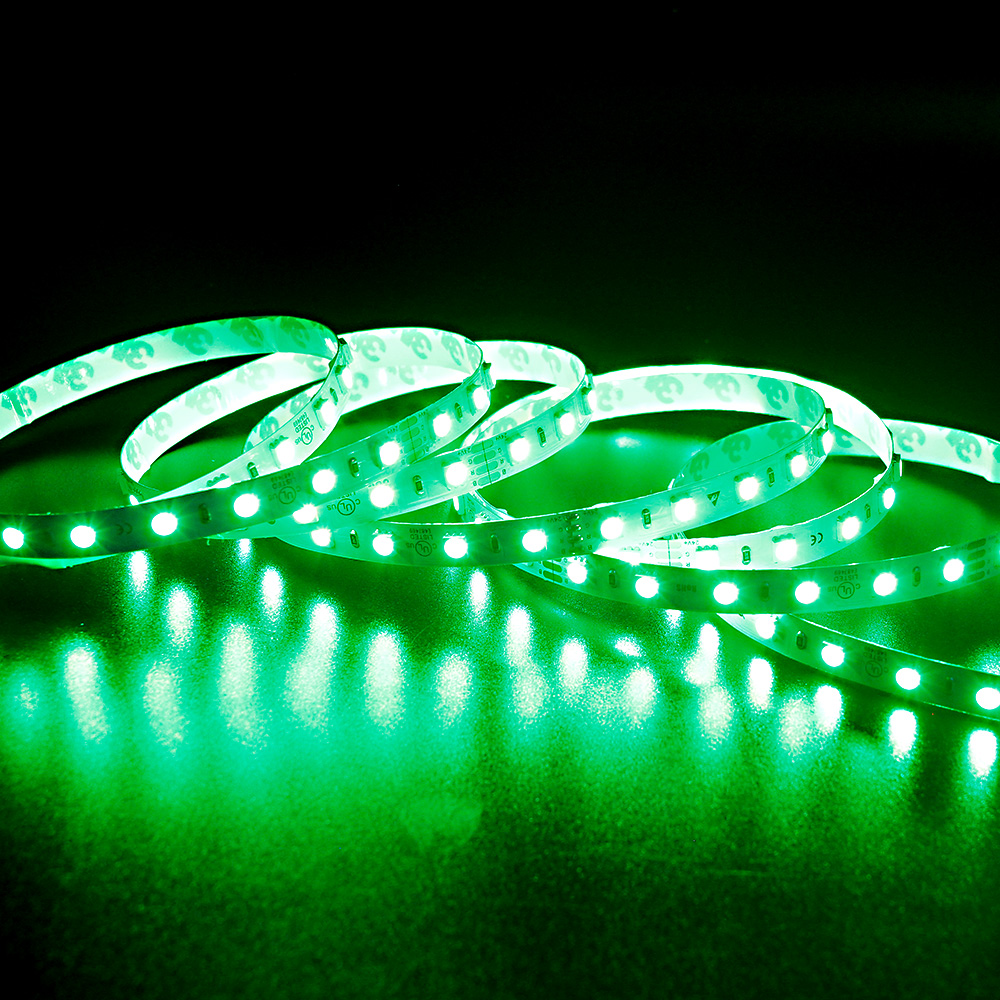

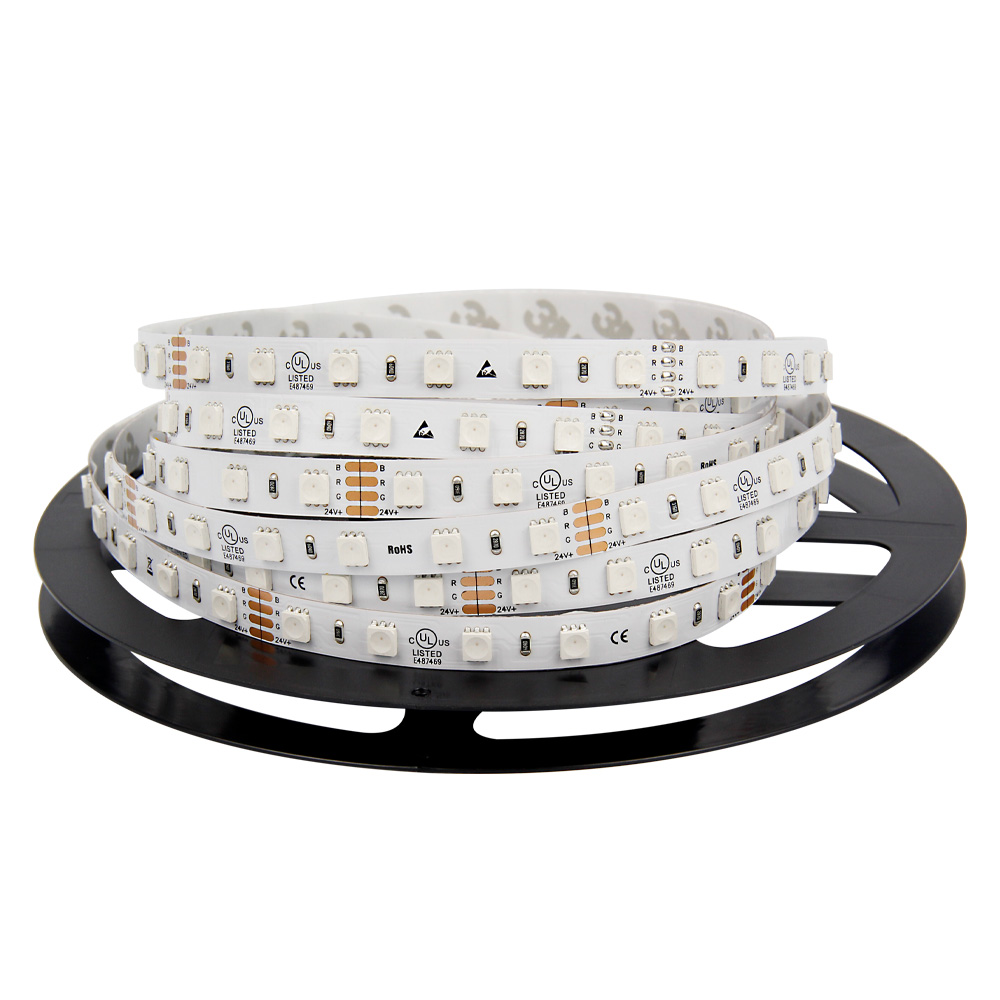

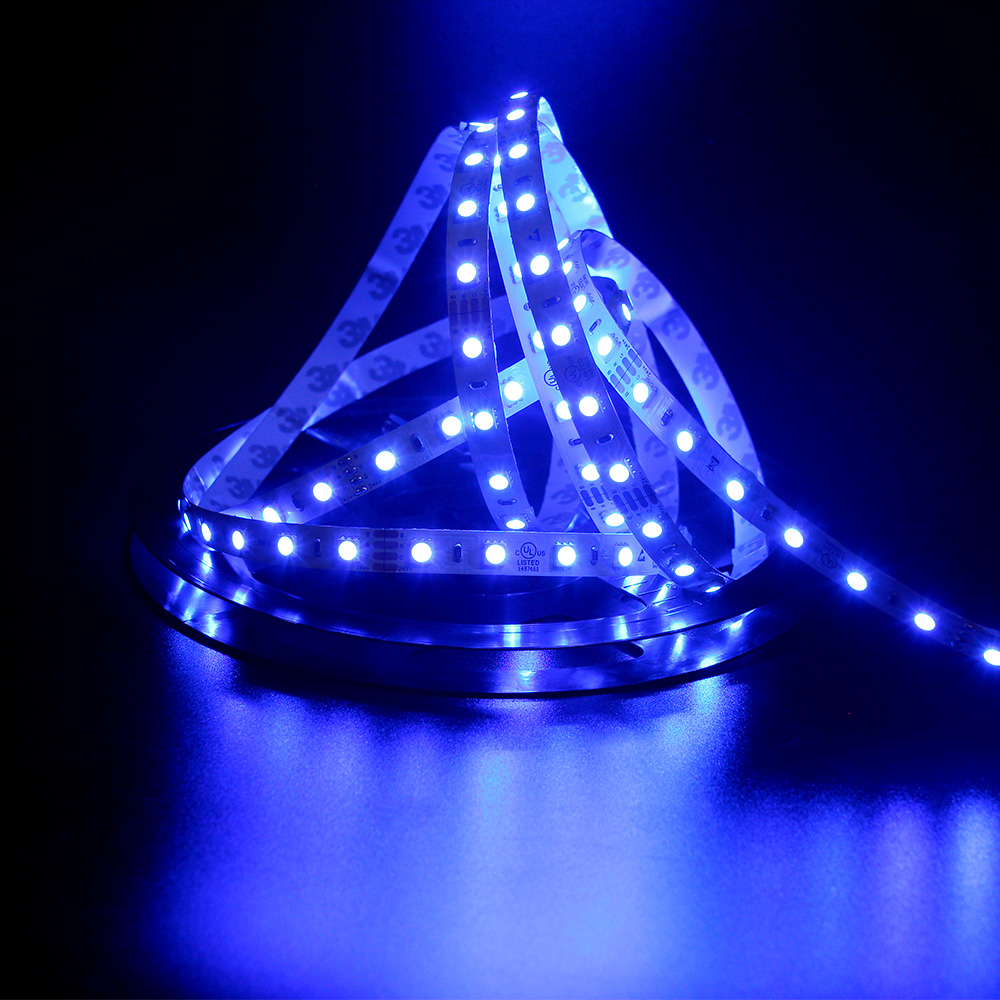

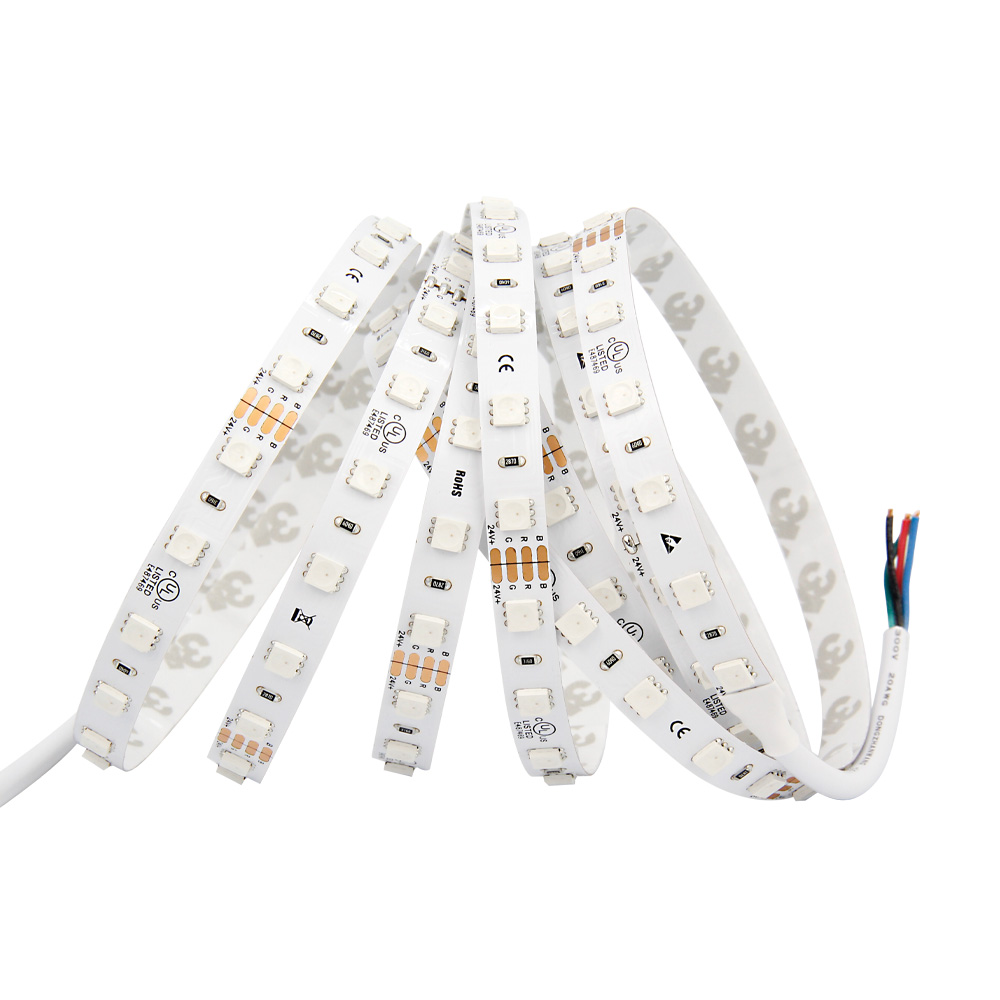

S5050M60V24RGB LED tape light


S5050M60V24RGB LED tape light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.


  • LED tape light (LED ribbon light, LED strip light): highlight SMD5050 + FPC

  • LED quantity 60 LEDs per meter

  • Brightness R 155lm/m (47lm/ft);

                      G 155lm/m (47lm/ft);

                      B 30lm/m (9lm/ft);

                      RGB 520lm/m (158lm/ft)

  • Precise cutting 100mm/unit (0.328ft/unit)

  • Waterproof: IP20~IP68

  • Working time≥50000H

  • Suitable for various dimming controllers


  • Input voltage: 24V DC

  • Beam angle: 120°

  • RGB

  • CRI: 80+/90+

  • Power: 14.4W/m (4.4W/ft)

  • Brightness: R 155lm/m (47lm/ft);

                       G 155lm/m (47lm/ft);

                       B 30lm/m (9lm/ft);

                       RGB 520lm/m (158lm/ft)

  • Standard length: 5 meters (16.4ft) per roll

  • FPC width: 10mm (0.39in)

  • Cutting unit: 100mm/unit (0.328ft/unit)

  • IP options: IP20/IP55/IP65/IP66/IP67/IP68

  • 4.8w/m (1.46w/ft): R 620~625nm-155LM/m (47m/ft); G 525~530nm-315LM/m (96m/ft); B-470~475nm-65LM/m (20m/ft);

  • 14.4w/m (4.4w/ft): RGB-520LM/m (158m/ft)

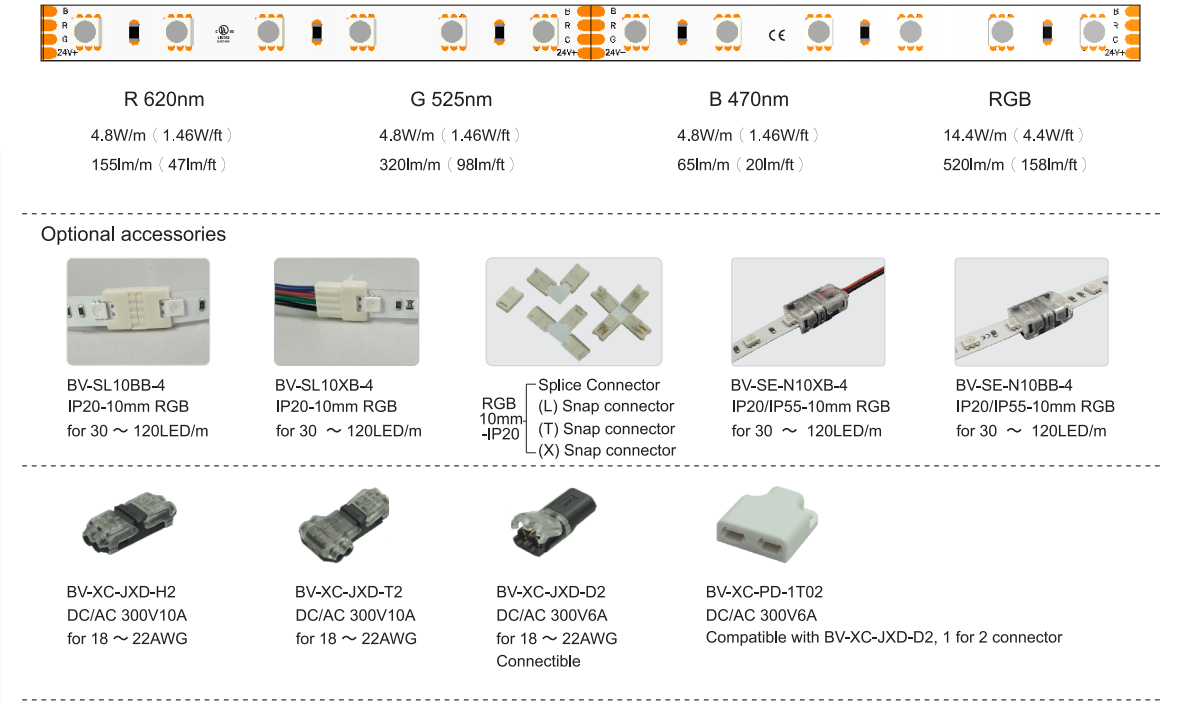

S5050M60V24RGB led strip accessories.png

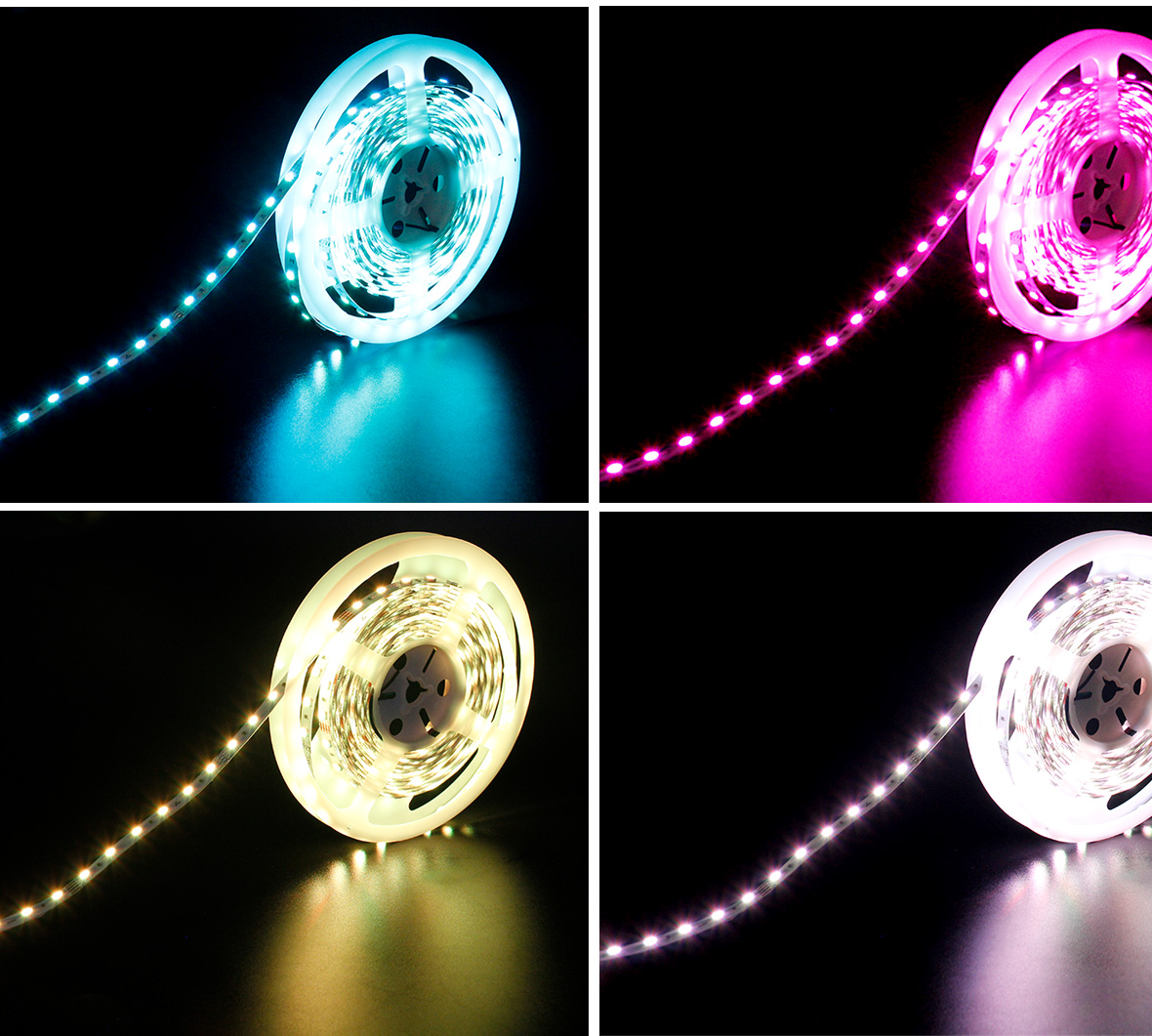

RGB dimming LED strip light.png
