Model S5050M60V24RGBW
Detailed model S5050M60V24RGBWW27K0IP20-12
Detailed model S5050M60V24RGBWW30K0IP20-12
Detailed model S5050M60V24RGBNW40K0IP20-12
Detailed model S5050M60V24RGBW60K0IP20-12
FPC width 12mm
Cutting unit 100mm
Power 19.2w/meter
Operating temperature -20℃~+45℃
Storage temperature 0℃~+60℃
Environment humidity 40~70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP66, IP67, IP68
Parameters
Model
S5050M60V24RGBW
Detailed model
S5050M60V24RGBWW27K0IP20-12
Detailed model
S5050M60V24RGBWW30K0IP20-12
Detailed model
S5050M60V24RGBNW40K0IP20-12
Detailed model
S5050M60V24RGBW60K0IP20-12
FPC width
12mm
Cutting unit
100mm
Power
19.2w/meter
Operating temperature
-20℃~+45℃
Storage temperature
0℃~+60℃
Environment humidity
40~70% RH
Certification
UL E487469, CE, ROHS
Protection grade
IP20, IP55, IP65, IP66, IP67, IP68
I know
Detail

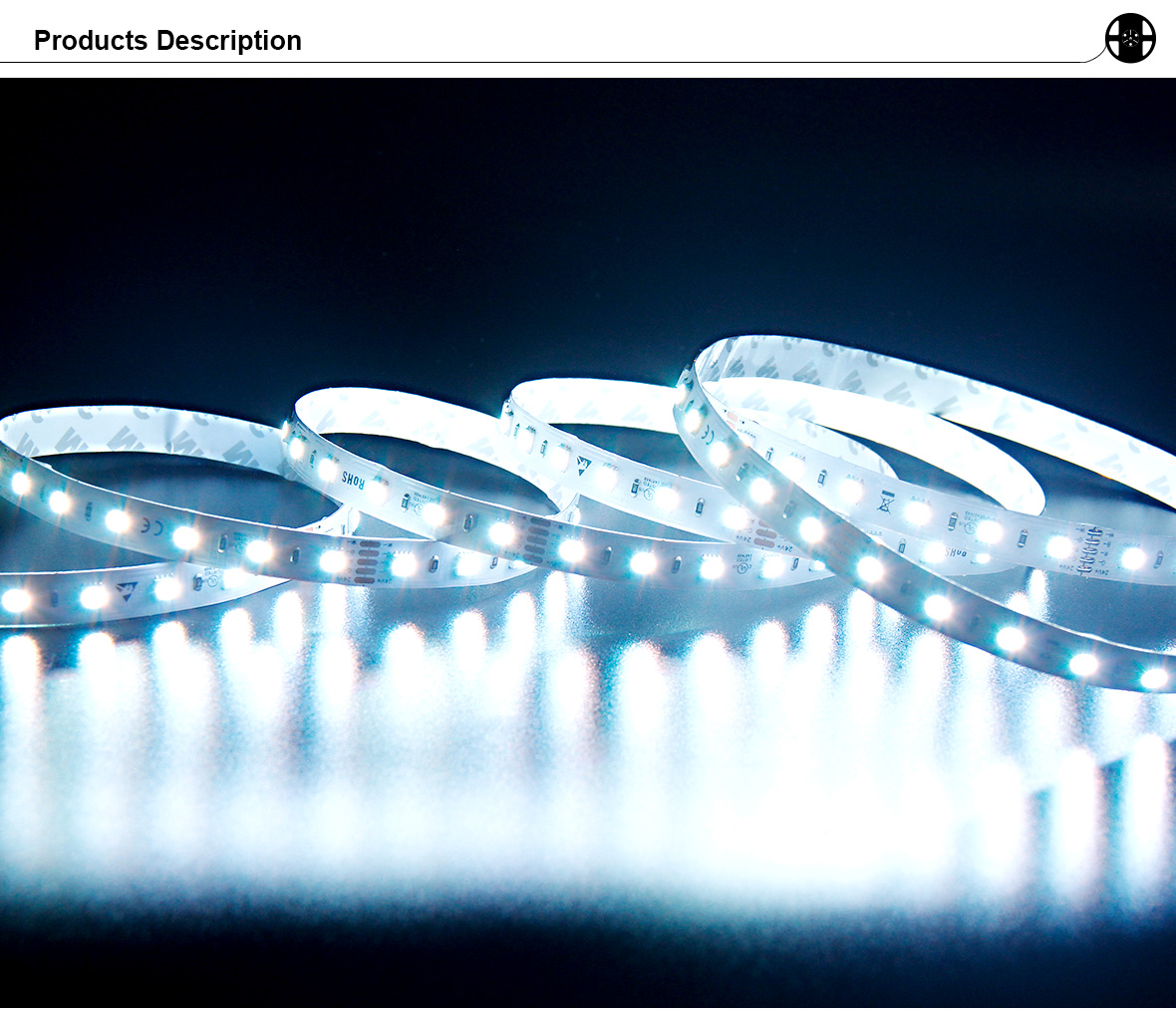

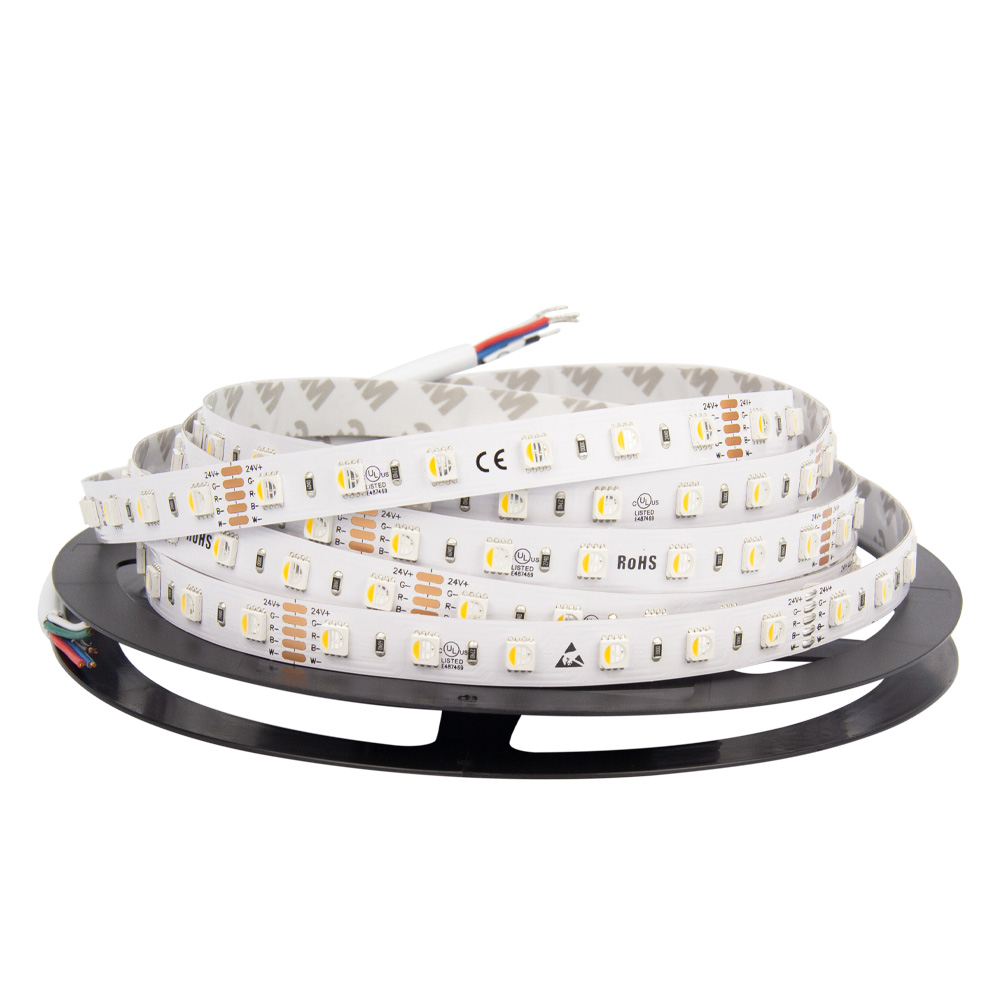

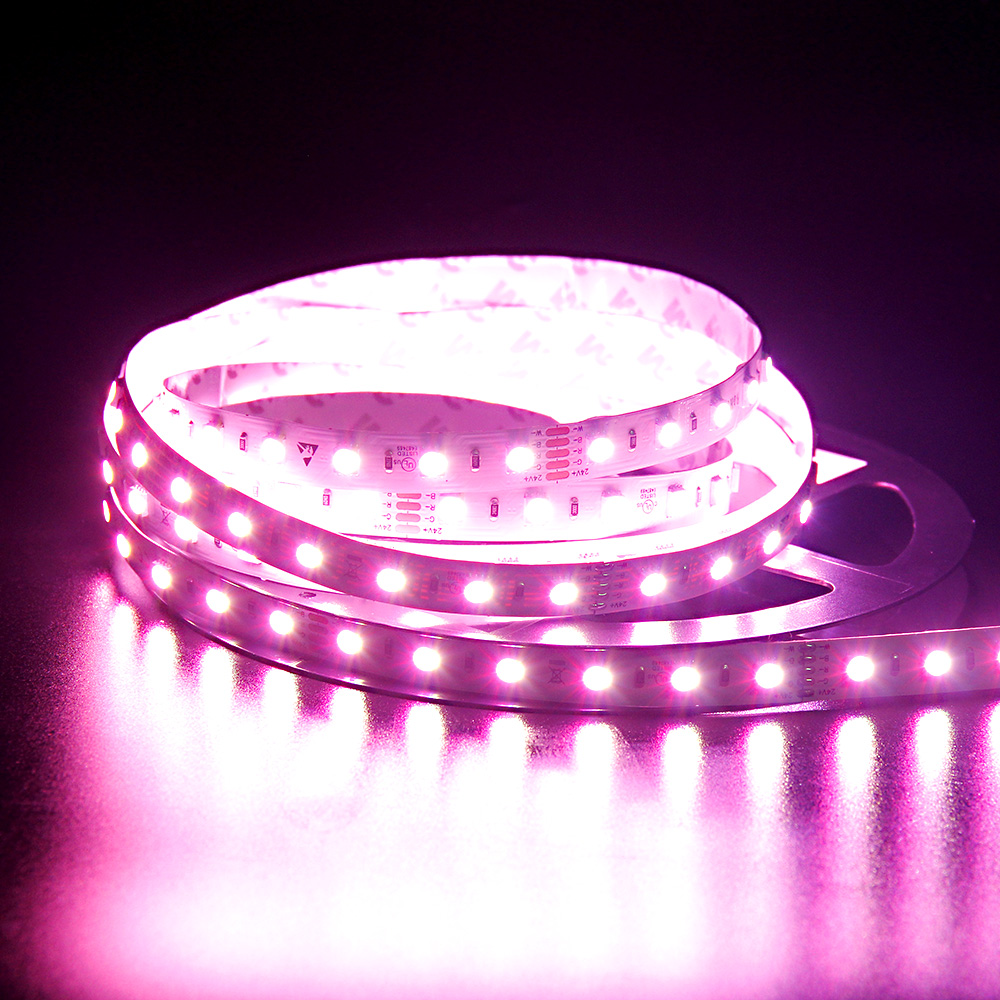

S5050M60V24RGBW IMAGE

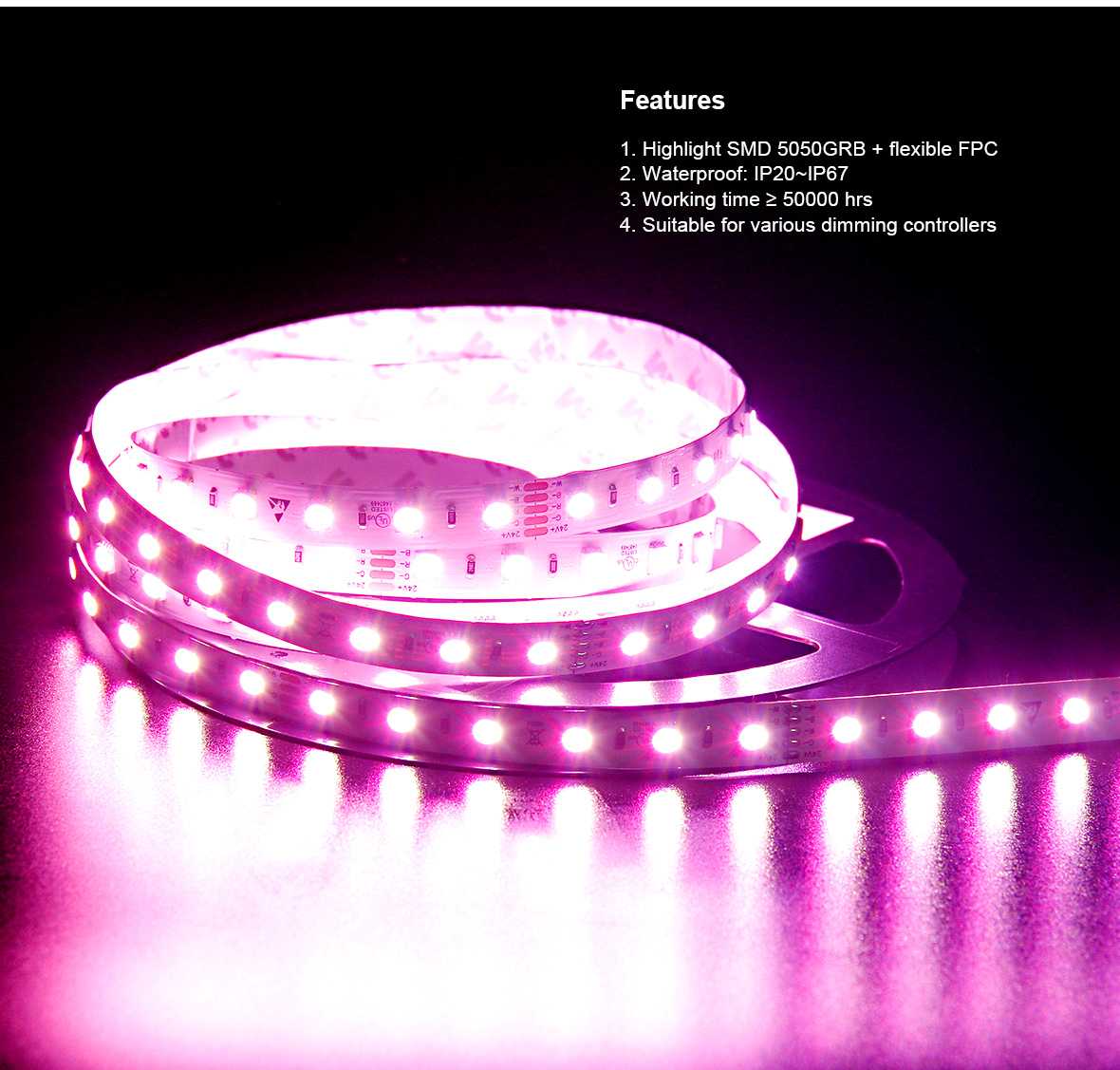

FeaturesBV standard product

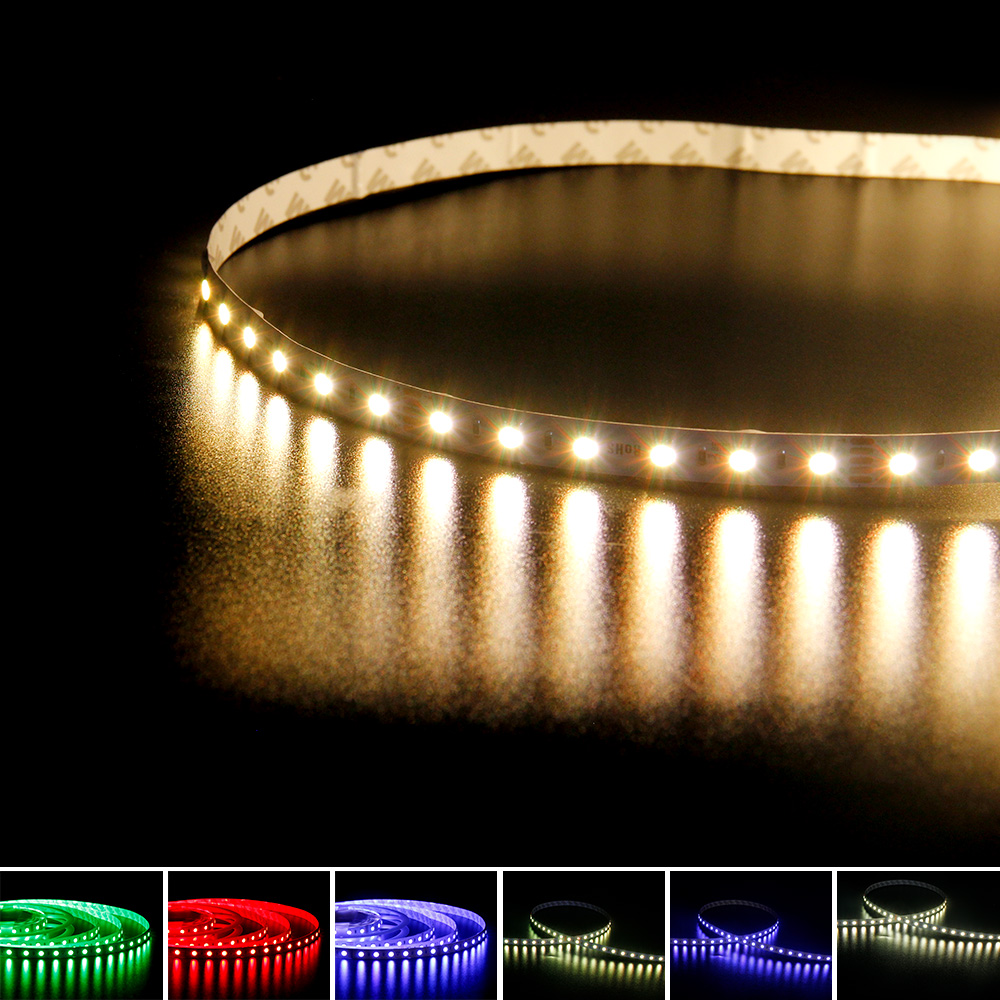

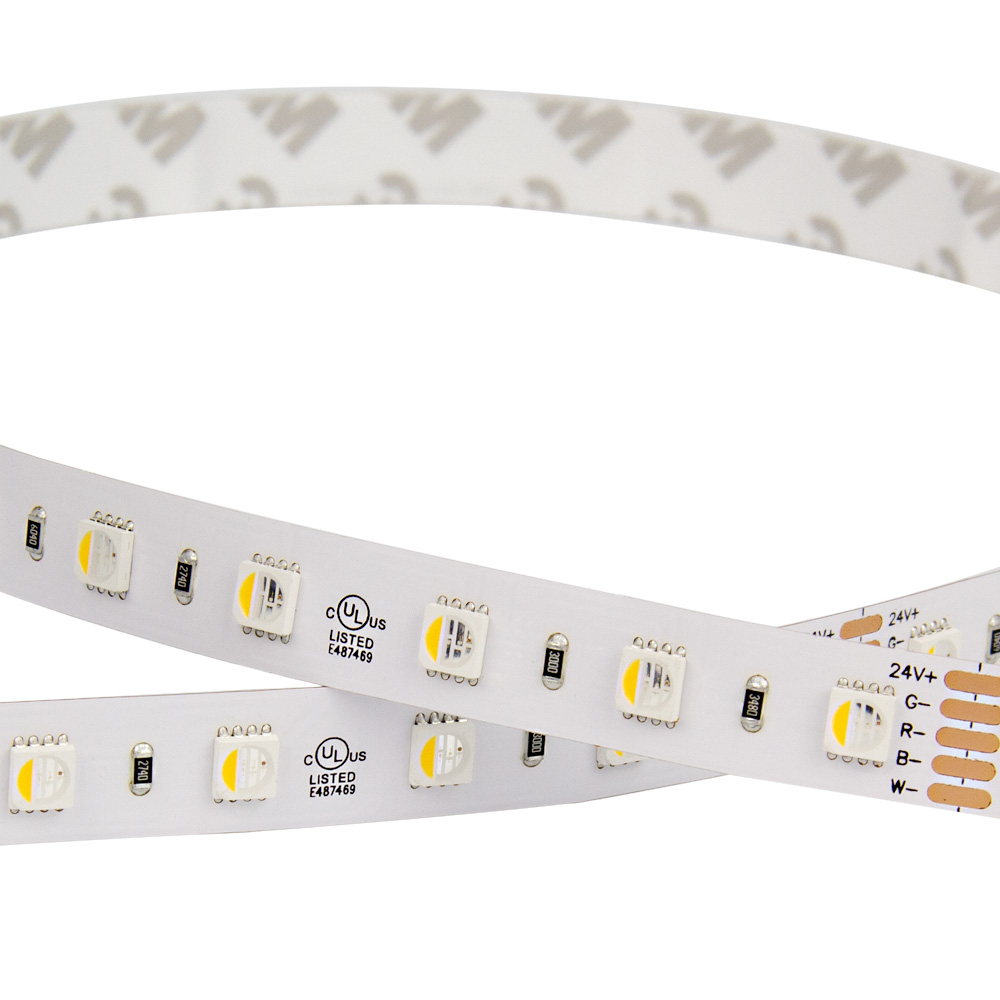

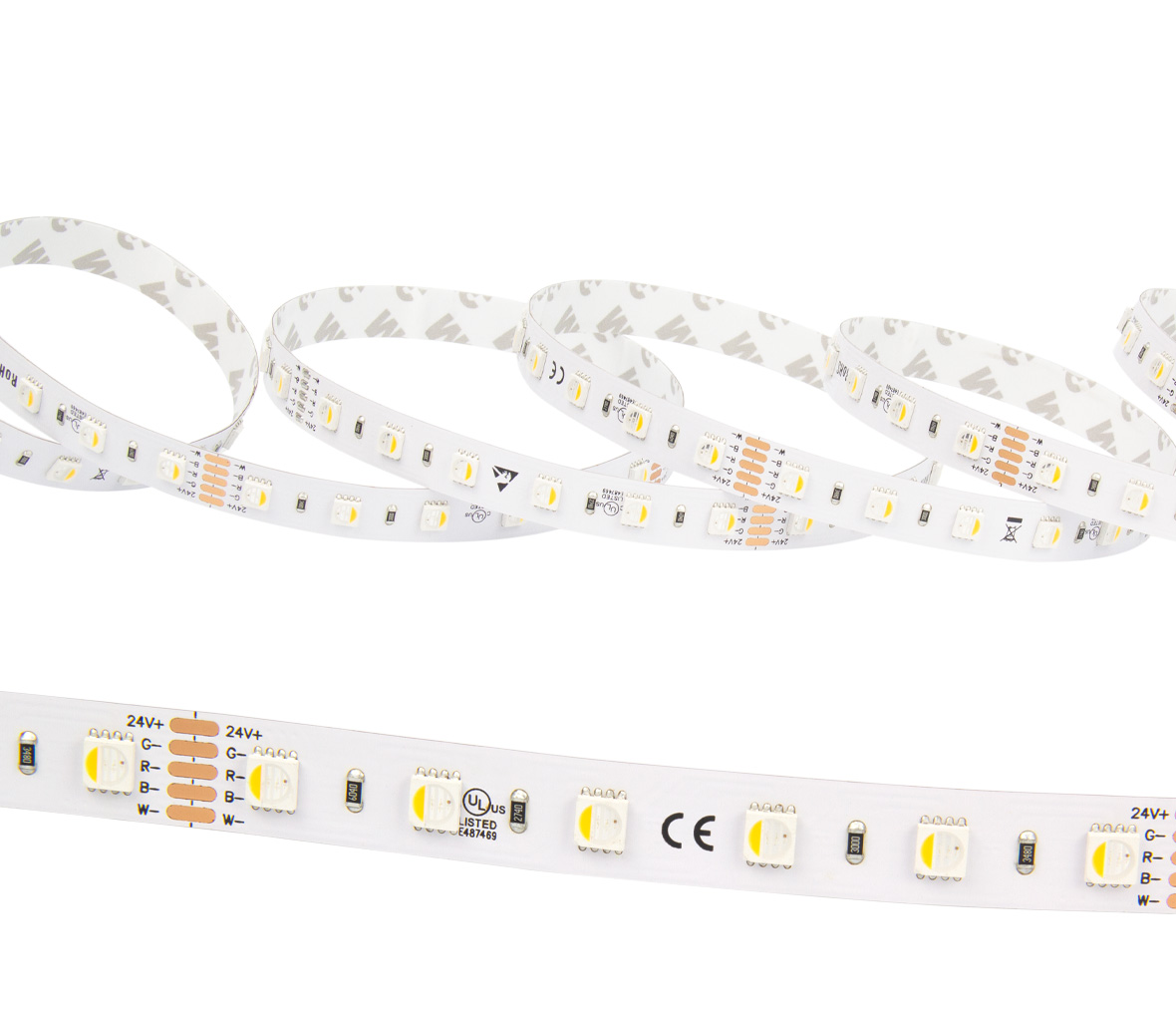

  • LED strip (LED ribbon, tape light): Highlight SMD5050RGBW + FPC

  • Help to set up an energy conservation, flexible and multifunctional home lighting,

    the architecture quality led strips with the features of low power, high brightness,

    high light efficiency, high CRI and high waterproof, various of connection accessories

    and dimming control systems are for choice.


  • Brightness: R 155lm/m (47lm/ft);

                       G 300lm/m (91lm/ft);

                       B 90lm/m (27lm/ft);

                       W 360~390lm/m (110~119lm/ft)


Parameter
  • Input voltage

  • 24Vdc


  • Precise cutting 100mm/unit (0.328ft/unit)

  • Beam angle

  • 120°


  • Waterproof: IP20~IP68

  • Color/CCT

  • R/G/B/W


  • Working time≥50000H

  • Power

  • R 4.8W/m (1.46W/ft)

    G 4.8W/m (1.46W/ft)

    B 4.8W/m (1.46W/ft)

    W 4.8W/m (1.46W/ft)


  • Suitable for various dimming controllers

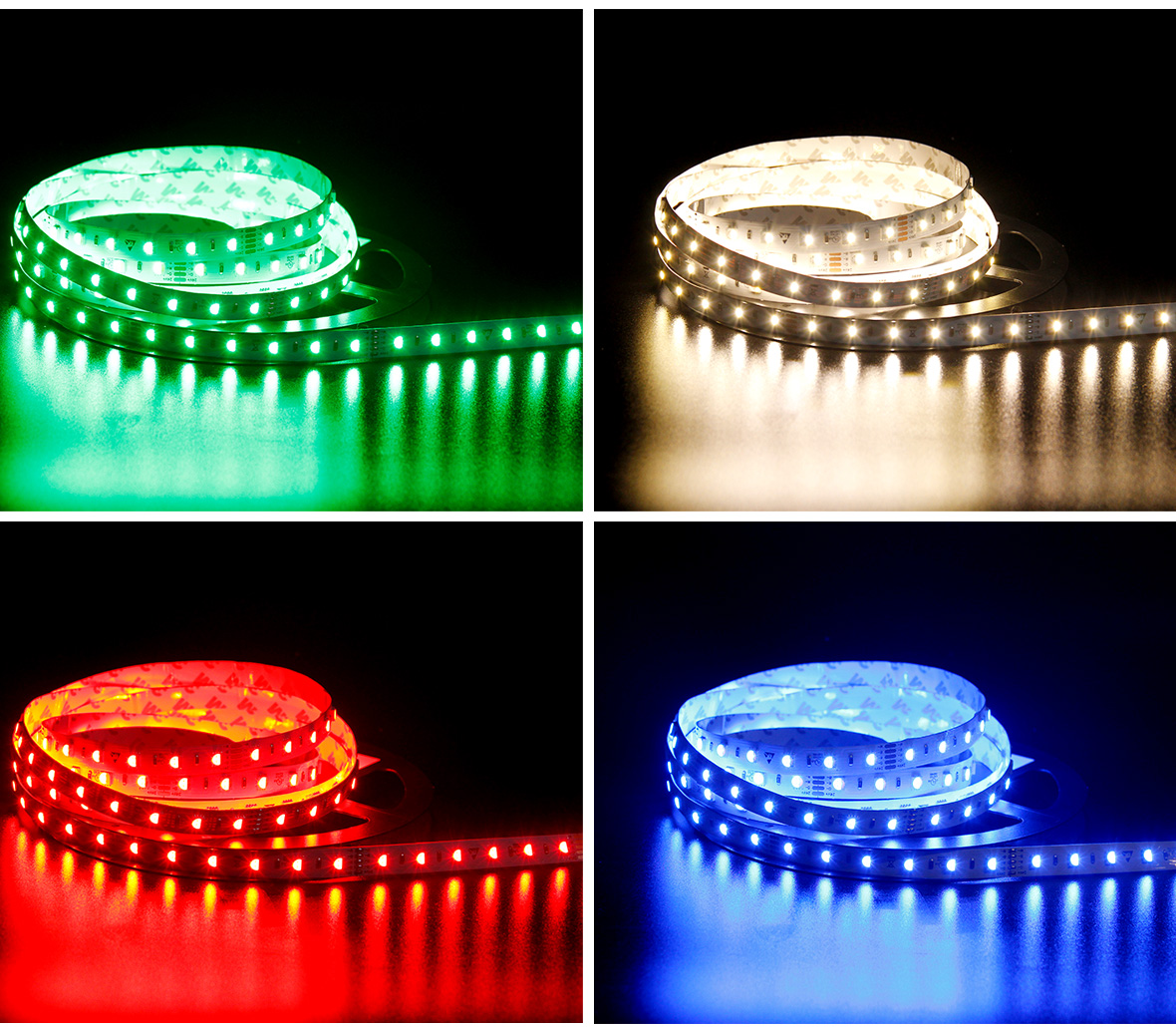

Standard color


SMD5050 RGBW
  • Length / reel

  • 5M (16.4ft)


  • Cut length

  • 100mm/unit (0.328ft/unit)


  • IP grade

  • IP20/IP55/IP65/IP66/IP67/IP68

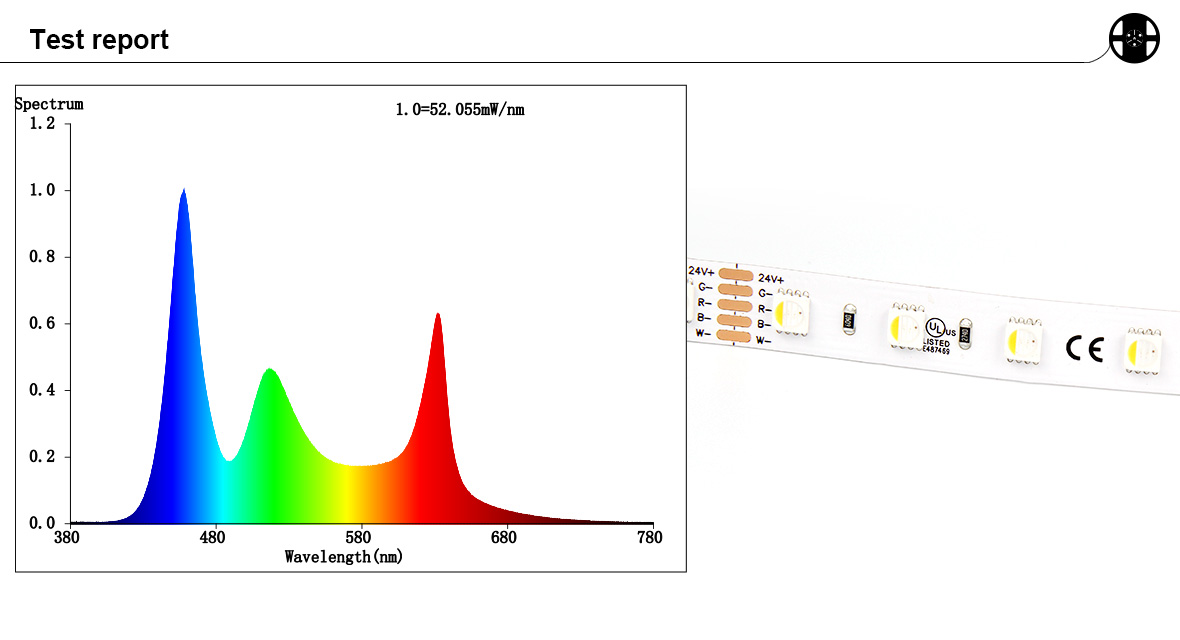

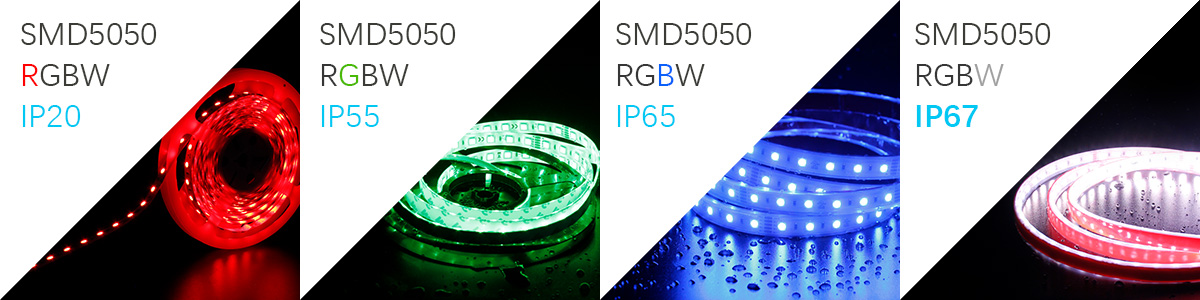

Various waterproof solutionTest report
WATERPROOF ALL.png5050RGBW TEST REPORT.png
Dimension
S5050M60V24RGBW DIMENSION.png
Power&Lumen

  • 4.8W/m (1.46W/ft): R 617~627nm-115LM/m (35LM/ft); G 515~525nm-300LM/m (91LM/ft); B-464~474nm-90LM/m (27LM/ft);

  • 2700K-360LM/m (110LM/ft); 3000K-370LM/m (113LM/ft); 4000K-380LM/m (116LM/ft); 6000K-390LM/m (119LM/ft);

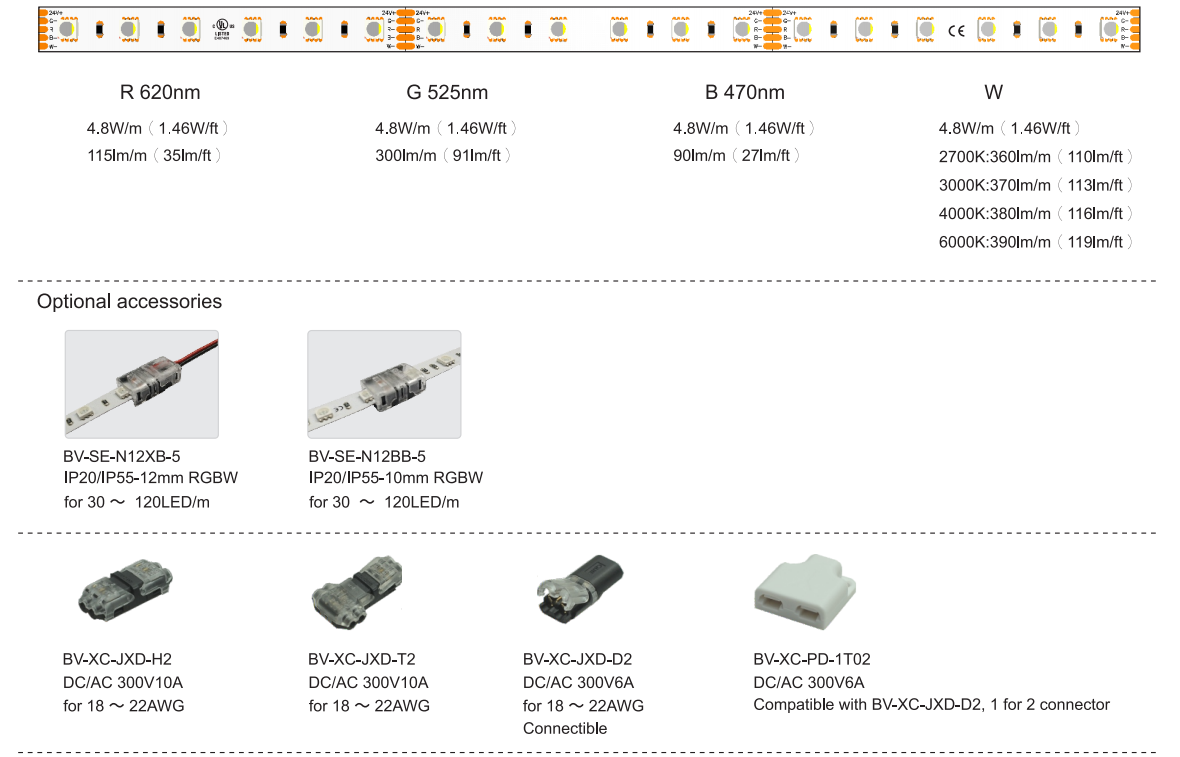

Optional accessories
BV-SE-N10XB-4BV-SE-N10BB-4


BV-SE-N10XB-4

IP20/IP55-10mm RGB

For 30~120LED/m

BV-SE-N10BB-4

IP20/IP55-10mm RGB

For 30~120LED/m




BV-XC-JXD-H2BV-XC-JXD-T2BV-XC-JXD-D2BV-XC-PD-1T02

BV-XC-JXD-H2

DC/AC 300V10A

for 18 ~ 22AWG

BV-XC-JXD-T2

DC/AC 300V10A

for 18 ~ 22AWG


BV-XC-JXD-D2

DC/AC 300V6A

for 18 ~ 22AWG



BV-XC-PD-1T02

DC/AC 300V6A

Compatible with BV-XC-JXD-D2, 1 for 2 connector


2.4G dimming
RGB 2.4G DIMMING EN.png
Smart dimming
RGB SMART DIMMING EN.png
