S2835L96C48NW40K85IP20 Constant current LED strip Super long connetion 80m

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model S2835L96C48WW27K8IP20-10
Detailed item code S2835L96C48WW30K8IP20-10
Detailed item code S2835L96C48W60K8IP20-10
Detailed item code S2835L96C48NW40K8IP20-10
FPC width 10mm
Cutting unit 125mm
Power 7.7w/meter
Operating temperature -20℃～+45℃
Storage temperature 0℃～+60℃
Environment humidity 40～70% RH
Standard length 30meters per roll
Application Indoor/Outdoor
Protection grade IP20, IP67
Detail

Video



Parameter:



Item NO.     S2835L96C48
Size     60000mm×10mm×1.4mm
Power     7.7W/m (2.35W/ft)
Current     0.16A/m (0.049A/ft)
Voltage     DC48V
Brightness     781~869lm/m (238~265lm/ft)
LED/m     96pcs/m
CCT     2700K/ 3000K/ 4000K/ 6000K
Lumen/meter     2700K 781lm/m(238lm/ft)   3000K 821lm/m(250lm/ft)   4000K 869lm/m(265lm/ft)   6000K 857lm/m(261lm/ft)
CRI (Ra>)     85 + / 90 +
Cut length     125mm/unit
Beam Angle     120°
LED Pitch     10.4mm (0.41’’)
IP Rating     IP20 / IP67
Warranty     Warranty 5-year, >50000 hours (L70B10) for indoor usage，Warranty 3-year, >30000 hours (L70B10) for outdoor usage
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃

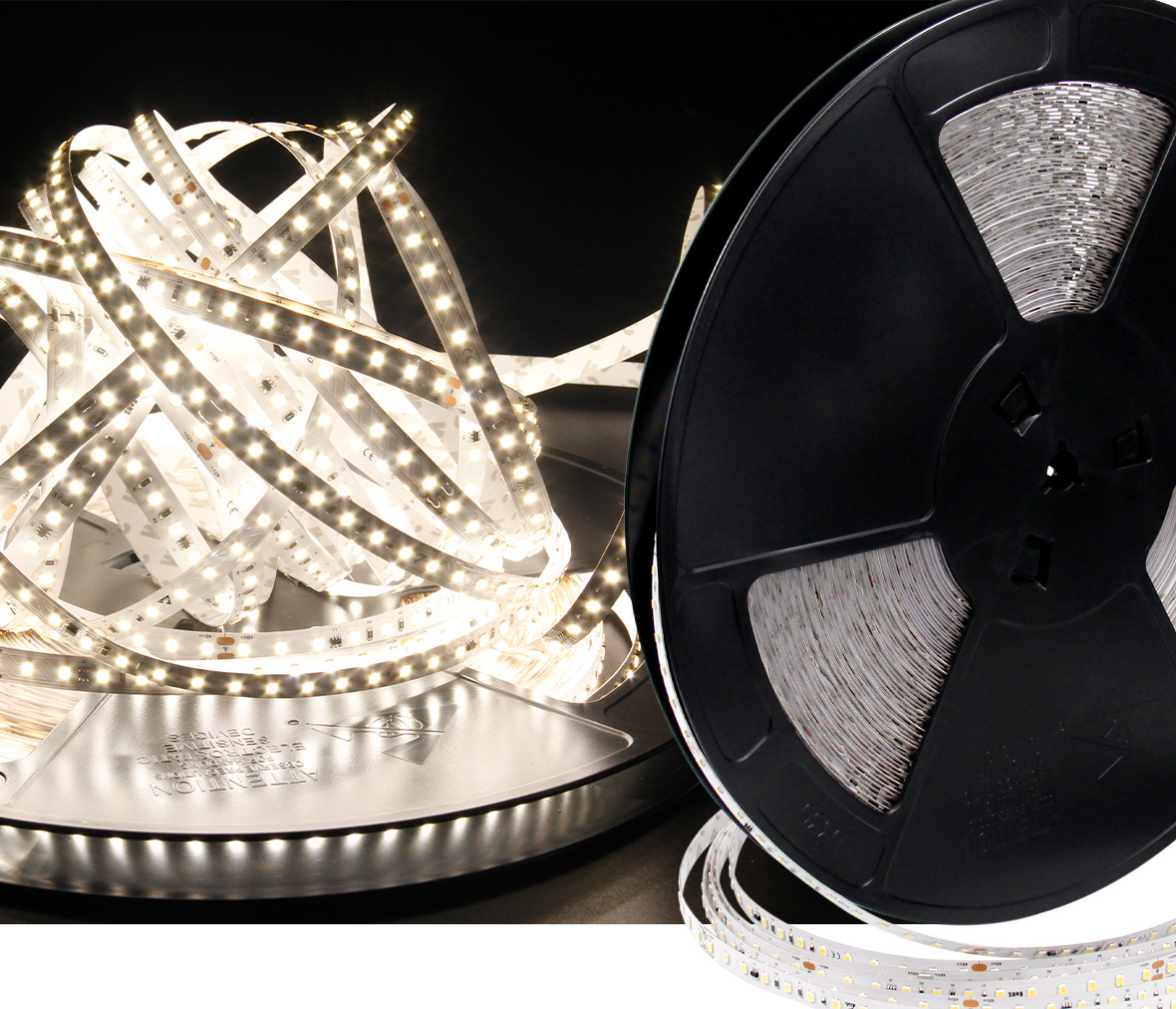

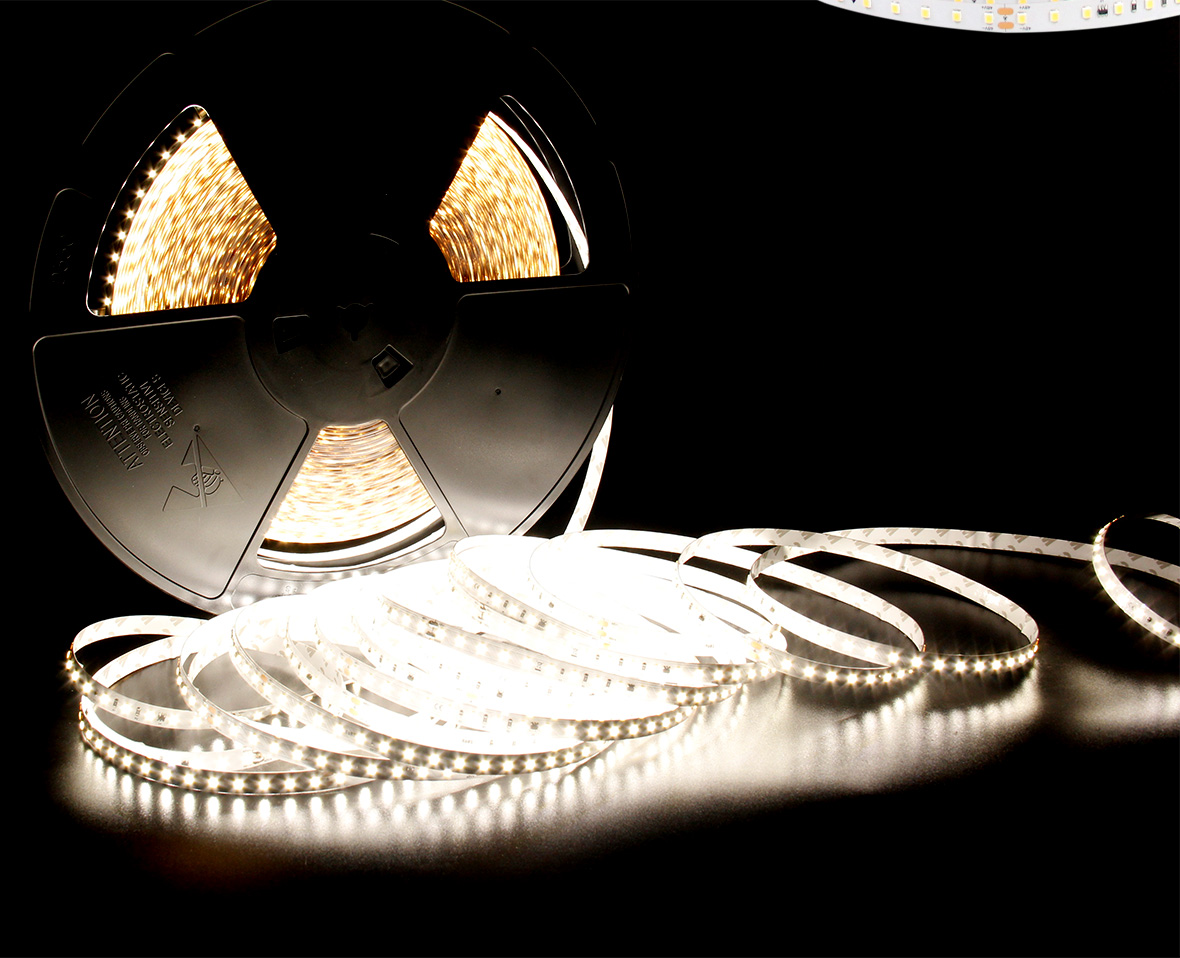

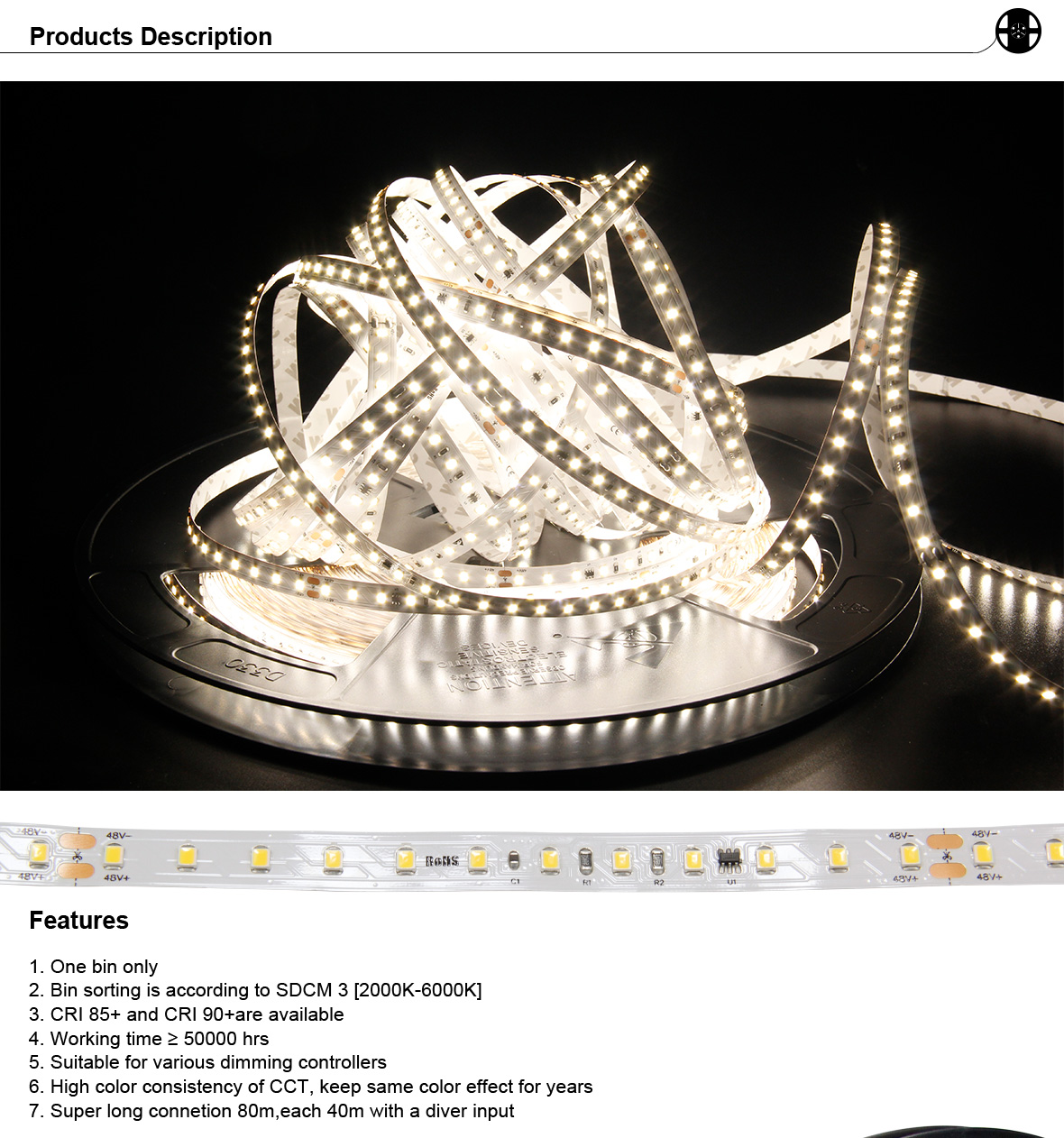

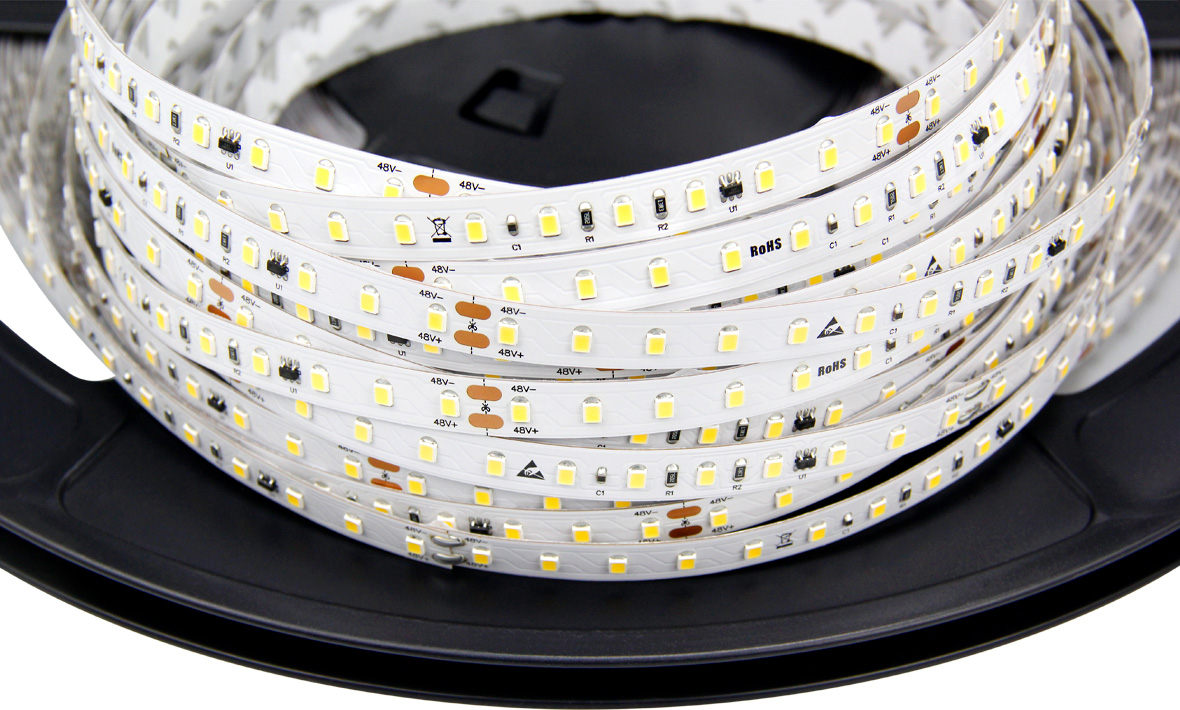

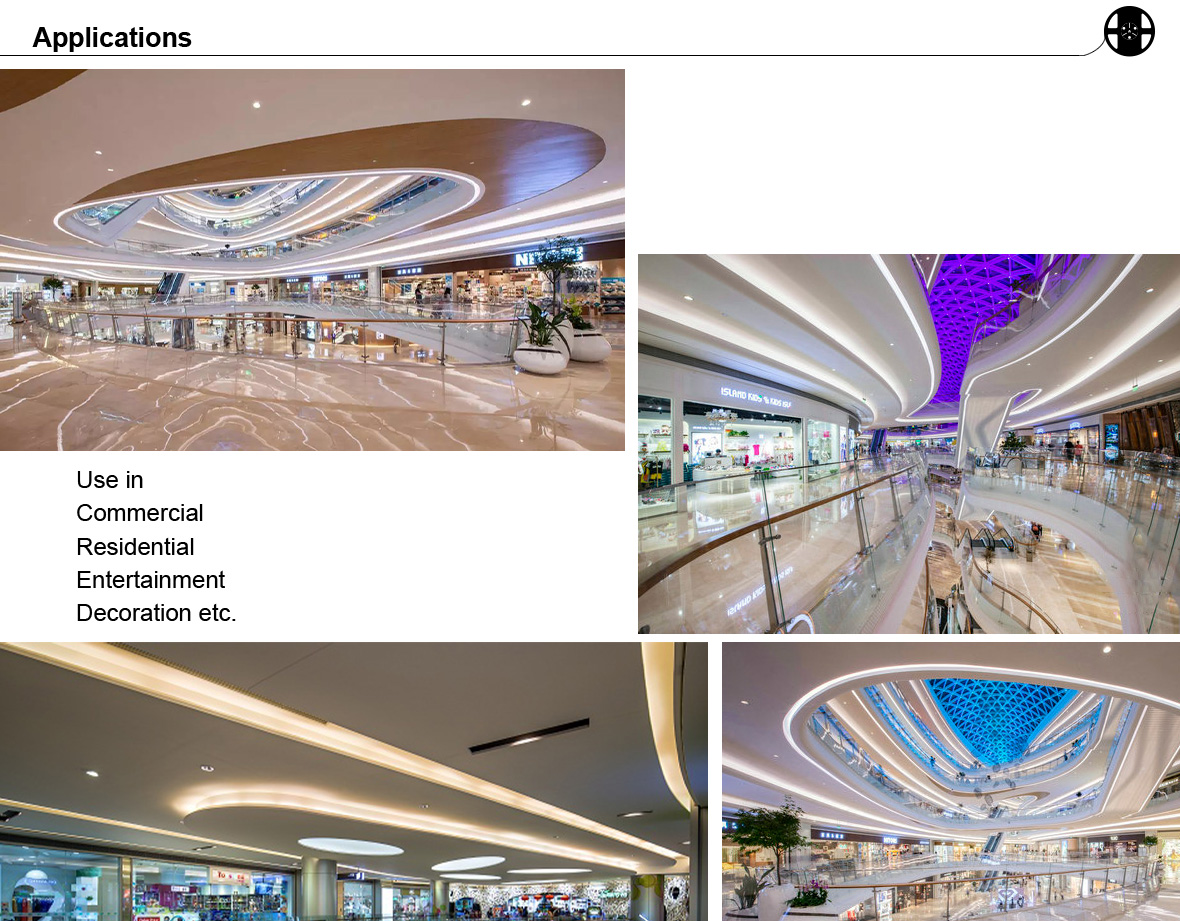

S2835L96C48NW40K85IP20-10详情_01.jpgS2835L96C48NW40K85IP20-10详情_02.jpgS2835L96C48NW40K85IP20-10详情_03.jpgS2835L96C48NW40K85IP20-10详情_04.jpgS2835L96C48NW40K85IP20-10详情_05.jpgS2835L96C48NW40K85IP20-10详情_06.jpg灯带认证.jpg
