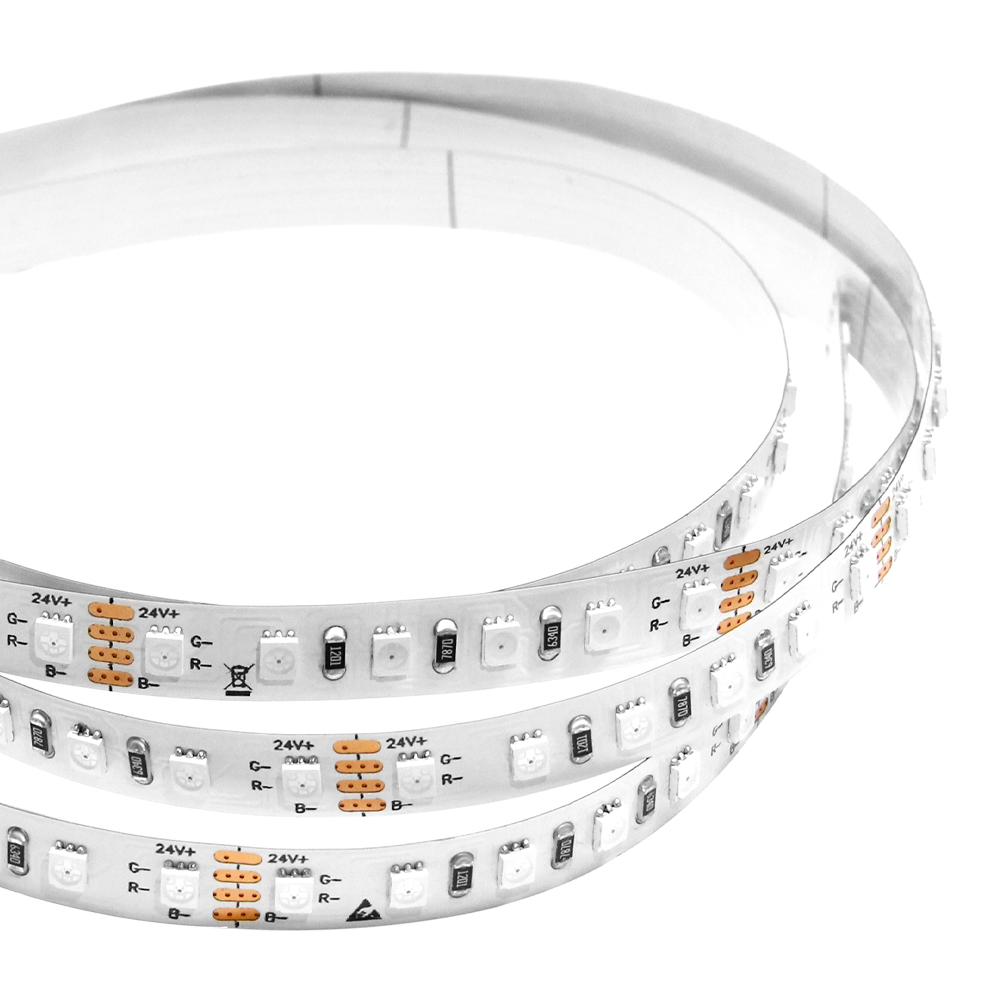

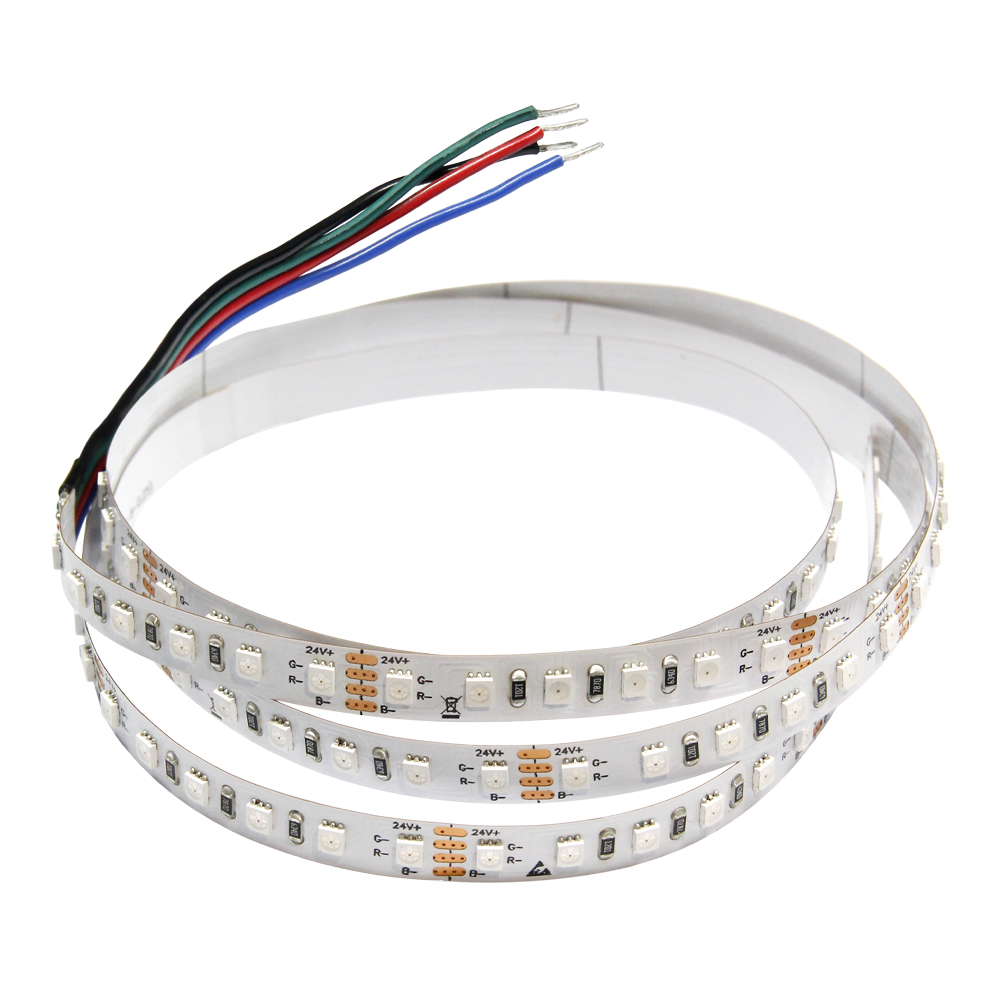

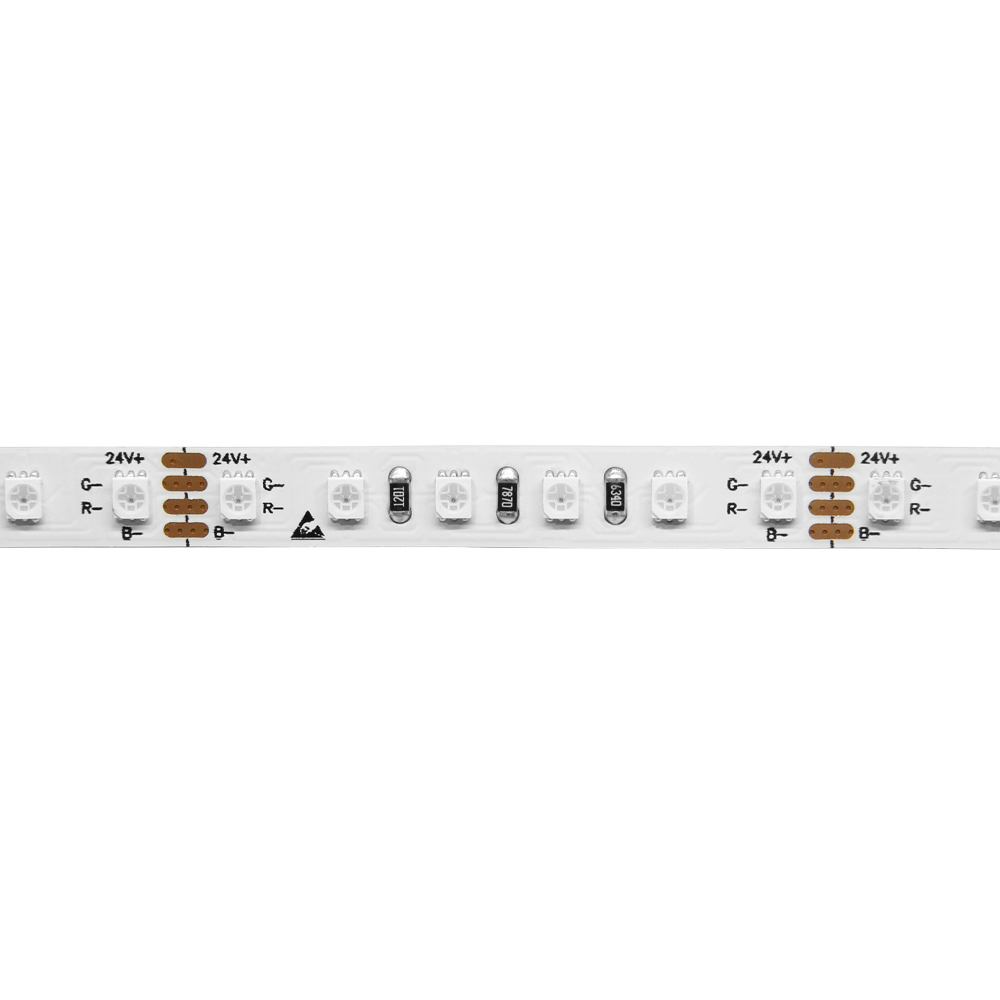

S2835M144RGB LED ribbon light, UL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model S2835M144V24RGB-10
FPC width 10mm
Cutting unit 41.7mm
Power 17.3w/meter
Operating temperature -20℃～+45℃
Storage temperature 0℃～+60℃
Environment humidity 40～70% RH
Certification UL E487469, CE, ROHS
Protection grade IP20, IP55, IP65, IP67
Detail

Video


S2835M144V24RGB


Highlight SMD2835RGB + flexible FPC



Features:

  • LED strip light (LED ribbon light, LED tape light): highlight SMD2835 + FPC

  • LED quantity 144 LEDs per meter

  • Brightness 88~457lm/m (27~139lm/ft)

  • Precise cutting 41.7mm/unit

  • Waterproof: IP20 / IP55 / IP65 / IP67

  • Warranty 5-year, >50000 hours (L70B10) for indoor usage，Warranty 3-year, >30000 hours (L70B10) for outdoor usage

  • Suitable for various dimming controllers



Parameter:



Item NO.     S2835M144V24RGB-10
Size     5000mm×10mm×1.4mm
Power     17.3W/m (4.4W/ft)
Current     0.72A/m (0.22A/ft)
Voltage     DC24V
Brightness     88~457lm/m (27~139lm/ft)
LED/m     144pcs/m
CCT     2700K/ 3000K/ 4000K/ 6000K
Lumen/meter     R 170lm/m(52lm/ft)   G 457lm/m(139lm/ft)   B 88lm/m(27lm/ft)
CRI (Ra>)     RGB
Cut length     41.7mm (1.64’’)
Beam Angle     120°
LED Pitch     6.9mm (0.27’’)
IP Rating     IP20 / IP55 / IP65 / IP67
Warranty     Warranty 5-year, >50000 hours (L70B10) for indoor usage，Warranty 3-year, >30000 hours (L70B10) for outdoor usage
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃
