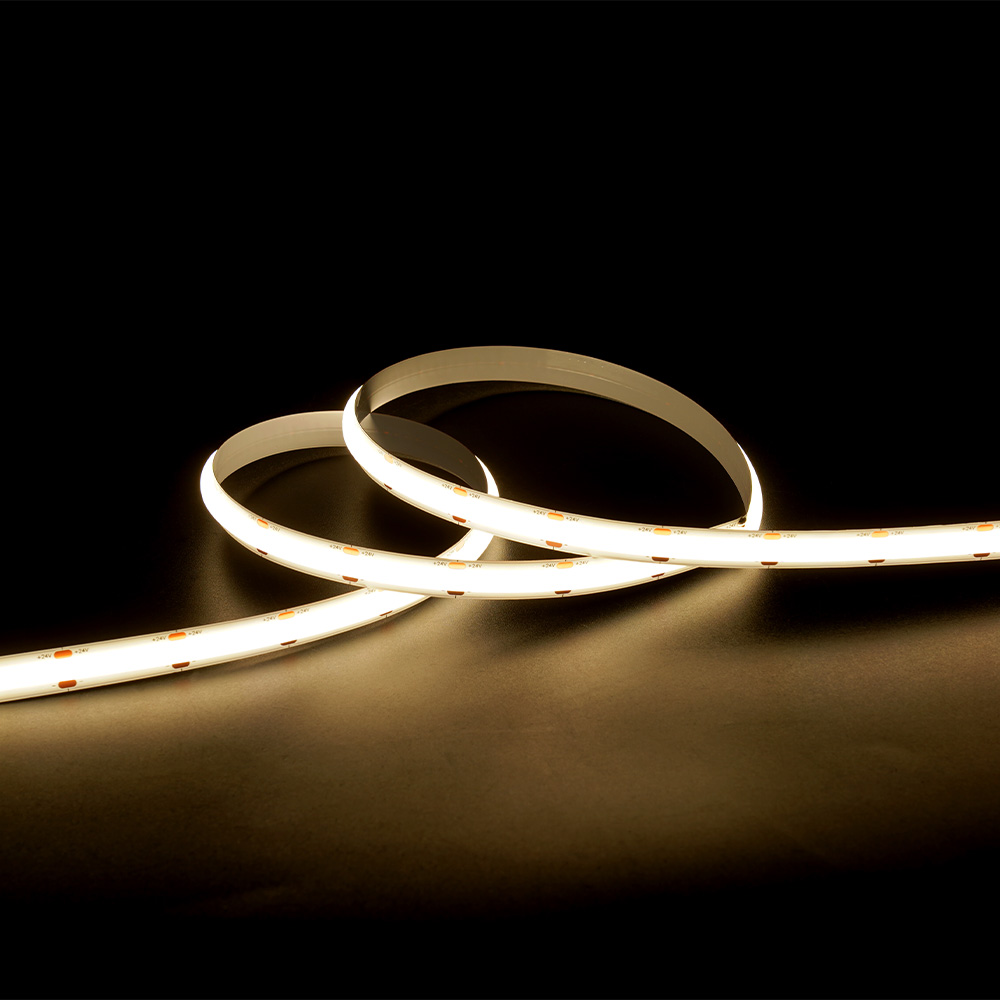

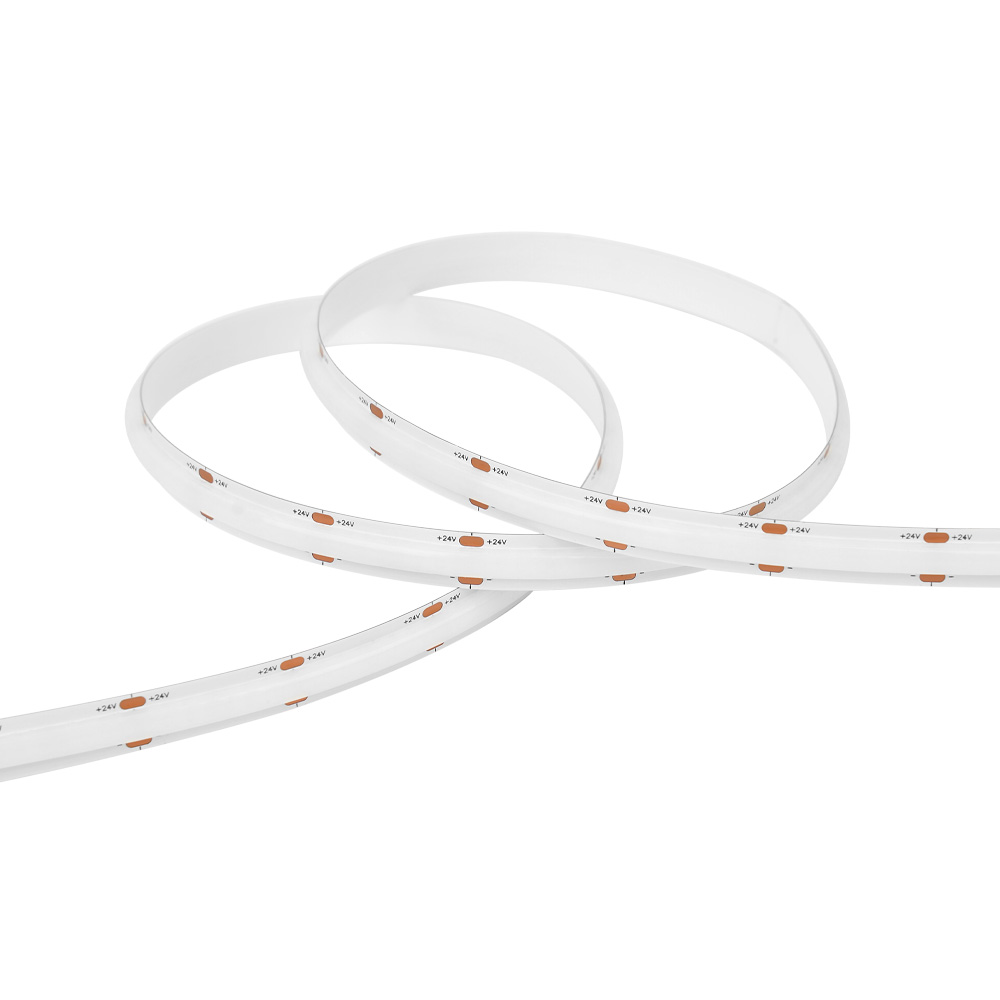

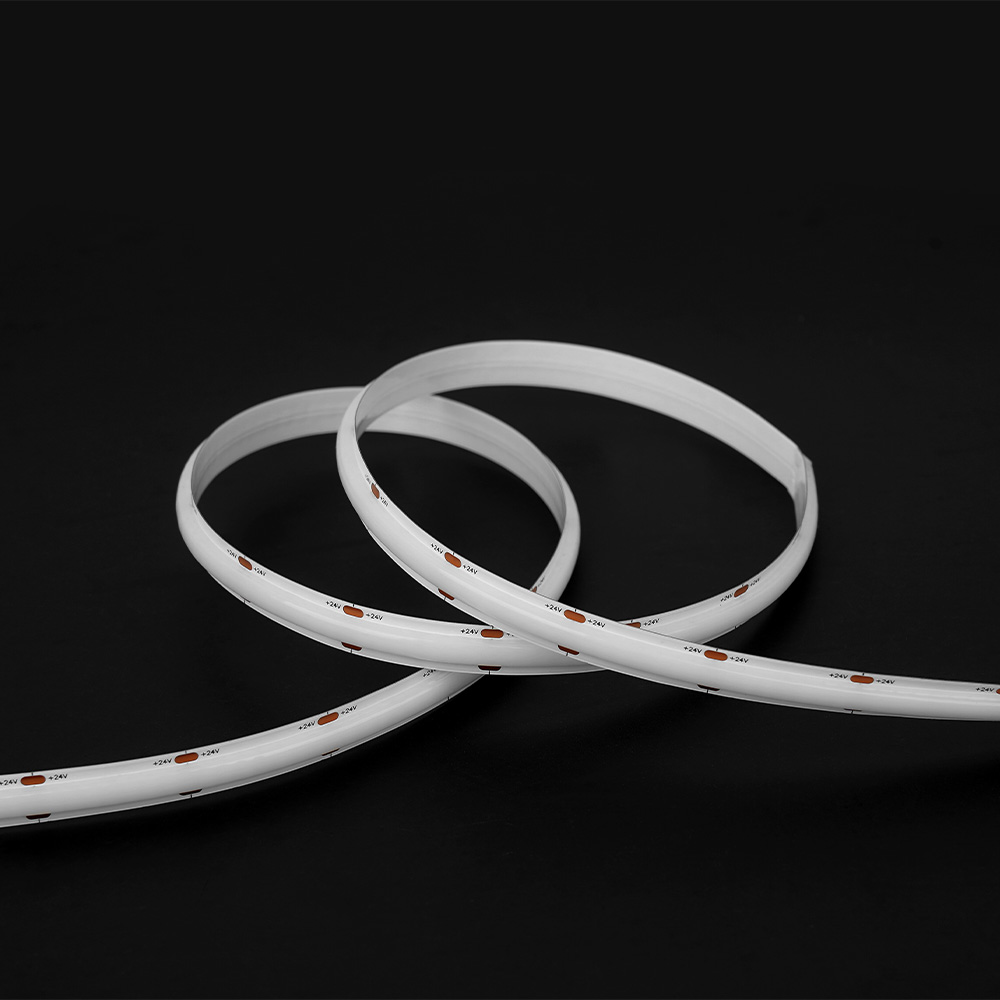

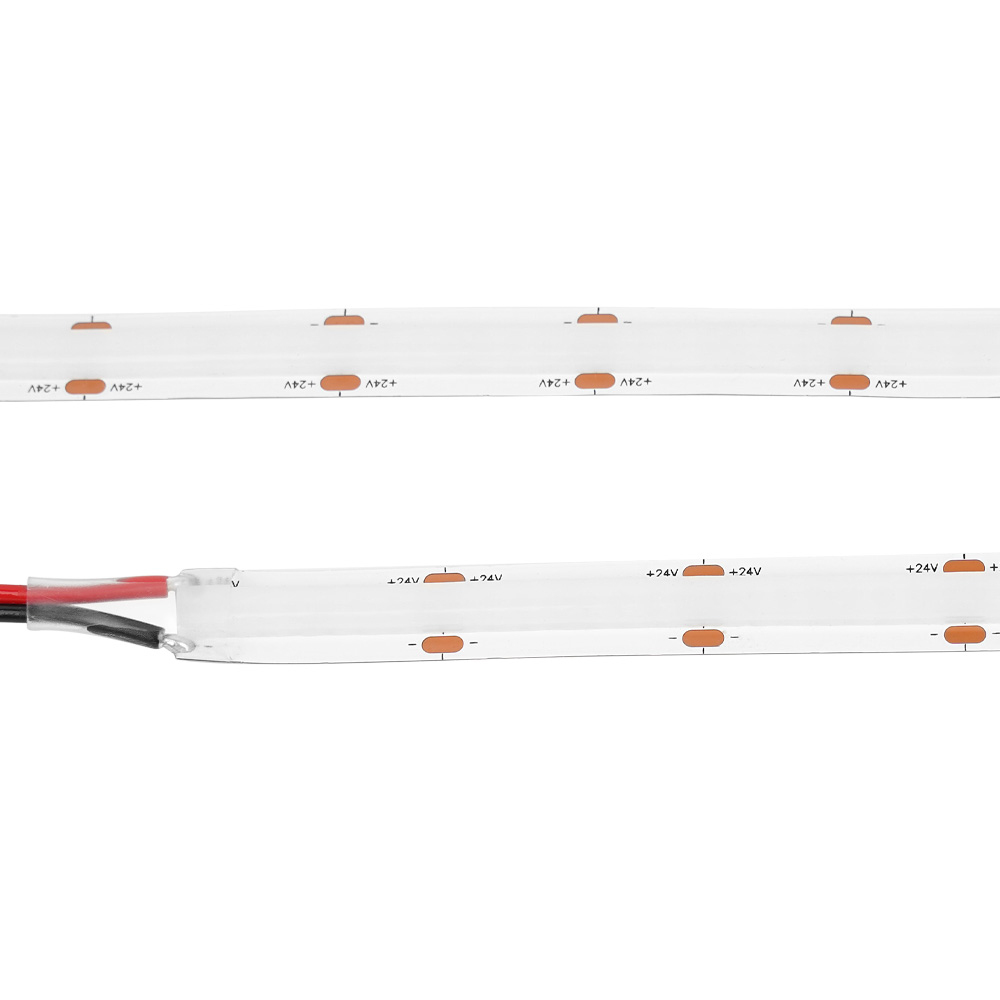

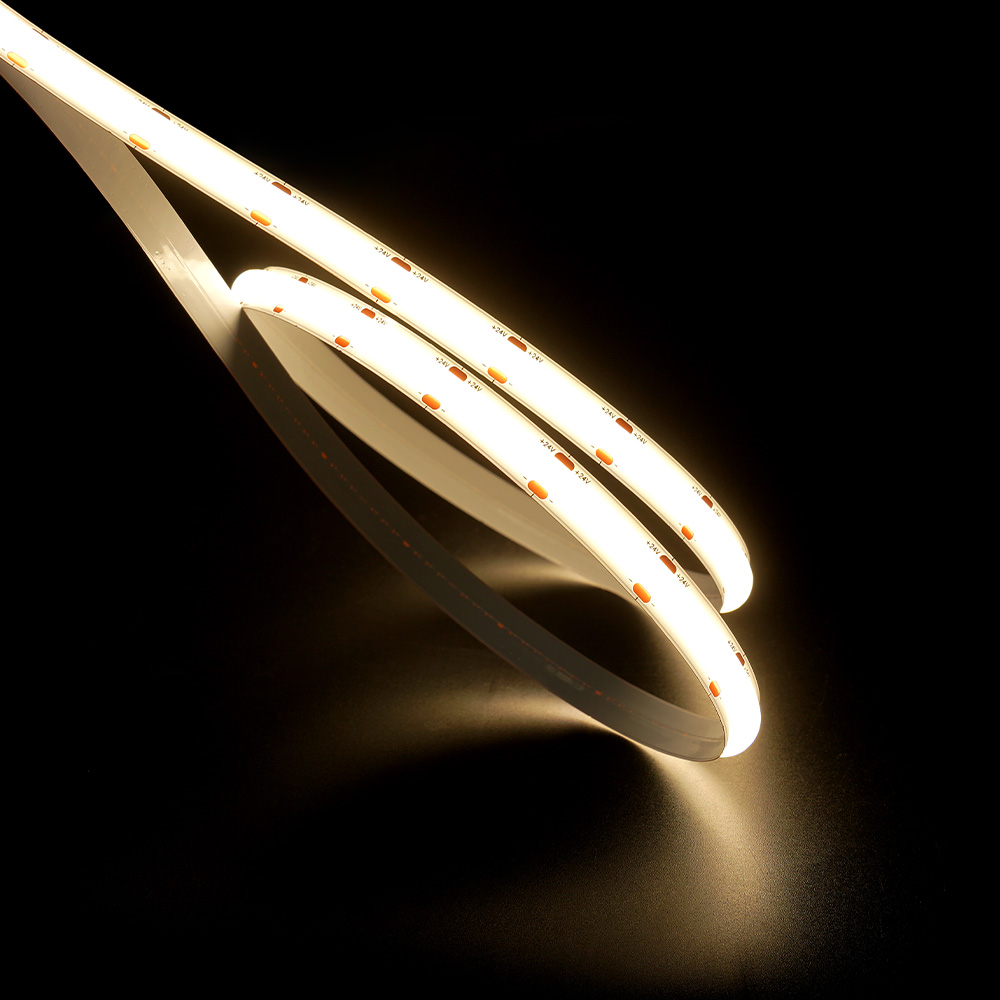

SFCOBL320V24 10mm High luminous efficiency COB LED strip light, UL, TUV CE, CB certficates

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model SFCOBL320V24IP20-10mm
FPC width 10mm
Cutting unit 25mm
Power 15W/m
Operating temperature -20℃～+45℃
Storage temperature 0℃～+60℃
Environment humidity 40～70% RH
Certification ETL, FCC, CE, ROHS, CCC
Application Indoor/Outdoor
Protection grade IP20, IP55, IP65, IP66, IP67
Detail

Video‍


Item NO.     SFCOBL320V24-10
Size     L5000mm (196.85")×W10mm (0.39")×H1.6mm (0.063")
Power(optional)     15W/m (4.57W/ft)
Current     0.63A/m (0.19A/ft)
Voltage     DC24V
Board width(optional)     10mm
Wire length     120mm
CCT     2700K / 3000K / 4000K / 6500K
Lumen/meter     2700K(1850LM/m) / 3000K(1925LM/m) / 4000K(2010LM/m) / 6500K(1980LM/m)
CRI (Ra>)     90 +
Cut length     25mm/unit
Beam Angle     180°
IP Rating     IP20 / IP55 / IP65 / IP66 / IP67
Environment humidity    40~70%
Warranty     Warranty 5-year, >50000 hours (L70B10) for indoor usage，Warranty 3-year, >30000 hours (L70B10) for outdoor usage
Operating temperature     -20℃ ~ +45℃
Storage temperature     0℃ ~ +60℃
