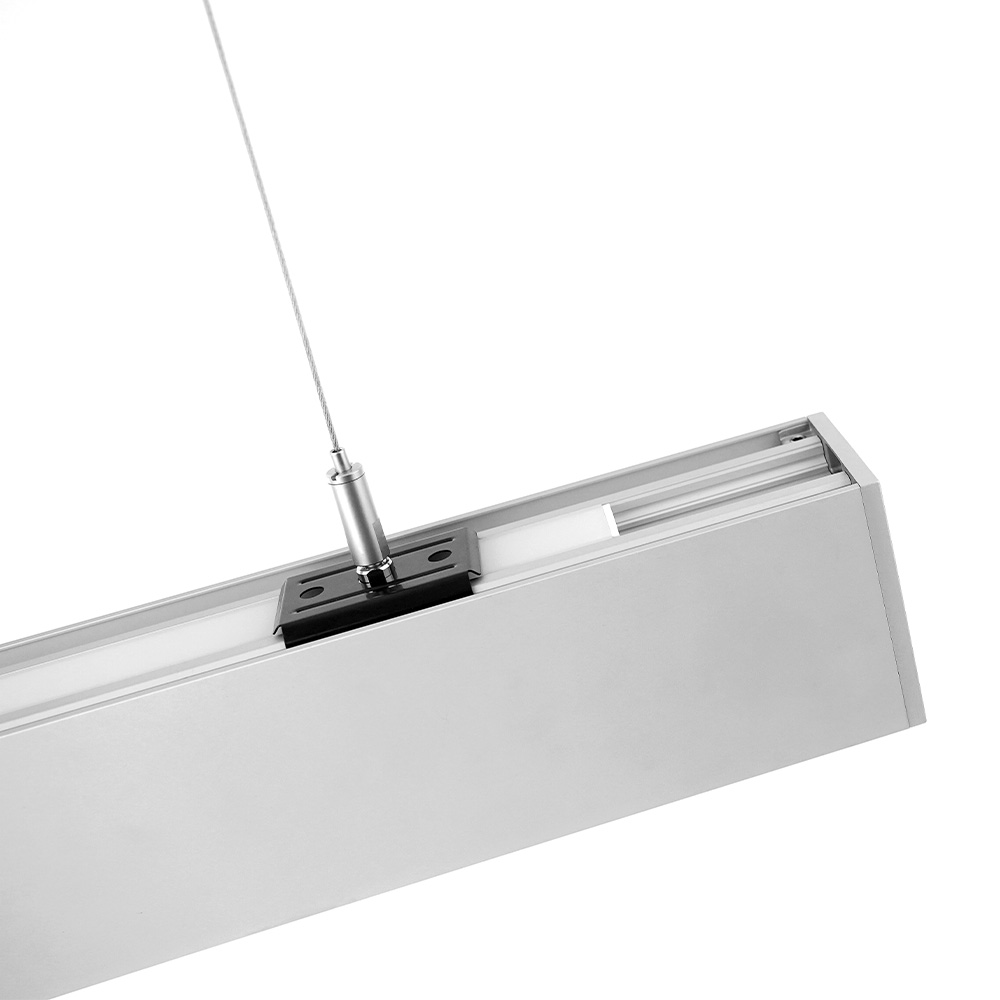

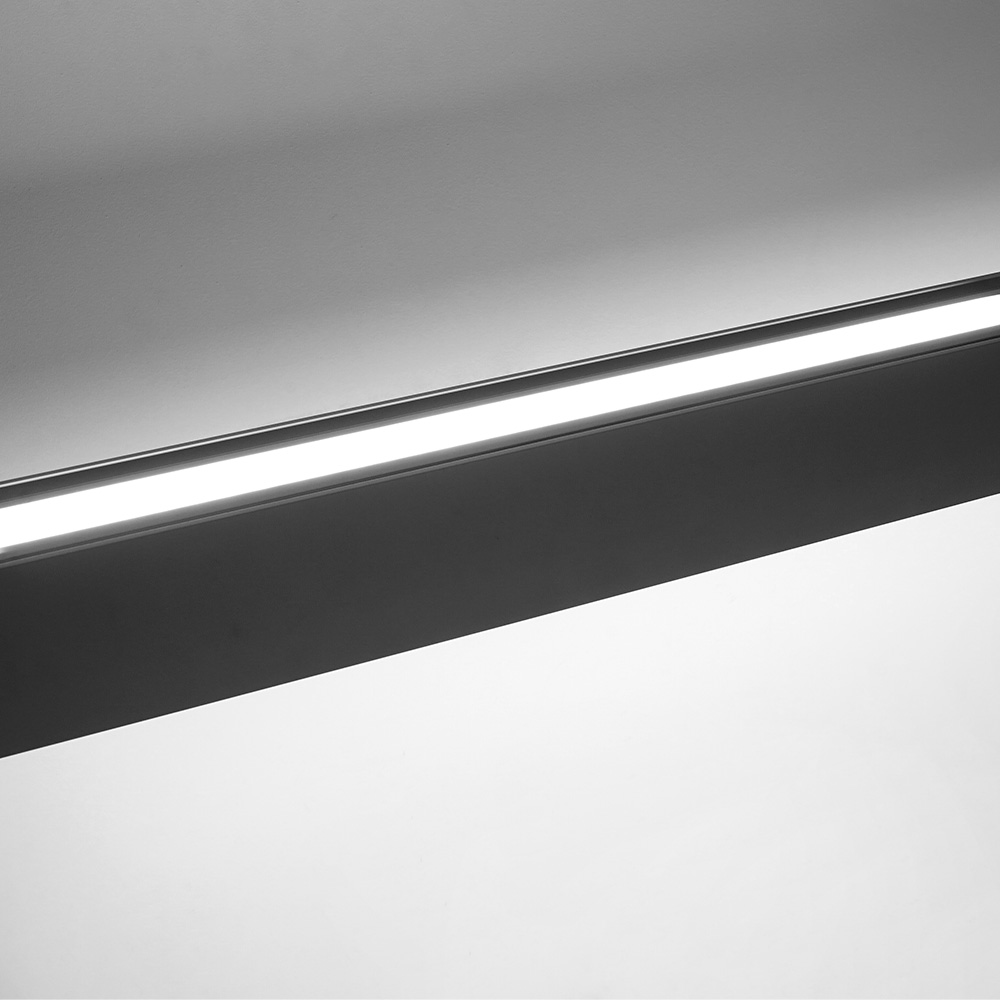

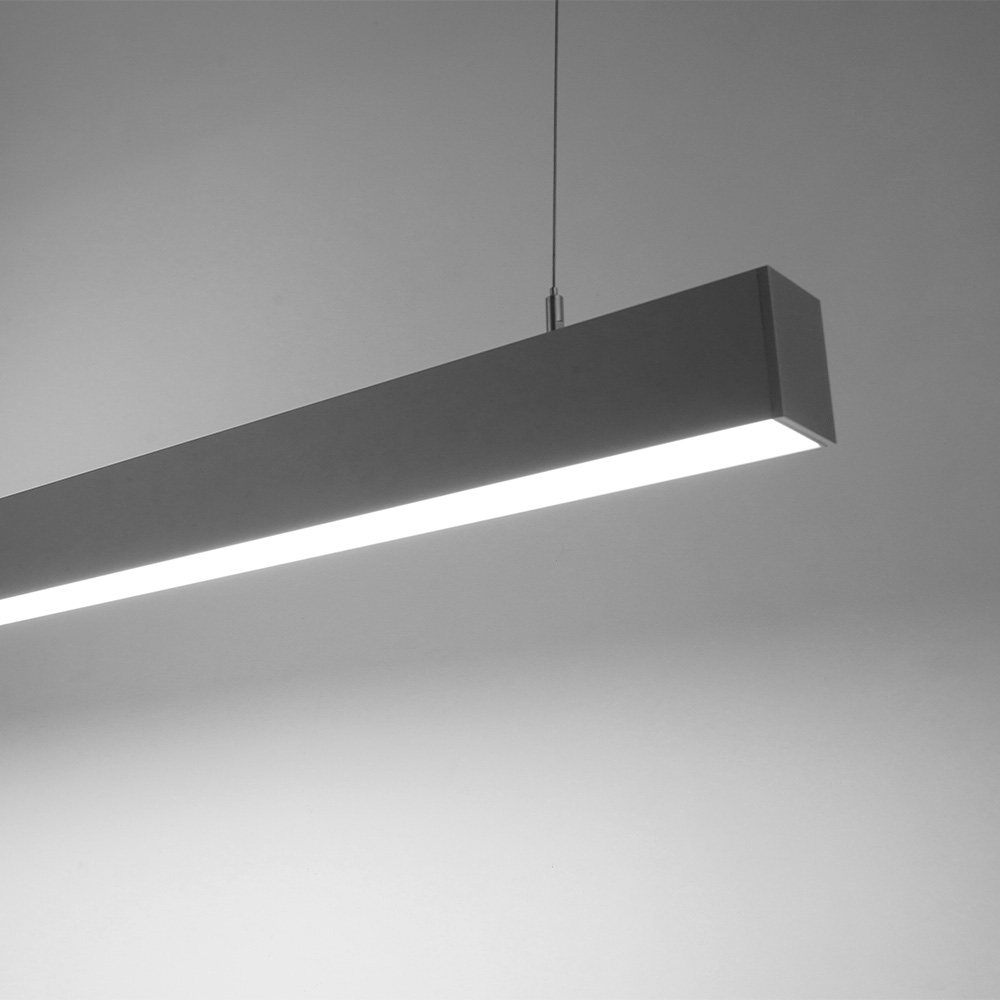

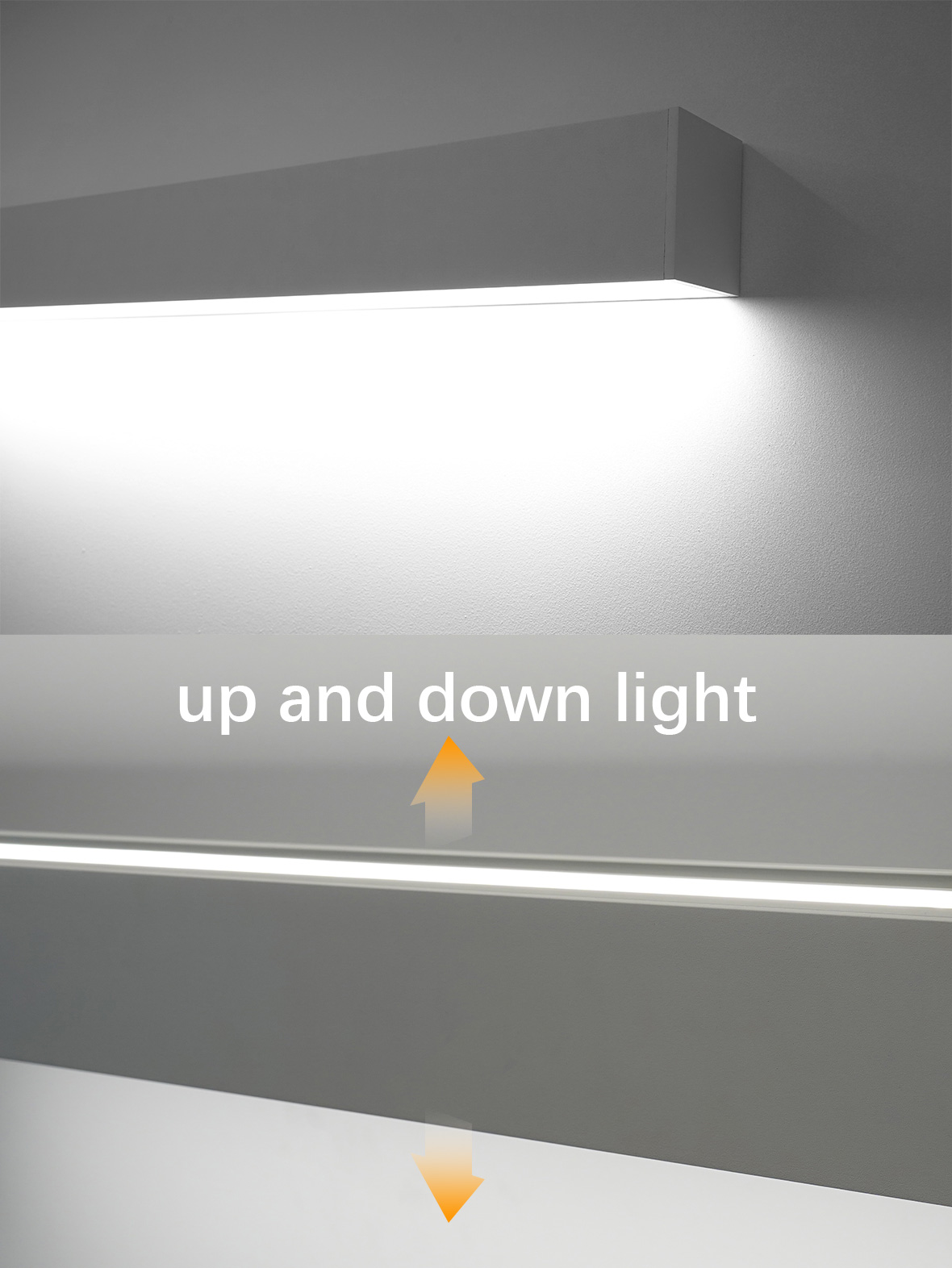

L5570 Quick & sturdy connection Linear light light Up and down light without light leak, ETL, FCC, TUV CE, CB

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
Model L5570
Detailed item code L5570-A31
Detailed item code L5570-A46
Detailed item code L5570-A61
Operating temperature -20℃～+45℃
Storage temperature -40℃～+60℃
Environment humidity 40～70% RH
Cover type PDM cover
Application Indoor
Installation way Pendant / Ceiling mounted / Recessed / Wall mounted
Protection grade IP40
Detail

Feature:

  • Aluminum 6063-T5, good heat radiation with long lifespan;

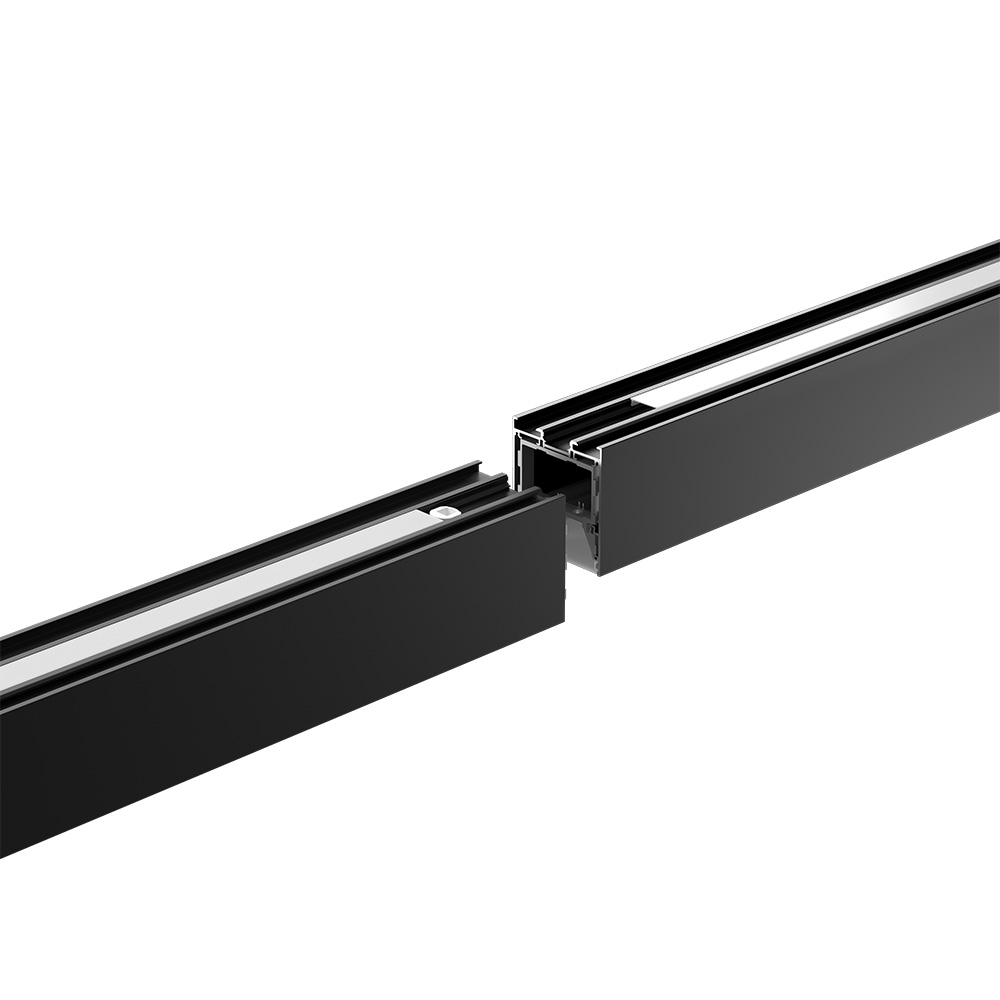

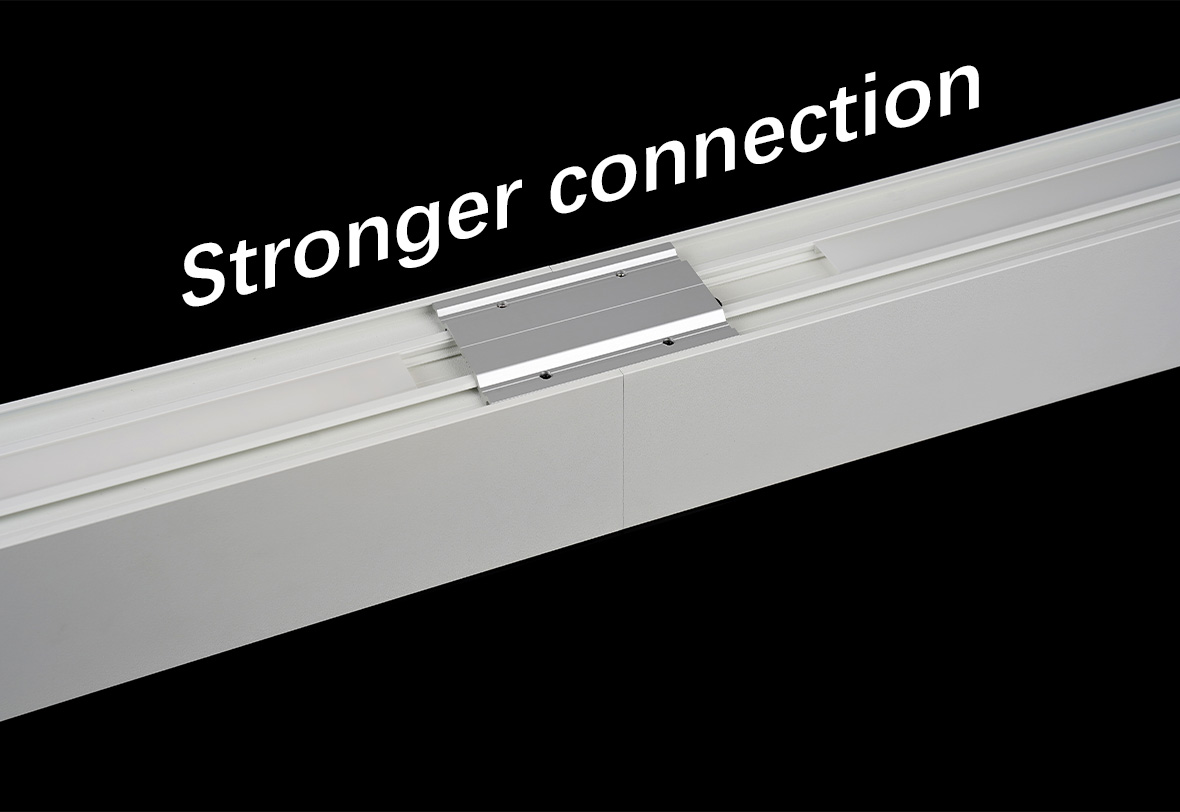

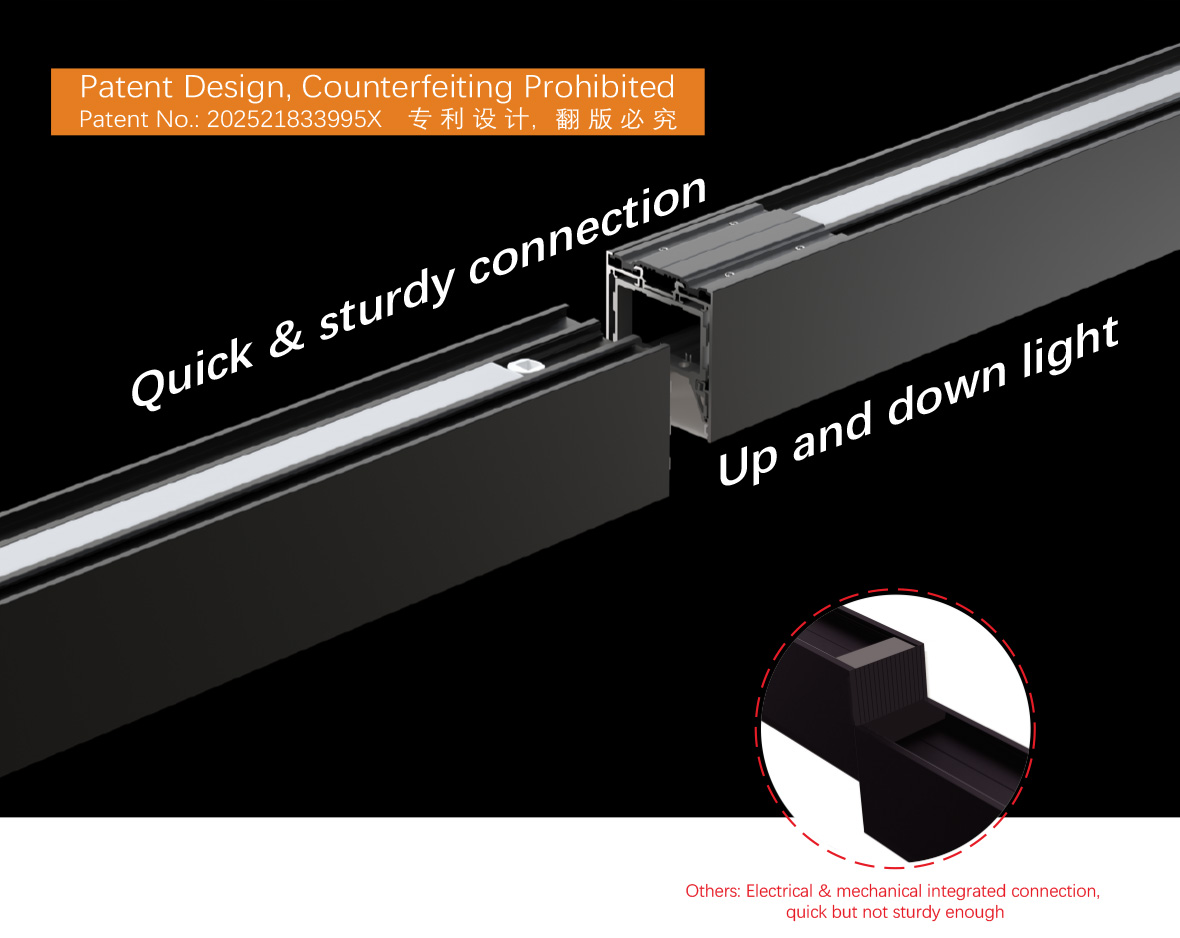

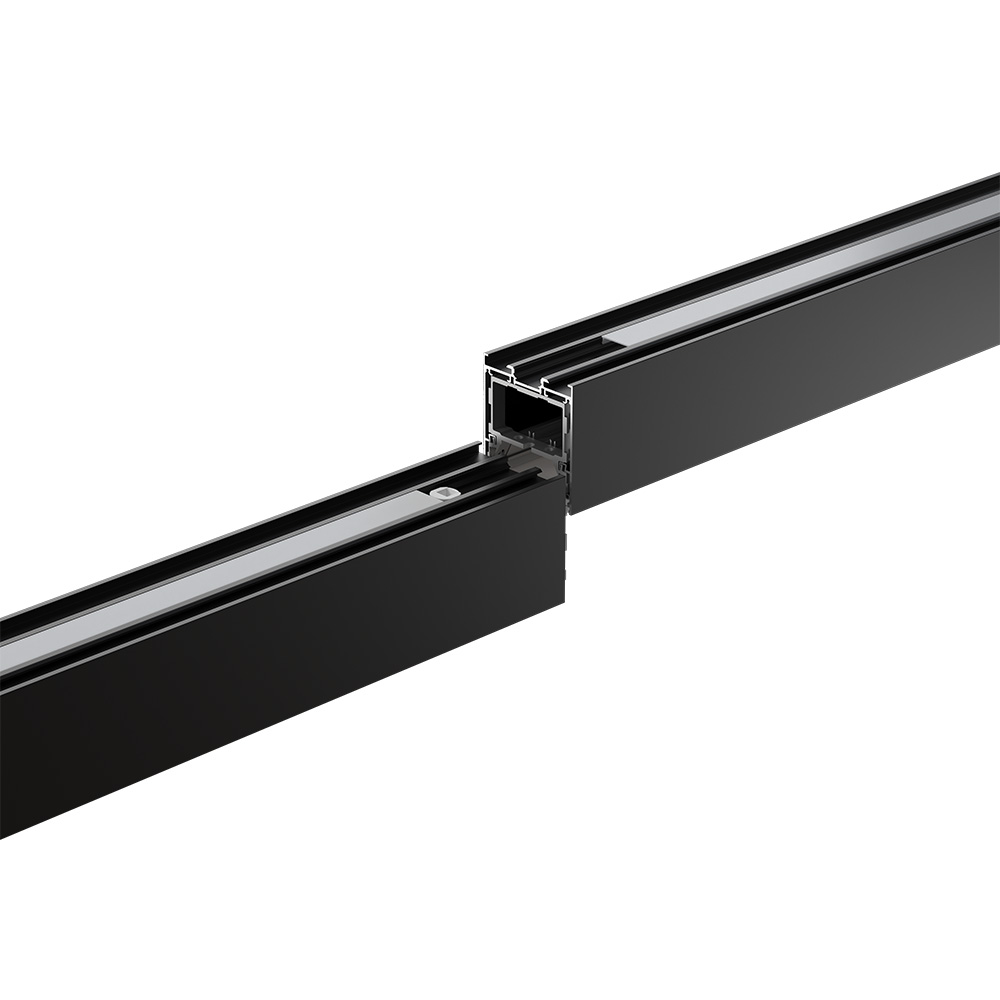

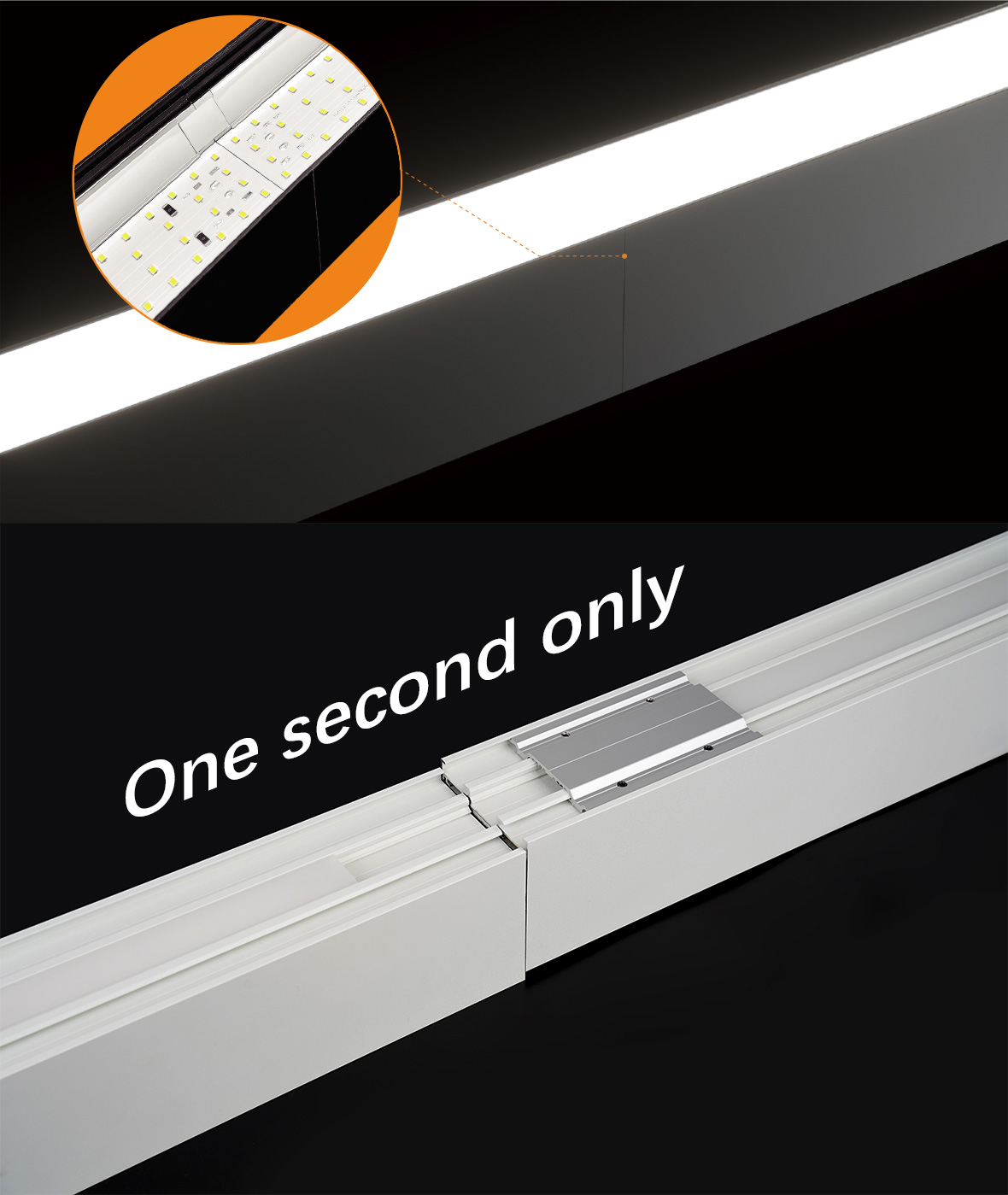

  • Quick & sturdy connection;

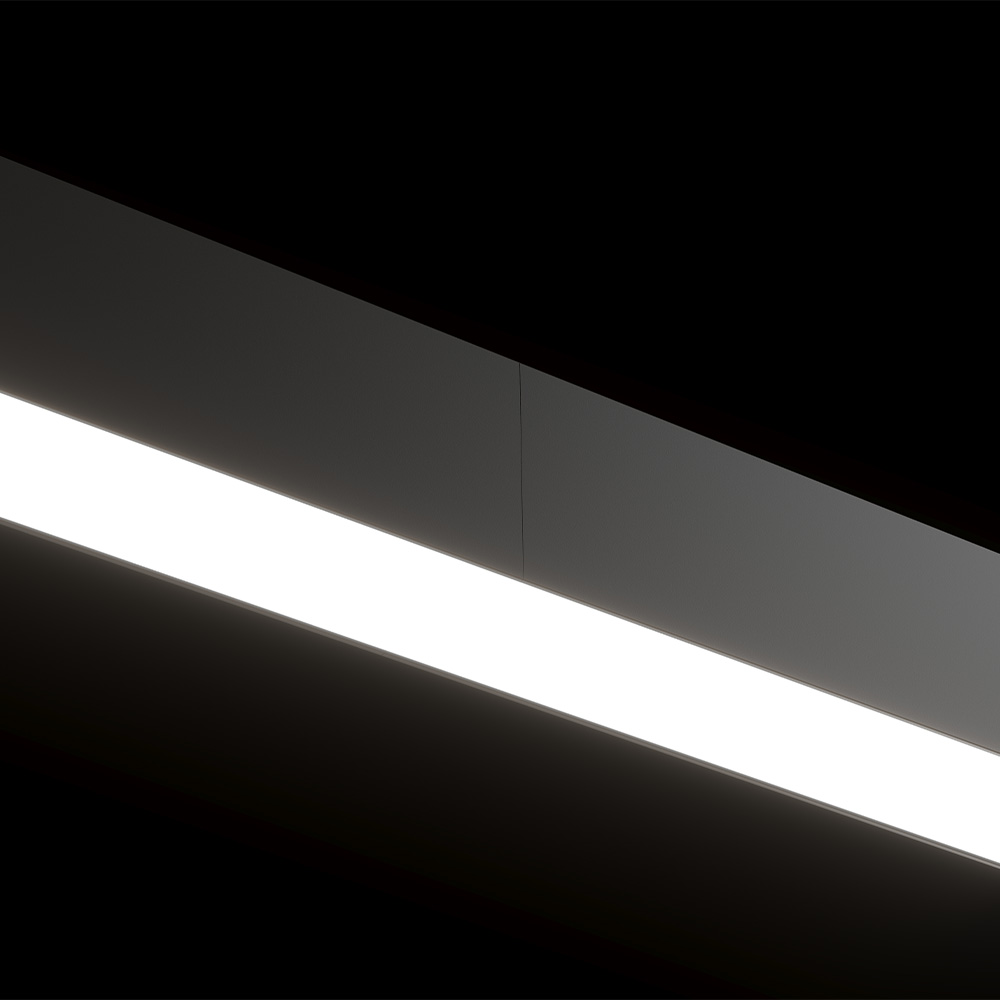

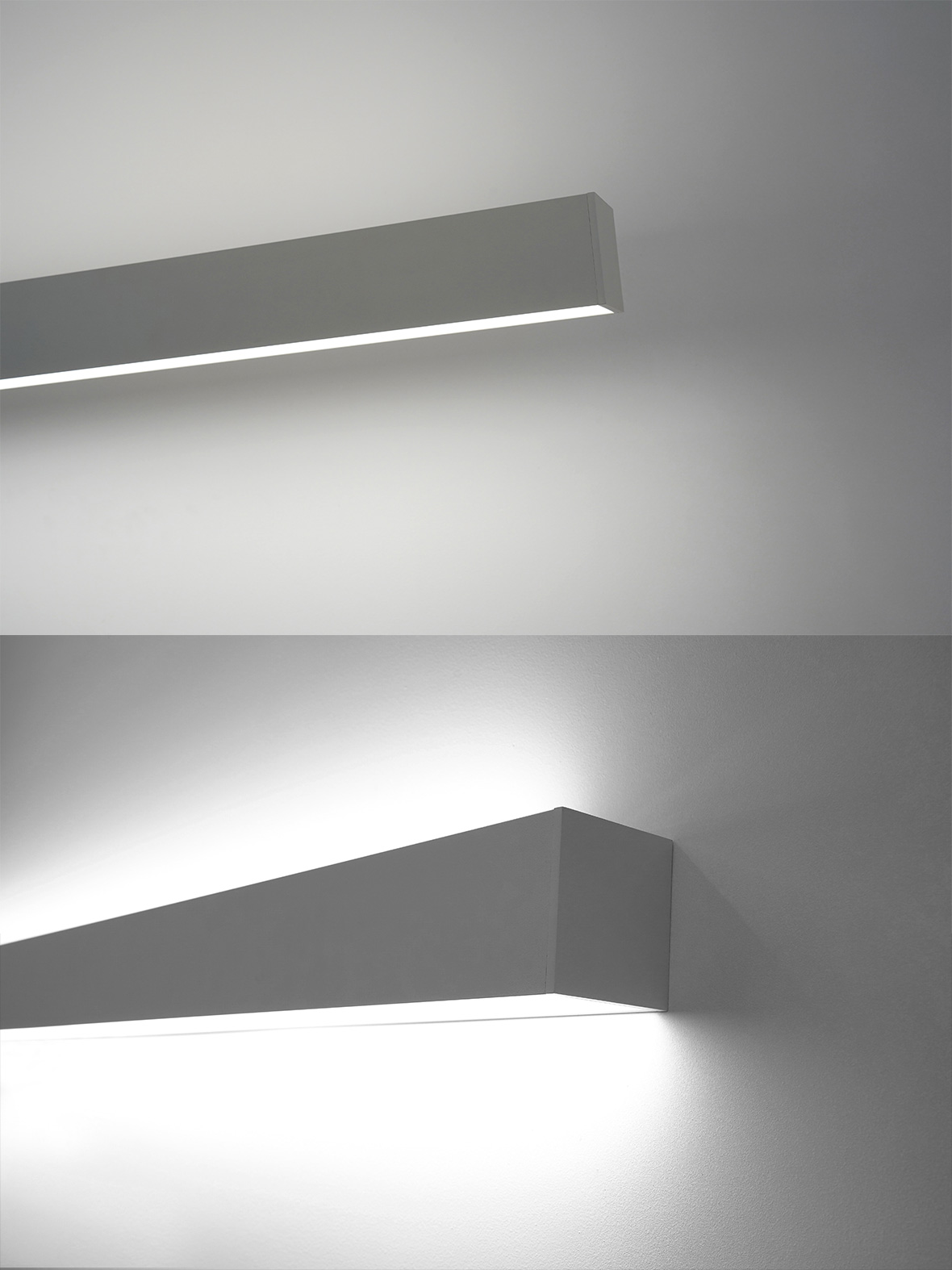

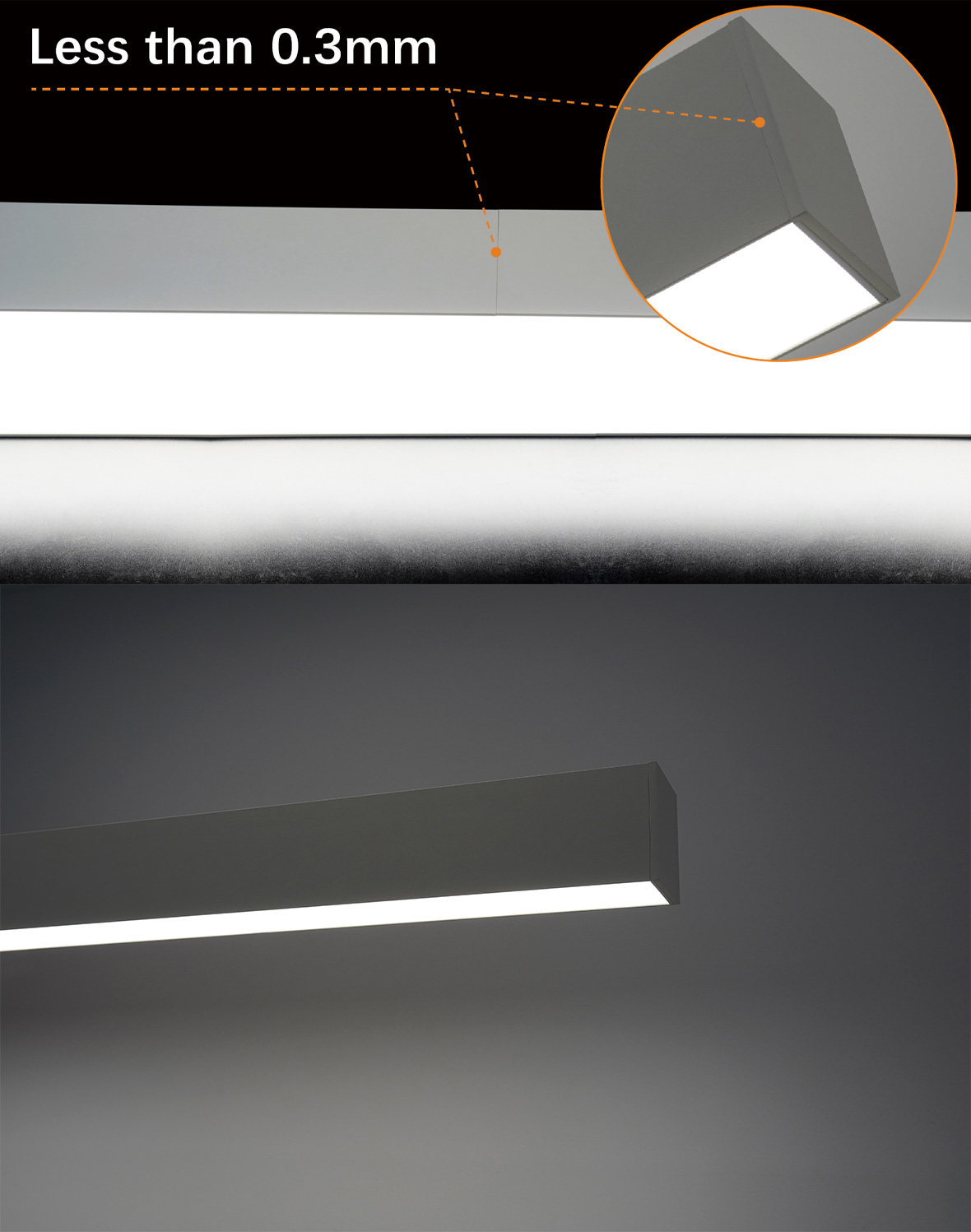

  • Without light leak;

  • Long lifespan > 50000 Hours;

  • Light source adopts LM-80 cerfified LED;

  • Certificates: ETL (control number 5010725), FCC, CE (TUV Rheinland), ROHS (TUV Rheinland), CB (TUV Rheinland)

Parameter:



Item NO.     L5570
Size     1234mm(4.05ft) / 1843mm(6.05ft)   / 2455mm(8.05ft)      x 55mm(0.18ft) x 70mm(0.23ft)
Power             31W           /            46            /           61
Lumen      3573~3738LM   /   5359~5607LM   /   7147~7477LM
Cover     PDM (100°)
CRI     80+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Recessed / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃




Item NO.     L5570S
Size              1234mm(4.05ft)            /          1843mm(6.05ft)        /       2455mm(8.05ft)            x 55mm(0.18ft) x 70mm(0.23ft)
Power     44W（up:16W down:28W） /   67（up:25W down:42W）/   89（up:34W down:55W）
Lumen

     up：2033~2128LM                /      up：3187~3335LM       /      up：4287~4485LM

     down：3462~3623LM           /      down：5201~5441LM   /      down：6994~7317LM

Cover     PDM (100°)
CRI     80+
CCT     3000K / 4000K / 6000K (3500K / 5000K)
PF     ≥0.9
IP grade     IP 40
Working Voltage     AC100~277V / 50~60Hz
Max Input Current     6A
Installation way     Pendant / Ceiling mounted / Recessed / Wall mounted
Profile color     Silvery (ral9006) / Black (ral9004) / White (ral9003)
Operating temperature     -20℃ ~ +45℃
Storage temperature     -40℃ ~ +60℃
