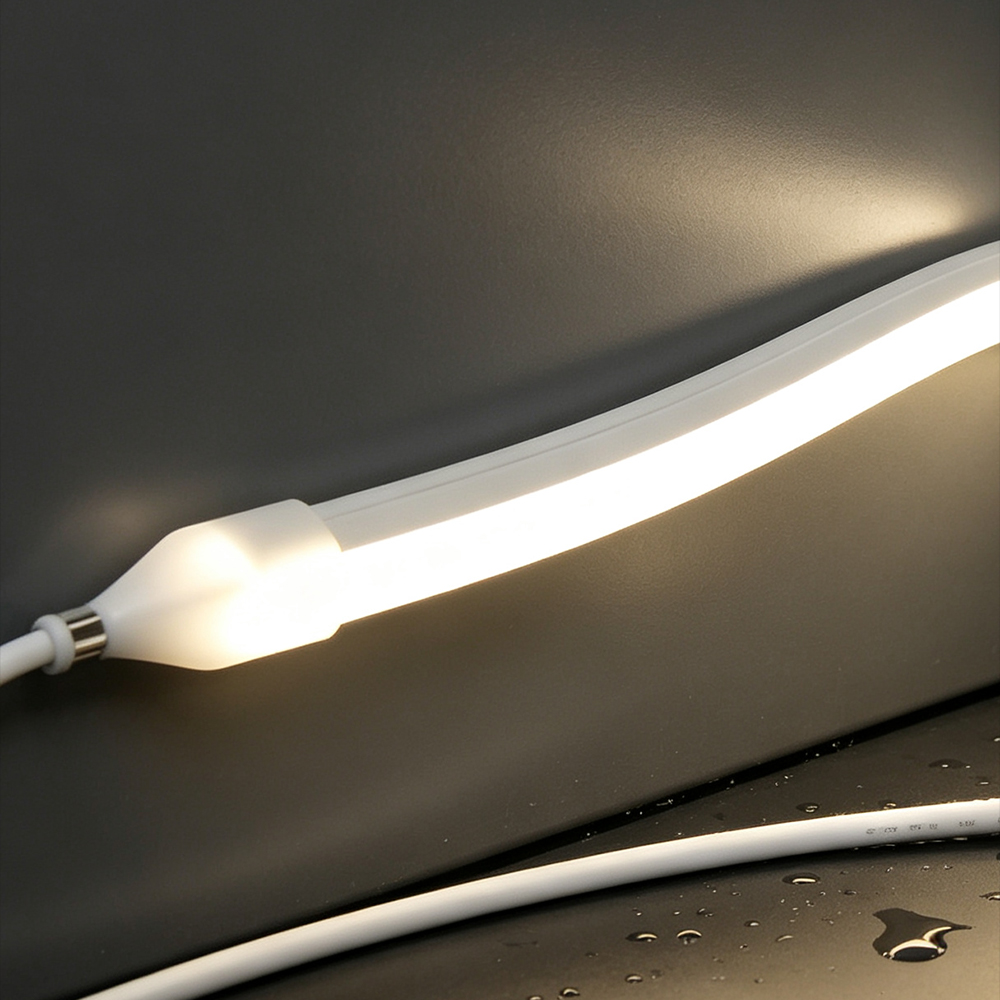

BV016016-3D Top & side free-bend, IP68 Tricolor Silicone Extrusion LED Neon Light, UL, TUV CE, CB Certficates
share
Detail
Parameter:
| Item NO. | BV016016-3D ( IP68 / Top & side free-bend / constant current ) |

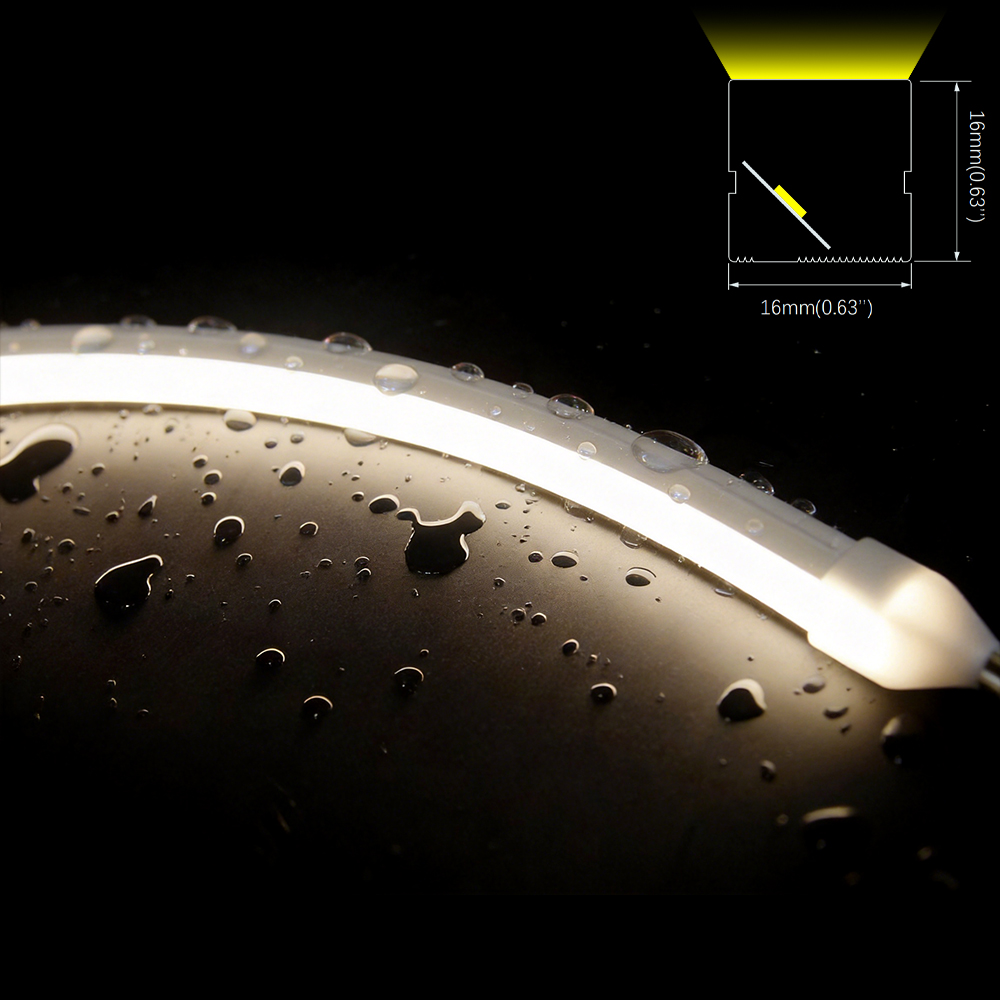

| Size | 20015mm (787.99”) x 16mm(0.63”) x 16mm(0.63”) |
| Power | 7.2W/m |
| Voltage | DC24V |
| Light transmittance | 63% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 427 LM/M I 444 LM/M I 490 LM/M I 461 LM/M |
| Strip options | S2835L120Q24-8 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 68 |

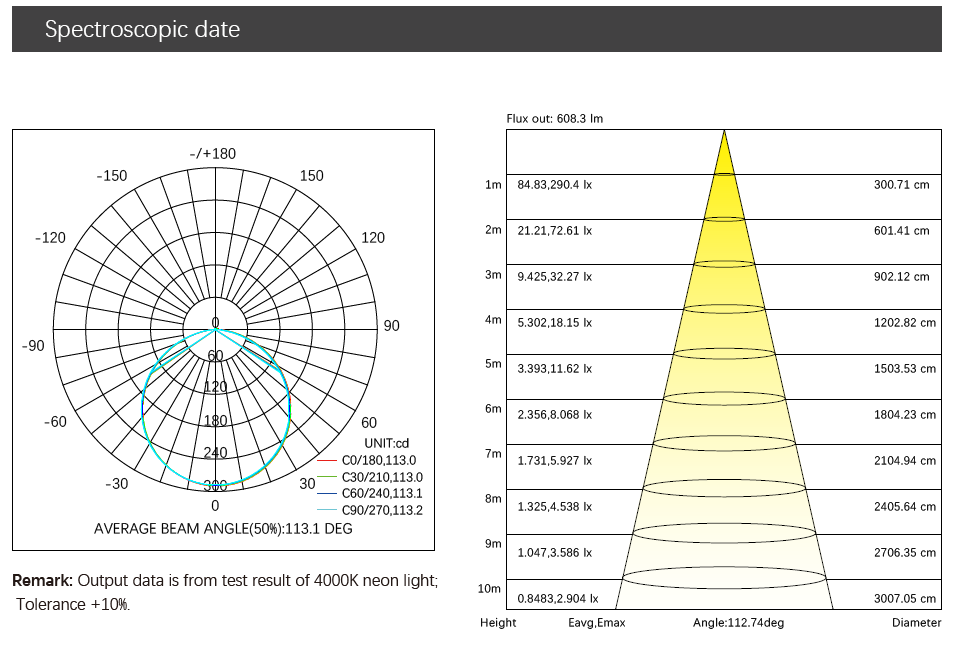

| Beam Angle | 115° |
| Weight/meter | 300g |
| Material | Silicone |
| Warranty | Warranty 3-year, >30000 hours (L70B10) (Not suitable for use in water deeper than 2m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV016016-3D ( IP68 / Top & side free-bend / constant voltage) |
| Size | 5020mm (197.64”) x 16mm(0.63”) x 16mm(0.63”) |
| Power | 9.6W/m |
| Voltage | DC24V |
| Light transmittance | 63% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 3300K I 4300K I 6000K |
| CCT after silicone extrusion | 2500K~2700K I 2900K~3100K I 3700K~4200K I 5050K~5650K |
| Lumen/meter | 647 LM/M I 675 LM/M I 748 LM/M I 702 LM/M |
| Strip options | S2835L140V24-8 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 68 |
| Beam Angle | 115° |
| Weight/meter | 300g |
| Material | Silicone |
| Warranty | Warranty 3-year, >30000 hours (L70B10) (Not suitable for use in water deeper than 2m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
| Item NO. | BV016016 ( IP68 / Top & side free-bend / Dual-colour) |
| Size | 5020mm (197.64”) x 16mm(0.63”) x 16mm(0.63”) |
| Power | 9.6W/m (4.8W/m*2) |
| Voltage | DC24V |
| Light transmittance | 63% |
Minimum cutting | 50MM |
| CCT LED origin | 2700K I 6000K I 4000K |
| CCT after silicone extrusion | 2500K~2700K I 5050K~5650K I 3600K~4200K |
| Lumen/meter | 302 LM/M I 341 LM/M I 644 LM/M |
| Strip options | S2835D140V24-8 |
| Anti-uv grade | UVA-340 |
| CRI (Ra>) | 90 + |
| IP Rating | IP 68 |
| Beam Angle | 115° |
| Weight/meter | 300g |
| Material | Silicone |
| Warranty | Warranty 3-year, >30000 hours (L70B10) (Not suitable for use in water deeper than 2m) |
| Operating temperature | -20℃ ~ +45℃ |
| Storage temperature | 0℃ ~ +60℃ |
