L8989 4ft waterproof LED linear light fixture
Product name: Linkable waterproof LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L8989-WW45, L8989-NW45, L8989-W45
Standard length: 4FT/1.237 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 504 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 45W (11.3W/ft)
Beam angle: 106° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4857~5150lm (1214~1288lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP66
Anti-collision level: IK10
Working time≥50000H
Application: outdoor, commercial, airport, metro station, shopping mall, etc.
Warranty: 5 years

L8989-a45 waterproof LED linear light specification sheet.pdf
2MB
IES L8989 waterproof LED linear light fixture.zip
2.1MB

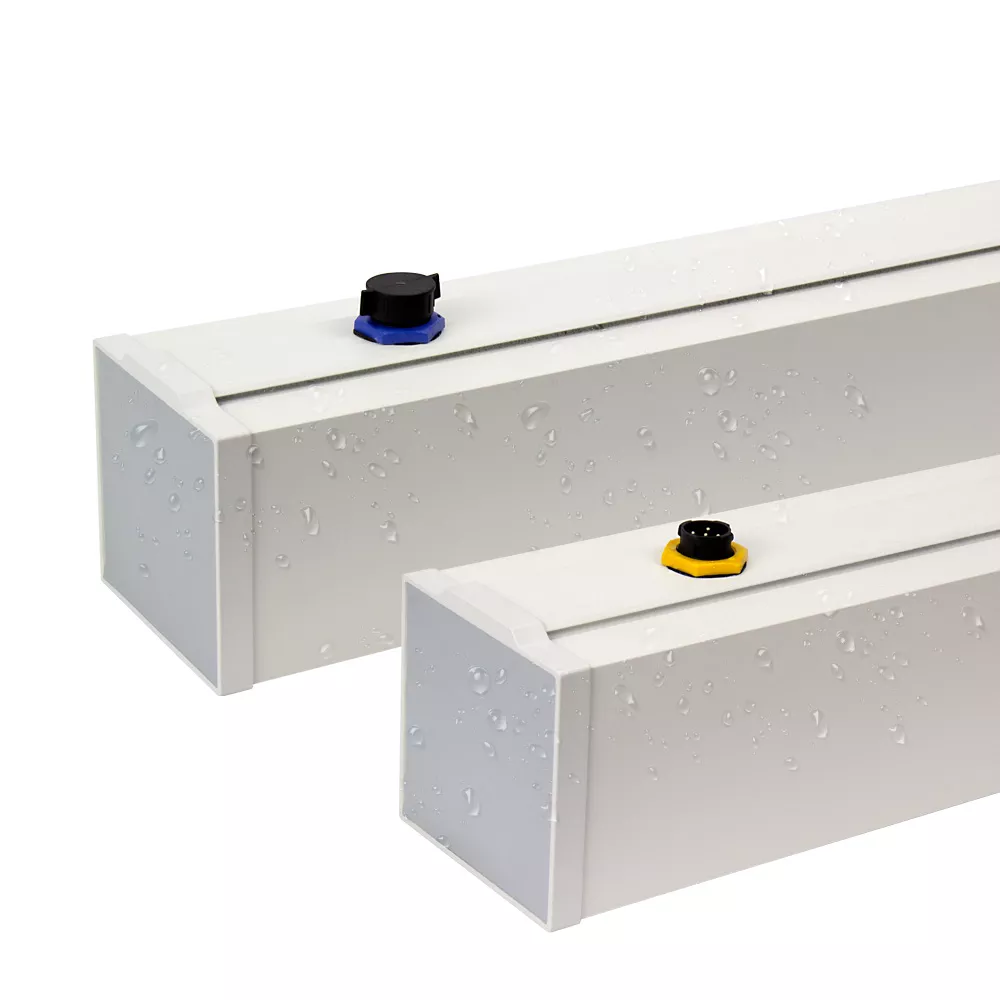

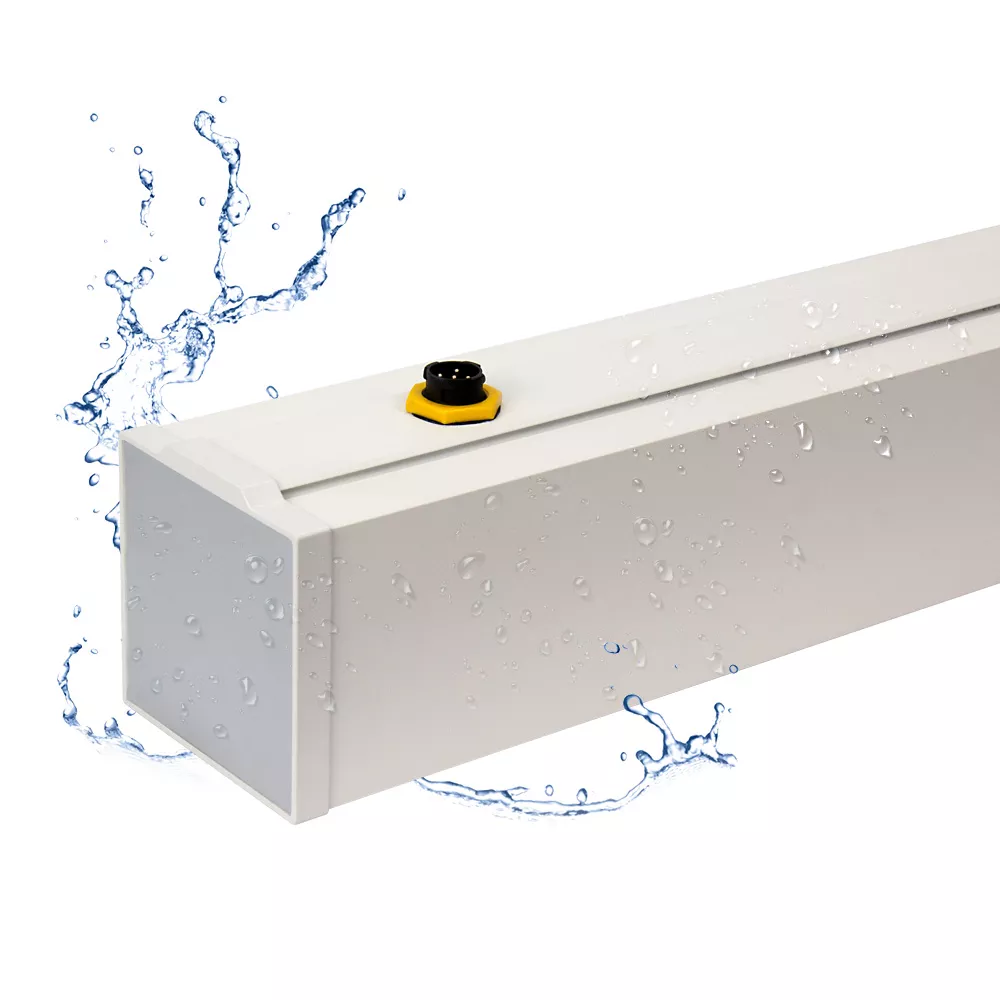

L8989 8ft waterproof LED linear light fixture
Product name: Linkable waterproof LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L8989-WW90, L8989-NW90, L8989-W90
Standard length: 8FT/2.456 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1008 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 90W (11.3W/ft)
Beam angle: 106° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 9713~10300lm (1214~1288lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP66
Anti-collision level: IK10
Working time≥50000H
Application: outdoor, commercial, airport, metro station, shopping mall, etc.
Warranty: 5 years

L8989-a90 waterproof LED linear light specification sheet.pdf
2MB
IES L8989 waterproof LED linear light fixture.zip
2.1MB

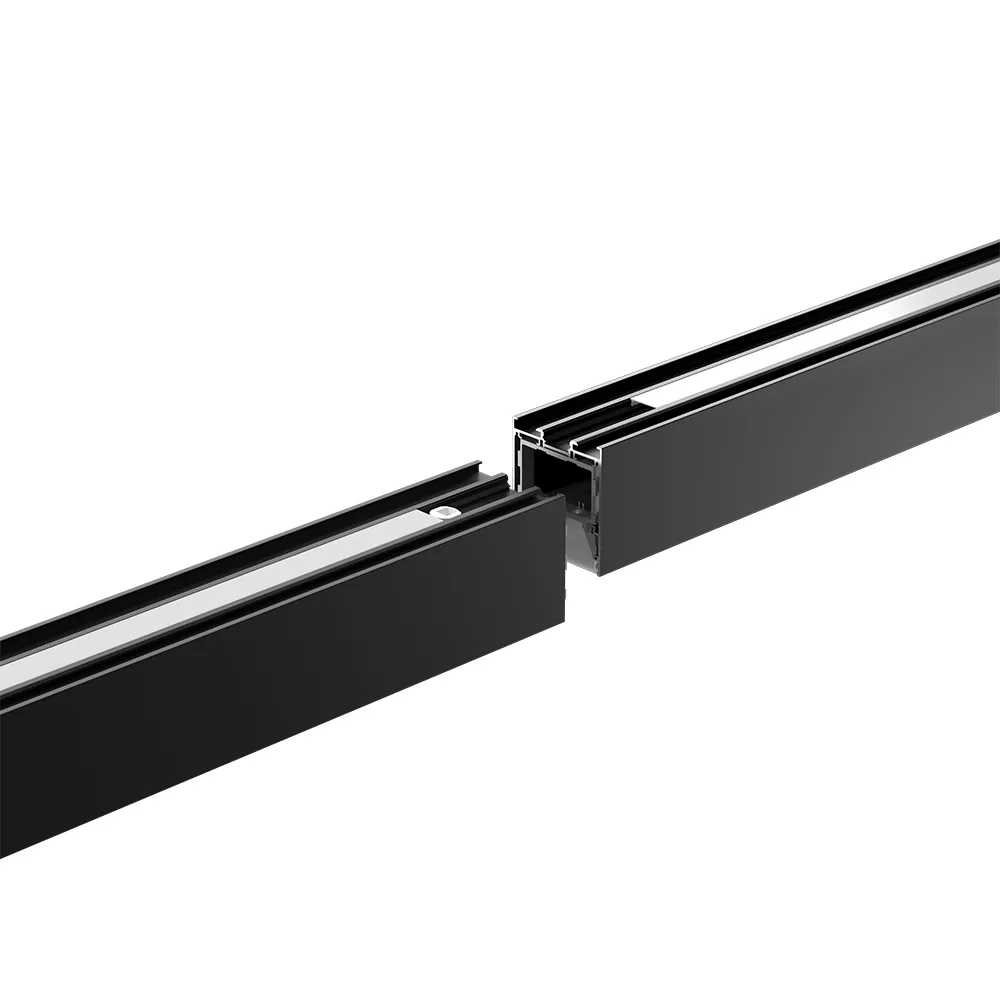

L5570 4ft LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW31, L5570-NW31, L5570-W31
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 31W (7.8W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 2900~3100lm (725~775lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-a31 linkable LED linear light specification sheet.pdf
3MB
IES L5570 LED linear light fixture.rar
1.2MB

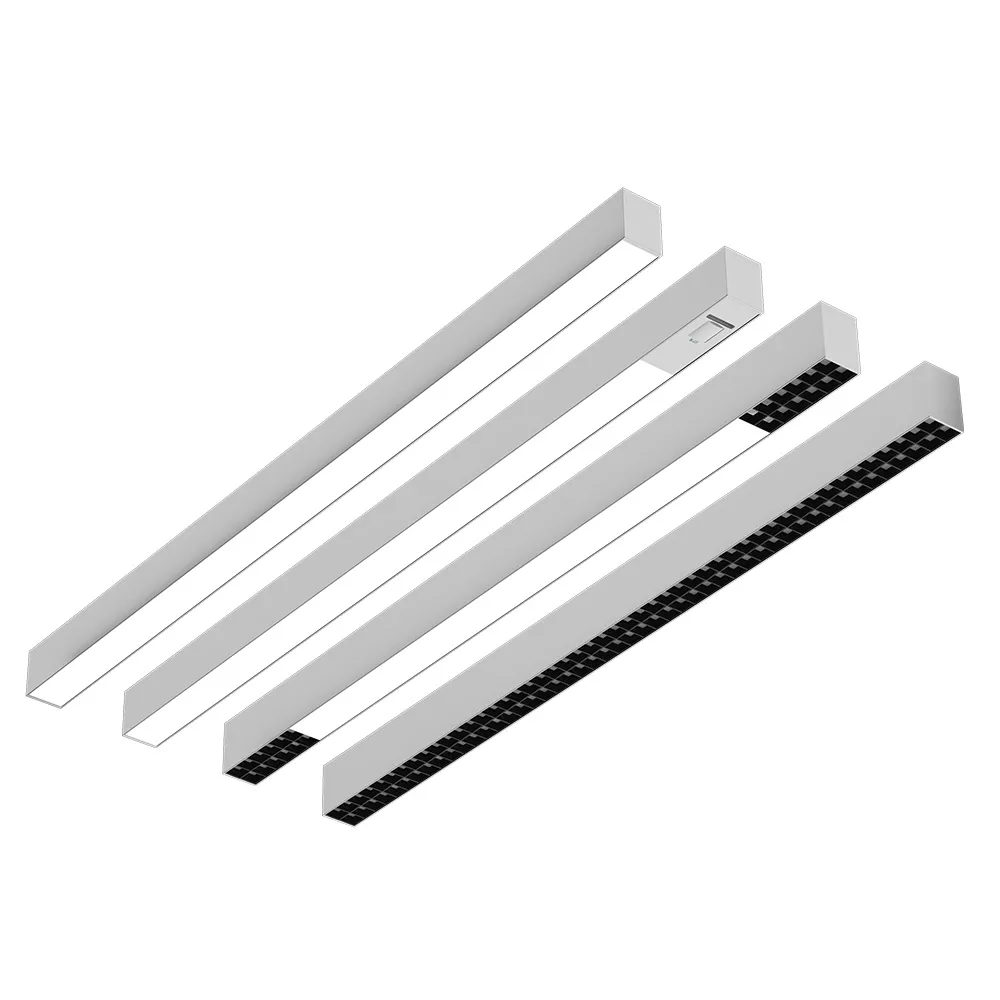

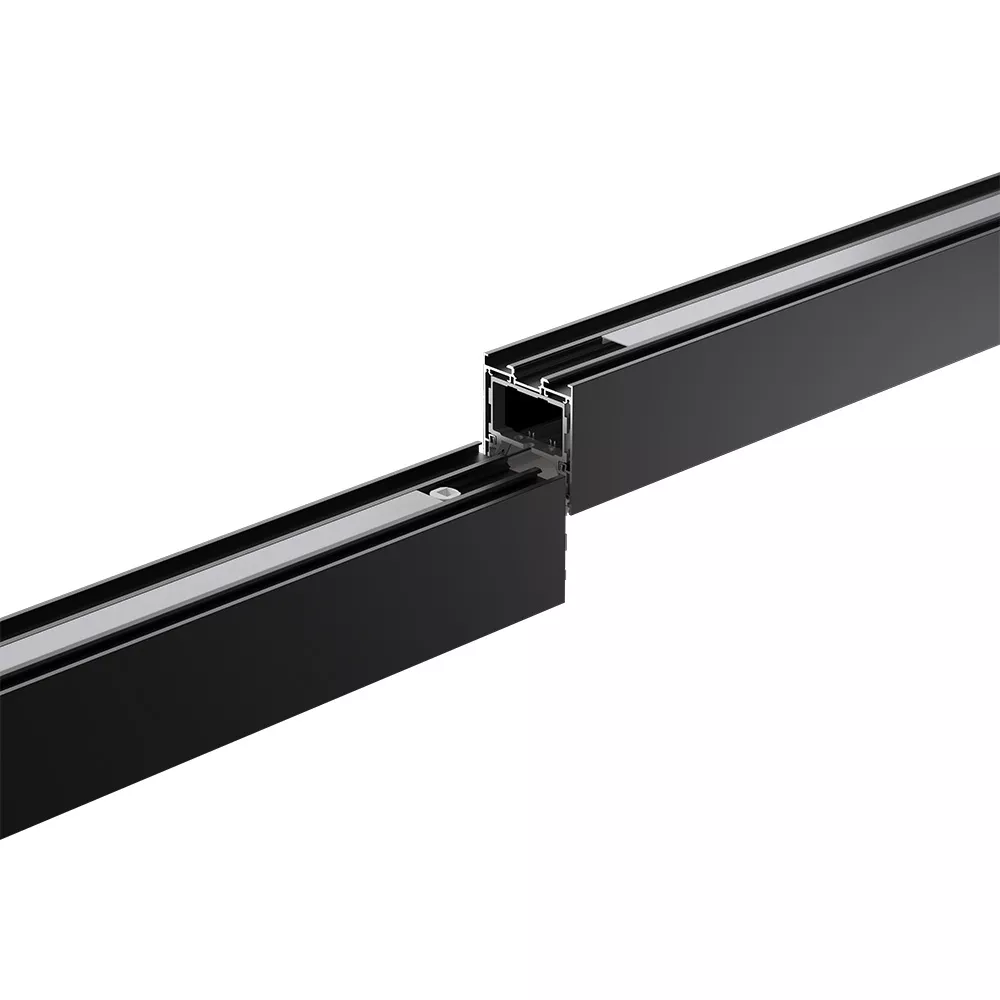

L5570 8ft LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW61, L5570-NW61, L5570-W61
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 61W (7.8W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 5800~6155lm (725~775lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-a61 linkable LED linear light specification sheet.pdf
3MB
IES L5570 LED linear light fixture.rar
1.2MB
L5570 4ft CCT tunable LED linear light fixture
Product name: Linkable tunable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW+W21
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 560 LEDs
LED driver: built-in LED power supply
Input voltage: 100~240V AC (50~60Hz)
Power: 21W (5.3W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 2700K~6000K Tunable
CRI: 80+/90+
Brightness: 0~2250lm (0~563lm/ft)
Control: RF 2.4G
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-WW+W21 linkable tunable LED linear light specification sheet.pdf
4.5MB
L5570 8ft CCT tunable LED linear light fixture
Product name: Linkable tunable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW+W43
Standard length: 8FT/2.45 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1120 LEDs
LED driver: built-in LED power supply
Input voltage: 100~240V AC (50~60Hz)
Power: 43W (5.3W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 2700K~6000K Tunable
CRI: 80+/90+
Brightness: 0~4500lm (0~563lm/ft)
Control: RF 2.4G
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-WW+W43 linkable tunable LED linear light specification sheet.pdf
4.5MB
L5580D 4ft up&down light LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5580D-WW44, L5580D-NW44, L5580D-W44
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 560 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 44W (11W/ft) - up light 18W (4.5W/ft) / down light 27W (6.7W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4200~4455lm (1050~1113lm/ft) - up 1680~1780lm / down 2520~2675lm
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5580D-a44S LED linear light specification sheet.pdf
2.4MB
IES L5580D LED linear light fixture.zip
2.3MB

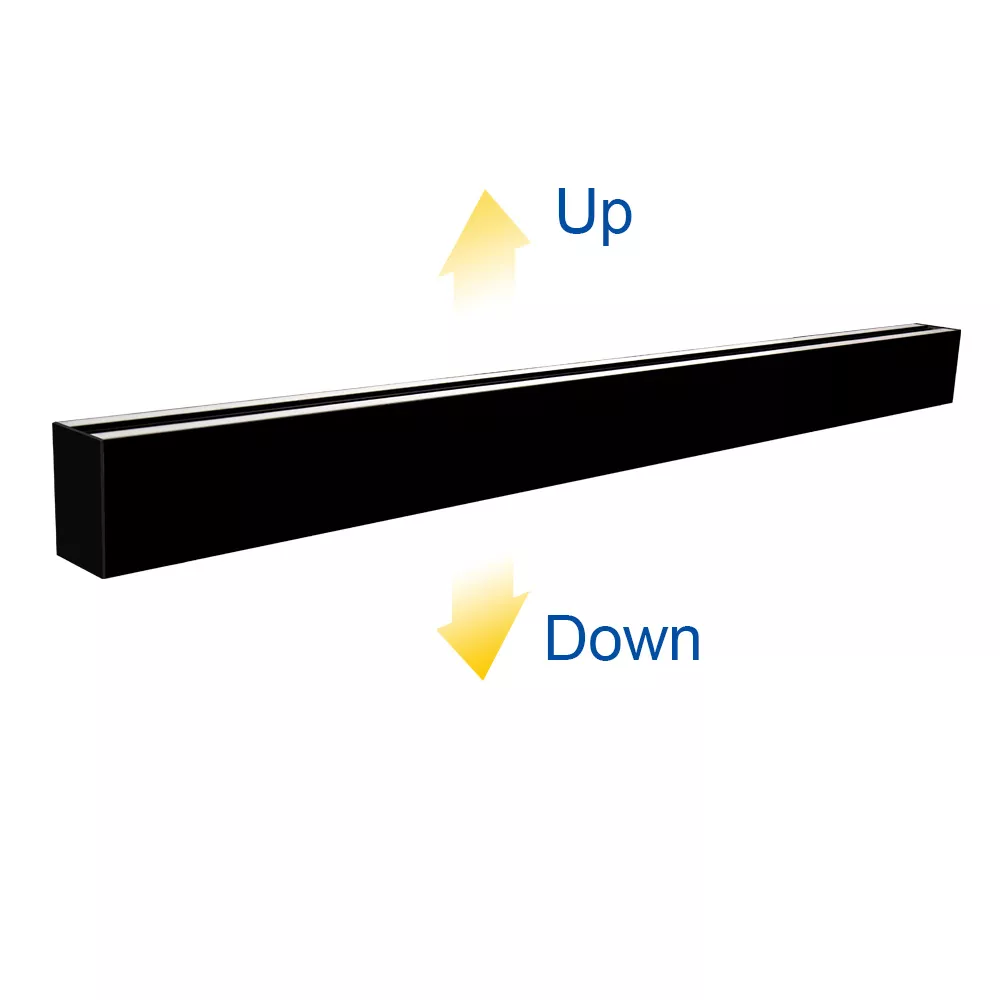

L5580D 8ft up&down light LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5580D-WW89, L5580D-NW89, L5580D-W89
Standard length: 8FT/2.45 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1120 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 89W (11W/ft) - up light 36W (4.5W/ft) / down light 53W (6.7W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 8400~8910lm (1050~1113lm/ft) - up 3360~3560lm / down 5040~5350lm
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5580D-a89S LED linear light specification sheet.pdf
2.4MB
IES L5580D LED linear light fixture.zip
2.3MB

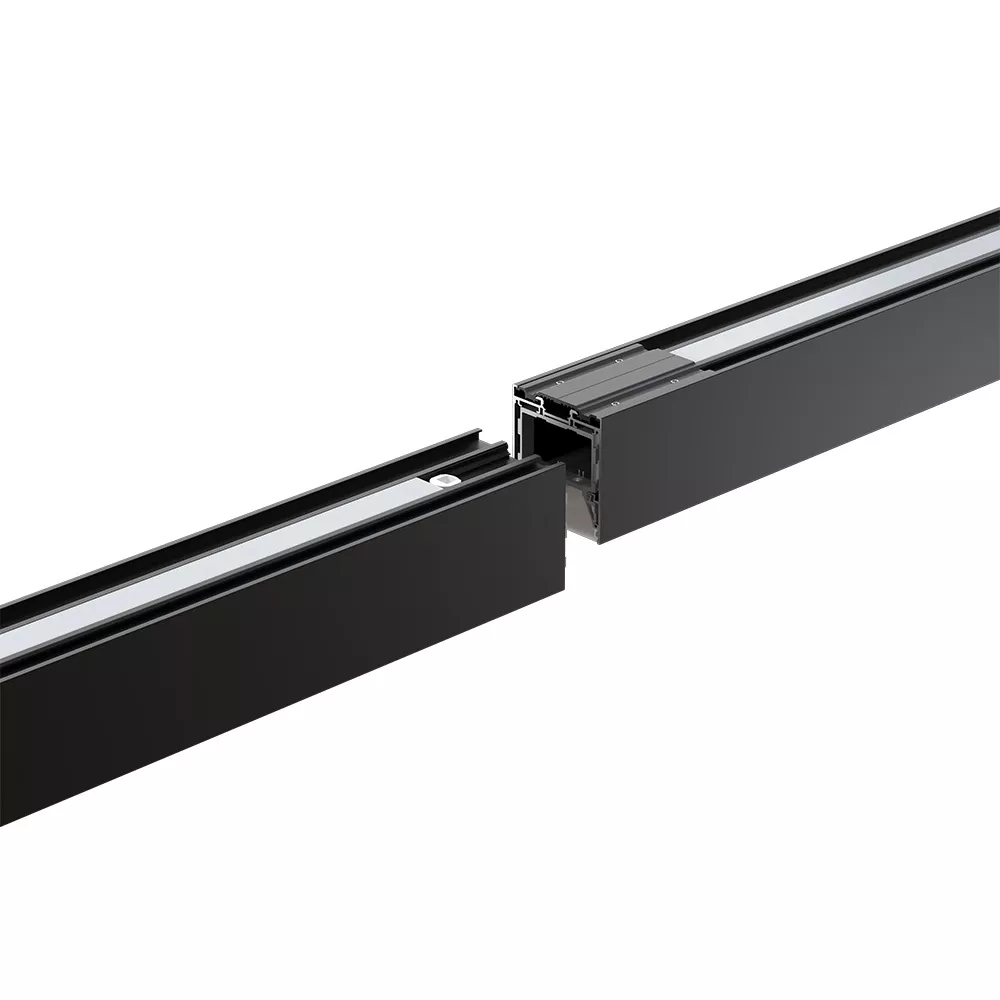

L7380 4ft LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L7380-WW34, L7380-NW34, L7380-W34
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 34W (8.5W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 3345~3465lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L7380-a34 linkable LED linear light specification sheet.pdf
3MB
IES L7380 LED linear light fixture.zip
2MB

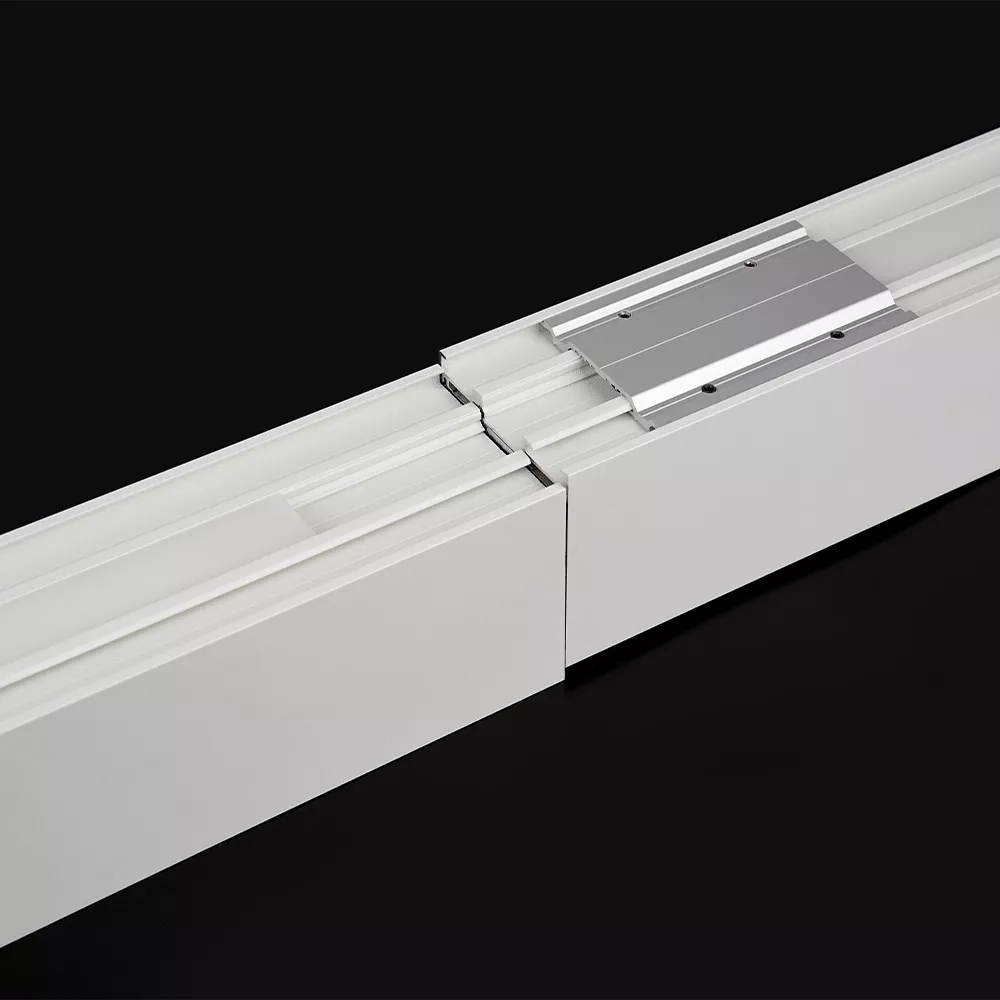

L7380 8ft LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L7380-WW68, L7380-NW68, L7380-W68
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 68W (8.5W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 6700~7105lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L7380-a68 linkable LED linear light specification sheet.pdf
3MB
IES L7380 LED linear light fixture.zip
2MB
L9086 4ft LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L9086-WW45, L9086-NW45, L9086-W45
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 504 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 45W (11.3W/ft)
Beam angle: 98° (PC plain diffuser), 81° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4710~5000lm (1177~1250lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L9086-a45 linkable LED linear light specification sheet.pdf
3MB
IES L9086 LED linear light fixture.zip
2MB

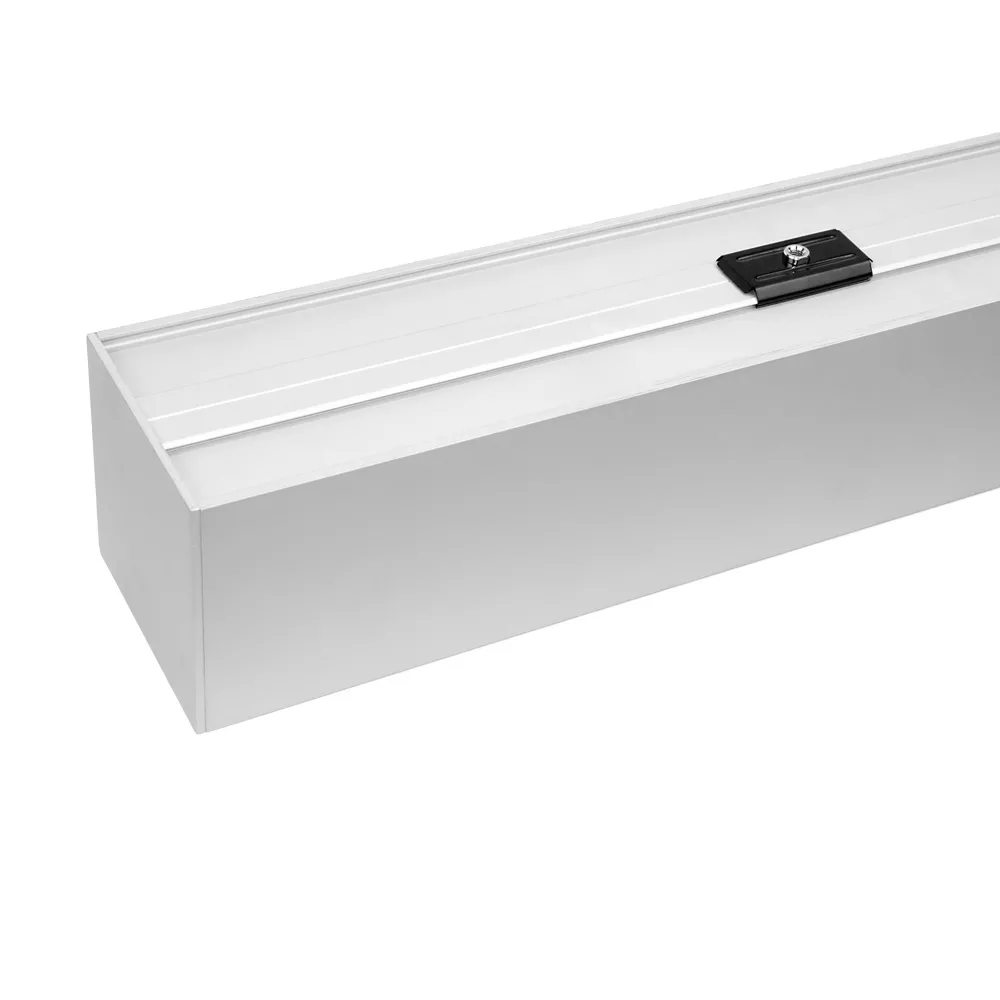

L9086 8ft LED linear light fixture
Product name: Linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L9086-WW90, L9086-NW90, L9086-W90
Standard length: 8FT/2.453 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1008 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 90W (11.3W/ft)
Beam angle: 98° (PC plain diffuser), 81° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 9425~10000lm (1177~1250lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L9086-a90 linkable LED linear light specification sheet.pdf
3MB
IES L9086 LED linear light fixture.zip
2MB
L8989 4ft waterproof LED channel light fixture
Product name: Non-linkable waterproof LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L8989-WW45S, L8989-NW45S, L8989-W45S
Standard length: 4FT/1.237 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 504 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 45W (11.3W/ft)
Beam angle: 106° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4857~5150lm (1214~1288lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP66
Anti-collision level: IK10
Working time≥50000H
Application: outdoor, commercial, airport, metro station, shopping mall, etc.
Warranty: 5 years

L8989-a45 waterproof LED linear light specification sheet.pdf
2MB
IES L8989 waterproof LED linear light fixture.zip
2.1MB
L8989 8ft waterproof LED channel light fixture
Product name: Non-linkable waterproof LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L8989-WW90S, L8989-NW90S, L8989-W90S
Standard length: 8FT/2.456 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1008 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 90W (11.3W/ft)
Beam angle: 106° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 9713~10300lm (1214~1288lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP66
Anti-collision level: IK10
Working time≥50000H
Application: outdoor, commercial, airport, metro station, shopping mall, etc.
Warranty: 5 years

L8989-a90 waterproof LED linear light specification sheet.pdf
2MB
IES L8989 waterproof LED linear light fixture.zip
2.1MB
L5570 4ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW31S, L5570-NW31S, L5570-W31S
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 31W (7.8W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 2900~3100lm (725~775lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-a31S nonlinkable LED linear light specification sheet.pdf
2.3MB
IES L5570 LED linear light fixture.rar
1.2MB
L5570 8ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW61S, L5570-NW61S, L5570-W61S
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 61W (7.8W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 5800~6155lm (725~775lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-a61S nonlinkable LED linear light specification sheet.pdf
2.3MB
IES L5570 LED linear light fixture.rar
1.2MB
L5570 4ft CCT tunable LED channel light fixture
Product name: Non-linkable tunable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW+W21S
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 560 LEDs
LED driver: built-in LED power supply
Input voltage: 100~240V AC (50~60Hz)
Power: 21W (5.3W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 2700K~6000K Tunable
CRI: 80+/90+
Brightness: 0~2250lm (0~563lm/ft)
Control: RF 2.4G
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-WW+W21S nonlinkable LED linear light specification sheet.pdf
2MB
L5570 8ft CCT tunable LED channel light fixture
Product name: Non-linkable tunable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW+W43S
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1120 LEDs
LED driver: built-in LED power supply
Input voltage: 100~240V AC (50~60Hz)
Power: 43W (5.3W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 2700K~6000K Tunable
CRI: 80+/90+
Brightness: 0~4500lm (0~563lm/ft)
Control: RF 2.4G
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-WW+W43S nonlinkable LED linear light specification sheet.pdf
2MB
L5580D 4ft up&down light LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5580D-WW44S, L5580D-NW44S, L5580D-W44S
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 560 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 44W (11W/ft) - up light 18W (4.5W/ft) / down light 27W (6.7W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4200~4455lm (1050~1113lm/ft) - up 1680~1780lm / down 2520~2675lm
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5580D-a44S LED linear light specification sheet.pdf
2.4MB
IES L5580D LED linear light fixture.zip
2.3MB
L5580D 8ft up&down light LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5580D-WW89S, L5580D-NW89S, L5580D-W89S
Standard length: 8FT/2.45 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1120 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 89W (11W/ft) - up light 36W (4.5W/ft) / down light 53W (6.7W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 8400~8910lm (1050~1113lm/ft) - up 3360~3560lm / down 5040~5350lm
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5580D-a89S LED linear light specification sheet.pdf
2.4MB
IES L5580D LED linear light fixture.zip
2.3MB
L7380 4ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L7380-WW34S, L7380-NW34S, L7380-W34S
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 34W (8.5W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 3345~3465lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L7380-a34S nonlinkable LED linear light specification sheet.pdf
2.3MB
IES L7380 LED linear light fixture.zip
2MB
L7380 4ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L7380-WW68S, L7380-NW68S, L7380-W68S
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 68W (8.5W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 6700~7105lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L7380-a68S nonlinkable LED linear light specification sheet.pdf
2.2MB
IES L7380 LED linear light fixture.zip
2MB
L9086 4ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L9086-WW45S, L9086-NW45S, L9086-W45S
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 504 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 45W (11.3W/ft)
Beam angle: 98° (PC plain diffuser), 81° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4710~5000lm (1177~1250lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L9086-a45S nonlinkable LED linear light specification sheet.pdf
2.2MB
IES L9086 LED linear light fixture.zip
2MB
L9086 8ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L9086-WW90S, L9086-NW90S, L9086-W90S
Standard length: 8FT/2.453 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1008 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 90W (11.3W/ft)
Beam angle: 98° (PC plain diffuser), 81° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 9425~10000lm (1177~1250lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant, ceiling mounted, wall mounted
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L9086-a90S nonlinkable LED linear light specification sheet.pdf
2.2MB
IES L9086 LED linear light fixture.zip
2MB

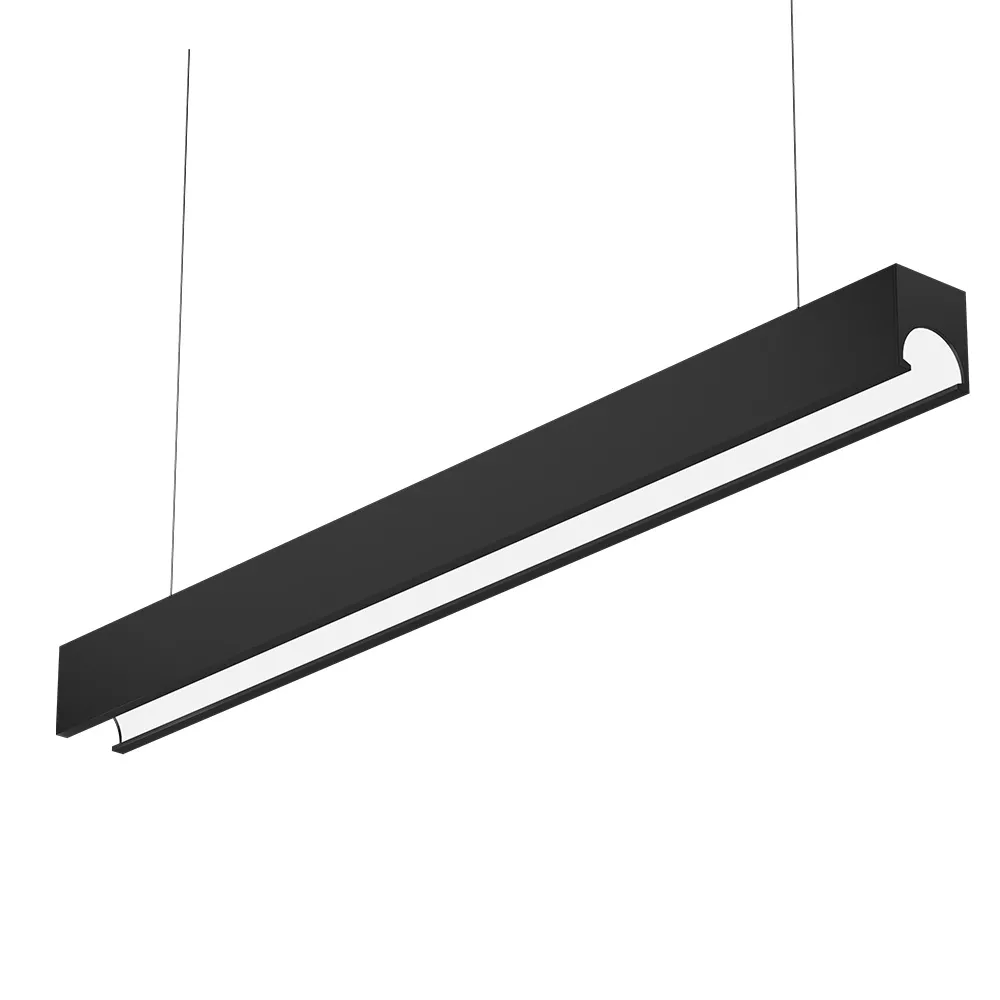

L8899 4ft LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L8899-WW34S, L8899-NW34S, L8899-W34S
Standard length: 4FT/1.232 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 34W (8.5W/ft)
Beam angle: 121° (nano painting reflector)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 3345~3465lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L8899-a34S nonlinkable LED linear light specification sheet.pdf
2.2MB
IES L8899 LED linear light fixture.zip
2.3MB
L8899S 4ft up&down light LED channel light fixture
Product name: Non-linkable LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L8899S-WW45S, L8899S-NW45S, L8899S-W45S
Standard length: 4FT/1.232 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 448 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 45W (11.3W/ft) - up light 11W (2.8W/ft) / down light 34W (8.5W/ft)
Beam angle: 121° (nano painting reflector)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4200~4455lm (1050~1114lm/ft) - up 1027~1089lm / down 3173~3366lm
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: pendant
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L8899S-a45S nonlinkable LED linear light specification sheet.pdf
1MB
IES L8899S LED linear light fixture.zip
2.8MB
R5536 4ft recessed LED channel light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R5536-WW23, R5536-NW23, R5536-W23
Standard length: 4FT/front side with rims 1.241 meters, back side without rim 1.227 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 224 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 23W (5.8W/ft)
Beam angle: 97° (PC plain diffuser), 76° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 1660~1765lm (415~441lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R5536-a23 recessed LED linear light specification sheet.pdf
1.6MB
IES R5536 recessed LED linear light fixture.zip
2.3MB

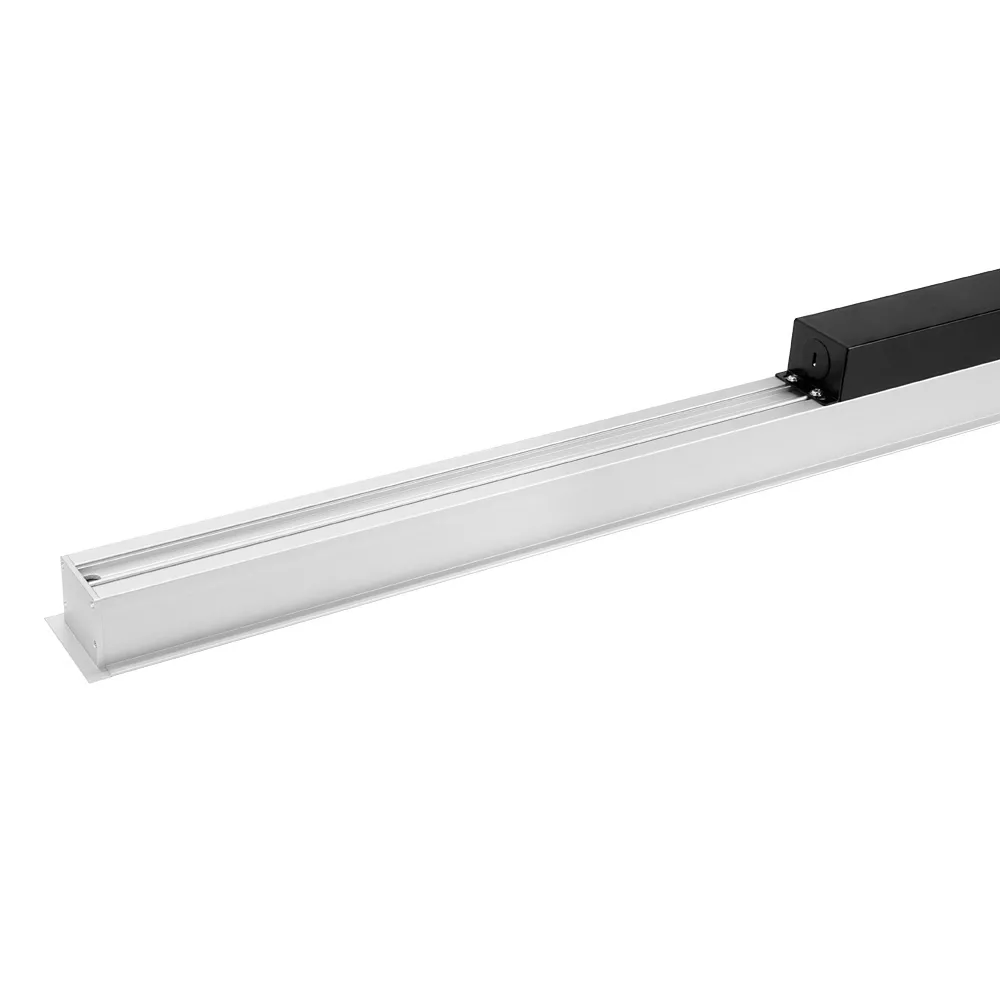

R5536 8ft recessed LED channel light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R5536-WW47, R5536-NW47, R5536-W47
Standard length: 8FT/front side with rims 2.446 meters, back side without rim 2.46 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 448 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 47W (5.8W/ft)
Beam angle: 97° (PC plain diffuser), 76° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 3325~3530lm (415~441lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R5536-a47 recessed LED linear light specification sheet.pdf
1.1MB
IES R5536 recessed LED linear light fixture.zip
2.3MB
R6836 4ft recessed LED channel light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R6836-WW32, R6836-NW32, R6836-W32
Standard length: 4FT/front side with rims 1.241 meters, back side without rim 1.227 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 280 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 32W (8W/ft)
Beam angle: 97° (PC plain diffuser), 85° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 2550~2720lm (637~680lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R6836-a32 recessed LED linear light specification sheet.pdf
1.8MB
IES R6836 recessed LED linear light fixture.zip
2MB
R6836 8ft recessed LED channel light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R6836-WW62, R6836-NW62, R6836-W62
Standard length: 8FT/front side with rims 2.446 meters, back side without rim 2.46 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 560 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 62W (8W/ft)
Beam angle: 97° (PC plain diffuser), 85° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 5115~5430lm (637~680lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R6836-a62 recessed LED linear light specification sheet.pdf
1.1MB
IES R6836 recessed LED linear light fixture.zip
2MB
R8636 4ft recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R8636-WW34, R8636-NW34, R8636-W34
Standard length: 4FT/front side with rims 1.241 meters, back side without rim 1.227 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 34W (8.5W/ft)
Beam angle: 97° (PC plain diffuser), 85° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 3090~3285lm (772~821lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R8636-a34 recessed LED linear light specification sheet.pdf
1.8MB
IES R8636 recessed LED linear light fixture.zip
2MB

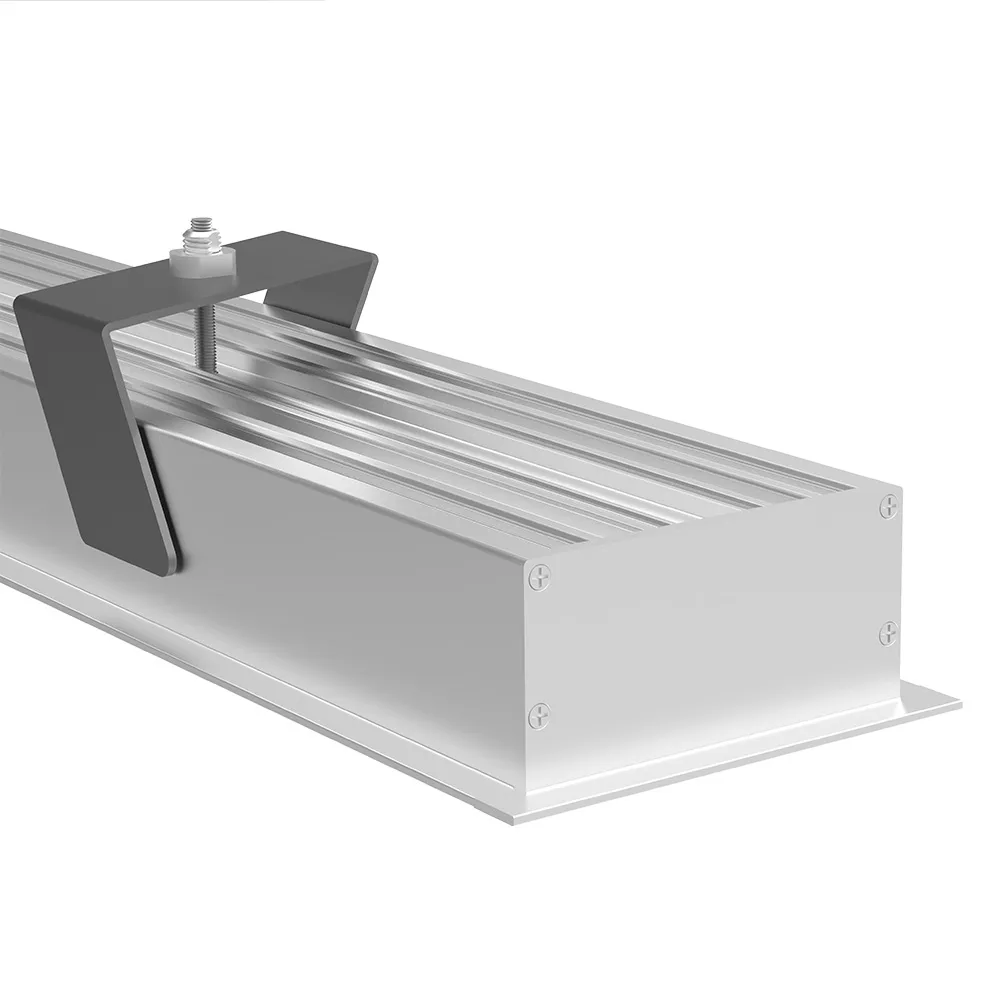

R8636 8ft recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R8636-WW68, R8636-NW68, R8636-W68
Standard length: 8FT/front side with rims 2.446 meters, back side without rim 2.46 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 68W (8.5W/ft)
Beam angle: 97° (PC plain diffuser), 85° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 6185~6565lm (772~821lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R8636-a68 recessed LED linear light specification sheet.pdf
1.1MB
IES R8636 recessed LED linear light fixture.zip
2MB

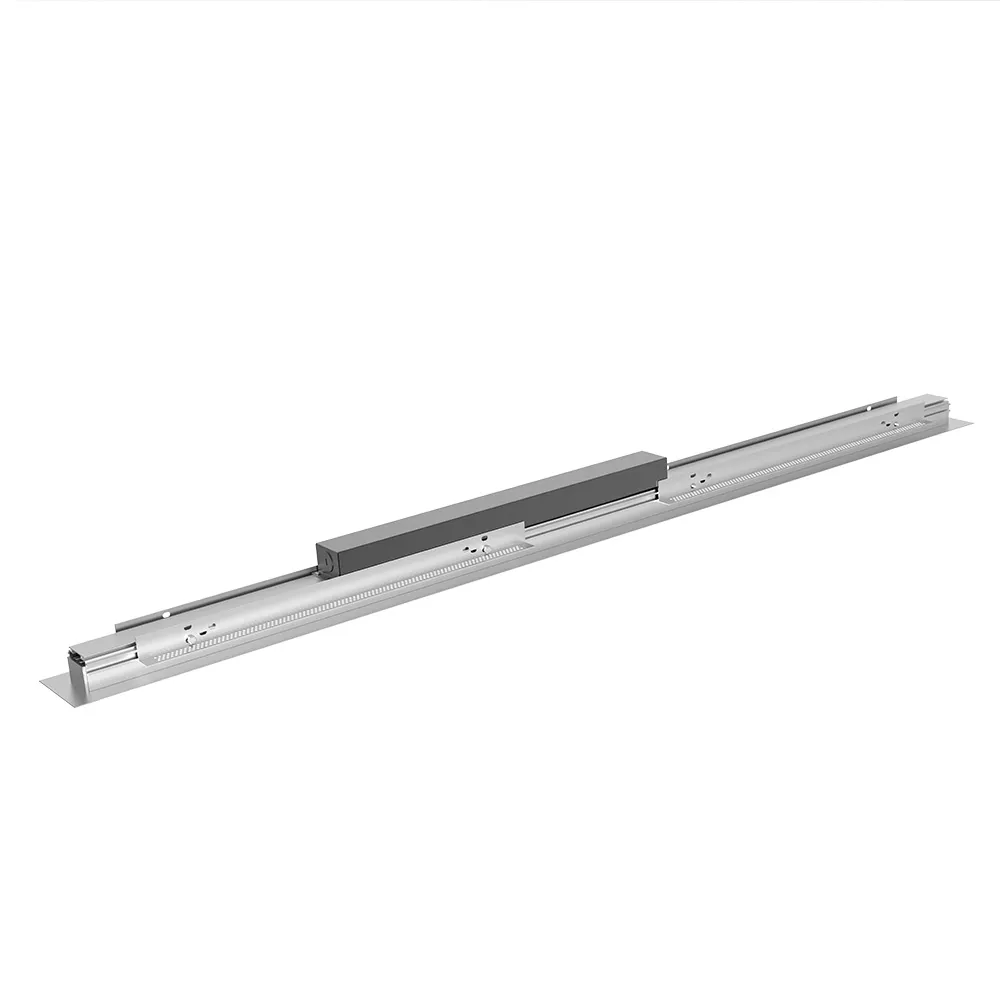

R8035M 4ft recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R8035M-WW31, R8035M-NW31, R8035M-W31
Standard length: 4FT/1.272 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 224 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 31W (7.7W/ft)
Beam angle: 105° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 2740~2840lm (685~710lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R8035M-a31 recessed LED linear light specification sheet.pdf
1.5MB
IES R8035 recessed LED linear light fixture.zip
2MB
R8035M 8ft recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R8035M-WW62, R8035M-NW62, R8035M-W62
Standard length: 8FT/2.491 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 448 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 62W (7.7W/ft)
Beam angle: 105° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 5485~5820lm (685~710lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R8035M-a62 recessed LED linear light specification sheet.pdf
1.5MB
IES R8035 recessed LED linear light fixture.zip
2MB

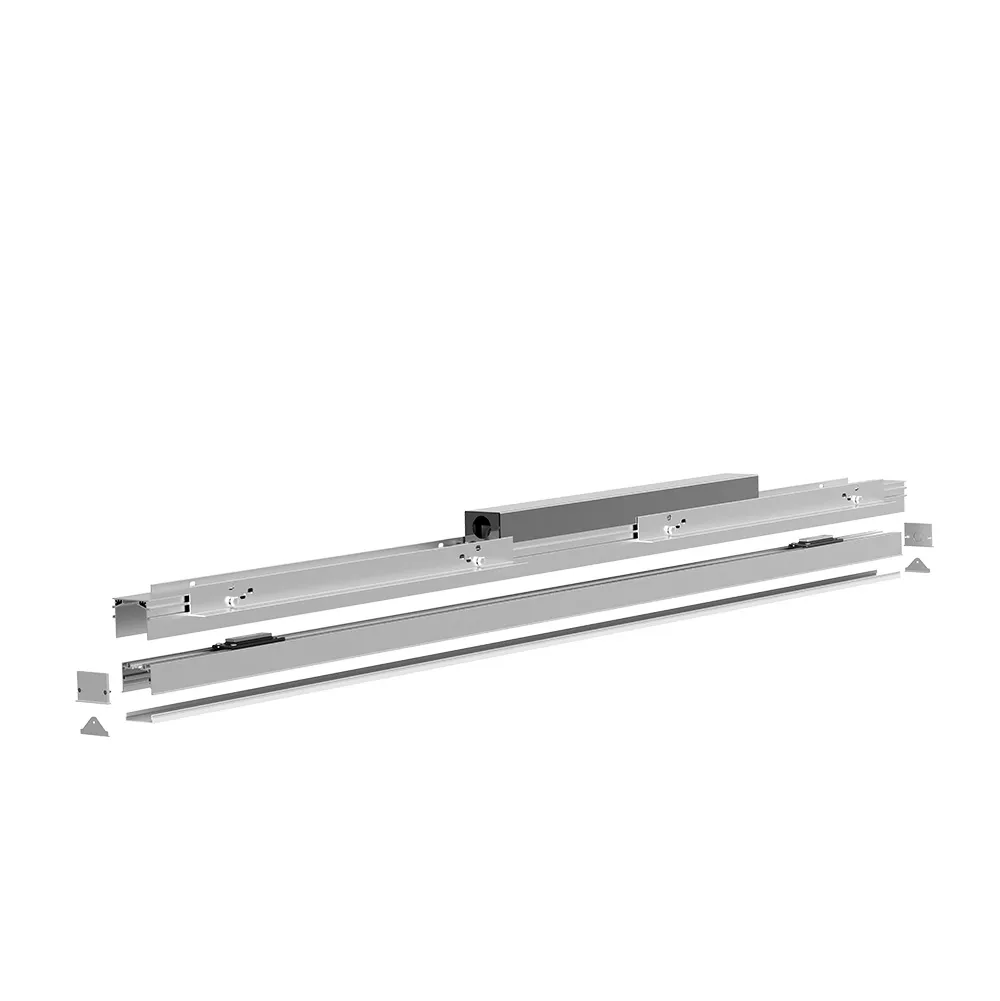

R8035S 4ft recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R8035S-WW31, R8035S-NW31, R8035S-W31
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 224 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 31W (7.7W/ft)
Beam angle: 105° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 2740~2840lm (685~710lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R8035S-a31 recessed LED linear light specification sheet.pdf
1.5MB
IES R8035 recessed LED linear light fixture.zip
2MB

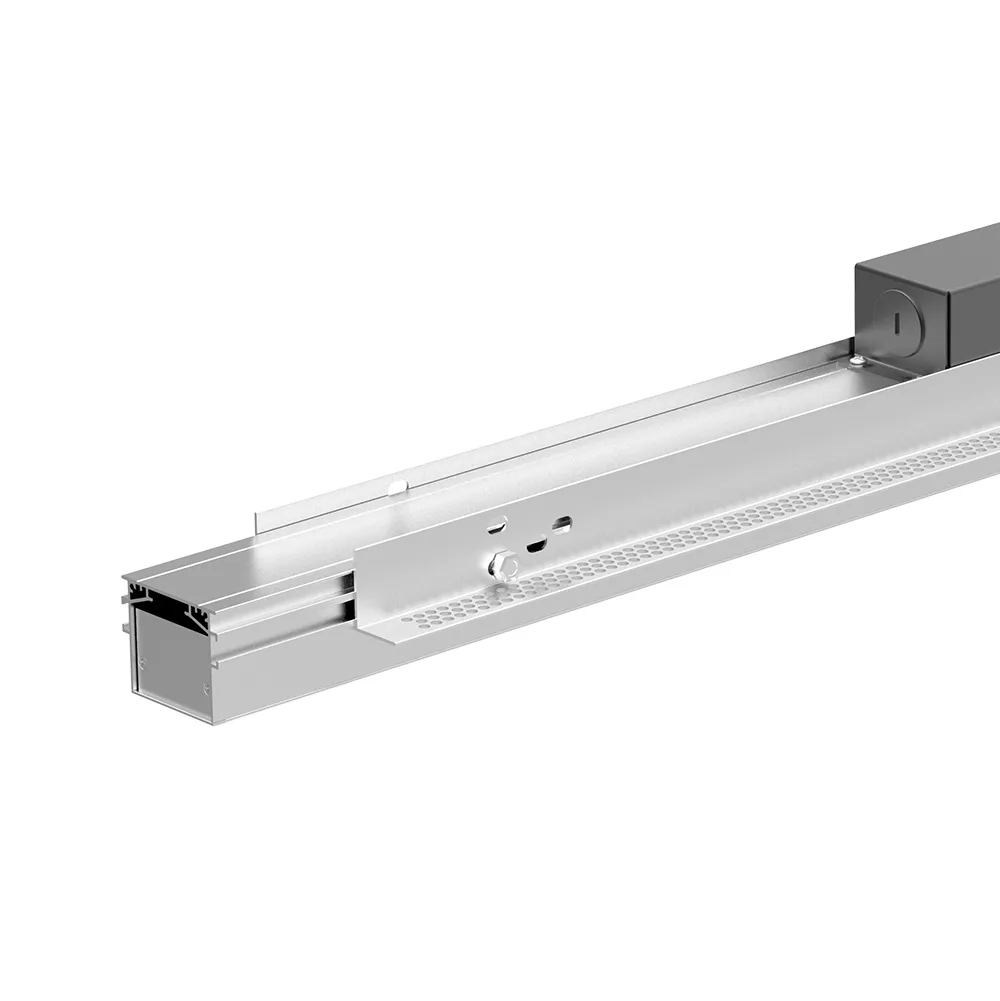

R8035S 8ft recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: R8035S-WW62, R8035S-NW62, R8035S-W62
Standard length: 8FT/2.45 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 448 LEDs
LED driver: LED linear driver
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 62W (7.7W/ft)
Beam angle: 105° (PC plain diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 5485~5820lm (685~710lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

R8035S-a62 recessed LED linear light specification sheet.pdf
1.4MB
IES R8035 recessed LED linear light fixture.zip
2MB
L5570 4ft CCT tunable LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW31R, L5570-NW31R, L5570-W31R
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 31W (7.8W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 2900~3100lm (725~775lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-a31R recessed LED linear light specification sheet.pdf
3MB
IES L5570 LED linear light fixture.rar
1.2MB
L5570 8ft CCT tunable LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L5570-WW61R, L5570-NW61R, L5570-W61R
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 61W (7.8W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 5800~6155lm (725~775lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L5570-a61R recessed LED linear light specification sheet.pdf
3.0MB
L7380 4ft rimless recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L7380-WW34R, L7380-NW34R, L7380-W34R
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 336 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 34W (8.5W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 3345~3465lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L7380-a34R recessed LED linear light specification sheet.pdf
3MB
IES L7380 LED linear light fixture.zip
2MB
L7380 8ft rimless recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L7380-WW68R, L7380-NW68R, L7380-W68R
Standard length: 8FT/2.34 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 672 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 68W (8.5W/ft)
Beam angle: 96° (PC plain diffuser), 83° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 6700~7105lm (836~866lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L7380-a68R recessed LED linear light specification sheet.pdf
3.1MB
IES L7380 LED linear light fixture.zip
2MB
L9086 4ft rimless recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L9086-WW45R, L9086-NW45R, L9086-W45R
Standard length: 4FT/1.23 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 504 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 45W (11.3W/ft)
Beam angle: 98° (PC plain diffuser), 81° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 4710~5000lm (1177~1250lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L9086-a45R recessed LED linear light specification sheet.pdf
2.8MB
IES L9086 LED linear light fixture.zip
2MB
L9086 8ft rimless recessed LED linear light fixture
Product name: recessed LED linear light fixture / LED channel light fixture
Certificate: ETL (control number: 5010725), CE and CB (TUV Rheinland)
Item code: L9086-WW90R, L9086-NW90R, L9086-W90R
Standard length: 8FT/2.453 meters
Light source: SMD2835 LED, constant current LED rigid bar
LED quantity: 1008 LEDs
LED driver: built-in LED power supply
Input voltage: 100~277V AC / 100~240V AC (50~60Hz)
Power: 90W (11.3W/ft)
Beam angle: 98° (PC plain diffuser), 81° (UGR anti-glare diffuser)
Standard CCT: 3000K/4000K/6000K (3500K/5000K)
CRI: 80+/90+
Brightness: 9425~10000lm (1177~1250lm/ft)
Dimming solutions: 0~10V, PWM, Resistor, DALI, Smart etc
Installation: recessed
IP grade: IP40
Working time≥50000H
Application: commercial, airport, metro station, shopping mall, office, school, villa etc.
Warranty: 5 years

L9086-a90R recessed LED linear light specification sheet.pdf
3MB
IES L9086 LED linear light fixture.zip
2MB
